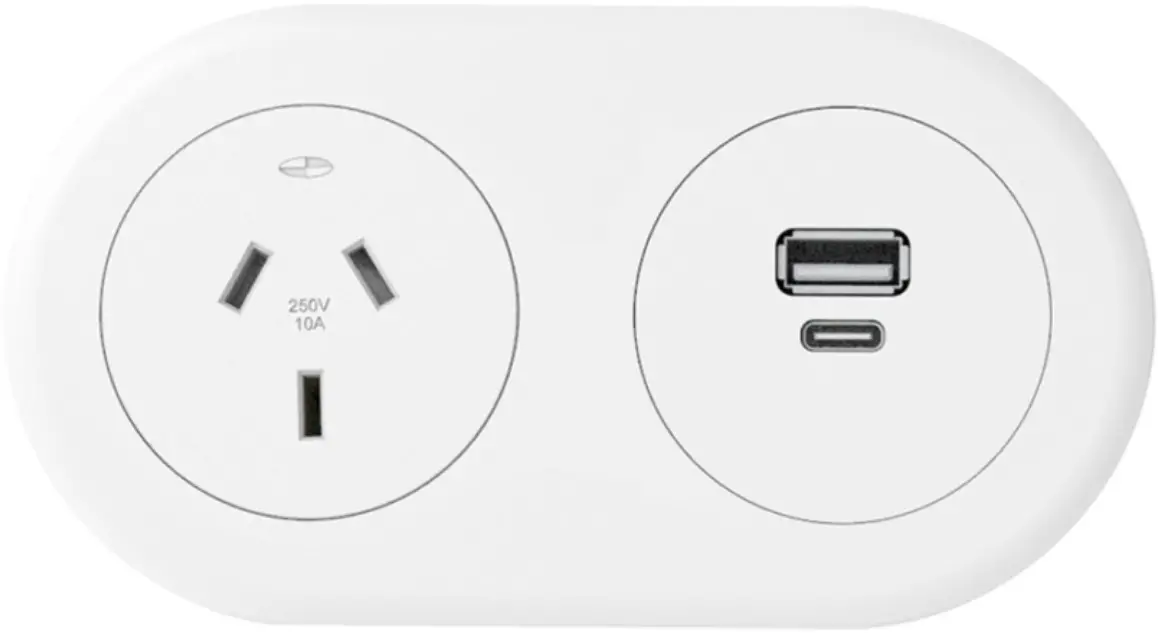

CMS Electracom LU41660 Helistand Wireless Charger Instruction Manual

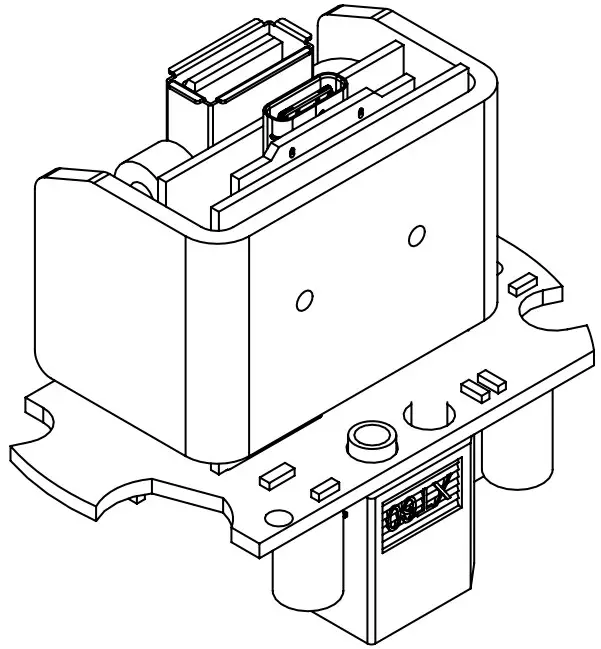

PARTS

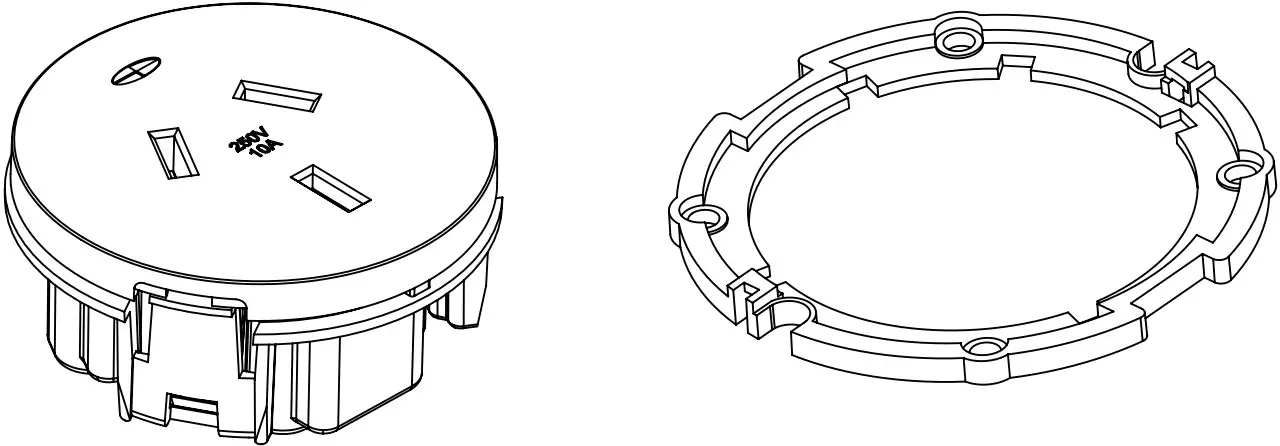

AU/NZ SOCKET OUTLET = AU
FACTORY ONLY INSERTABLE MODULES REFER PAGE 2 FOR MODULE CONFIGURATION
140W DC USB AC MODULE = U

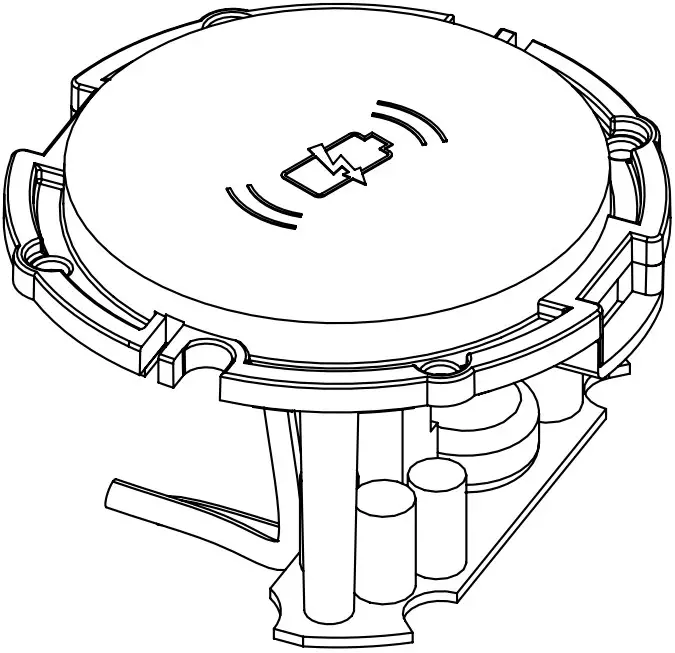

DC WIRELESS CHARGING MODULE = W

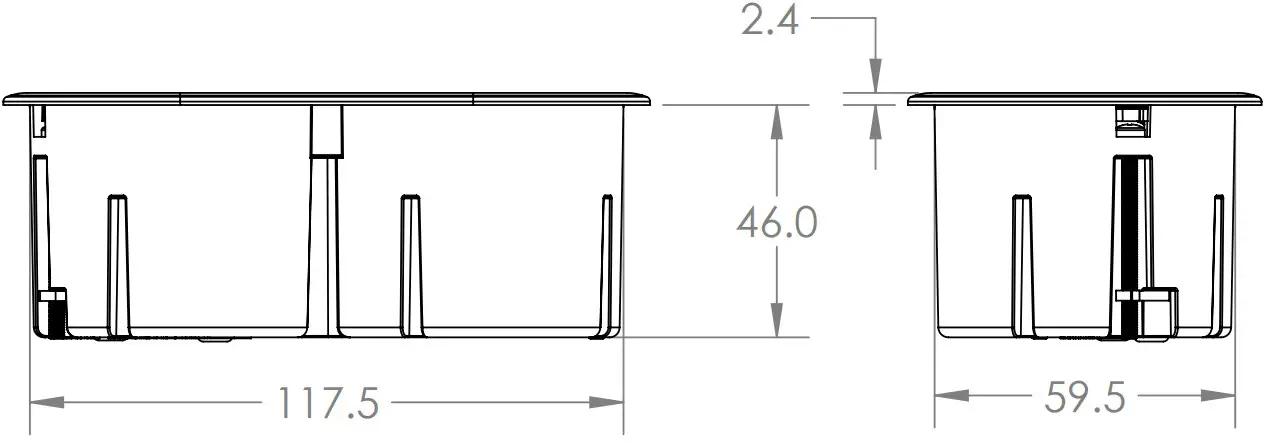

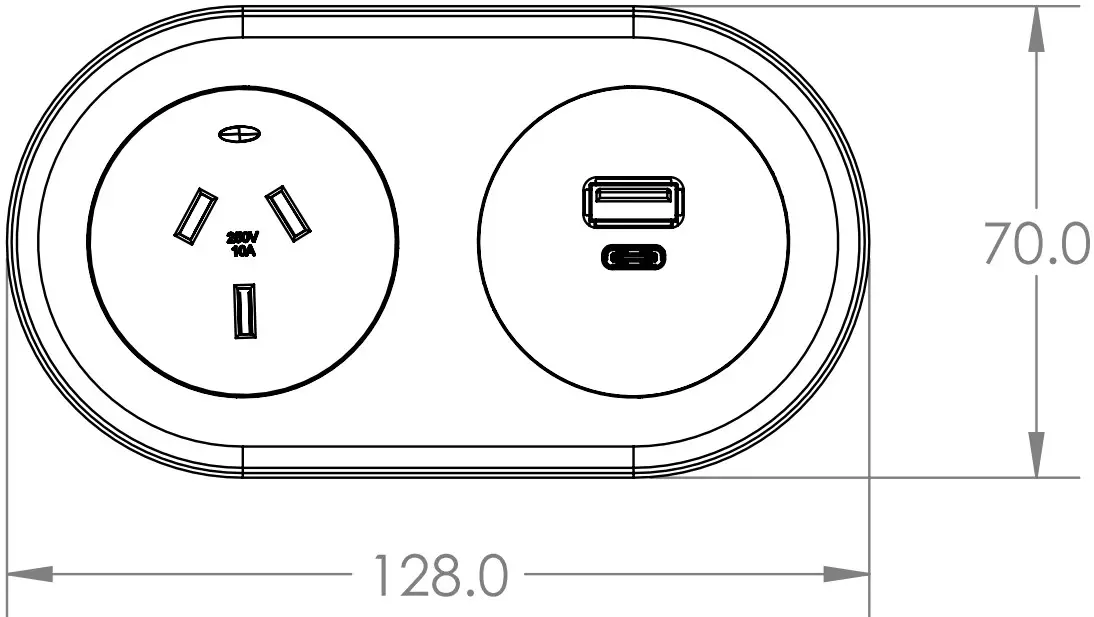

PRODUCTY DIMENSION

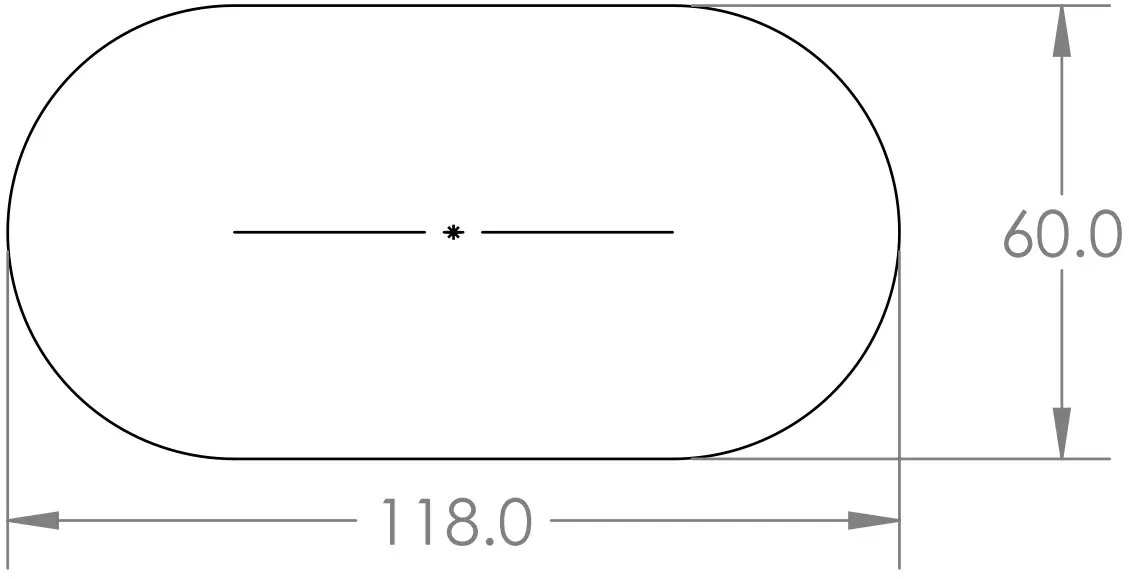

ROUTING CUTOUT 118mm x 60mm -0/+2mm

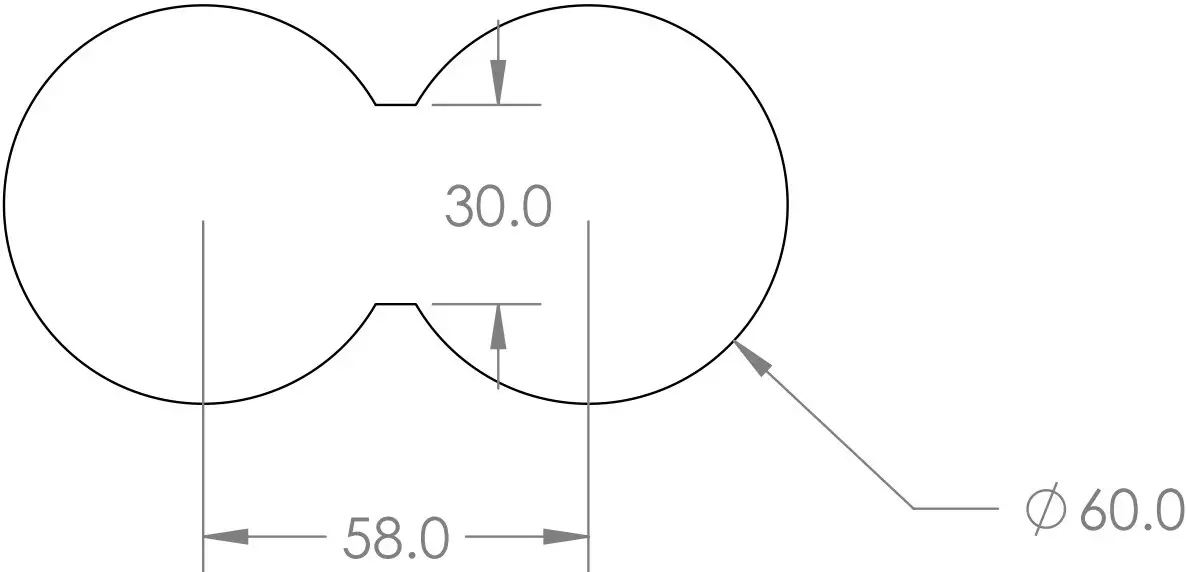

MANUAL HOLESAW CUTOUT 2 off 60mm HOLES 58mm PITCH CUT FLATS 30mm -0/+2mm
| 1 | RELEASED FOR PRODUCTION | 16/1/2023 | JB | RG |
| REV | DESCRIPTION | DATE | DRWN | APPV |
| REVISIONS | ||||
| CUSTOMER SIGNATURE: | TOLERANCES UNLESS OTHERWISE STATED:X 0.5 X.X 0.2 X.XX 0.1 X.XXX 0.05 ANG 0.5 | CMS Electracom | ||
| MATERIAL TEXTURED | TITLEAU MULTI 2 ECHO DC CONFIGURATIONS | |||
| COLOUR WHITE OR BLACK | DRAWINGLU41660 | REV1 | A3 | |
| THIS DRAWING & ASSOCIATED CAD FILES ARE ISSUED IN THE STRICTEST CONFIDENCE AND ARE ONLY TO BE USED IN THE COMMERCIAL INTERESTS OF CMS ELECTRACOM PTY LTD | DRAWN IN mm TO AS1100 DO NOT SCALE | SCALE 1:2 | SHEET 1 OF 4 | |

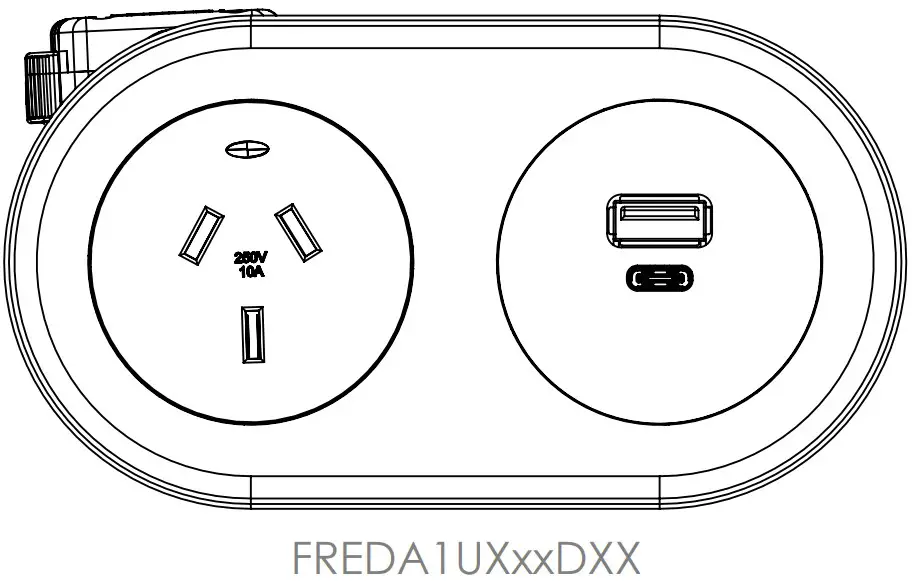

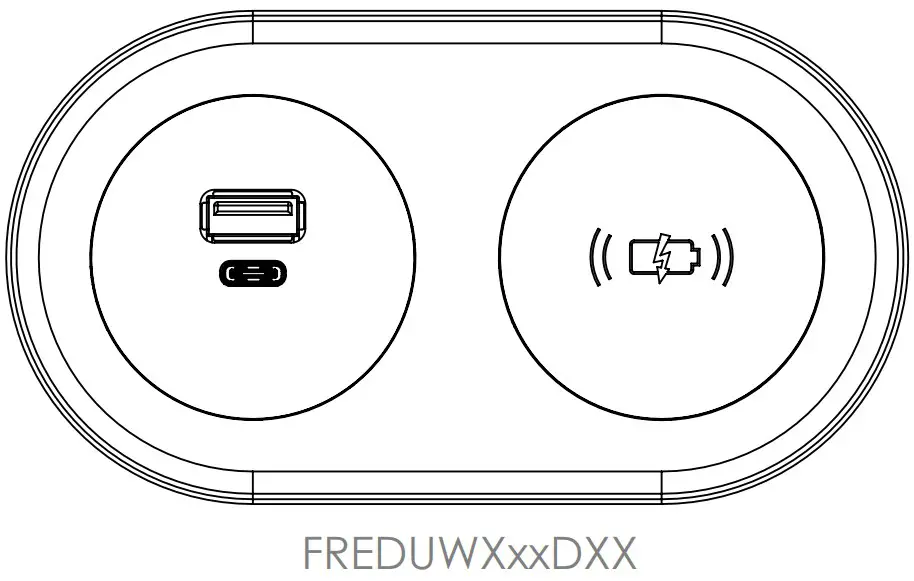

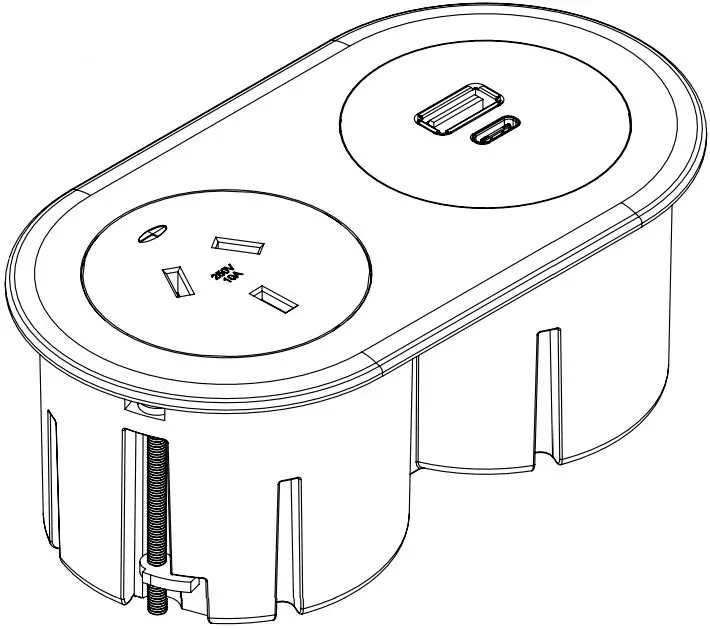

OVERVIEW
NOTE: ONLY FREDA1UXxxDXX COMES WITH LEAD
CABLE TYPE: 2.5MM

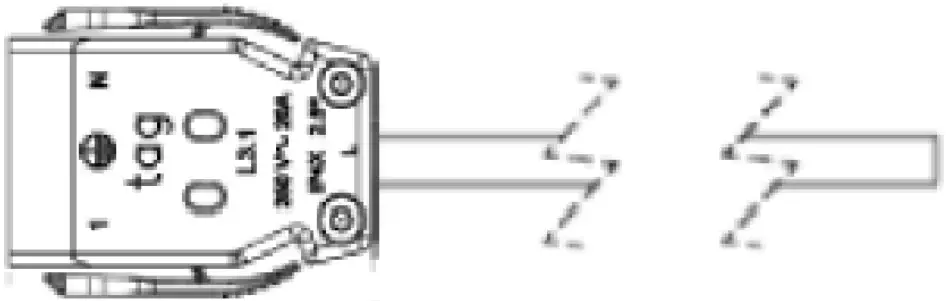

DESCRIPTION: TAG CONNECTOR LEAD
COLOUR: WHITE OR BLACK (REFER TO PURCHASE ORDER) LENGTH (mm):
| xx | LENGTH (mm) |
| 05 | 500 |
| 10 | 1000 |
| 15 | 1500 |
| 20 | 2000 |
| 25 | 2500 |
| 30 | 3000 |
| 35 | 3500 |
| 40 | 4000 |
| 45 | 4500 |
| 50 | 5000 |
NOTE: ONLY FREDA1UXxxDXX COMES WITH LEAD
CABLE TYPE: 1MM

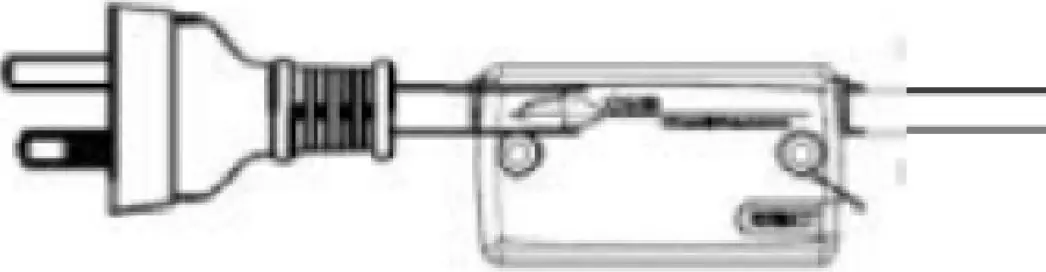

DESCRIPTION: AUSTRALIAN PLUG LEAD WITH THERMAL OVERLOAD
COLOUR: WHITE OR BLACK (REFER TO PURCHASE ORDER) LENGTH (mm):
| xx | LENGTH (mm) |
| 05 | 500 |
| 10 | 1000 |
| 15 | 1500 |
| 20 | 2000 |
| 25 | 2500 |
| 30 | 3000 |
| 35 | 3500 |
| 40 | 4000 |
| 45 | 4500 |
| 50 | 5000 |
PART NUMBER: FREDA1UXxxDXX
NOTE – X – LEAD TYPE (TAG = T OR 3PIN PLUG = A)
xx – LENGTH – 05 / 10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50
XX – COLOUR – WT / BK
| CUSTOMER SIGNATURE: | TOLERANCES UNLESS OTHERWISE STATED:X 0.5 X.X 0.2 X.XX 0.1 X.XXX 0.05 ANG 0.5 | CMS Electracom | ||
| MATERIAL PC-FR | AU MULTI 2 ECHO DC CONFIGURATIONS | |||
| COLOUR WHITE OR BLACK | DRAWINGLU41660 | REV: 1 | A3 | |
| THIS DRAWING & ASSOCIATED CAD FILES ARE ISSUED IN THE STRICTEST CONFIDENCE AND ARE ONLY TO BE USED IN THE COMMERCIAL INTERESTS OF CMS ELECTRACOM PTY LTD | DRAWN IN mm TO AS1100 1 DO NOT SCALE | SCALE 1:2 | SHEET 2 OF 4 | |
