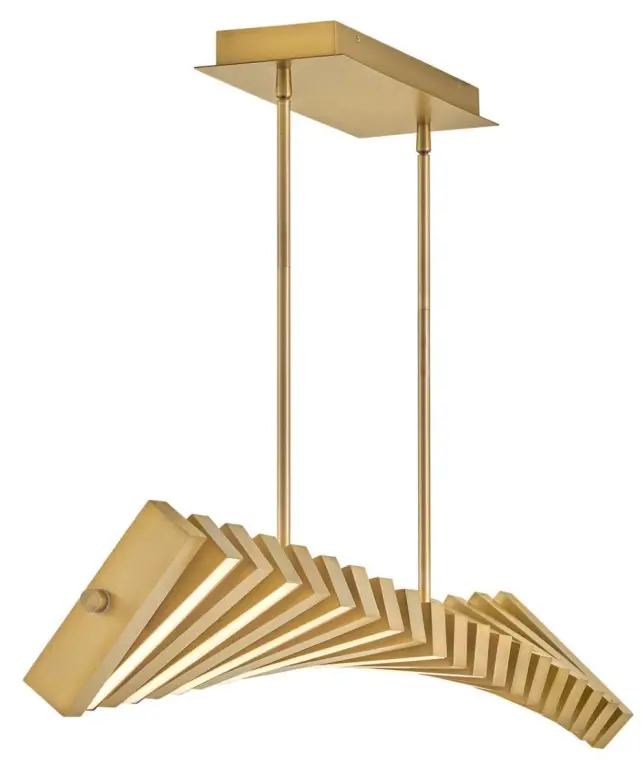

FR42455LCB Stitch LED Linear
Instruction Manual
STITCH
FR42455LCB
LED LINEAR
Stitch strikes a pose with an innovative design, offering bountiful illumination from articulating LED panels. This dynamic linear chandelier is a modern sculptural statement available in Black Oxide or Lacquered Brass finishes.
PRODUCT DETAILS:
- This fixture includes multiple down stems in various lengths to customize the installation height, including two 6″ stems and four 12″ stems.
- Suitable for use in dry (indoor) locations as defined by NEC and CEC. Meets United States UL
- Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
- Meets California Energy Commission 2013 & 2016 Title regulations/JA8

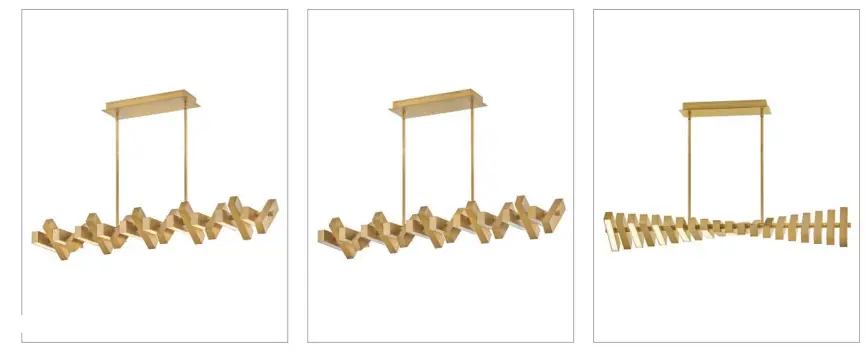

- Innovative modern design with individual, articulating panels to create a customized lighting design
- LED components carry a 5-year limited warranty
- Bold silhouette with dramatic details creates a modern statement
- Classic gleaming light brass finish
| DETAILS | |
| FINISH: | Lacquered Brass |
| MATERIAL: | Steel |
| GLASS: | Polycarbonate Lens |
| DIMENSIONS | |
| WIDTH: | 42″ |
| HEIGHT: | 12″ |
| DEPTH: | 7.5 |
| WEIGHT: | 17.3lb |
| LIGHT SOURCE | |
| LIGHT SOURCE: | Integrated LED |
| LED NAME: | LEVO56-304 |
| VOLTAGE: | 120v |
| COLOR TEMP: | 3000 |
| CRI: | 92 |
| INCANDESCENT EQUIVALENCY: | 4 x 40w |
| DIMMABLE: | Yes – CL Type Dimmer (SSL7A) |
| MOUNTING | |
| CANOPY: | 14.25″W X 4.75″L |
| LEAD WIRE: | 1 X 120″ |
| MAX HEIGHT: | 29.8 |
| SHIPPING | |
| CARTON LENGTH: | 45.5 |
| CARTON WIDTH: | 11.3 |
| CARTON HEIGHT: | 7.5 |
| CARTON WEIGHT: | 19.9 |
33000 Pin Oak Parkway
Avon Lake, OH 44012
PHONE: (440) 653-5500
Toll Free: 1 (800) 446-5539
hinkley.com
