Led Lighting Wholesale Inc Dm03-120w50-c Led Linear Highbay Instruction Manual

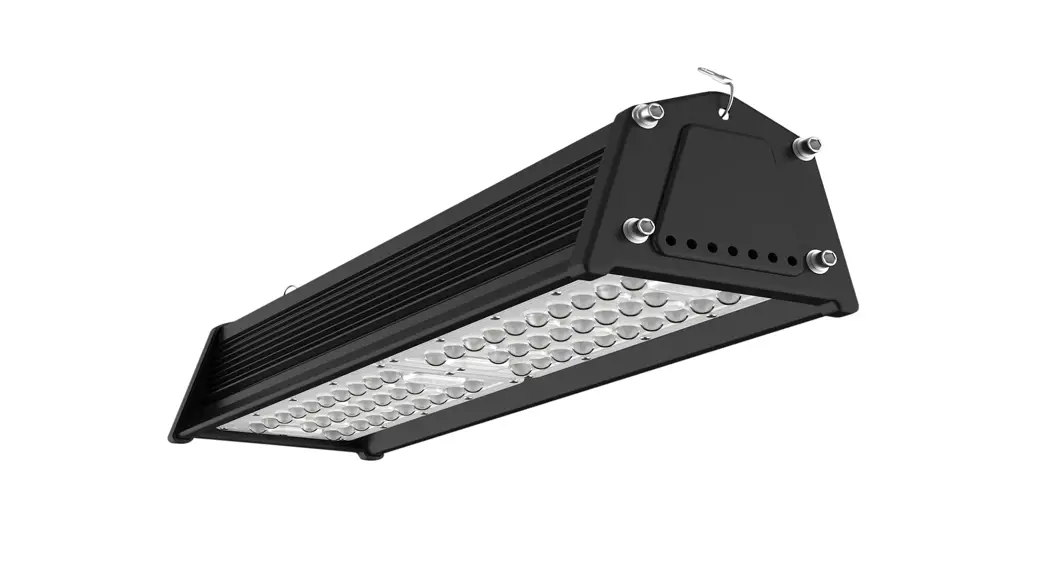

DM03-120W50-C LED Linear Highbay

Product Information: LED Linear Highbay

The LED Linear Highbay is a popular choice for warehouse
lighting. It is designed to be easy to hang using two gribber
cables and simple to connect with the junction box located on the
back. This high bay lighting option is well-known for its wide
light distribution, making it an excellent choice for those looking
to switch to LED lighting and save energy. The product features a
color rendering index (Ra) of over 80, ensuring high-quality
illumination.

Key Features:

• ETL, FCC & DLC listed
• Compliant with LM79 & LM80 standards
• Available in 2ft and 4ft sizes with various wattage
  options:
  • 2ft: 110W, 130W, 160W, 170W
  • 4ft: 160W, 255W, 300W, 400W
• High luminous efficacy of 125 lm/w
• 0-10V dimming capability
• Power factor (PF) of 0.90
• Driver efficiency of 90%
• Total Harmonic Distortion (THD)

Product Usage Instructions: LED Linear Highbay

To install and use the LED Linear Highbay, please follow these
steps:

1. Choose an appropriate location for installation, ensuring it is
   suitable for high bay lighting.
2. Identify two suitable points for hanging the high bay lights
   using gribber cables. Ensure the points are secure and capable of
   supporting the weight of the lights.
3. Attach the gribber cables to the designated points on the high
   bay lights.
4. Connect the high bay lights to the power supply using the
   junction box located on the back of the lights.
5. Ensure the power supply is compatible with the required voltage
   for the LED Linear Highbay.
6. Turn on the power supply and verify that the lights are
   functioning properly.
7. (Optional) If dimming functionality is desired, connect a
   compatible 0-10V dimmer to the high bay lights.
8. Adjust the dimming level as desired using the connected
   dimmer.

Note: It is recommended to consult a professional electrician
for installation and to ensure compliance with local electrical
regulations.

LED Linear Highbay
LED Linear Highbay
LED Linear high bay lighting is a popular choice in warehouse lighting. They are easy to hang with two gribber cables and easy to connect with the junction box right on back. Popular for their wide light distribution, they are a great choice for going LED and saving energy. No.

5

Ra>80

90°

Product Features
1.ETL, FCC & DLC listed;With LM79 & LM80; 2.2ft:110W&130W&160W&170W;4ft:160W&255W&300W&400W 3.High luminous efficacy 125 lm/w; 4. 0-10V dimming; 5.PF0.90,driver efficiency90%,THD<20%; 6.Installation: Chain Installation and steeve Installation; 7.Suitable for dry/damp location; 8.Designed for warehouses, gymnasiums, and industrial spaces; 9.Easy installation of emergency and motion sensors; 10.CCT Tunable: 3500K & 4000K & 5000K ;
Product Dimension

Part No.

A

2ft

15″

B

C

25″ 1.3″

D 2.17″

4ft

15″

46.5″ 1.3″

2.17″

Part

LED Linear Highbay

Specification

Name Part No. Power

2FT Linear high bay
4FT

110W 130W 160W 170W 160W 255W 300W 400W

Chain Installation

Input Voltage Input Current PF

AC120-277V AC120-347V

0.99A 1.17A 1.44A 1.53A 1.44A 2.29A 2.7A 3.6A

0.9

Light Efficacy
125lm/w

CCT Ra
3500K 4000K 80 5000K

1.Hook the chain as below pic.

2.Insert the hook into the slotted holes as shown below.

Chain

3.Hook up the chain on the ceiling anchor.

4.Turn off power,and make wiring connections with terminal cap(see wiring instrucion below).

Terminal cap

IN

TO SOURCE 120-277V 120-347V

BLACK(LINE) WHITE(NEUTRAL)
GREEN(GRD)

FIXTRUE

5.Insert the terminal cap and wires into the driver box.

6.Insert the wire terminal joint to the wire entry.Installation completed.

7.Flip the color temperature switch to the desired color temperature, as shown in the figure.
CCT

LED Linear Highbay

Steeve Installation:

1. Fixed the junction box on the fixture with the provided hardware. terminal Cap

2. Fixed the high bay on the steeve with provided hardware.
Steeve
flat washer spring washer screw nut

3. Turn off power,and make wiring connections with terminal cap.(see wiring instrucion below)

IN

TO SOURCE 120-277V

BLACK(LINE) WHITE(NEUTRAL)
GREEN(GRD)

FIXTRUE

Terminal cap

4.Attach both face plates to the Junction box with the provided hardware

5.Installation completed.

screw side plate

Motion sensing Installation:
1. Unscrew the nut on the base of the motion sensor 2. Install the motion sensor and tighten the screws.

LED Linear Highbay

Packing/Weight

Part NO.
2ft

OuterCartonSize (LxWxH)
670*165*425mm 26.38″*6.5″*16.73″

4ft

1220*165*425mm 48″*6.5″*16.73″

Qty/Carton (pcs)

Netweight (lbs)

Grossweight (lbs)

12

14

2

22

24

Packing info

Model
2ft 4ft

Packing way

Carton size(mm)

Pallet Loading

20’GP

40’GP 40’HP

Non-Pallet Loading

20’GP

40’GP 40’HP

2PCS/Carton 67700*016*25*1452*54m45mmm

1800PCS 3500PCS 3600PCS

2PCS/Carton 1220*165*425mm

1000PCS 1900PCS 2000PCS

Applications

Note
1.The installation and maintenance must be completed by electricians or professionals. 2.Please cut off the power before installation and maintenance. 3.The thermally insulating material is not allowed to cover the fixture. 4.Please keep away from the corrosive substance,and keep the fixture dry and clean. 5.Working temperature: -4°F~122°F, storage temperature: -22°F~158°F.
