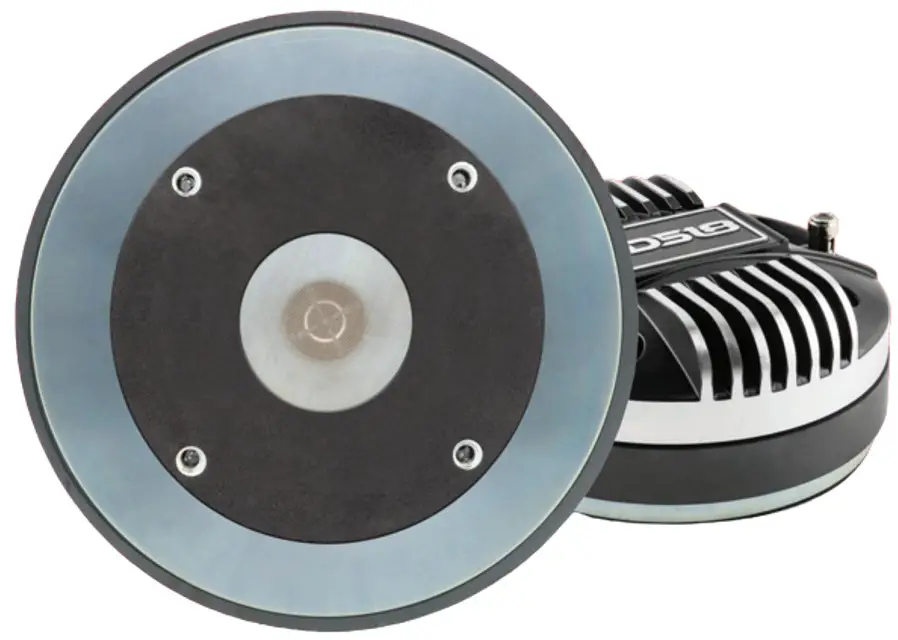

PRO-D2 Throat Bolt On Compression Driver
Owner’s Manual
TITANIUM COMPRESSION DRIVER
Data Sheet
Specifications
Peak Power Handling………………………………………………. 800 Watts
Program Power Handling……………………………………………….400 Watts
AES Rated Power ……………………………………………….200 Watts
Sensitivity(1w/Im)……………………………………………….i709
Frequency Response……………………………………………….500HZ-18.5KHz
Nominal impedance……………………………………………….8 OHMS
Throat Diameter………………………………………………………………. 2
Recommended Hi Pass Crossover……………………………………..800 Hz
Voice Coil Diameter ……………………………………………….3″
Diaphragm Material……………………………………………….Titanium
Magnet Material……………………………………………….Ferrite
Magnet Weight……………………………………………….65 OZ
Bolt Type……………………………………………….Bolt-on

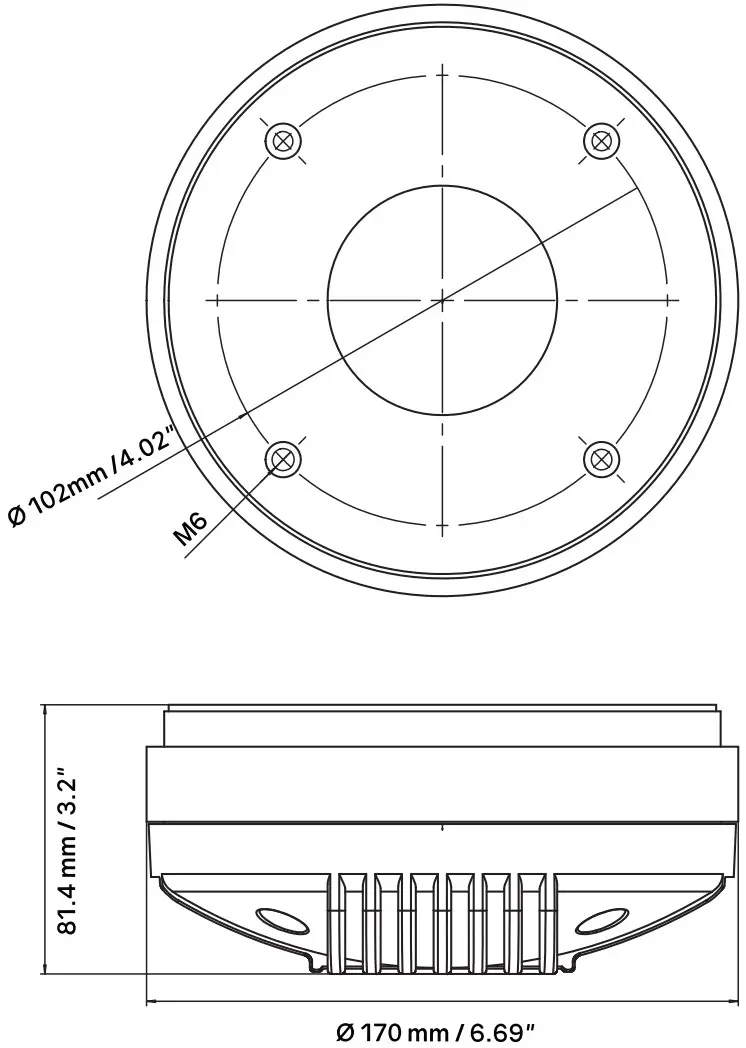

Measurements
Overall Diameter ……………………………………………….6.69″ 170 mm
Overall Depth……………………………………………….32″ 81.4 mm
Shipping Info
Gross Single Unit Weight………………………………………………. 2.7 5k
Single Unit Box Dimensions WxDxH………………………………145x140x 75mm
Quantity of Units in Master Carton………………………………………………..6 PCS/ctn
Gross Master Carton Weight ……………………………………………….15. 50KG
Master Carton Dimensions WxDxH……………………………………………….450x320x 900mm
TITANIUM COMPRESSION DRIVER
Peak Power Handling: 800 Watts
Program Power Handling: 400 Watts
AES Rated Power: 200 Watts
Sensitivity (1w/1m): 109dB
Frequency Response: 500Hz-18.5KHz
Nominal Impedance: 8 ohm
Throat Diameter: 2”
Recommended Hi Pass Crossover: 800Hz
Voice Coil Diameter: 3”
Diaphragm Material: Titanium
Magnet Material: Ferrite
Magnet Weight: 65 oz
Bolt Type: Bolt-on
