Ds18 Twx4 Titanium Voice Coil Owner's Manual

OWNER’S MANUAL

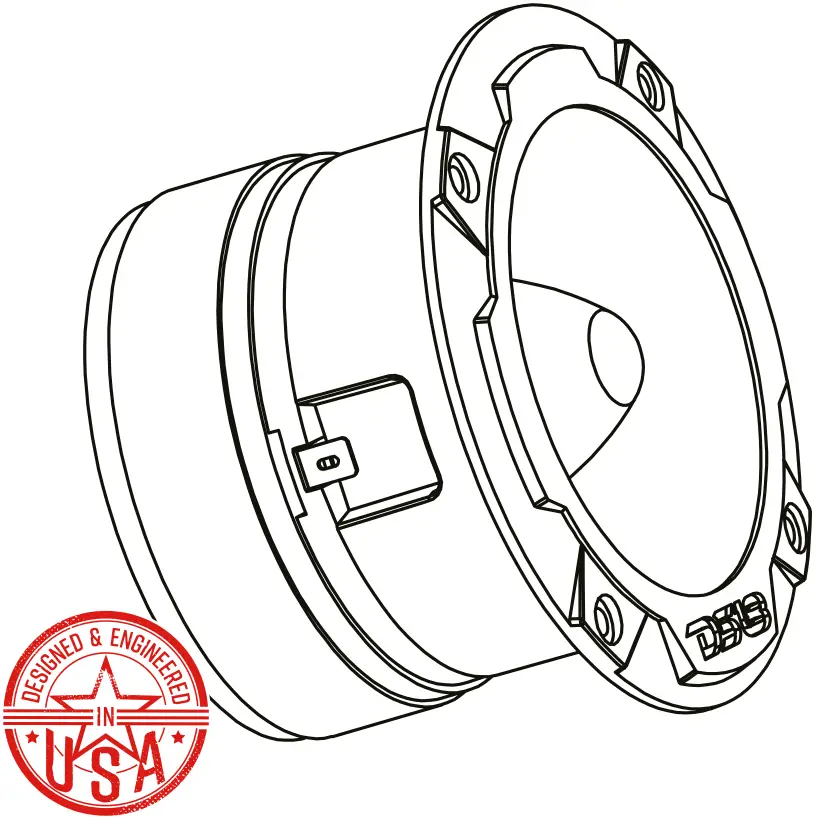

4.5″ SUPER BULLET TWEETER
WITH 1.75″ TITANIUM VOICE COIL

SPECIFICATIONS

Nominal Diameter …………………… 4.53” / 115mm
Nominal Impedance ………………….. 4 OHMS
AES Power Handling …………………. 140W
Program Power Handling ……………… 280W
Peak Power Handling ………………… 560W
Sensitivity (1w/1m) ………………… 108 dB

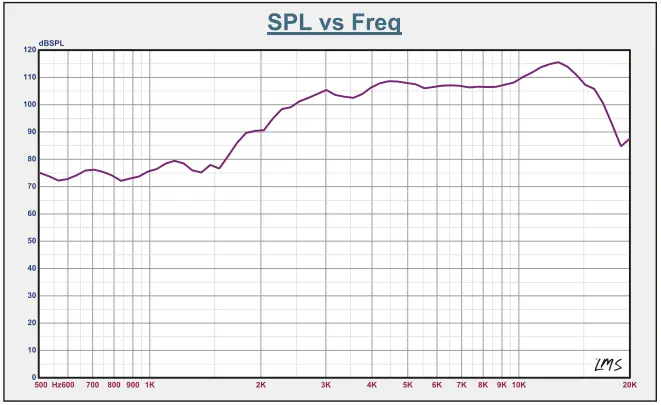

Frequency Response …………………. 1.5-20KHz
Recommended Hi Pass Crossover ……….. 2KHz
Pair or Single …………………….. Single

MOTOR

Voice Coil Diameter ……………… 1.75” / 44.4mm
Voice Coil Former Material ……….. Kapton
Winding Material ………………… CCAW
Diaphragm Material ………………. Titanium
Magnet Material …………………. Ferrite
Magnet Weight …………………… 16 oz
Body Material …………………… Aluminum
Bullet Material …………………. Aluminum

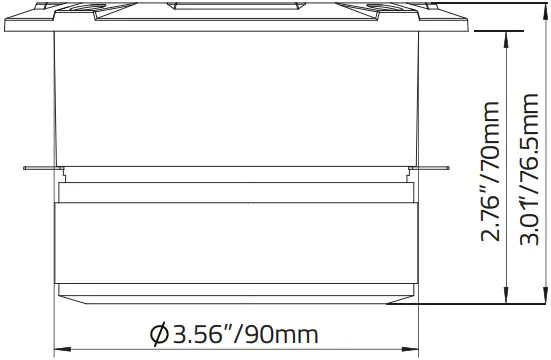

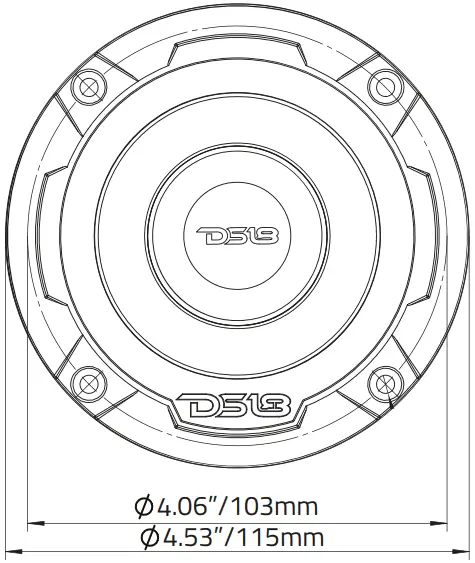

MEASUREMENTS

Overall Diameter ………………. 4.53” / 115mm
Overall Depth …………………. 3.01“ / 76.5mm
Front Mount Baffle Cutout ………. 3.62” / 92mm
Mounting Depth ………………… 2.76” / 70mm
Motor Diameter ………………… 3.56” / 90mm

FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
