HY8MSL 8 Inch Hybrid Slim Loudspeaker with
1 Inch Compression Driver Horn
Owner’s Manual
PRO-HY8MSL
SPECIFICATIONS
Nominal Diameter……………………………….8″ / 203.2mm
Nominal Impedance ……………………………………….. 8 ohms
RMS Power Handling………………………200 Watts
MAX Power Handling ………………………………….400 Watts
Sensitivity (1w/1m) ………………………………………….. 94dB
Frequency Response ……………………… 100Hz-20KHz
Recommended Hi Pass Crossover ………………………. 120 Hz
Number of Ways …………………………………………….2 Ways
Pair or Single …………………………………………….Single
Grill Included …………………………………………..Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter …………………………..1.5″/ 38.6 mm
Voice Coil Former Material ……………………………………KSV
Winding Material ……………………………… CCAW
Cone Material ………………………….. Paper
Surround Material …………………………… Cloth
Basket Material ………………………………. Steel
Magnet Material …………………………………..Ferrite
Magnet Weight …………………………………………… 29.5 Oz
THIELE & SMALL PARAMETERS
Equivalent Volume ……………………Vas ………………7.85L / 0.277ft3
Excursion (one way) ……………………….. Xmax ……………………………..2mm
Free Air Resonance ………………………….. Fs ………………………………. 114Hz
Mechanical Factor ……………. Qms ……………………………..6.282
Electrical Factor ……………………………… Qes ……………………………….0.984
Total Factor ……………….. Qts………………………………..0.851
Mechanical Mass…………………………. Mms………………… 16.357g
Mechanical Compliance ………………………. Cms ……………… 118.033 mm/N
BL Factor ………………………………. BL ……………………….8.817
Voice Coil Inductance ……………….. Le…………………. 12.06mH
Cone Area ……………………………………… Sd …………………….216.424 Cm2
DC Resistance…………………………………. Re ……………………………. 6.5 ohm
Mechanical Mass w……………….. Mmd………………………… 14.527g
DRIVER SPECIFICATIONS
Voice Coil Diameter …………………………… 1” / 25.4 mm
Voice Coil Former Material …………………………………………. Kapton
Winding Material ………………………………….. CCAW
Diaphragm Material …………………………………….Titanium
Magnet Material …………………………………Neodymium
Horn Diameter ………………………… 3″

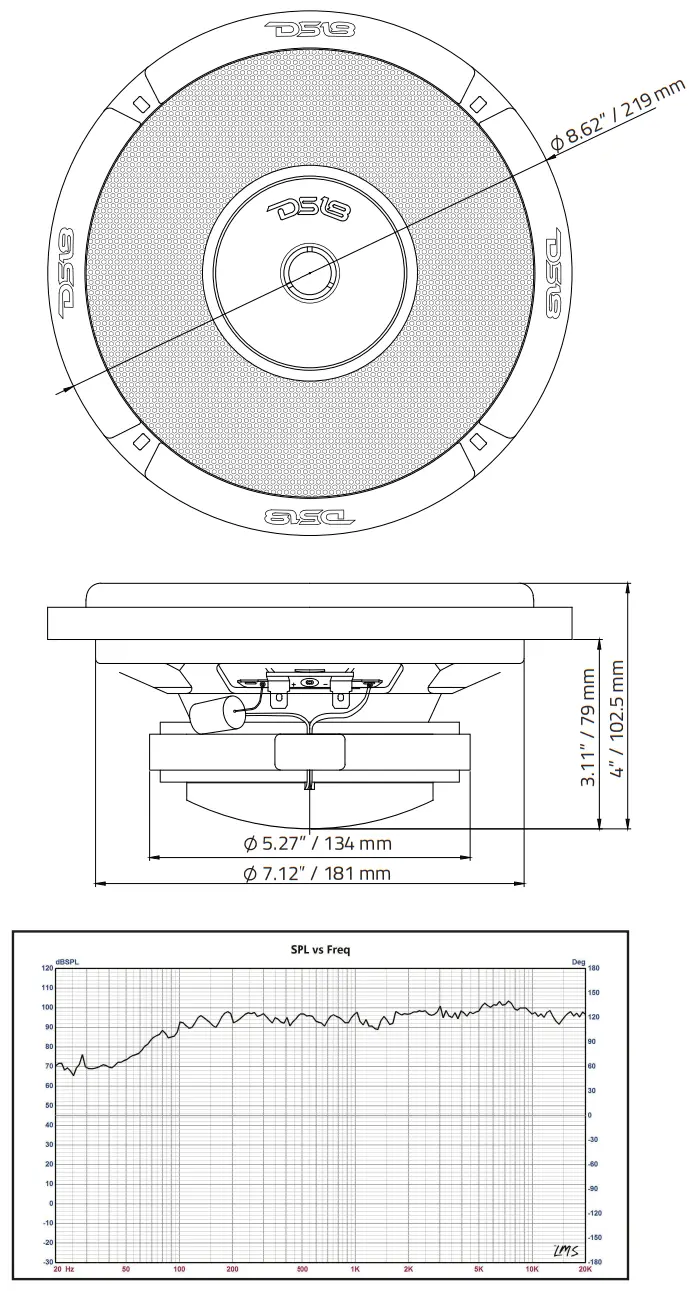

SPEAKER MEASUREMENTS
Overall Diameter …………………..8.62″ / 219mm
Overall Depth …………………………………………………….. 4″ / 102.5mm
Front Mount Baffle Cutout ………………………..7.12″ / 181mm
Mounting Depth ……………………….. 3.11″ / 79mm
Motor Diameter ………………………………………………….5.27″ / 134mm
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
We LIKE IT LOUD
V1
