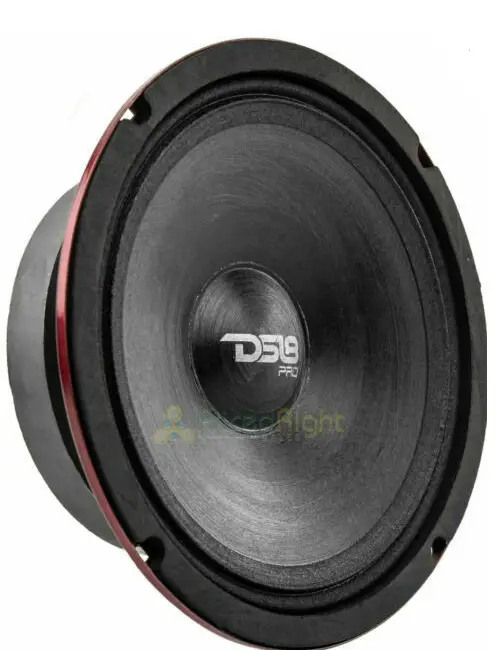

DS18 PRO-SM6.2 6.5 Inch Slim Motorcycle Mid Range Loudspeaker
6.5” SLIM MOTORCYCLE
MID-RANGE LOUDSPEAKER
ALTAVOZ DELGADO DE RANGO MEDIO DE 6.5” PARA MOTOCICLETAS
OVERVIEW
SPECIFICATIONS
- Nominal Diameter ……………………………………………………………………………6.5” / 165.1mm
- Nominal Impedance………………………………………………………………………………….2 OHMS
- RMS Power Handling………………………………………………………………………200 Watts
- MAX Power Handling ……………………………………………………………………..400 Watts
- Sensitivity (1w/1m)………………………………………………………………………………….95 dB

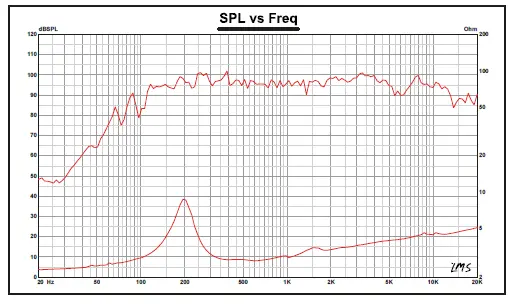

- Frequency Response………………………………………………………………… 80Hz-14KHz
- Recommended Hi Pass Crossover……………………………………………….180 Hz
- Pair or Single…………………………………………………………………………………………….. Single / Unidad
- Grill Included…………………………………………………………………………………………………………….. No
MOTOR
- Voice Coil Diameter………………………………………………………….. 1.5” / 38.1 mm
- Voice Coil Former Material……………………………………………………..Kapton
- Winding Material……………………………………………………………………………………CCAW
- Cone Material……………………………..Water Resistant Paper / Papel Resistente al Agua
- Dust Cap Material………Water Resistant Paper / Papel Resistente al Agua
- Surround Material…………………………………………..Coated Cloth / Tela Recubierta
- Basket Material………………………………………………………………………………..Steel / Acero
- Basket Color…………………………………………………………………… Glossy Red / Rojo Brillante
- Magnet Material………………………………………………………………………………… Ferrite / Ferrita
- Magnet Weight ……………………………………………………………………………………………………… 20 Oz
THIELE & SMALL PARAMETERS
- Equivalent Volume…………………………… Vas ………………………………….. 4.7L / 0.165ft3
- Excursion (one way)………………………………….. Xmax ………………………………………………. 8 mm
- Free Air Resonance……………………….. Fs ………………………………………………….188 Hz
- Mechanical Factor……………………………………. Qms ……………………………………………….. 6.869
- Electrical Factor…………………………………………. Qes …………………………………………………. 1.522
- Total Factor…………………………………………………….. Qts………………………………………………….. 1.246
- Moving Mass…………………………………….Mms……………………………………………..5.082 g
- Compliance…………………………………… Cms …………………………………………0.142 m/N
- Bl Factor……………………………………………………………… Bl …………………………………………………… 2.811
- Voice Coil Inductance …………… Le……………………………………………….0.289mH
- Cone Area…………………………………………………….. Sd …………………………………………. 153.94 cm2
- DC Resistance…………………………………………….. Re ………………………………………………..2 OHMS

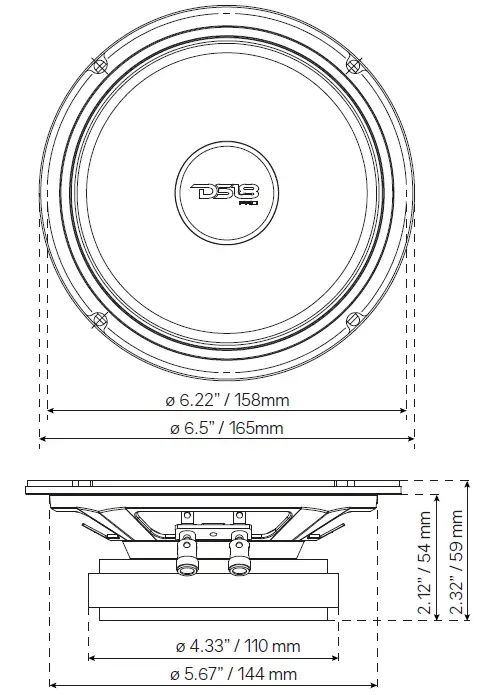

MEASUREMENT
- Overall Diameter ……………………………………………………………………………………… 6.5” / 165mm
- Overall Depth……………………………………………………………………………………… 2.32” / 59 mm
- Front Mount Baffle Cutout ……………………………………………….. 5.67“ / 144 mm
- Mounting Depth ……………………………………………………………………….. 2.12” / 54 mm
- Motor Diameter……………………………………………………………………………… 4.33″ / 110 mm
