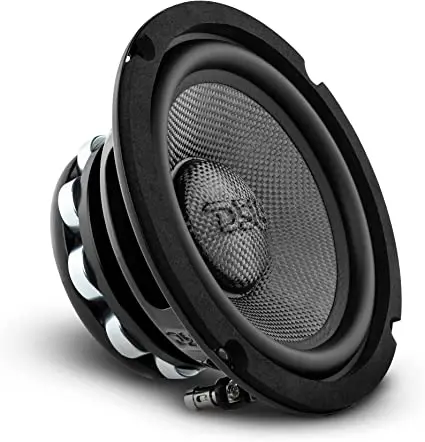

DS18 PRO-CF69.2NR 6×9 Inch Motorcycle and Motorsports Loudspeaker
SPECIFICATIONS
Nominal Diameter …………………………………………………………………6×9” / 152 x 228mm
Nominal Impedance ……………………………………………………………………………..2 OHMS
RMS Power Handling ……………………………………………………………….300 WATTS
MAX Power Handling ………………………………………………………………..600 WATTS
Sensitivity (1w/1m ) ……………………………………………………………………………. 95 dB

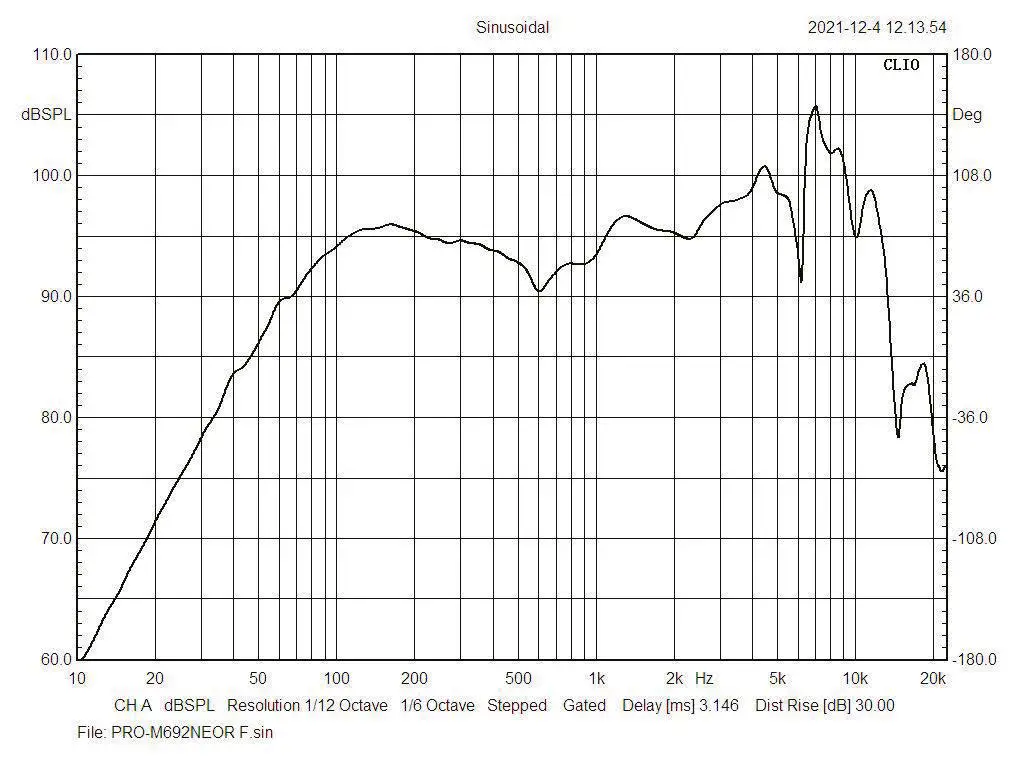

Frequency Response …………………………………………………………..63Hz – 12KHz
Recommended Hi Pass Crossover…………………………………………….. 80 Hz
Pair or Single………………………………………………………………………………………….Single / Unidad
MOTOR
Voice Coil Diameter ……………………………………………………………. 2” / 50 mm
Voice Coil Former Material ………………………………………………….Kapton
Winding Material ……………………………………………………………………………CCAW
Cone Material ……………………………………………………… Water Resistant Carbon Fiber
Dust Cap Material ………………………………….Water Resistan Carbon Fiber
Surround Material …………………………………………………………… Rubber
Basket Material …………………………………………………………………………..Steel
Basket Color …………………………………………………………Glossy Black
Magnet Material ……………………………………. Neodymium Rings
Magnet Weight ………………………………………………………………………………………………… 0.3 Kg
THIELE & SMALL PARAMETERS
Equivalent Volume…………………………….Vas ………………………….18.18L / 0.642 ft3
Excursion (one way) …………………………………..Xmax ………………………………………..2.5 mm
Free Air Resonance ………………………. Fs ………………………………………………. 75 Hz
Mechanical Factor …………………………………….Qms …………………………………………… 9.897
Electrical Factor ………………………………………….Qes …………………………………………….. 0.532
Total Factor …………………………………………………….Qts……………………………………………… 0.505
Moving Mass …………………………………….Mms……………………………………….17.709 g
Mechanical Compliance ………………..Cms ………………………………….0.257 mm/N
Bl Factor ……………………………………………………………… Bl ………………………………………………….5.51
Voice Coil Inductance …………… Le………………………………………….0.408 mH
Cone Area ……………………………………………………..Sd …………………………………….. 224.32 cm2
DC Resistance…………………………………………….Re ……………………………………….. 1.95 OHM

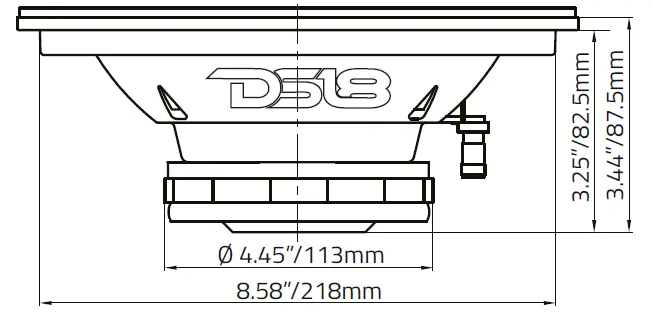

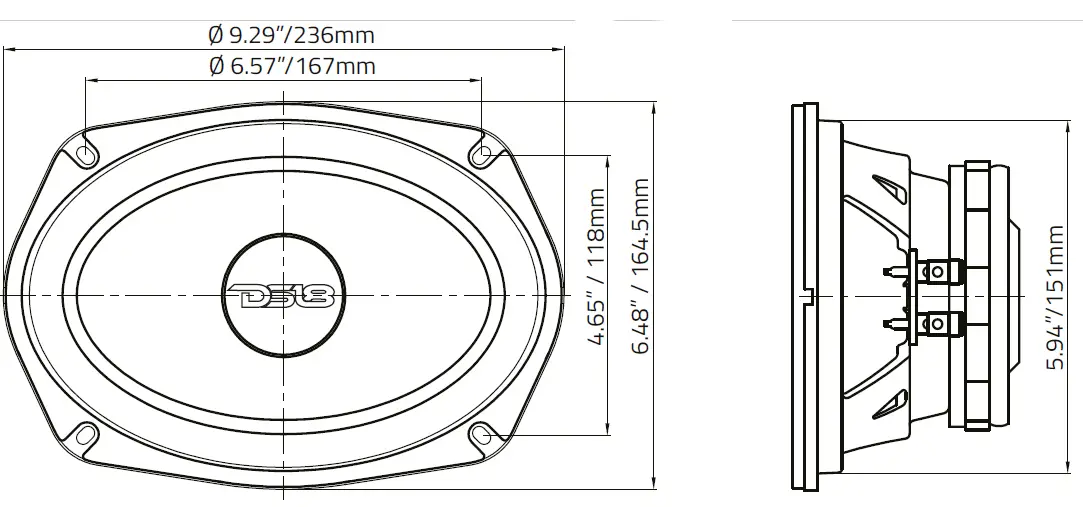

MEASUREMENTS
Overall Diameter …………………………………………………….. 6.48” x 9.29“ / 164.5 x 236 mm
Overall Depth ……………………………………………………………………………. 3.44” / 87.5 mm
Front Mount Baffle Cutout ………………………5.94” x 8.58“ / 151 x 218 mm
Mounting Depth ……………………………………………………………….. 3.25” / 82.5 mm
Motor Diameter ………………………………………………………………………… 4.45″ / 113 mm
MEASUREMENTS
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice.
Images may or may not included optional equipment.
