KOZY HEAT Springfield 36 Direct Vent Fireplace Instructions
Please leave these reference guides at the installation location until the installation is finished. See owners manual for full installation and finishing instructions before making final decisions as information is subject to change.

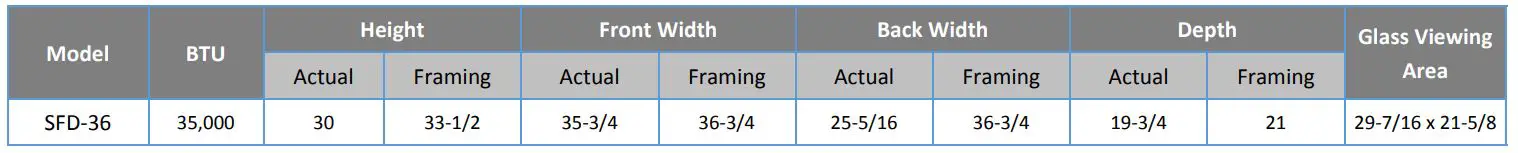

Specifications
(all measurements are in inches)
• GAS LINE OPENING: LEFT/RIGHT SIDES
• ELECTRICAL ACCESS: RIGHT SIDE

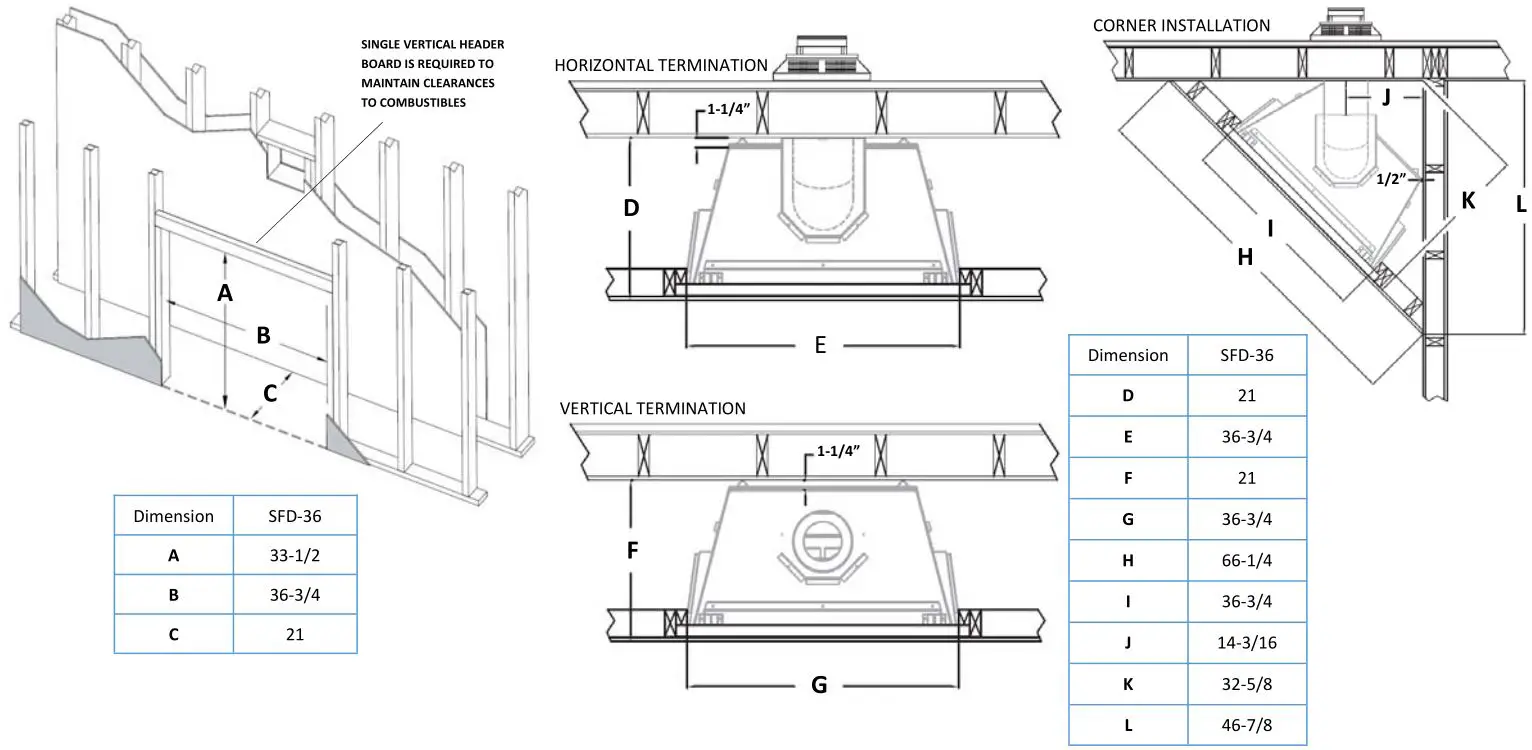

Framing Opening
Mantel Clearances
Finish Trim Kit
Important!
If you are finishing around the fireplace with tile or stone make sure that you install the Finishing Trim Kit at the framing stage.
The trim kit allows for your finishing board and your tile/stone to finish up against, creating a shadowbox for the face to sit inside.
Do not use with RSF fronts, all other fronts apply.

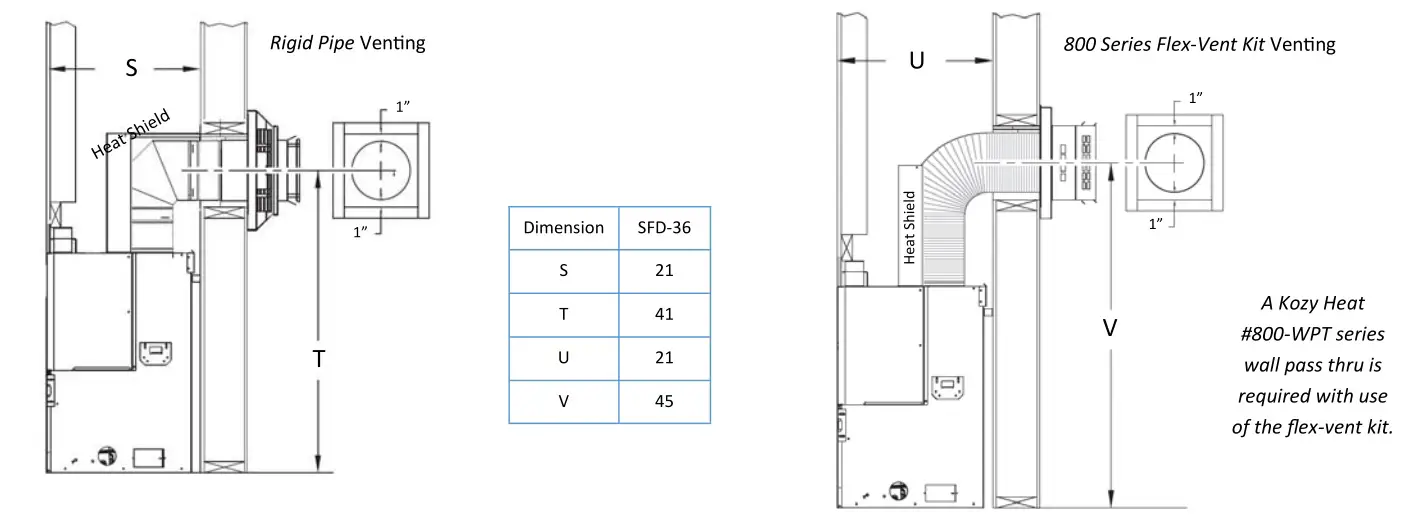

Horizontal Termination Framing

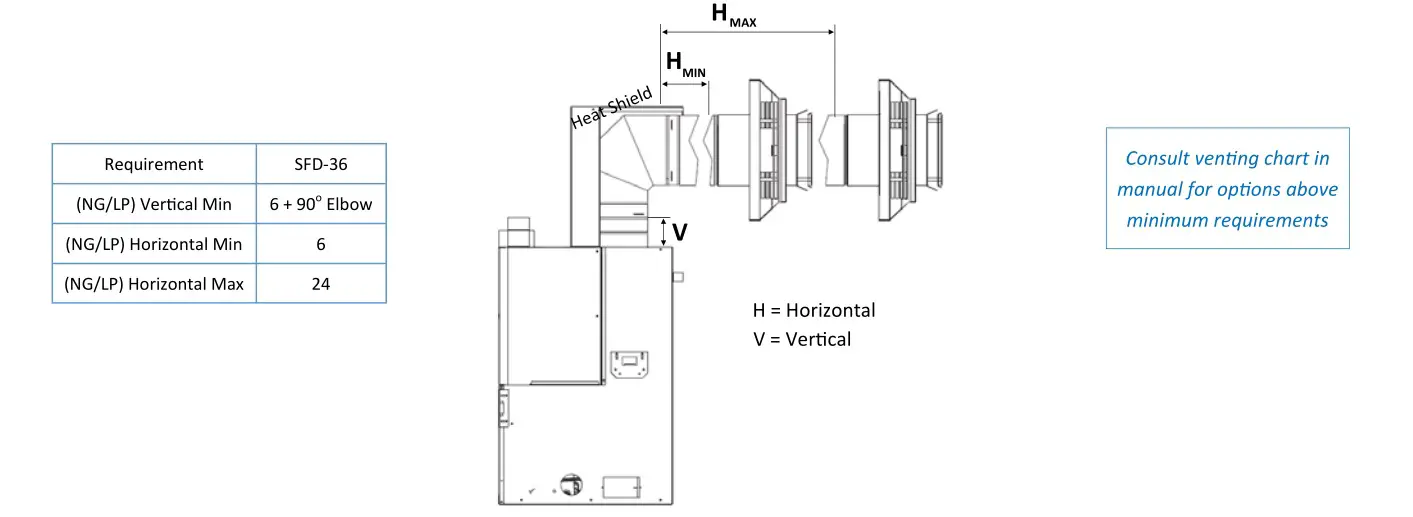

Horizontal 5” X 8” Venting Minimum Requirements
4” x 6‐5/8”

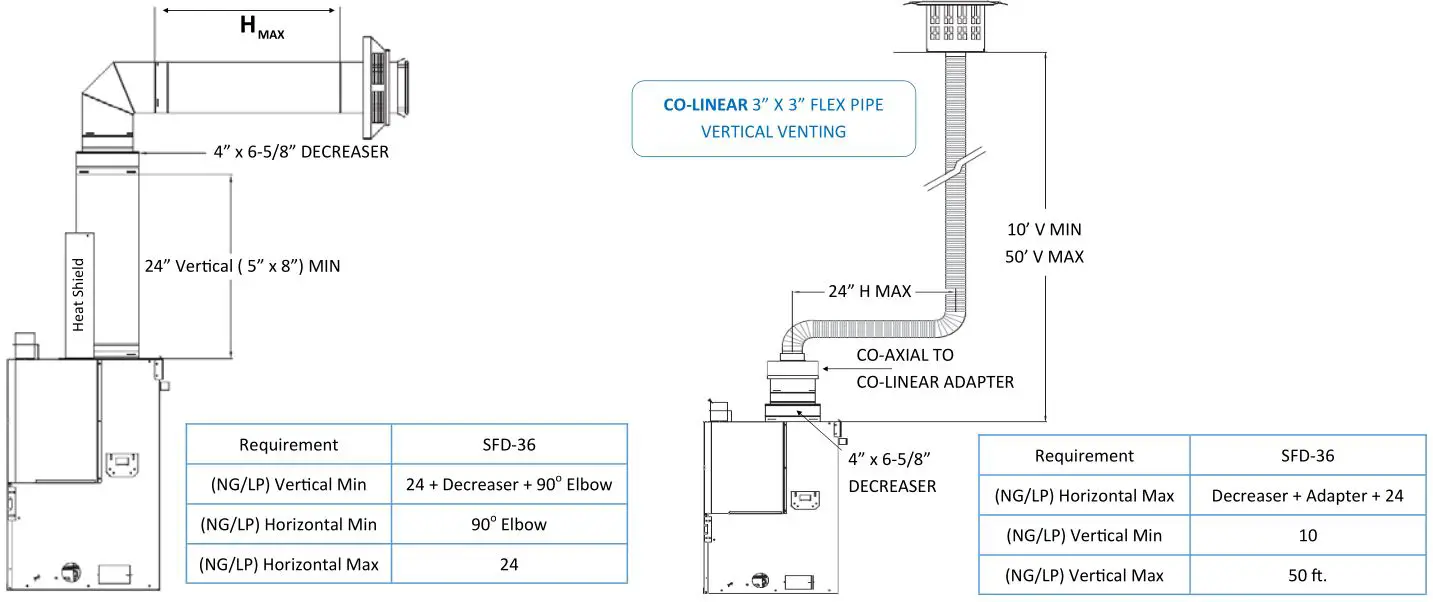

Decreaser Minimum Requirements

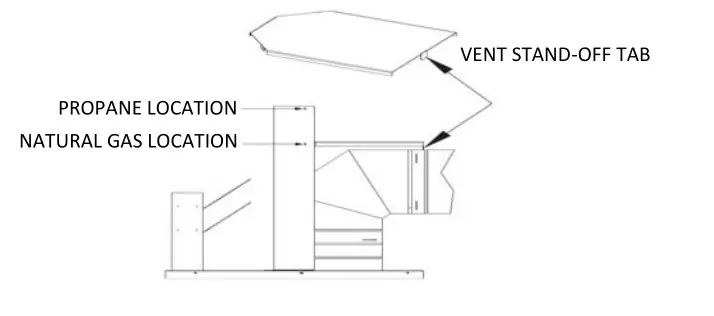

Heat Shield Requirements
The vertical vent heat shield must be installed for EVERY type of venting application.
The horizontal vent heat shield must be installed when incorporating minimum horizontal venting and is positioned according to the gas type.
