SP‐34 Direct Vent Fireplace
Please leave these reference guides at the installation location until the installation is finished. See owners manual for full installation and finishing instructions before making final decisions as information is subject to change.
Specifications (all measurements are in inches)
| Model | BTU | Height | Front Width | Back Width | Depth | Glass Viewing Area | ||||
| Actual | Framing | Actual | Framing | Actual | Framing | Actual | Framing | |||
| SP‐34 | 20,500 | 30‐7/8 | 33‐1/2 | 34 | 34‐1/2 | 27 | 34‐1/2 | 14 | 14‐1/2 | 27‐1/4 x 19‐3/4 |
- GAS LINE OPENING: RIGHT SIDE
- ELECTRICAL ACCESS: LEFT SIDE

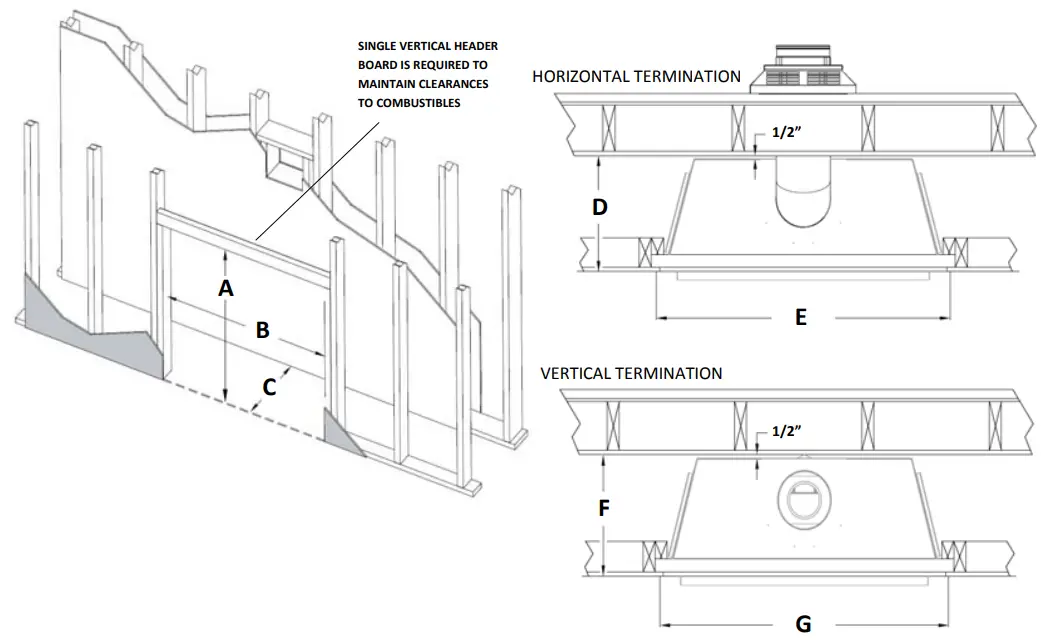

Framing Opening
| Dimension | SP‐34 |
| A | 33‐1/2 |
| B | 34‐1/2 |
| C | 14 |

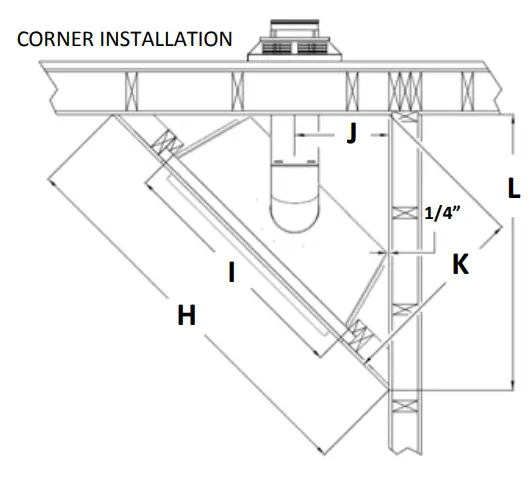

| Dimension | SP‐34 |
| D | 14 |
| E | 34‐1/2 |
| F | 14 |
| G | 34‐1/2 |
| H | 54‐7/16 |
| I | 34‐1/2 |
| J | 13‐1/8 |
| K | 27‐1/4 |
| L | 38‐1/2 |

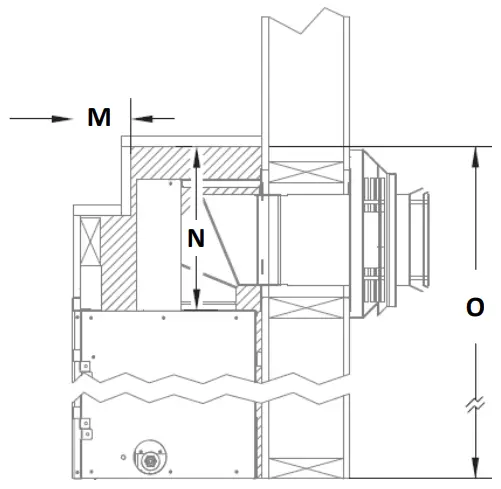

Finishing Clearances
| Dimension | SP‐34 |
| M | 4‐1/2 |
| N | 12 |
| O | 42 |

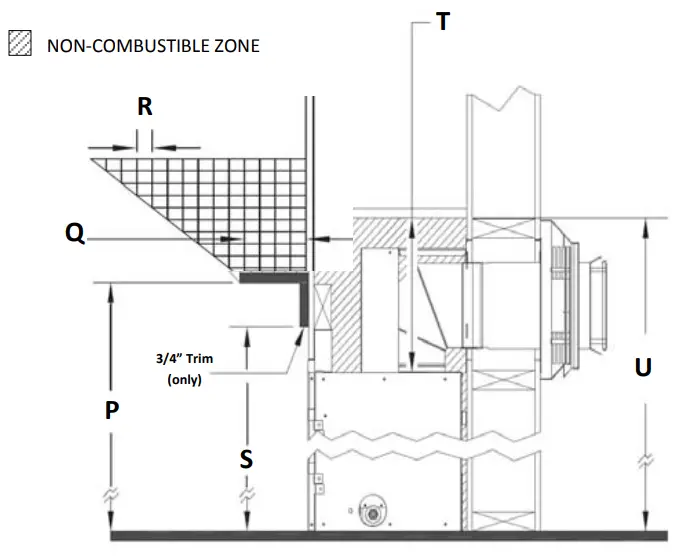

Mantel Clearances
MANTEL PROJECTION: 1” UP FOR EVERY 1” DEEPER (After ini al 37”)
| Dimension | |||||
| P | Q | R | S | T | U |
| 37 | 6 | 1 | 33‐1/2 | 12 | 42 |
Finish Trim Kit
Important!
If you are finishing around the fireplace with tile or stone make sure that you install the Optional
Finishing Trim Kit at the framing stage.
The trim kit allows for your finishing board and your le/stone to finish up against, creating a shadowbox.

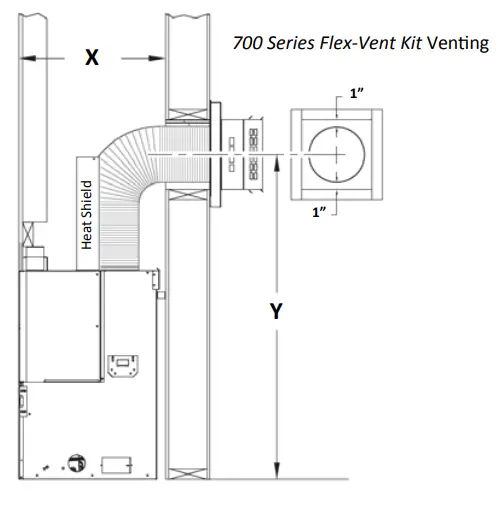

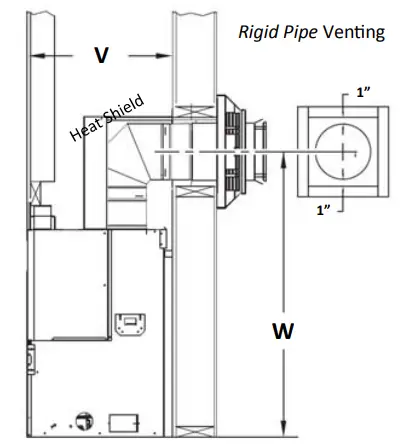

Horizontal Termination Framing
| Dimension | SP‐34 |
| V | 14 |
| W | 35‐1/4 |
| X | 14 |
| Y | 42 |
A Kozy Heat #700‐WPT series wall pass thru is required with use of the flex‐vent kit.
Horizontal Venting Minimum Requirements
| Requirement | SP‐34 |
| (NG/LP) Vertical Min | 90o Elbow |
| (NG/LP) Horizontal Min | 6 |
| (NG/LP) Horizontal Max | 4 |
Consult venting chart in manual for op ons above minimum requirements
| Requirement | SP‐34 |
| (NG/LP) Vertical Min | 6 |
| (NG/LP) Horizontal Min | 6 |
| (NG/LP) Horizontal Max | 4 |

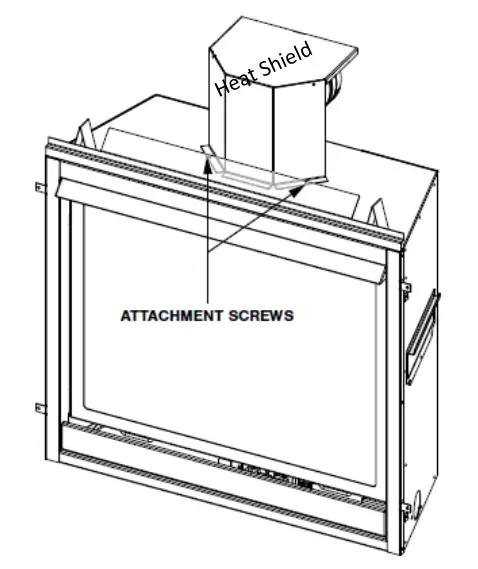

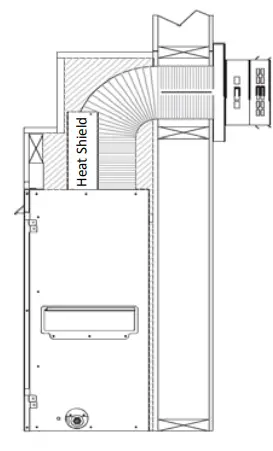

Heat Shield Requirements

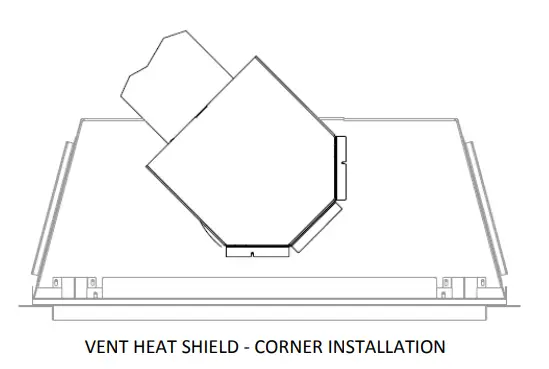

The vertical vent heat shield must be installed for EVERY type of venting application.
The horizontal vent heat shield must be installed when incorporating minimum horizontal venting.
