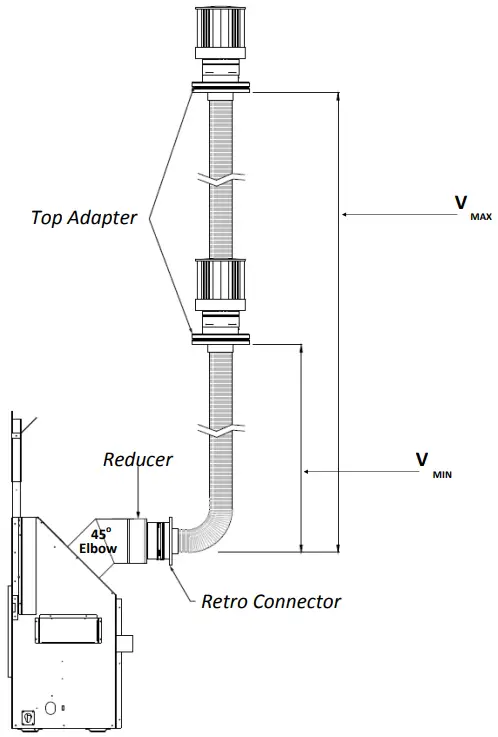

6 Class ’A’ Chimney Conversion Venting

7 Documents / Resources

8 Related Posts

Callaway 40 Direct Vent Fireplace

Please leave these reference guides at the installation location until the installation is ﬁnished. See owners manual for full installation and ﬁnishing instructions before making ﬁnal decisions as information is subject to change.

Speciﬁcations

(all measurements are in inches)
– GAS LINE OPENING: LEFT SIDE
– ELECTRICAL ACCESS: RIGHT SIDE

Model	BTU	Height		Front Width		Back Width		Depth		Glass Viewing Area
Model	BTU	Actual	Framing	Actual	Framing	Actual	Framing	Actual	Framing	Glass Viewing Area
CLW‐40	31,500	39‐1/4	60	49‐1/2	56‐1/2	49‐1/2	56‐1/2	18‐15/16	22	40 x 13

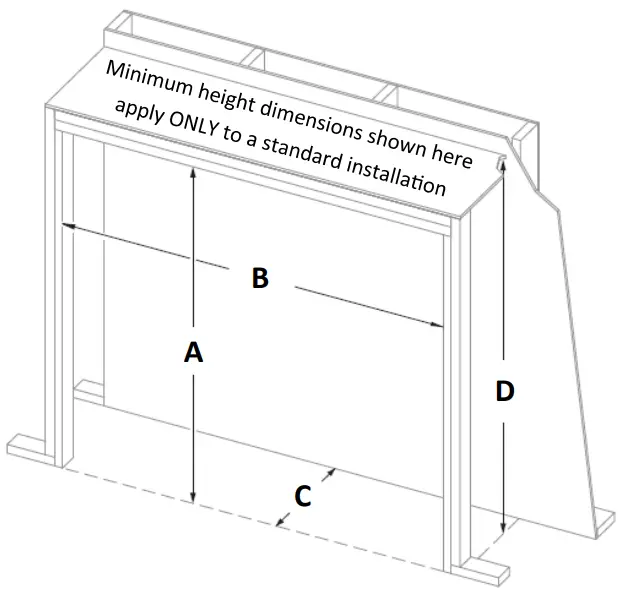

Framing Opening

If installing the Komfort Zone Kit or Heat Transfer Kit(s), please refer to the installation manual included with the corresponding kit

See the KZK‐044 or KZK‐158A manuals or Vented Cavity Installation (in the install manual) for their speciﬁc minimum dimension requirements

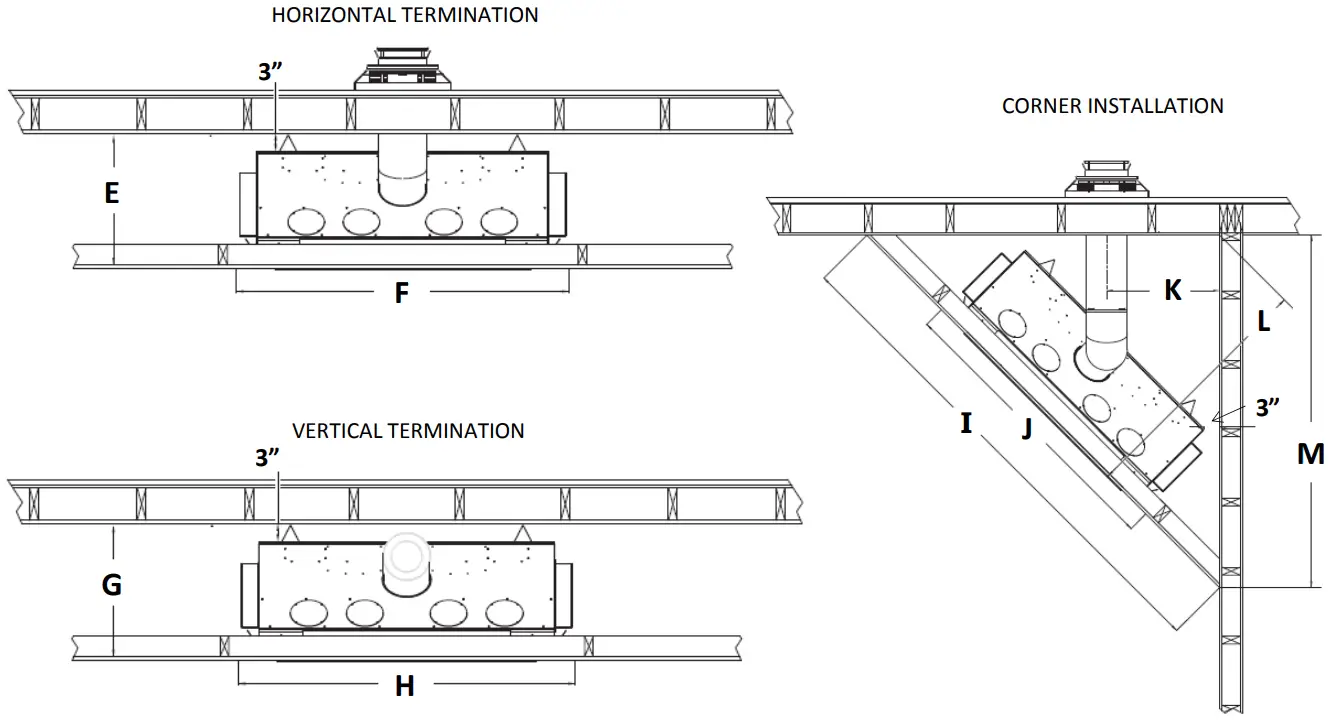

Dimension	CLW‐40
A	57
B	56‐1/2
C	22
D	60

E	F	G	H	I	J	K	L	M
22	56‐1/2	22	56‐1/2	97‐1/2	56‐1/2	22	48‐3/4	69

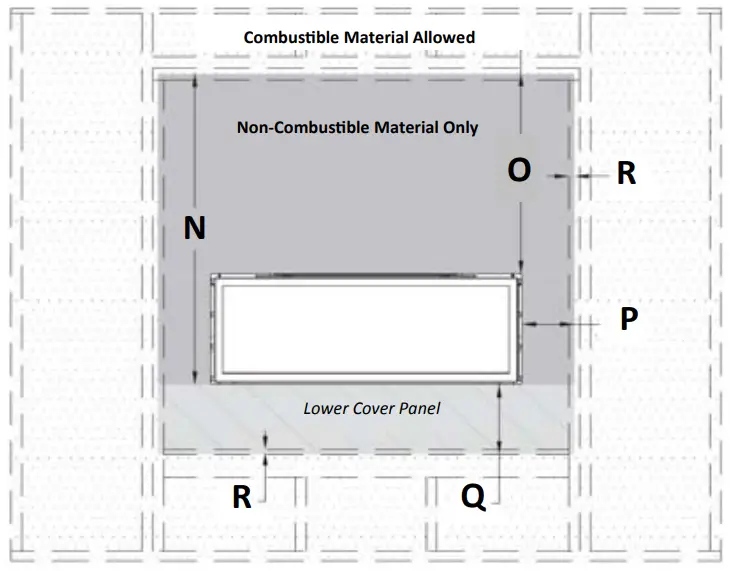

Finishing Clearances

Clearances are for STANDARD installation ONLY

Dimension	CLW‐40
N	47‐7/8
O	31‐1/8
P	7‐3/8
Q	10‐1/2
R	3/4

Non‐Combustible Material Only
Combustible Material Allowed
Combustible Material Allowed*
*See install manual for acceptable screw location usage

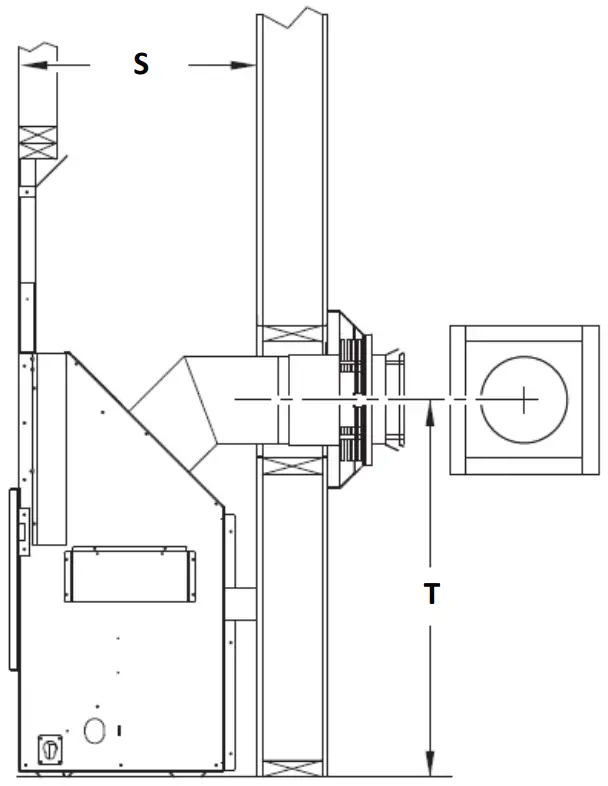

Horizontal Termination Framing

Framing outlined here applies to the minimum for all standard, KZK and vented options when venting with natural draft.
If using Kozy Power Vent (#KPV), reference the manual included with the kit.

Dimension	CLW‐40
S	22
T	34‐7/8

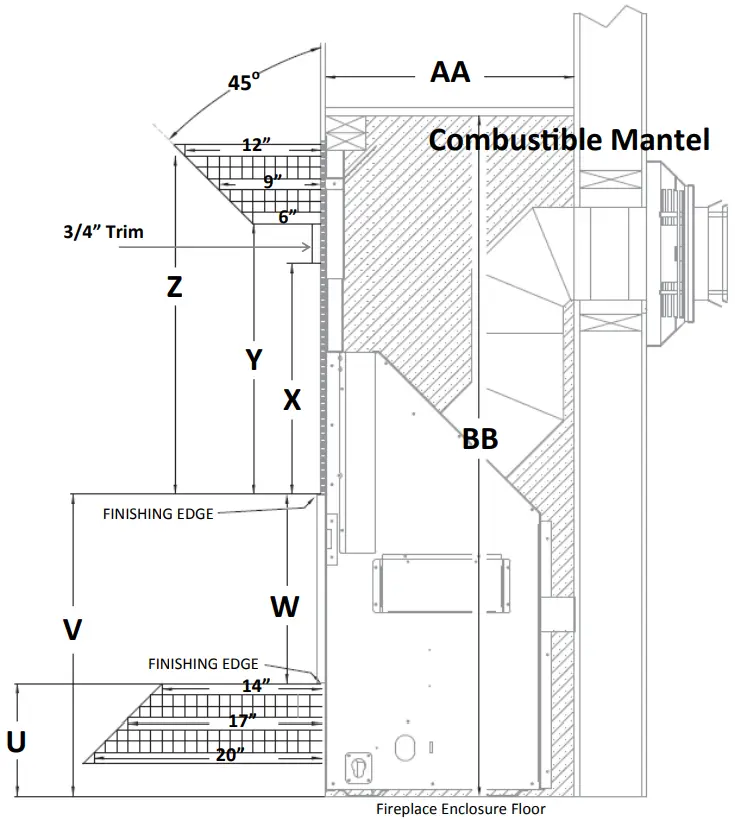

Mantel Clearances ‐ Standard Installation (NO optional Komfort Zone Heat Distribution Kit)
ON‐COMBUSTIBLE ZONE

No optional Decorative Surround
MANTEL PROJECTION: Each square represents 1” of projection

Dimension	CLW‐40
U	9‐7/8
V	26‐5/8
W	16‐3/4
X	20‐3/8
Y	23‐7/8
Z	29‐7/8
AA	22
BB	60

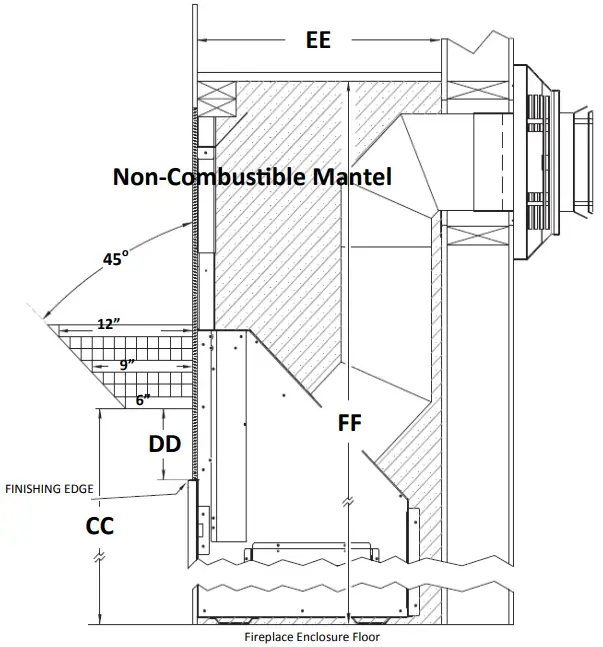

Dimension	CLW‐40
CC	32‐5/8
DD	6
EE	22
FF	60

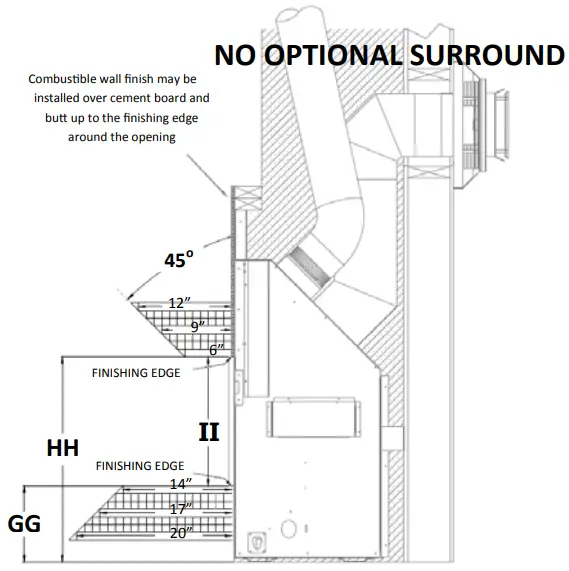

Mantel & Hearth Clearances

Komfort Zone Kit Installed (#KZK‐158A or #KZK‐044)

Each square represents 1” of projection

Dimension	CLW‐40
GG	9‐7/8
HH	26‐5/8
II	16‐3/4

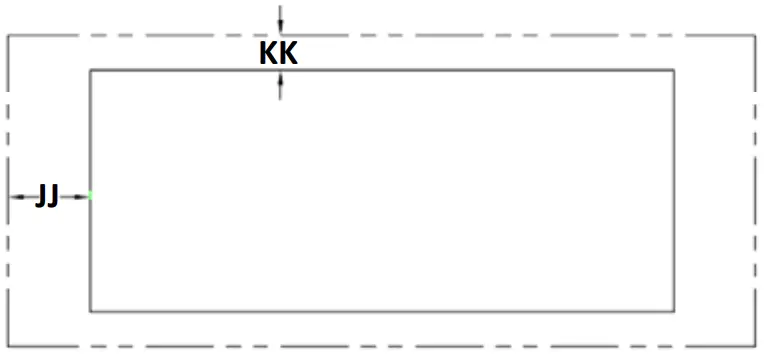

Below shows where to end masonry ﬁnishing materials, when measuring from the ﬁnishing edge. This allows the installation of an Optional Surround. This is important, due to the fact that most masonry ﬁnishing materials will not ﬁt behind the optional surround if one is installed.
