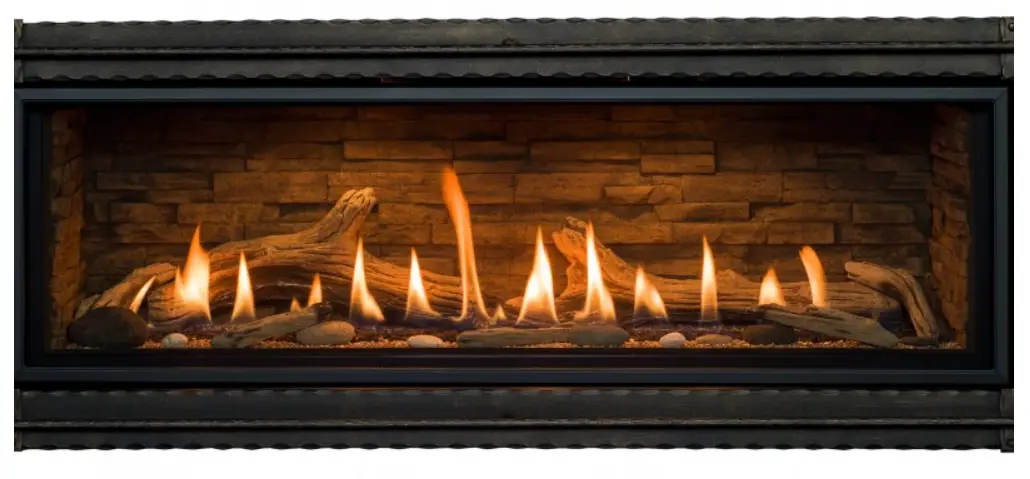

KOZY HEAT Callaway 50 Direct Vent Fireplace

Please leave these reference guides at the installation location until the installation is finished. See owners manual for full installation and finishing instructions before making final decisions as information is subject to change.

Contents hide

1 Specifications (all measurements are in inches)

2 Framing Opening

3 Finishing Clearances

4 Mantel Clearances

5 Horizontal Termination Framing

6 Horizontal 5” X 8” Venting Minimum Requirements

7 4” x 6‐5/8” Decreaser Minimum Requirements

8 Heat Shield Requirements

9 Documents / Resources

10 Related Posts

Specifications (all measurements are in inches)

• GAS LINE OPENING: LEFT SIDE • ELECTRICAL ACCESS: RIGHT SIDE+

Model	BTU	Height		Front Width		Back Width		Depth		Glass Viewing Area
Model	BTU	Actual	Framing	Actual	Framing	Actual	Framing	Actual	Framing	Glass Viewing Area
CLW‐50	35,500 (NG) 35,000 (LP).	39	44‐1/2	59‐1/2	64‐1/2	59‐1/2	64‐1/2	18‐15/16	22	49‐7/8 x 13‐3/8

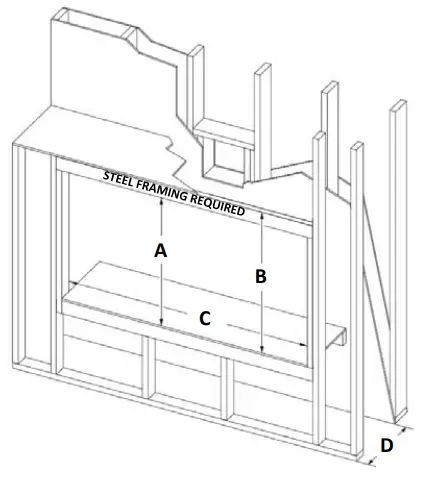

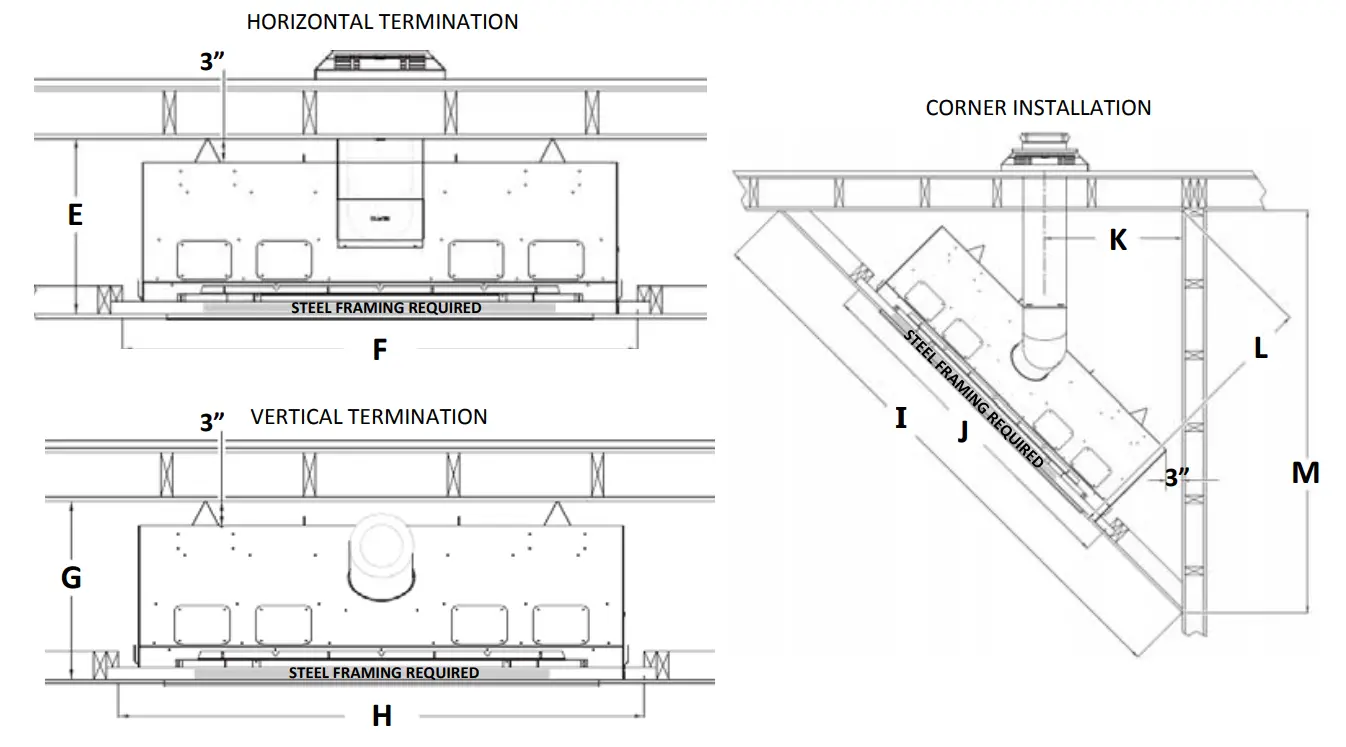

Framing Opening

Dimension	CLW‐50
A	44‐1/2
B	48
C	64‐1/2
D	22

E	F	G	H	I	J	K	L	M
22	64‐1/2	22	64‐1/2	106‐13/16	64‐1/2	25‐7/8	53‐7/16	75‐9/16

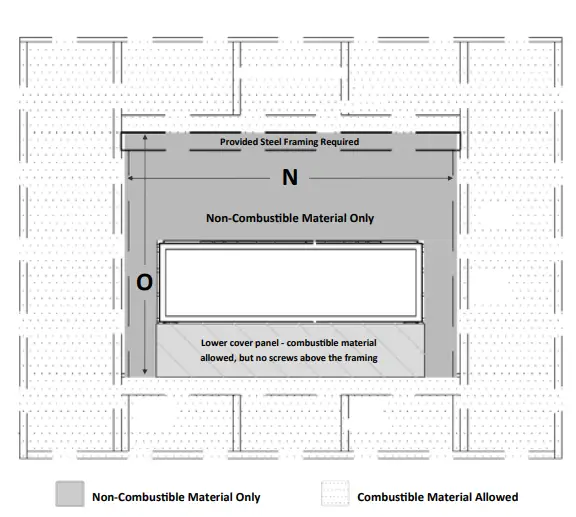

Finishing Clearances

Dimension	CLW‐50
N	66
O	48‐3/4

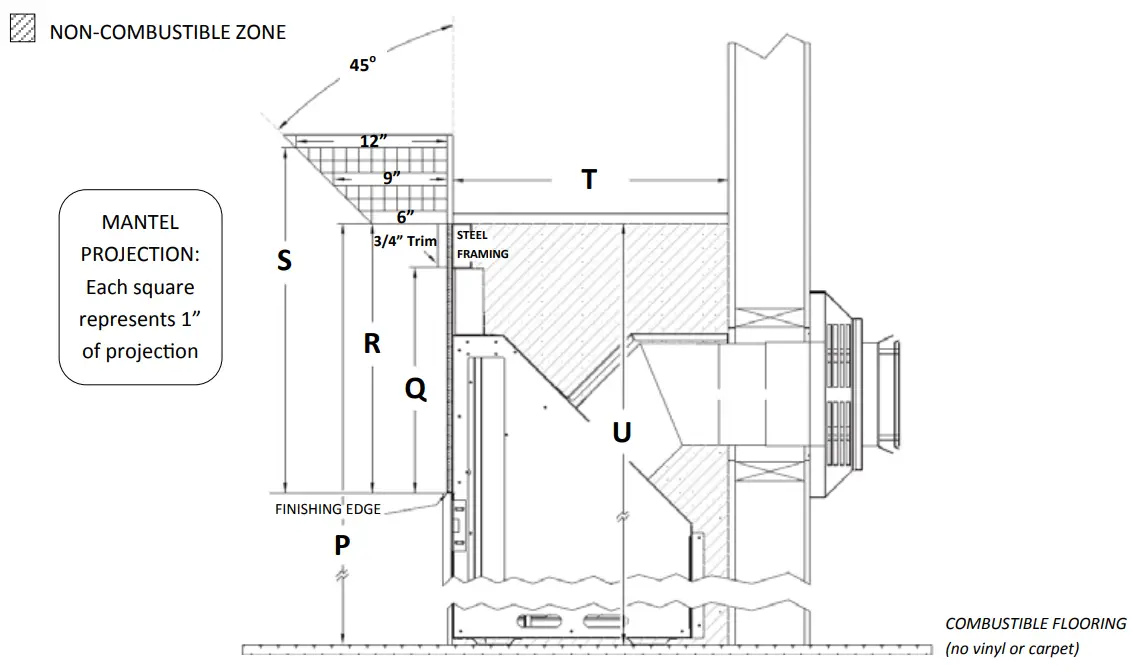

Mantel Clearances

Dimension
P	Q	R	S	T	U
48	18	21‐1/2	27‐1/2	22	48

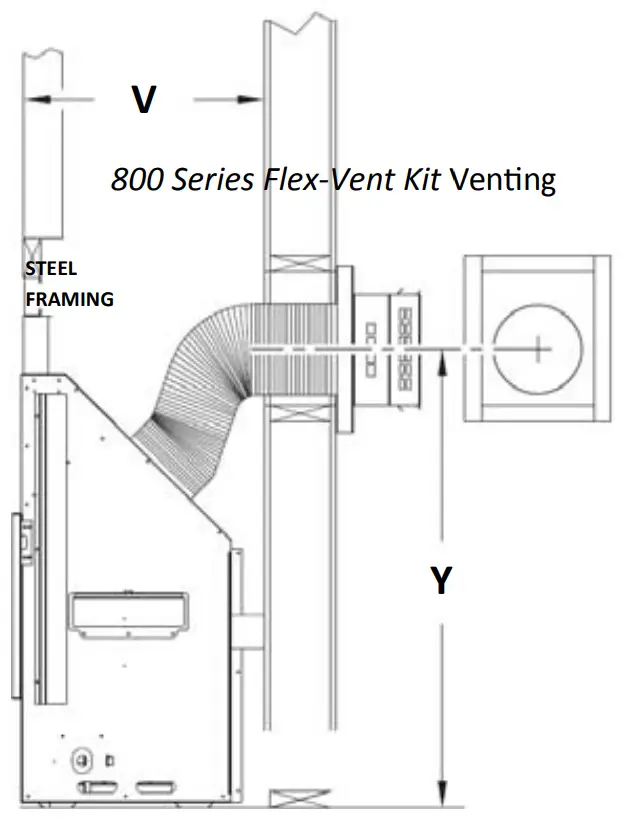

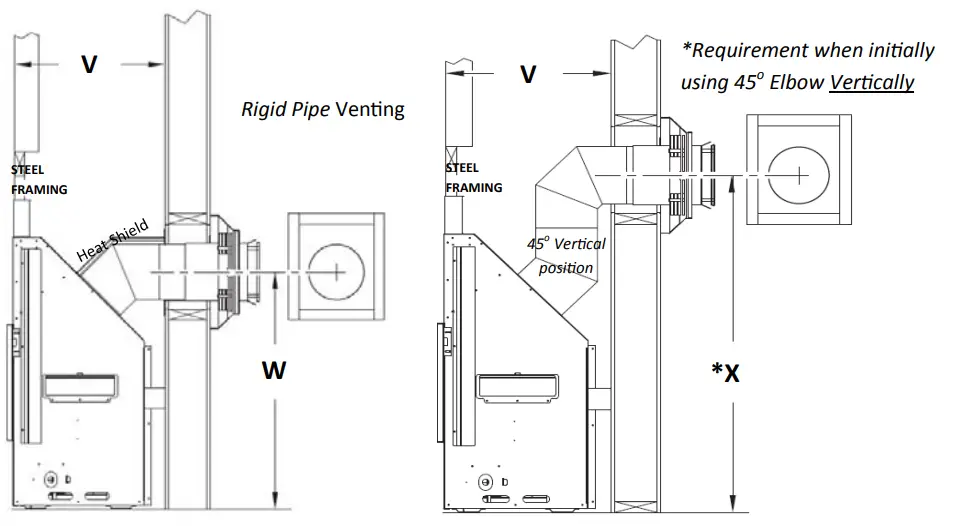

Horizontal Termination Framing

Dimension	CLW‐50
V	22
W	34‐3/8
X	44‐3/4
Y	42

A Kozy Heat #800‐WPT series wall pass thru is required with use of the flex‐vent kit.

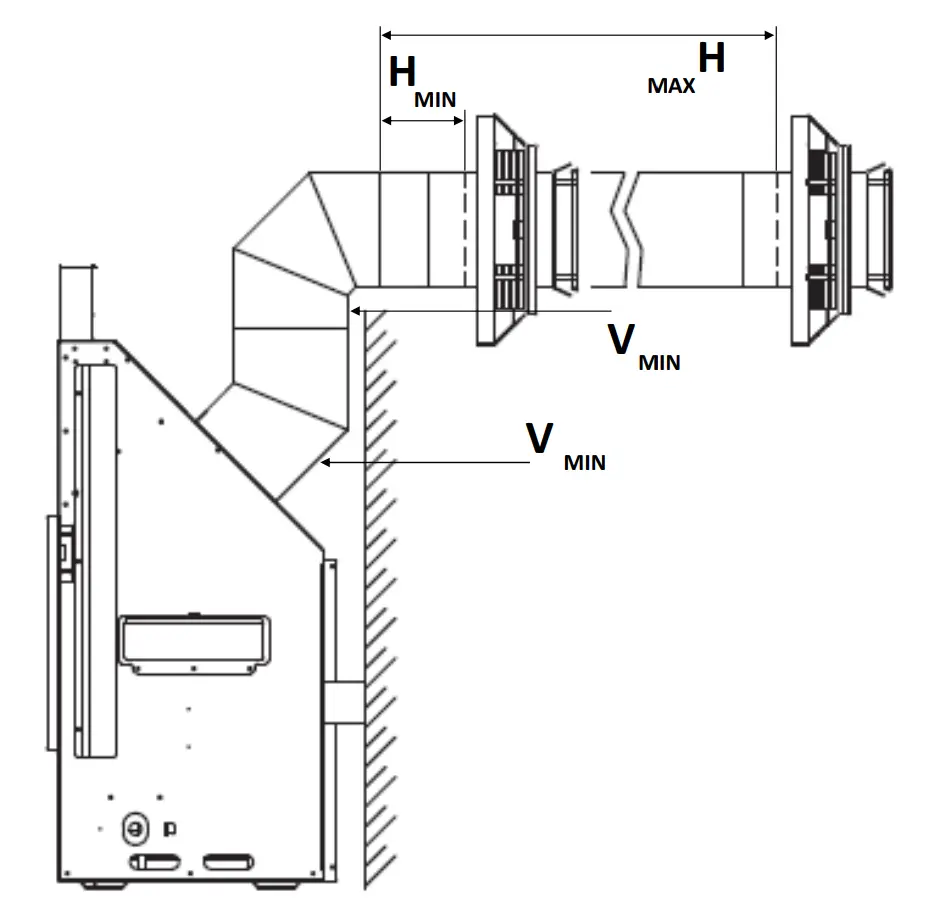

Horizontal 5” X 8” Venting Minimum Requirements

Requirement	CLW‐50
(NG/LP) Vertical Min	45^o Elbow
(NG/LP) Horizontal Min	6
(NG/LP) Horizontal Max	24

Consult venting chart in the manual for all options above minimum requirements

H = Horizontal
V = Vertical

Requirement*	CLW‐50
(NG/LP) Vertical Min	45^o Elbow + 90^o Elbow
(NG/LP) Horizontal Min	6
(NG/LP) Horizontal Max	48

*Requirement when initially using 45o Elbow Vertically

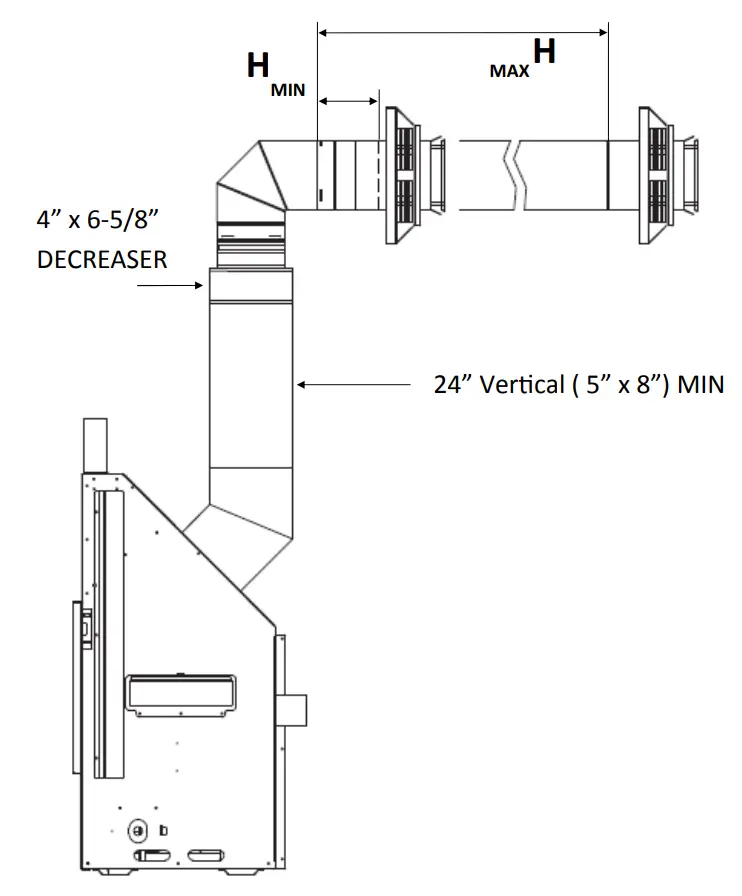

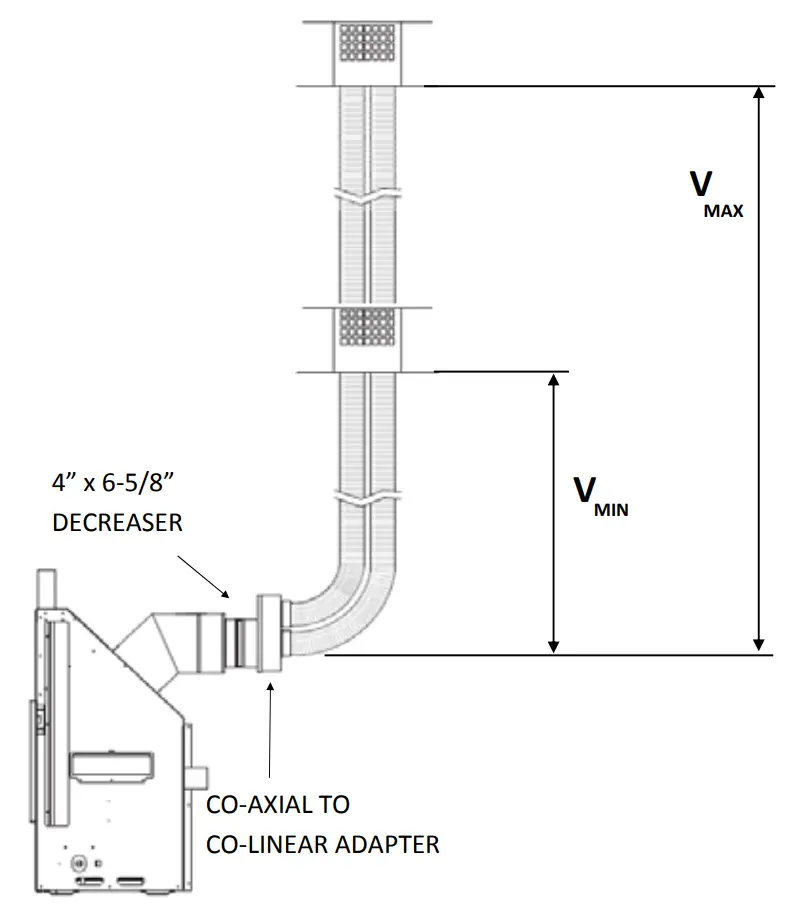

4” x 6‐5/8” Decreaser Minimum Requirements

Requirement	CLW‐50
(NG/LP) Vertical Min	45^o Elbow + 24 + Decreaser
(NG/LP) Horizontal Min	90^o Elbow
(NG/LP) Horizontal Max	48

Requirement	CLW‐50
(NG/LP) Horizontal Min	45^o Elbow + Decreaser
(NG/LP) Vertical Min	10
(NG/LP) Vertical Max	50 ft.

CO‐LINEAR 3” X 3” FLEX PIPE VERTICAL VENTING

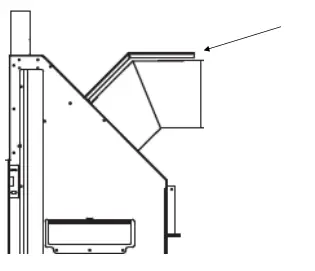

Heat Shield Requirements

*The horizontal vent heat shield must be installed when using a horizontal 45° elbow of the back of the appliance.
