Roosevelt 29 Direct Vent Insert
Please leave these reference guides at the installation location until the installation is finished. See owners manual for full installation and finishing instructions before making final decisions as information is subject to change.
Specifications
(all measurements are in inches)
| Model | BTU | Front Height | Back Height | Front Width | Back Width | Depth | Glass Viewing Area |
| RVT‐29 | 30,000 | 19‐7/8 | 17‐1/4 | 29‐5/8 | 20‐1/16 | 16 | 25‐1/8 x 15‐1/2 |
- GAS LINE OPENING: LEFT (BACK, UPPER CORNER)
- ELECTRICAL ACCESS: LEFT SIDE

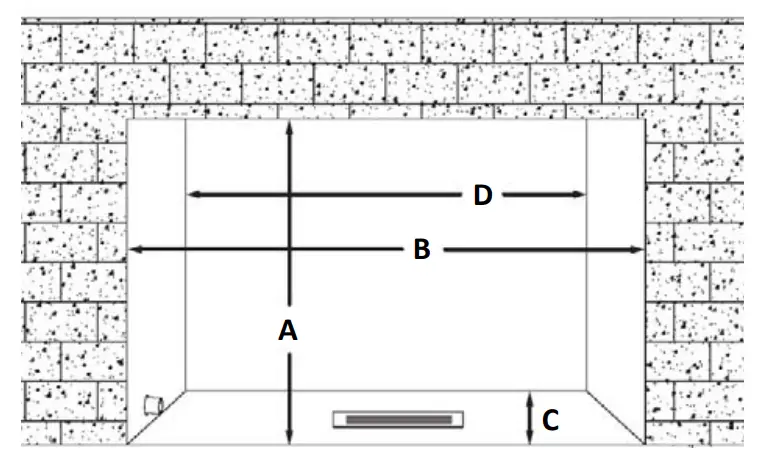

Existing Fireplace Opening Requirements
| Dimension | RVT‐29 |
| A | 20 |
| B | 29‐3/4 |
| C | 16 |
| D | 20‐3/8 |

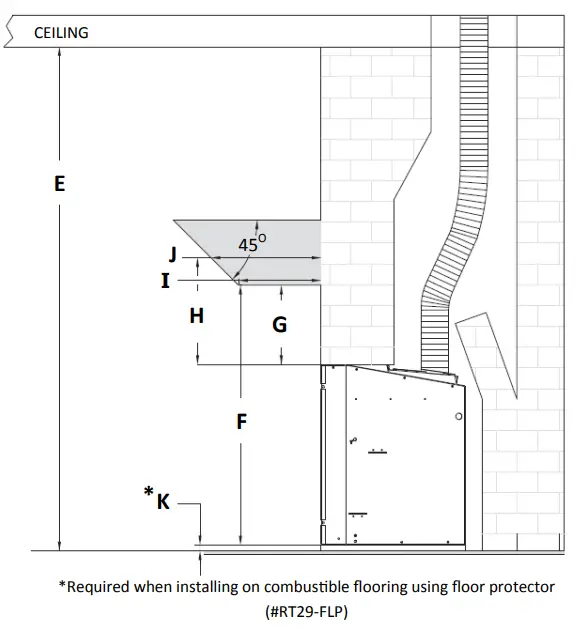

Mantel & Hearth Clearances
| Dimension | RVT‐29 |
| E | 55 |
| F | 28‐1/8 |
| G | 8‐1/4 |
| H | 11‐1/4 |
| I | 9 |
| J | 12 |
| *K | 3/4 |

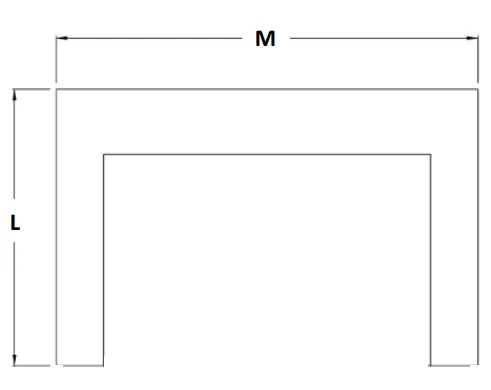

Shroud Sizes*
| Shroud Part Number | |||
| Dimension | #RT29‐2538 | #RT29‐27542 | #RT29‐3044 |
| L | 25 | 27‐1/2 | 30 |
| M | 38 | 42 | 44 |

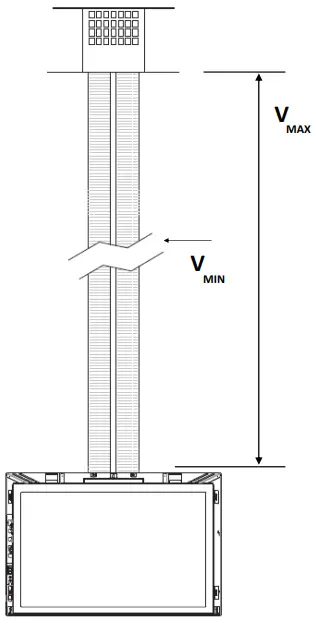

Venting Requirements
Consult manual for approved venting manufacturers
V = Vertical
| Requirement | RVT‐29 |
| (NG/LP) Vertical Min | 10 ft. |
| (NG) Vertical Max | 50 ft. |
| (LP) Vertical Max | 40 ft. |
Curing, & Homeowner Usage Tips
Wall Temperatures
Fireplace Curing
Continuous (IPI) vs Standing Pilot
Battery Backup Location
