Callaway 72 Direct Vent Fireplace
Instructions Manual
Callaway 72 Direct Vent Fireplace
Please leave these reference guides at the installation location until the installation is finished. See owners manual for full installation and finishing instructions before making final decisions as information is subject to change.
Specifications
(all measurements are in inches)
– GAS LINE OPENING: RIGHT SIDE
– ELECTRICAL ACCESS: LEFT SIDE
| Model | BTU | Height | Front Width | Back Width | Depth | Glass Viewing Area | ||||
| Actual | Framing | Actual | Framing | Actual | Framing | Actual | Framing | |||
| CLW‐72 | 49,500 (NG) 49,000 (LP). | 40‐3/4 | 48‐5/8 | 81‐1/2 | 86‐1/2 | 81‐1/2 | 86‐1/2 | 18‐15/16 | 22 | 75‐1/2 x 18‐3/8 |

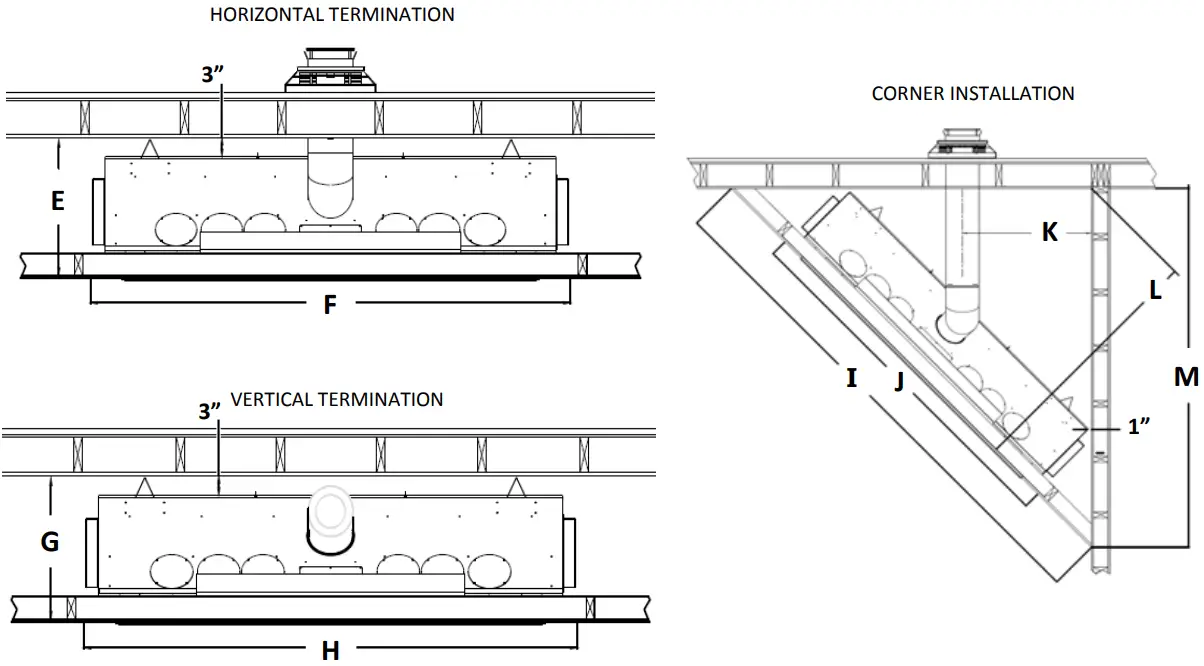

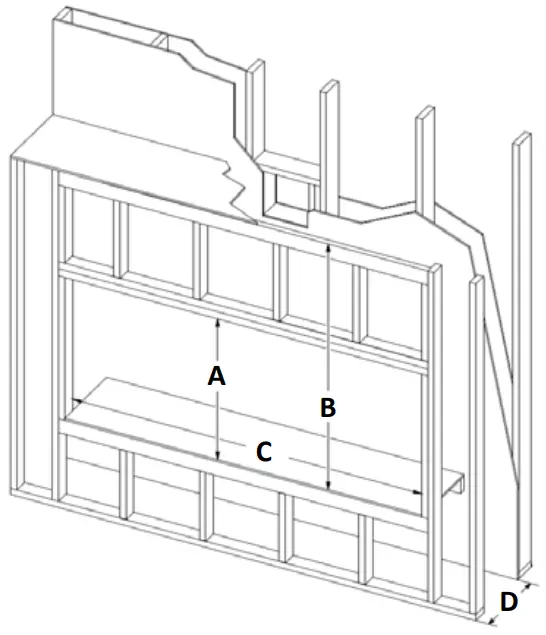

Framing Opening
If installing the Komfort Zone Kit or Heat Transfer Kit(s), please refer to the installation manual included with the corresponding kit
| Dimension | CLW‐72 |
| A | 48‐5/8 |
| B | 79‐1/4 |
| C | 86‐1/2 |
| D | 22 |
| E | F | G | H | I | J | K | L | M |
| 22 | 86‐1/2 | 22 | 86‐1/2 | 123‐13/16 | 86‐1/2 | 31‐1/4 | 61‐1/16 | 87‐1/8 |

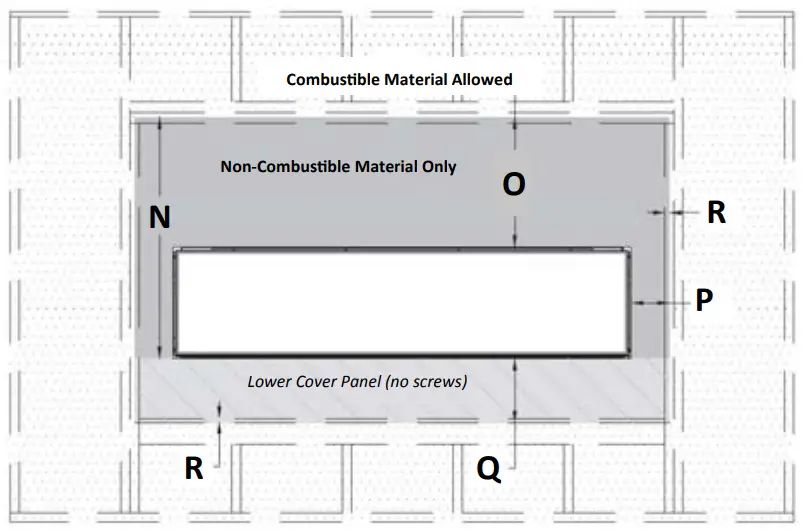

Finishing Clearances
| Dimension | CLW‐72 |
| N | 39‐5/8 |
| O | 21‐1/8 |
| P | 6‐3/8 |
| Q | 10‐1/2 |
| R | 3/4 |
Non‐Combustible Material Only
Combustible Material Allowed
Combustible Material Allowed
No screws allowed above framing

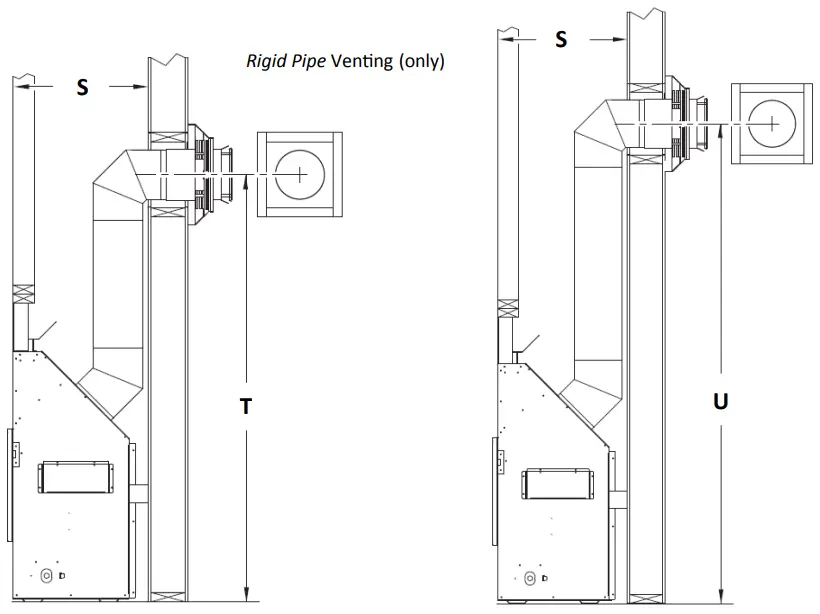

Horizontal Termination Framing
| Dimension | CLW‐72 |
| S | 22 |
| T | 69‐1/2 |
| U | 81‐1/2 |

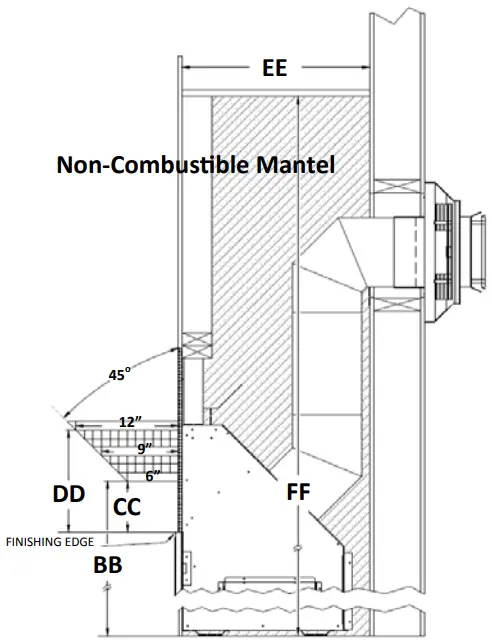

Mantel Clearances

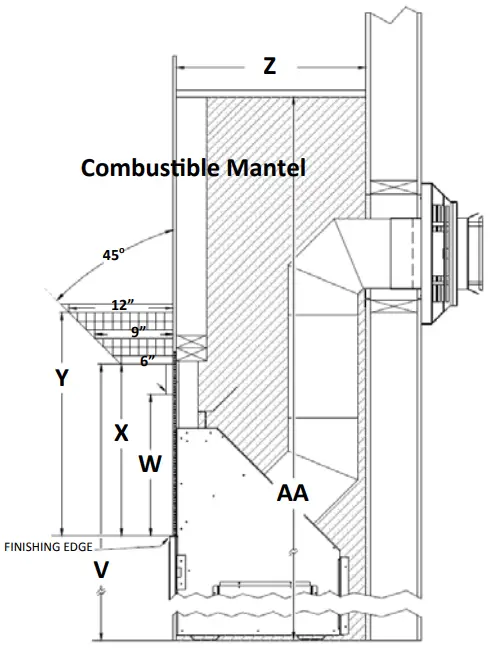

Standard Installation (NO optional Komfort Zone heat distribution kit)
NON‐COMBUSTIBLE ZONE
MANTEL PROJECTION: Each square represents 1” of projection
| Dimension | CLW‐72 |
| V | 48‐1/4 |
| W | 16‐1/2 |
| X | 20 |
| Y | 26 |
| Z | 22 |
| AA | 79‐1/4 |
| Dimension | CLW‐72 |
| BB | 34‐1/4 |
| CC | 6 |
| DD | 12 |
| EE | 22 |
| FF | 79‐1/4 |
Mantel & Hearth Clearances ‐ Komfort Zone Kit Installed (#KZK‐072)
NO OPTIONAL SURROUND
Each square represents 1” of projection
| Dimension | CLW‐72 |
| GG | 9‐1/2 |
| HH | 28‐1/8 |
| II | 18‐3/8 |

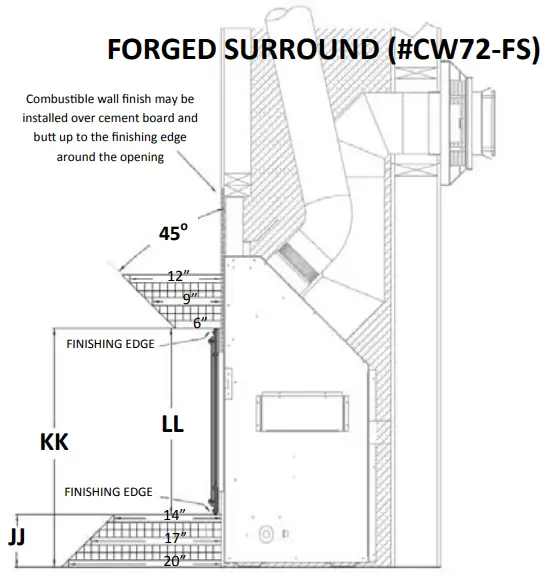

FORGED SURROUND (#CW72‐FS)
| Dimension | CLW‐72 |
| JJ | 6‐3/4 |
| KK | 31‐1/2 |
| LL | 24‐3/4 |

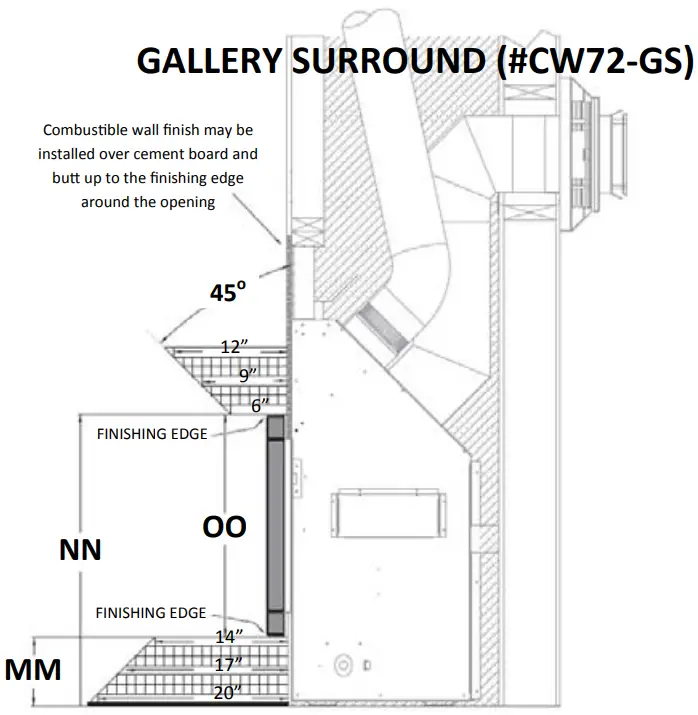

GALLERY SURROUND (#CW72‐GS)

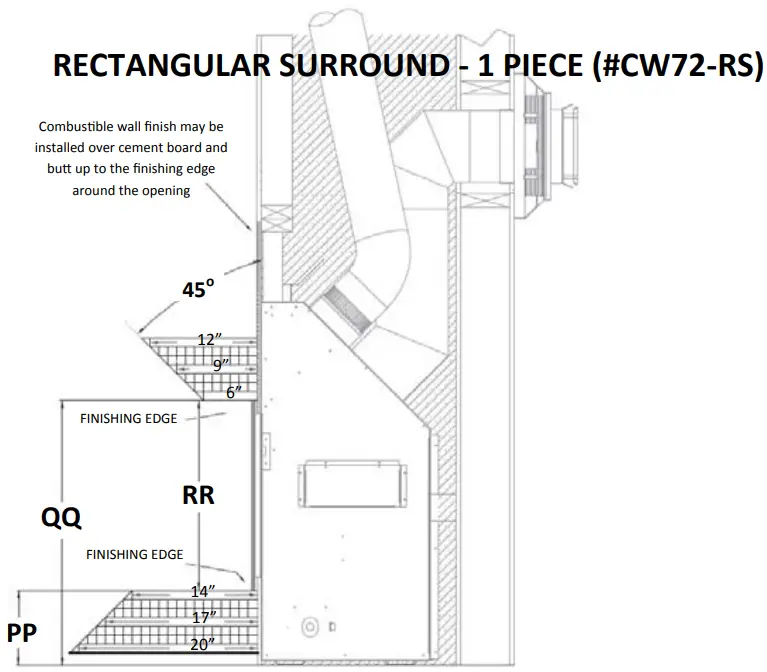

RECTANGULAR SURROUND ‐ 1 PIECE (#CW72‐RS)
| Dimension | CLW‐72 |
| PP | 8‐3/8 |
| 29‐3/4 | |
| RR | 21‐3/8 |

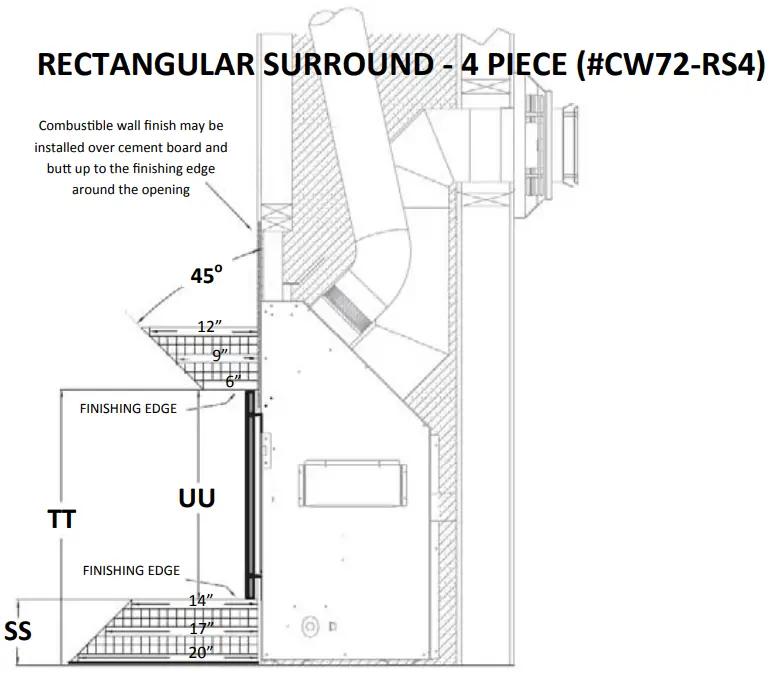

RECTANGULAR SURROUND ‐ 4 PIECE (#CW72‐RS4)
| Dimension | CLW‐72 |
| SS | 7‐1/4 |
| TT | 30‐7/8 |
| UU | 23‐5/8 |

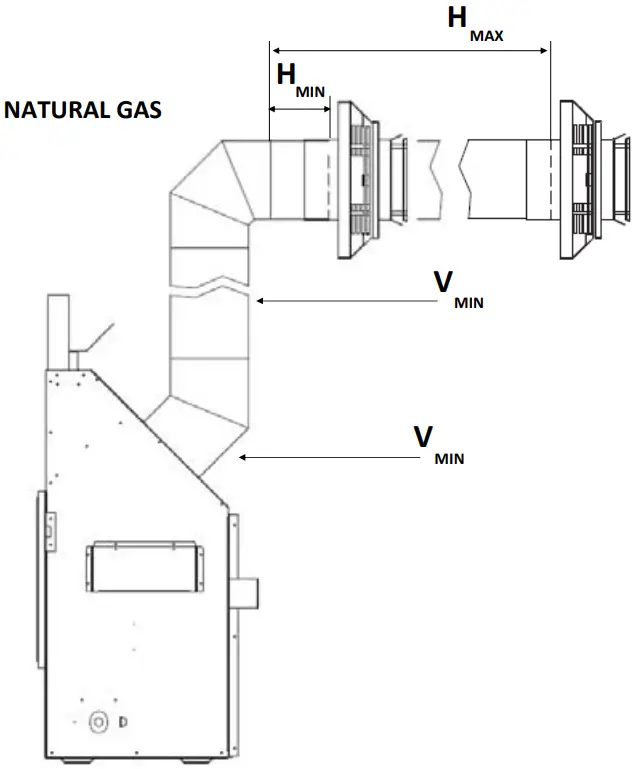

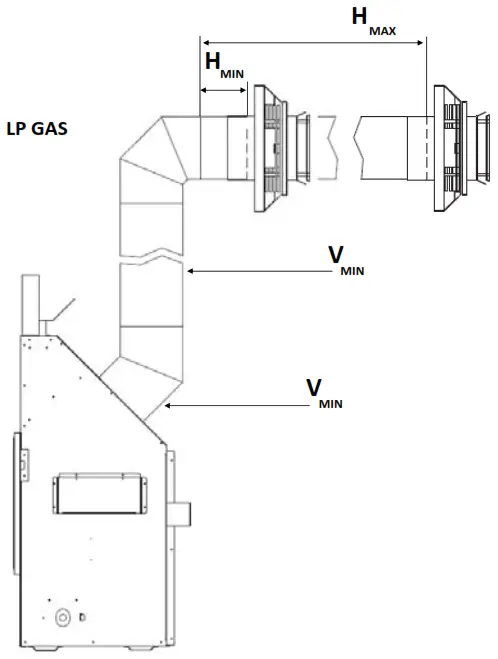

Horizontal Venting Minimum Requirements
| Requirement | CLW‐72 |
| (NG) Vertical Min | 45o Elbow + 24 |
| (NG) Horizontal Min | 90o Elbow + 9 |
| (NG) Horizontal Max | 24 |
Consult venting chart in the manual for all options above minimum requirements
| Requirement | CLW‐72 |
| (LP) Vertical Min | 45o Elbow + 36 |
| (LP) Horizontal Min | 90o Elbow + 9 |
| (LP) Horizontal Max | 24 |
H = Horizontal
V = Vertical
