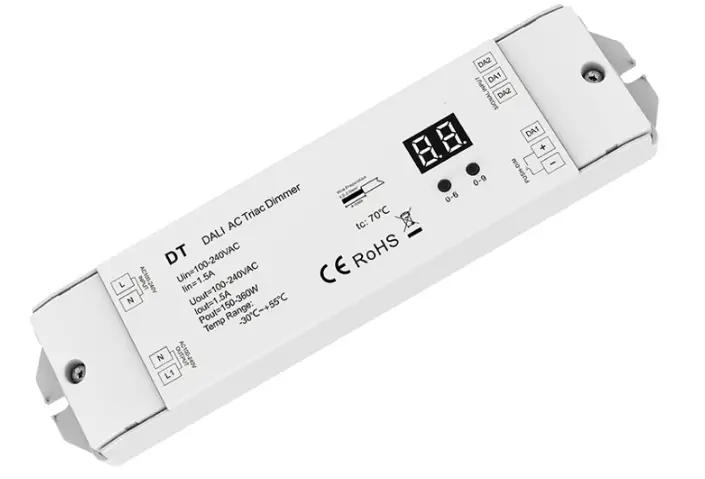

SKYDANCE DT-B DALI AC Triac Dimmer
DALI AC Triac Dimmer
Model No.: DT-B
1DALI address / 1 Channel output / Trailing edge
Features
- AC phase-cut misfit DALI dimmer, one DALI address, one channel output.
- Trailing edge dimmer.
- The minimum brightness is adjustable.
- In accordance with DALI standard protocol 101, 102, 205 (IEC 62386) and in compliance with DALI products from other international incorporation.
- DALI address can be automatically assigned by DALI master.
- To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
- Over-heat protection, Overload protection, recover automatically.
Technical Parameters
| Input and Output | |
| Input voltage | 100-240VAC |
| Output voltage | 100-240VAC |
| Output current | Max 1.5A |
| Output power | 150-360W |
Environment
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (Max.) | Ta: +70 OC |
| IP rating | IP20 |
| Package | |
| Size | L75x W75 x H40mm |
| Gross weight | 0.981kg |
| Warranty | |
| Warranty | 5 years |
Compatible Load Types
| Load Type | Maximum Load | Remarks |
| Dimmable LED lamps | 200W @ 220V 100W @ 110V | Due to variety of LED lamp designs, maximum number of LED lamps is further dependent on power factor result when connected to dimmer. |
| Triac Dimmable LED drivers | 200W @ 220V 100W @ 110V | Maximum permitted number of drivers is 200W divided by driver nameplate power rating, and make sure the surge current is no more than 2 times 65A. |
| Incandescent lighting, HV Halogen lamps | 400W @ 220V 200W @ 110V |

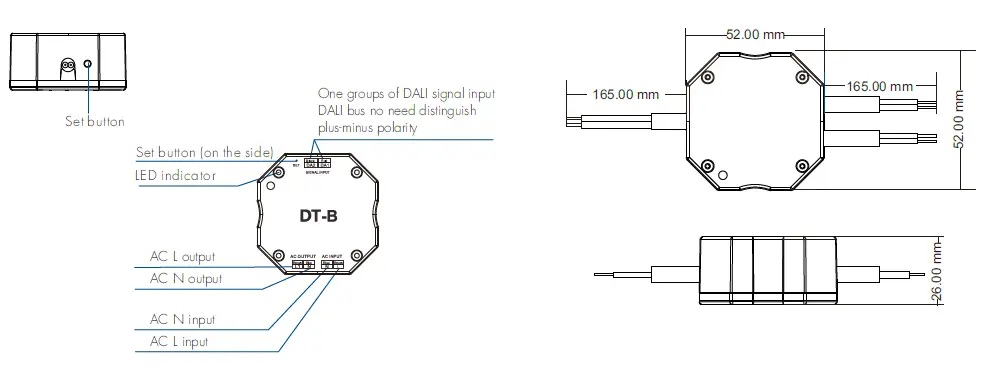

Mechanical Structures and Installations
Wiring Diagram
Caution:
Please carefully ensure all wire connections and polarities are correct and secure before applying power, otherwise this controller will be damaged.
Note: When calculating the maximum number of load lamps or drivers, the input power or input current parameters of a single lamp or driver must be used, the output power parameters can not be used.
In addition, the maximum surge current of the dimmer is 65A, the sum of surge current of multiple dimmable LED drivers should not exceed 2 times. otherwise, the product will be overloaded and damaged.
Operation
Minimum brightness setting
The minimum brightness of the device can be set or deleted by press the “SET” button on the dimmer.
- Recall minimum brightness:
Short press “SET ” button on the dimmer, LED indicator ash one, the light output the minimum brightness. - Setting minimum brightness:
Adjust the brightness to a desired minimum level, then press and hold down the “SET ” button 2s until the LED indicator ash one, the current brightness is set as the minimum brightness.
The light can only be dimmable between this minimum brightness and maximum brightness. - Delete minimum brightness:
Adjust the brightness to maximum level, then press and hold down the “SET ” button 2s until the LED indicator ash one, the minimum brightness setting is deleted.
DALI address assigned by DALI masters
DALI address can also be assigned by DALI Master controller automatically.
Please refer to user manuals of compatible DALI Masters for specific operations.
Safety & Warnings
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
