INSTALLATION INSTRUCTIONS
Digital Dimmer
Part#: 21005
PARTS/TOOLS NEEDED:
 |  |
| Dimmer Switch | Bezel & Knob (optional) |
 |  |
| Mounting Screws | Wire Nuts |
 | |
| Power Drill | |
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
- Disconnect power before installing, adding or changing any component.
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- It is recommended that fuse protection be added to the positive (+) input.

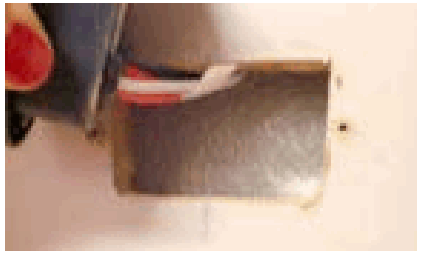

- Determine the installation location for your switch and cut a 1-1/2” x 2” hole using a drywall saw.

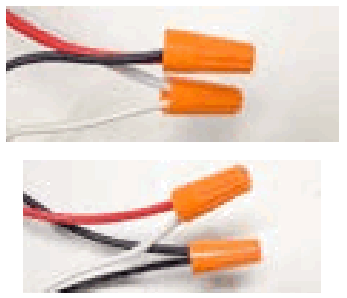

- Using wire nuts attached the units’ power to the wires labeled input and attach the output side to your selected light fixture. (figure 1)

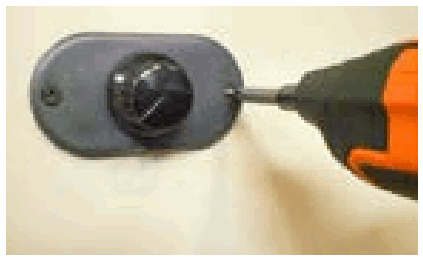

- Feed wires back through the hole and screw the switch in place using the screws provided.

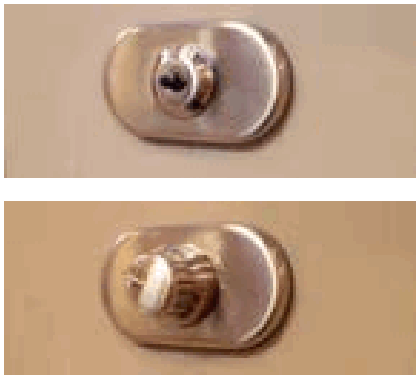

- To attach the bezel, first remove the black knob. Slide bezel onto switch and install new knob.

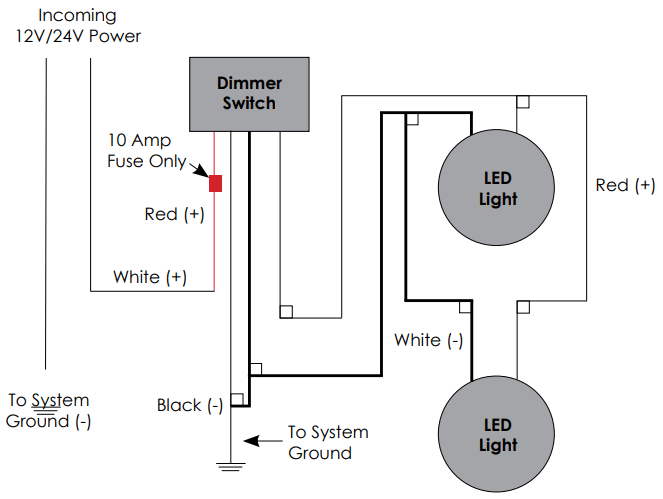

Figure 1: Wire the switch based on the wiring diagram below.
