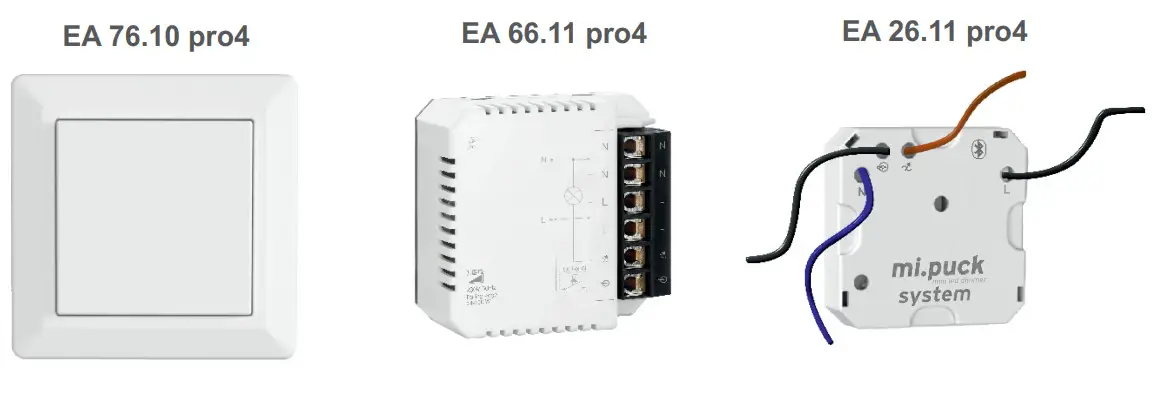

EA 76.10 pro4 Astro Dimmer
Instruction Manual
https://www.hugo-mueller.de/en/products/misystem/mipuck-system/
Technical data
| Supply voltages | 230 V, 50 Hz |
| Power consumption | 0.5 W EA 76.10 pro4 0.3 W EA 66.11 pro4 0.3 W EA 26.11 pro4 |
| Suitable type of lamps | LED lamps |
| LED trailing edge | ɛ 4-150 W |
| Transmission type | Bluetooth 4.2 |
| Time base | Quartz |
| Quartz accuracy (at 20°C) | ≤ ±0.5 sec./day (Quartz accuracy optimized for typical ambient conditions) |
| Ambient temperature | -25° … +45°C |

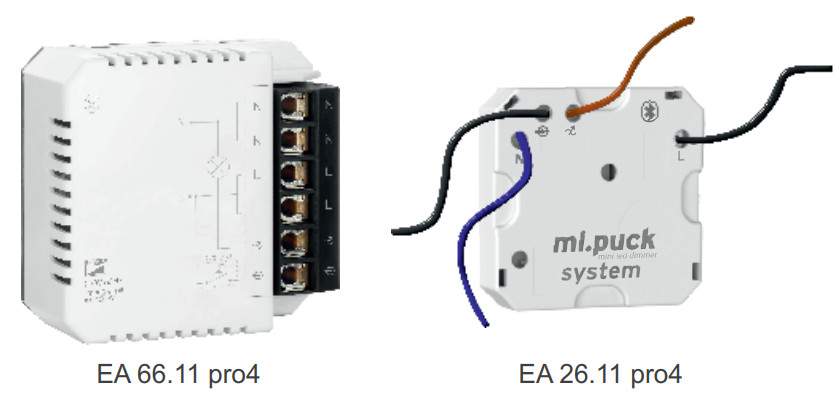

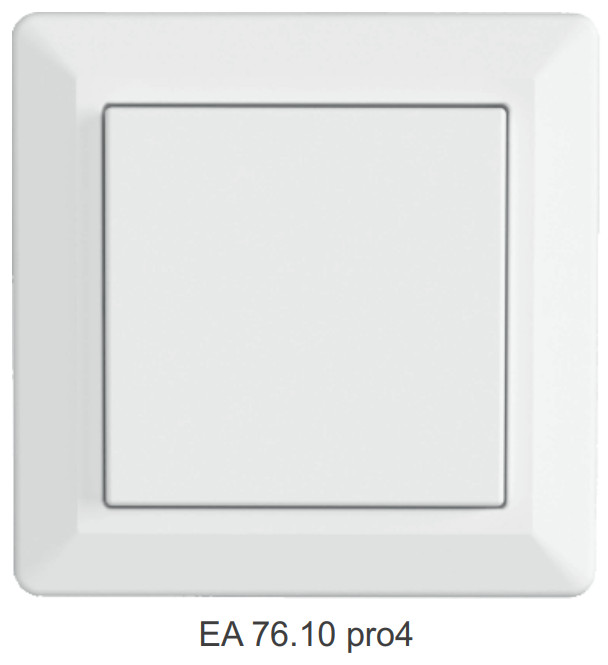

| Dimensions | 84 x 84 x 33.2 mm EA 76.10 pro4 41.4 x 44 x 20 mm EA 66.11 pro4 38 x 38 x 10 mm EA 26.11 pro4 |
| Type of protection | IP 20 to DIN EN 60529 |
| Class of protection | II, when installed, according to regulations |
Intended Use
The LED dimmer is a trailing edge dimmer and can be used for switching and dimming of dimmable LED lamps.
Declaration of conformity
Herewith, Hugo Müller GmbH & Co KG declares that these electronical devices comply with Directive 2014/53/EU.
For the full text of the EU Declaration of Conformity please visit: www.hugo-mueller.de/en/downloads/declarations-of-conformity/
WARNING:
- The installation and assembly of electrical equipment must be only carried out only by a skilled Person! Otherwise, fire danger or danger of an electric shock exists!
- Disconnect the mains power supply prior to installation and/or disassembly!
- Connect the supply voltage/frequency as stated on the product!

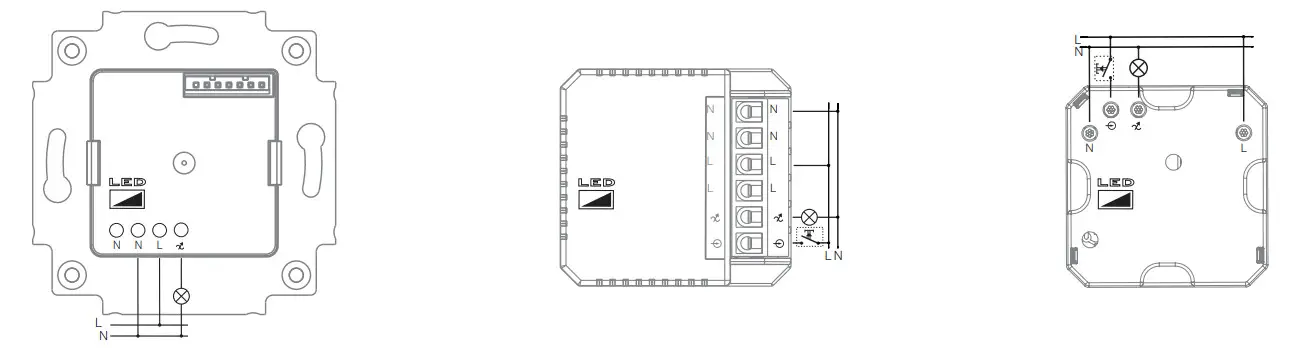

Connection

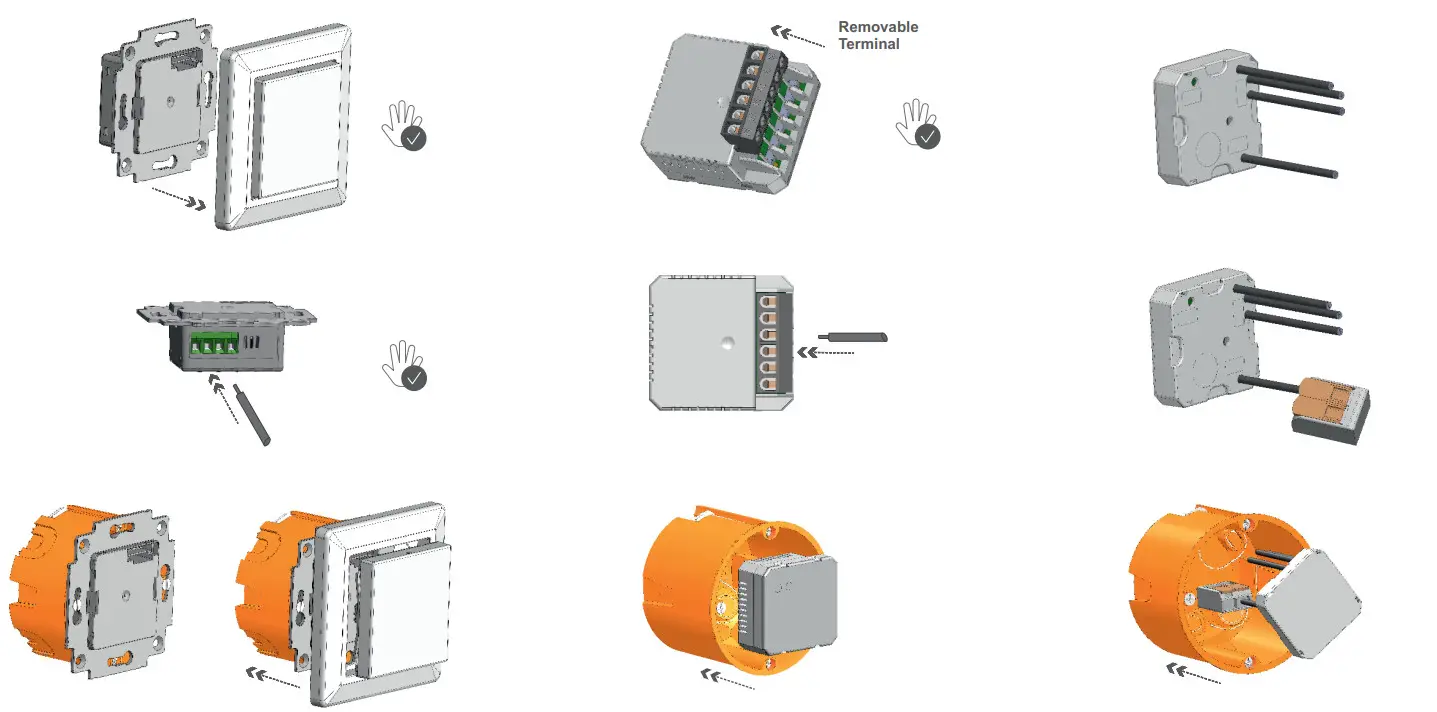

Mounting
Initial Operation
mi.puck
by Hugo Müller GmbH & Co KG
https://play.google.com/store/apps/details?id=de.hugomueller.mi.control
https://apps.apple.com/us/app/mi-puck/id1590845051

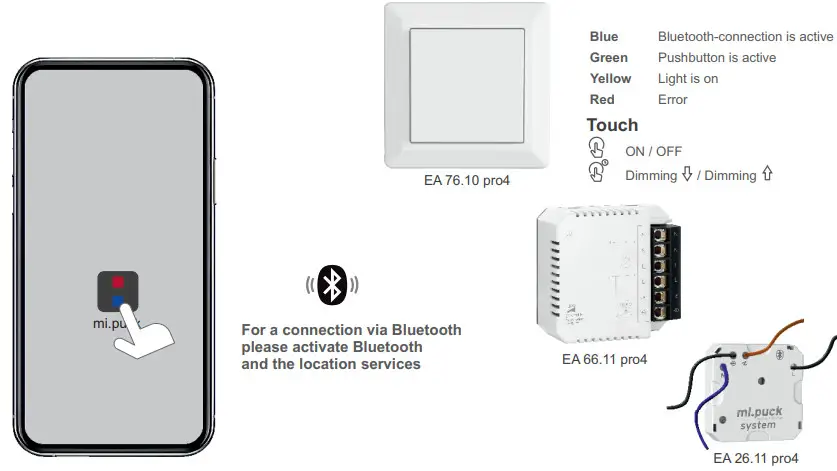

Status LED
Hugo Müller - Schalten, Steuern, Zählen | Hugo Müller
