Skydance Da-p Dali Push Dimmer Instruction Manual

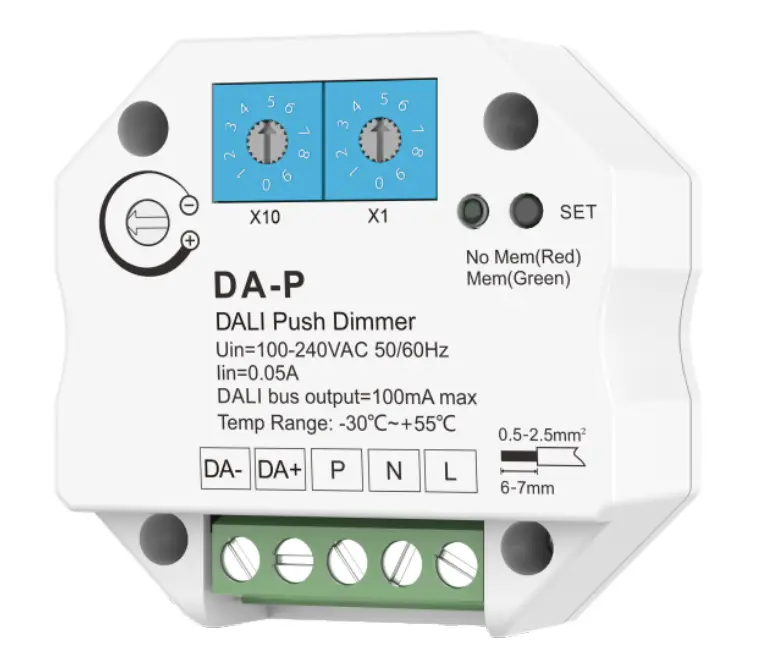

SKYDANCE DA-P DALI Push Dimmer

Features

• Small Dimmer for DALI Drivers or Ballasts.
• Unidirectional and broadcasting communication.
• Control by conventional push-button, with or without memory:
  Short press: turn on /off light.
  Long press: dimming up/down.
• Dimming speed adjustable by rotary knob.
• Can be used as a DALI bus power supply to provide power

Technical Parameters

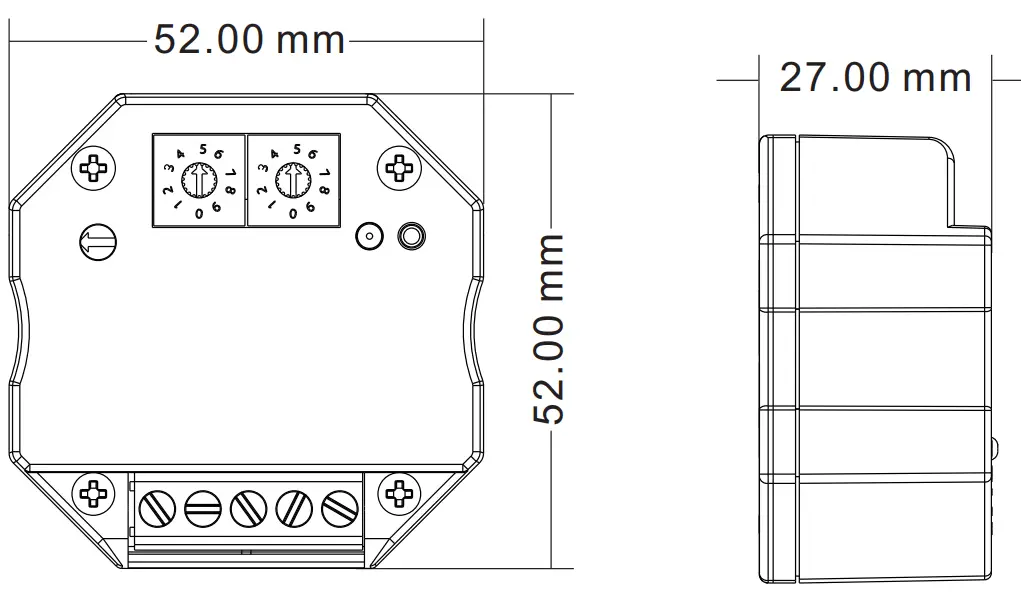

Mechanical Structures and Installations]

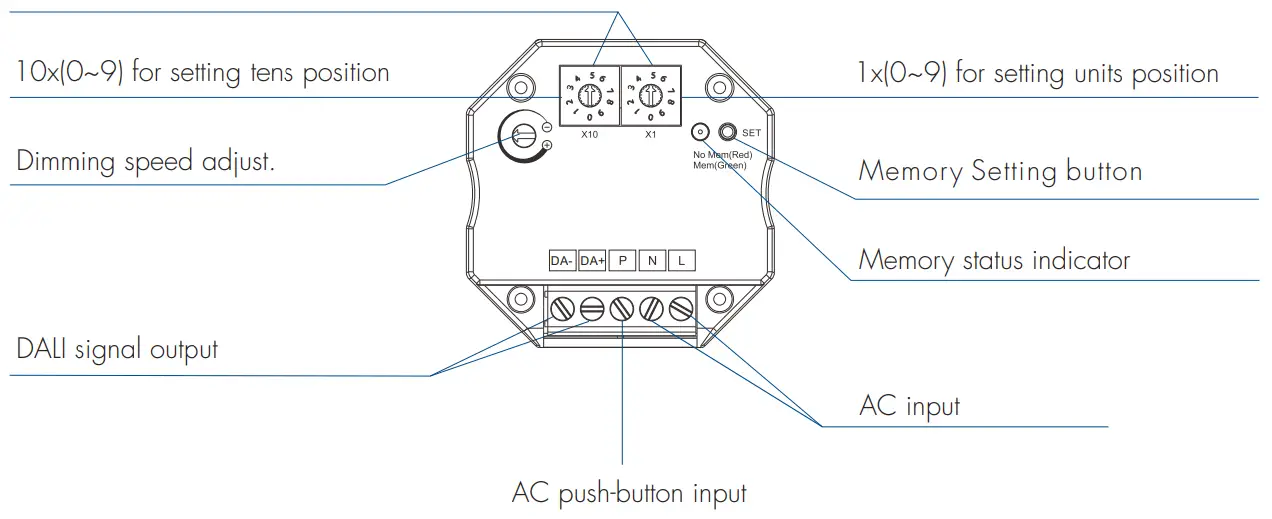

Rotary switches for setting DALI address, the number equals to tens position plus units position

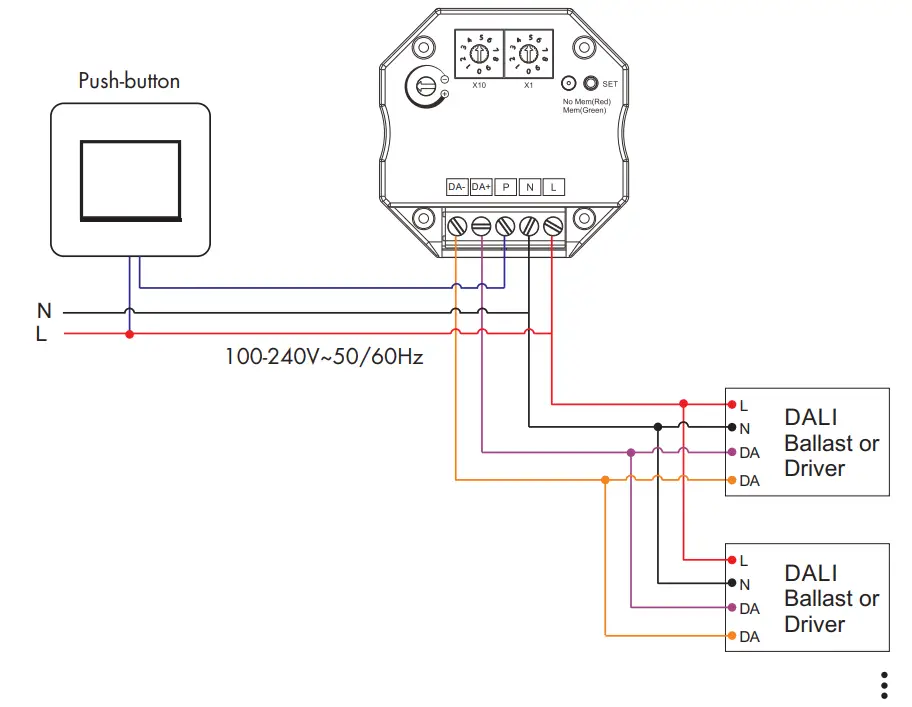

Wiring Diagram

Caution:

Please carefully ensure all wire connections and polarities are correct and secure before applying power, otherwise this controller will be damaged.

DALI address setting

1. Address value = Left rotary switch value × 10 + right rotary switch value.
   For example : Left rotary switch value is 5, right rotary switch value is 4, Address value = 5 x 10 + 4 = 54.
2. Unicast mode : Address value 0-63 corresponds to DALI addresses 00-63. Group mode : Address values 70-85 correspond to DALI groupings 0-15. Broadcast mode : Left rotary switch value i

PUSH dimming speed setting

1. The closer the arrow is to “+”, the faster the PUSH dimming speed will be.
2. The closer the arrow is to “-“, the slower the PUSH dimming speed

Memory function setting

Short press the “SET” button to switch the memory function.

1. Without memory: LED indicator is red, PUSH dimming and then power on again, light returns to maximum brightness.
2. With memory: LED indicator is green, PUSH dimming and then power on again, light restores the last brightness.
   Factory default: Without me

Push-button function

• Short press: Turn on / off light.
• Long press : Dimming up/down

Safety & Warnings

• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
