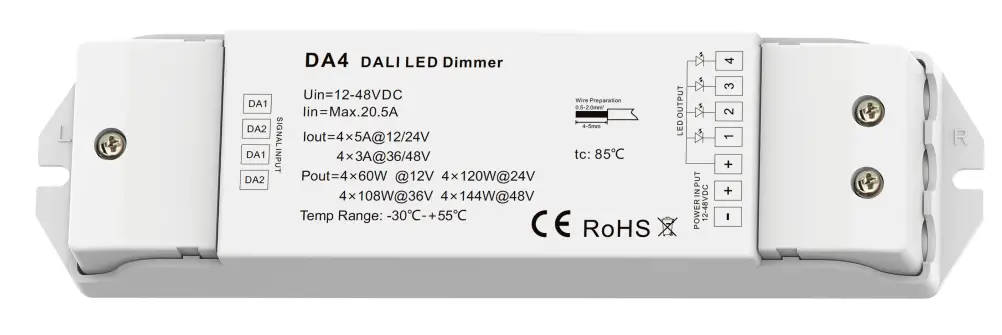

SKYDANCE DA4 4 Channel Constant Voltage Dali LED Dimmer
Features
- 4 channel constant voltage DALI LED Dimmer.
- 4 DALI address, 4 channel work separately.
- In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
- DALI address will be automatically assigned by DALI master.
- PWM digital dimming, standard DALI logarithmic dimming curve.
- Over-load / Short circuit protection, recover automatically.
Technical Parameters
| Input and Output | |
| Input voltage | 12-48VDC |
| Input current | 20.5A |
| Output voltage | 12-48VDC |
| Output current | 4x5A@12/24V 4x3A@36/48V |
| Output power | 4 x 60W @12V 4x120W@24V 4 x 108W@36V 4x144W@48V |
| Output type | Constant voltage |
| Warranty and Protection | |
| Warranty | 5 years |
| Protection | Reverse polarity Over-load Short circuit |
| Warranty and Protection | |
| Warranty | 5 years |
| Protection | Reverse polarity Over-load Short circuit |
| Environment | |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (Max.) | T c: +85OC |
| IP rating | IP20 |

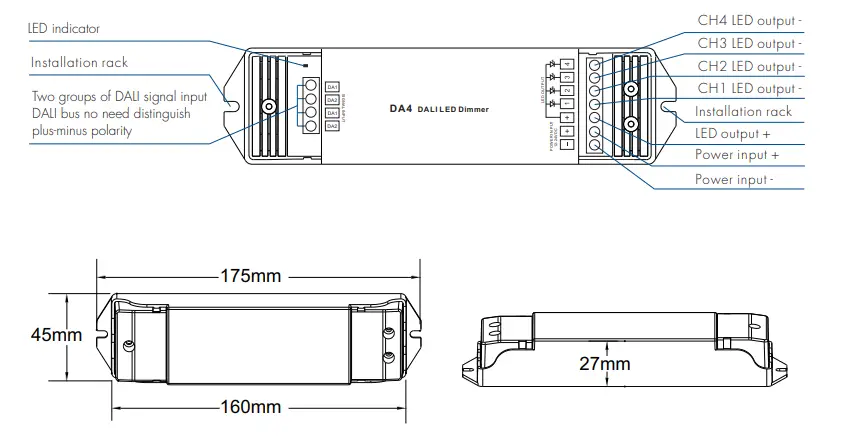

Mechanical Structures and Installations

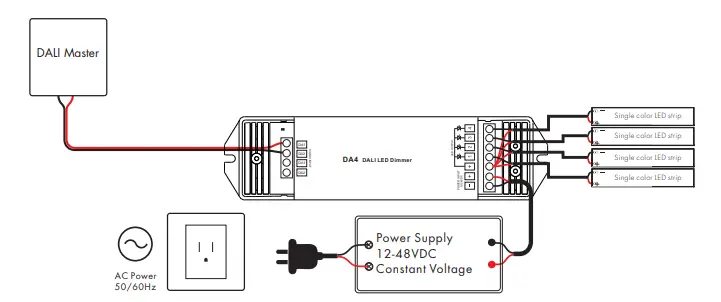

Wiring Diagram
DALI control
This product is designed with 4 DALI address input and 4 channel output, DALI address is assigned by DALI Master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations.
Safety & Warnings
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
