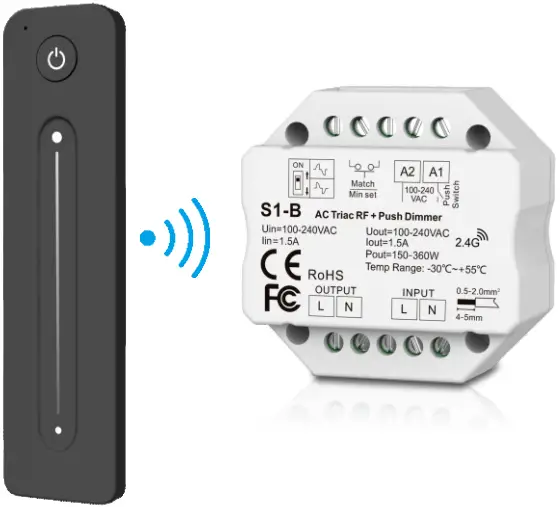

Skydance S1-b+r11 Ac Triac Rf Plus Push Dimmer Kit Owner's Manual (+ PDF)

RF + Push AC phase-cut dimmer, 1 channel output.
To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
Leading edge dimming or trailing edge dimming set by dip switch.
Min brightness can be set by key.
Light on/off fade time 3s selectable.
Connect with external push switch to achieve on/off and dimming function.
Easy to be inserted into standard 86*86mm wall box.

Technical Parameters

Triac Dimmer’s Input and Output
Input voltage	AC100-240V
Output voltage	AC100-240V
Output current	Max 1.5A
Output power	150-360W
Dimming signal	RF 2.4GHz + Push Dim
Dimming level	256 levels
Dimming range	0 -100%

LED Remote’s Input and Output
Output signal	RF(2.4GHz)
Working voltage	3VDC(CR2032)
Working current	＜5mA
Standby current	＜10μA
Standby time	＜1 years
RF Control distance	30m(Barrier-free space)

Safety and EMC
EMC standard (EMC)	ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)	EN 62368-1:2020+A11:2020
Radio Equipment(RED)	ETSI EN 300 328 V2.2.2
Certication	CE,EMC,LVD,RED

Environment
Operation temperature	Ta: -30ºC ~ +55ºC

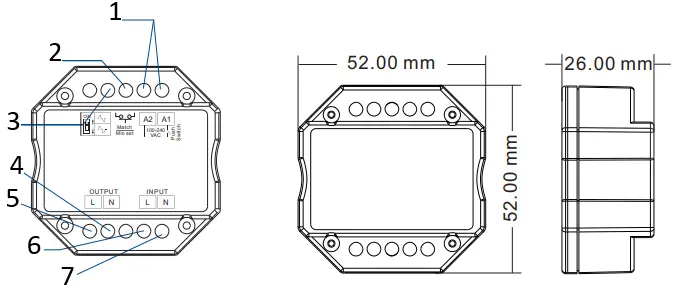

Mechanical Structures and Installations

AC Push switch
Match / Min brightness set key
DIP switch for Leading edge or trailing edge phase-cut select
AC N output
AC L output
AC L input
AC N input

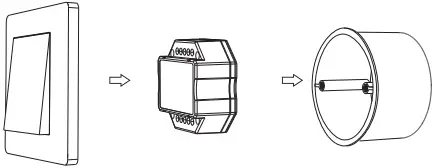

Typical Wall Junction Box Mounting

Remote function

LED indicator
On/Off
100%
Bright touch slide
50%
1%
Back holder with magnet

Compatible Load Types

Load Type	Maximum Load	Remarks
Dimmable LED lamps	200W @ 220V 100W @ 110V	Due to variety of LED lamp designs, maximum number of LED lamps is further dependent on power factor result when connected to dimmer.
Triac Dimmable LED drivers	200W @ 220V 100W @ 110V	Maximum permitted number of drivers is 200W divided by driver nameplate power rating, and make sure the surge current is no more than 2 times 65A.
Incandescent lighting, HV Halogen lamps	400W @ 220V 200W @ 110V

Wiring diagram

Caution: Please carefully ensure all wire connections and polarities are correct and secure before applying power, otherwise this dimmer will be damaged.

Push Switch
Dimmable LED light

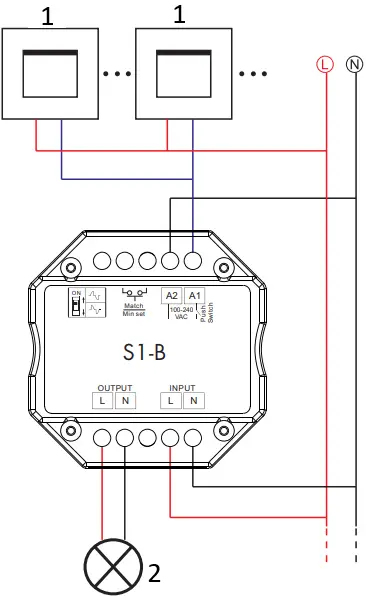

Connect with dimmable LED light

Push Switch
Triac Dimmable
LED Driver
LED light

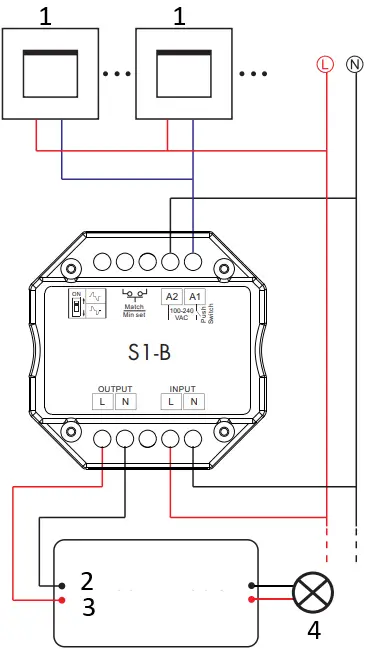

Connect with Triac dimmable LED driver

Note: When calculating the maximum number of load lamps or drivers, the input power or input current parameters of a single lamp or driver must be used, the output power parameters can not be used.
In addition, the maximum surge current of the dimmer is 65A, the sum of surge current of multiple dimmable LED drivers should not exceed 2 times. otherwise, the product will be overloaded and damaged.

Leading edge or trailing edge dimming setting

Select leading edge(forward-phase) dimmer or trailing edge(reverse-phase) dimmer according to dimmable LED light or driver.

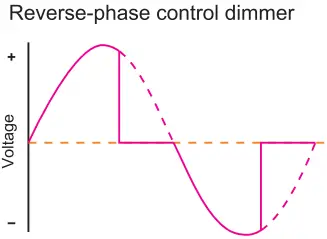

Reverse-phase

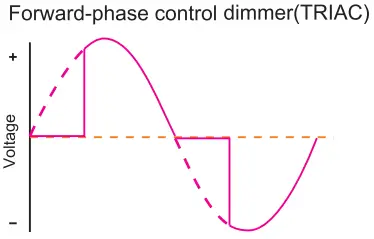

Forward-phase

Caution: before power on, you must confirm the selection of dip switch.

Min brightness setting
Long press Min set key for 2s, the light blink 2 times, ready for min brightness set, then short press Min set key 1-6 times, to get 6 min brightness: 5%, 10%, 15%, 20%, 25% or 30%, the light will output the current min brightness immediately, Long press Min set key for 2s or wait 8s, quit min brightness set, the light will output 100% brightness automatically.

Light on/off fade time
Long press Match key 5s, then short press Match key 3 times, the light on/off time will be set to 3s, the indicator light blink 3 times. Light on/off fade time Long press Match key 10s, restore factory default parameter, the light on/off time also restore to 0.5s.

Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:

Use the controller’s Match key	Use Power Restart
Match: Short press Match key, immediately press on/off key of the remote.	Match: Switch off the power, then switch on power, repeat again. Immediately short press on/off key 3 times on the remote. The light blinks 3 times means match is successful.
Delete: Press and hold Match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted.	Delete: Switch off the power, then switch on power, repeat again. Immediately short press on/off key 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
