Skydance S1-k Ac Triac Rotary Glass Panel Dimmer User Manual

S1-K AC Triac Rotary Glass Panel Dimmer

Product Information: AC Triac Rotary Glass Panel Dimmer Model No.: S1-K

The AC Triac Rotary Glass Panel Dimmer Model No.: S1-K is a wireless dimmer that can be used to control the brightness of dimmable LED lamps, Triac dimmable LED drivers, incandescent lighting, and HV halogen lamps. It features a rotary knob and a glass panel for easy and convenient use. The dimmer can be controlled wirelessly using an RF remote control with a control distance of up to 10m in barrier-free space. It has 256 dimming
levels and a dimming range of 0-100%. The dimmer is compatible with loads up to 400W at 220V and 200W at 110V for incandescent lighting and HV halogen lamps, and up to 200W at 220V and 100W at 110V for dimmable LED lamps and Triac dimmable LED drivers.

Features:

• Rotary dimming
• Glass panel
• Leading edge or trailing edge
• Wireless remote control
• LVD (Low Voltage Directive) compliant

Technical Parameters:

• Input voltage: AC100-240V
• Output voltage: AC100-240V
• Output current: Max 1.5A
• Output power: 150-360W
• EMC standard: ETSI EN 301 489-1 V2.2.3
• Safety standard: ETSI EN 301 489-17 V3.2.4, EN 62368-1:2020+A11:2020
• Radio Equipment standard: ETSI EN 300 328 V2.2.2
• Certification: CE, EMC, LVD, RED

Environment:

• Operation temperature: -30 OC ~ +55 OC
• Case temperature (Max.): +85OC
• IP rating: IP20
• Weight: Net weight 0.181kg, Gross weight 0.234kg

Warranty:

The AC Triac Rotary Glass Panel Dimmer Model No.: S1-K comes with a 5-year warranty.

Compatible Load Types:

• Dimmable LED lamps
• Triac dimmable LED drivers
• Incandescent lighting
• HV halogen lamps

Mechanical Structures and Installations:

The AC Triac Rotary Glass Panel Dimmer Model No.: S1-K has an 86mm x 52mm size and is designed for European-style installations. It features a match key, a DIP switch for leading edge or trailing edge phase-cut select, AC L output, and AC N output. The dimmer can be installed using the typical base as shown in the installation diagram.

Product Usage Instructions

Installation:

Before installation, carefully ensure all wire connections and polarities are correct and secure before applying power to prevent damage to the dimmer. Follow the wiring diagram provided in the user manual to connect the dimmer to the load type you intend to use it with. The dimmer can be connected to dimmable LED lights or Triac dimmable LED drivers using the AC100-240V input and output connections. Make sure the surge current of the load type does not exceed 2 times 65A to prevent overloading and damaging the product.

Usage
To turn on or off the light, push the knob. After turning on the light, rotate the knob to adjust brightness. The knob can be rotated up to 2.5 turns with 50 levels of brightness adjustment. To make continuous brightness adjustments, long push (1-6s) the knob.Rotary dimming/Glass panel/Leading edge or trailing edge/Wireless remote control
The dimmer can be controlled wirelessly using the RF remote control provided with a control distance of up to 10m in barrier-free space.

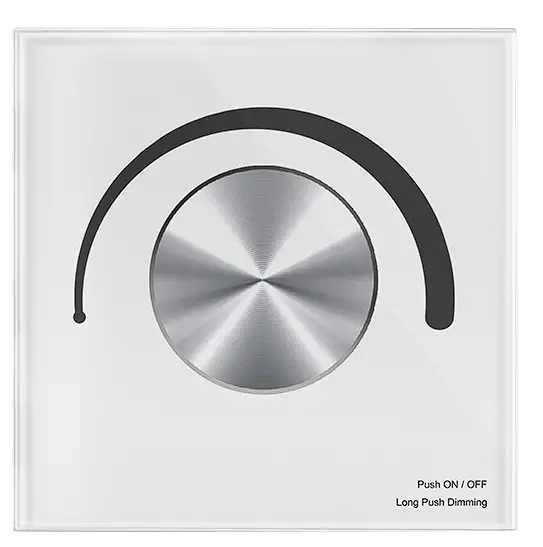

AC Triac Rotary Glass Panel Dimmer

Model No.: S1-K

Rotary dimming/Glass panel/Leading edge or trailing edge/Wireless remote control

Features

• Rotary glass panel AC phase-cut dimmer, 1 channel output.
• To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
• Rotate knob to change brightness, support push and long push operation.
• 256 levels 0-100% dimming smoothly without any flash.
• Leading edge dimming or trailing edge dimming set by dip switch.
• Light on/off fade time 3s selectable.
• Compatibility with RF 2.4G single zone or multiple zone dimming remote control.
• Over-heat / Over-load protection, recover automatically.
• White & Black glass panel available.

Technical Parameters

Warranty

• Warranty 5 years

Compatible Load Types

Mechanical Structures and Installations

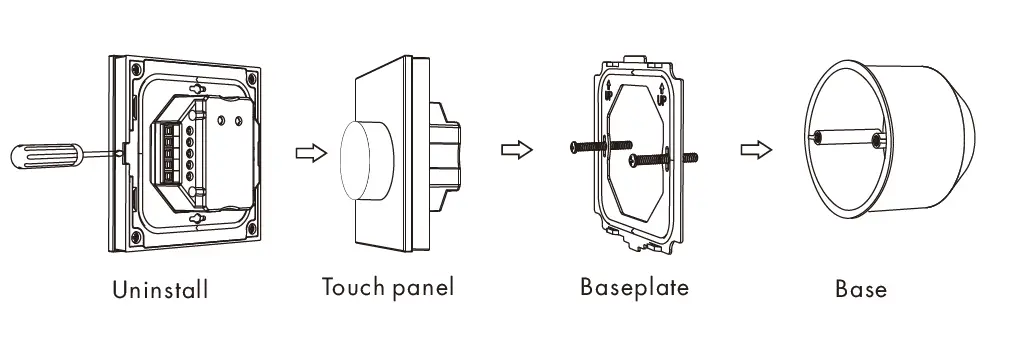

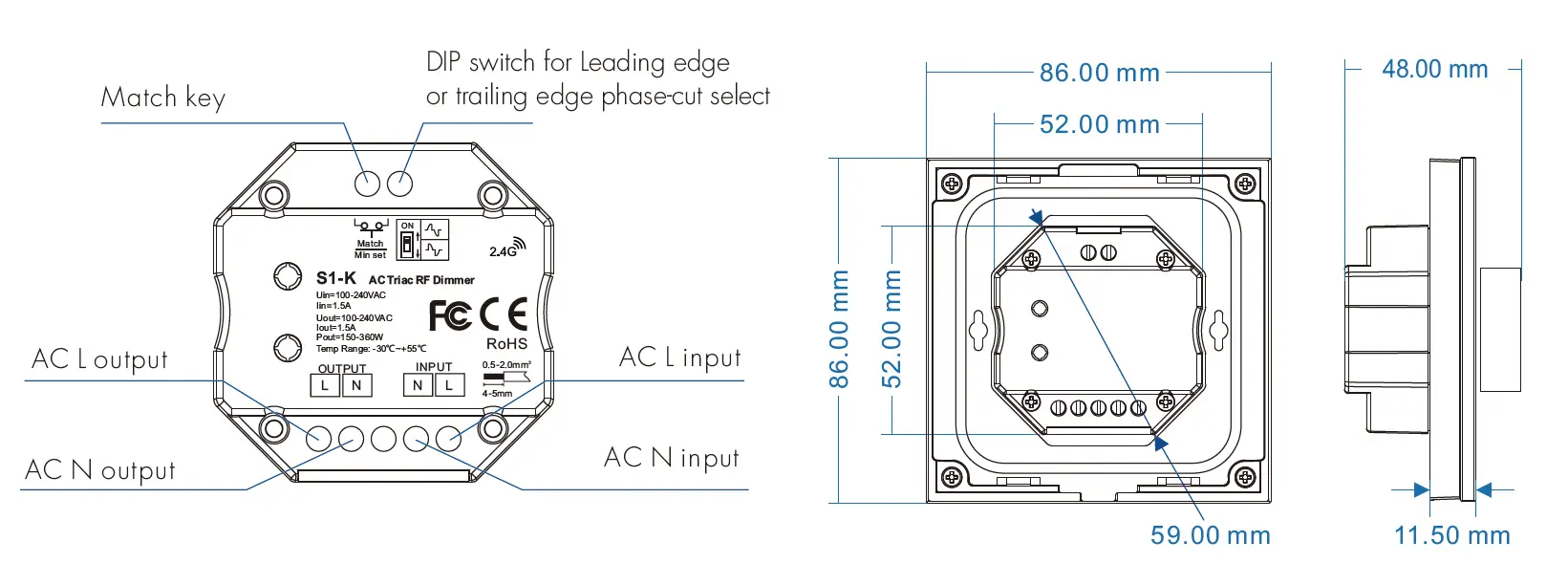

Installation diagram:

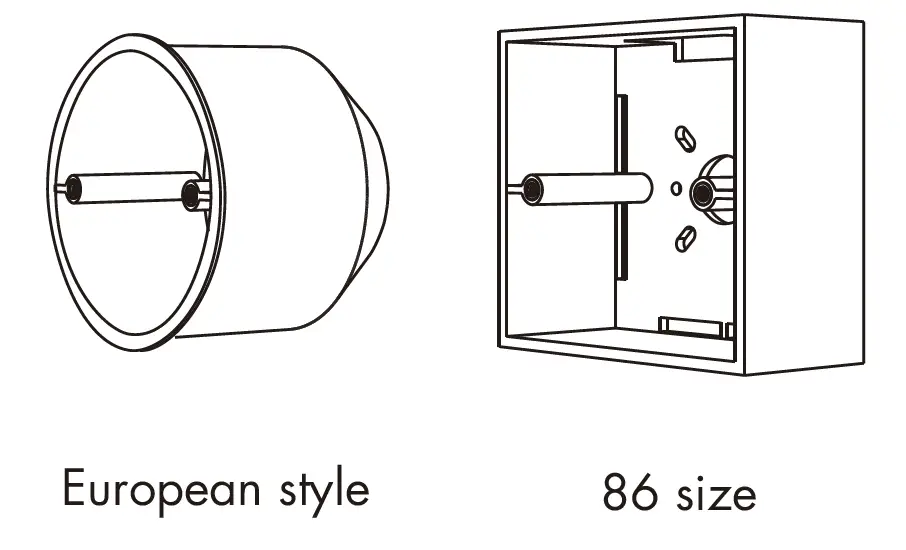

Typical base as below:

Knob function

• Push: Turn on or off light.
  After turn on light:
• Rotate: Rotate knob to adjust brightness, 2.5 turns, 50 levels.
• Long push(1-6s): Continuous 256 levels brightness adjustment.

Wiring diagram
Caution: Please carefully ensure all wire connections and polarities are correct and secure before applying power, otherwise this controller will be damaged.

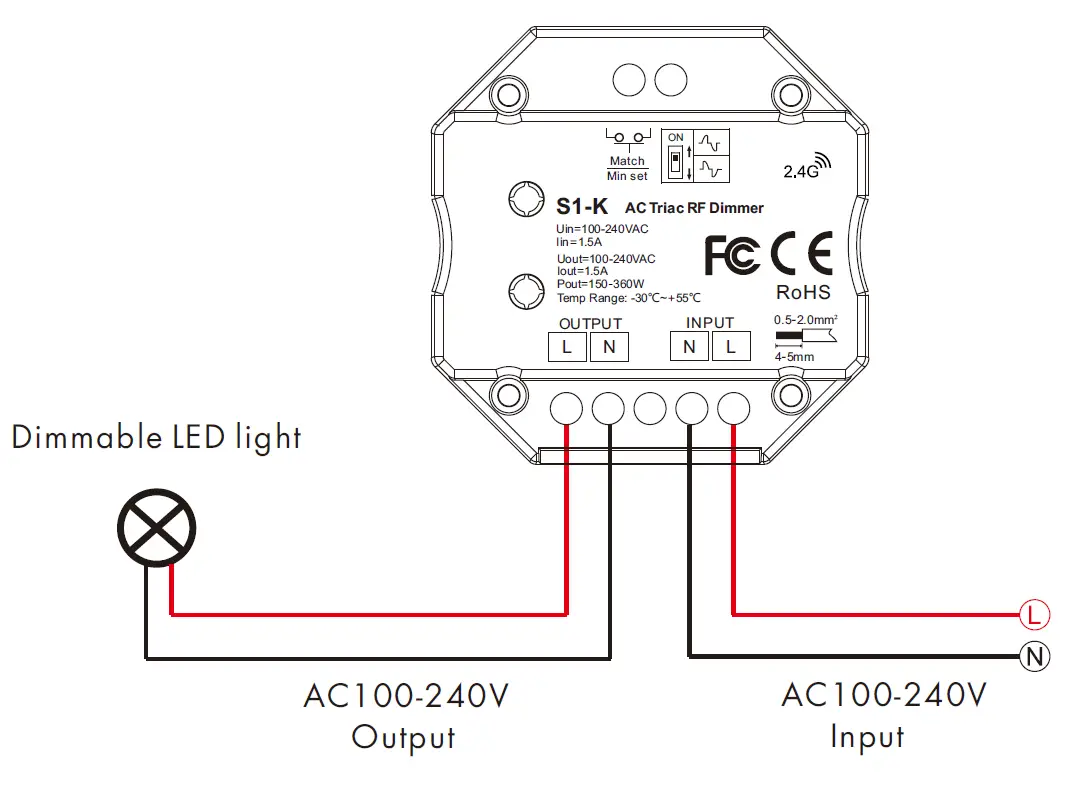

• Connect with dimmable LED light

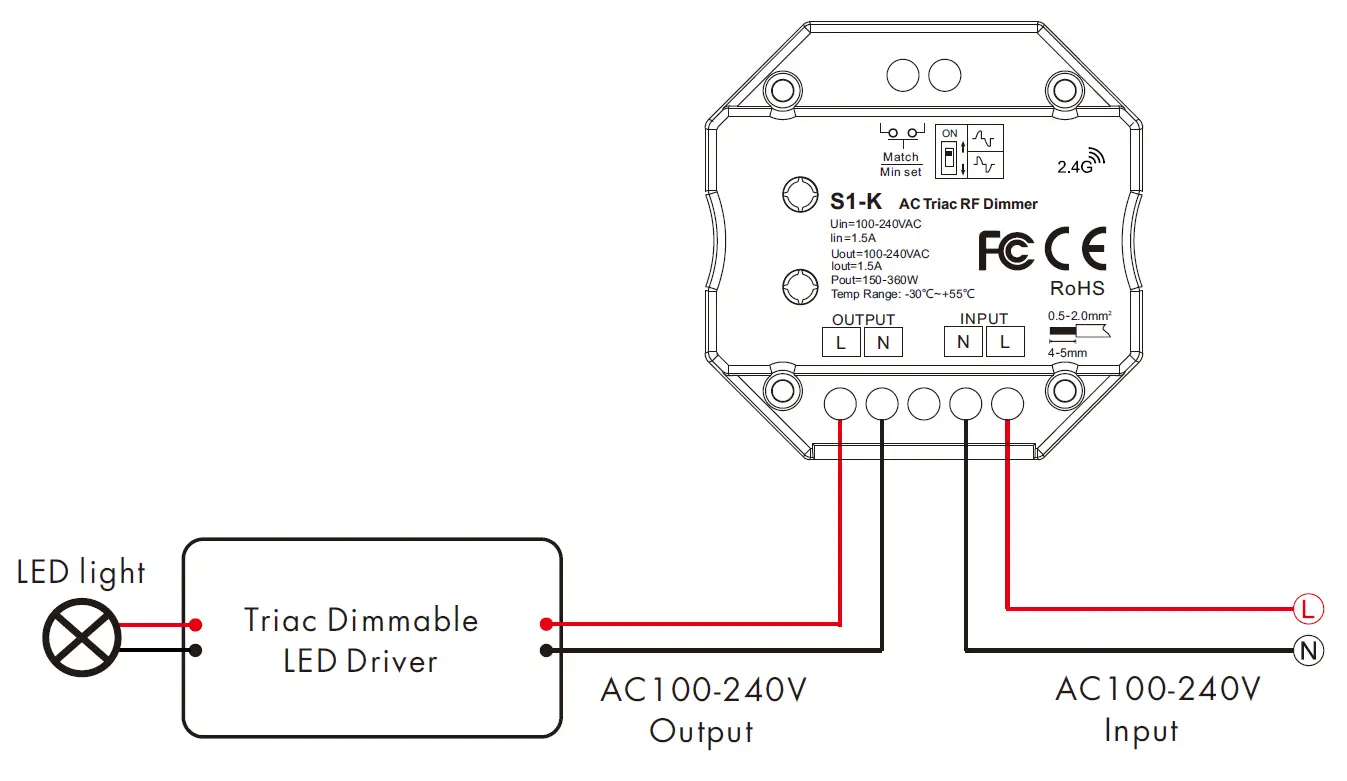

• Connect with Triac dimmable LED driver

Note: When calculating the maximum number of load lamps or drivers, the input power or input current parameters of a single lamp or driver must be used, the output power parameters can not be used.
In addition, the maximum surge current of the dimmer is 65A, the sum of surge current of multiple dimmable LED drivers should not exceed 2 times. otherwise, the product will be overloaded and damaged.

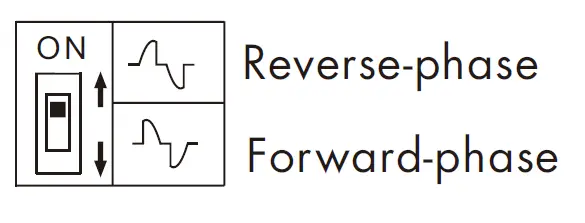

Leading edge or trailing edge dimming setting
Select leading edge(forward-phase) dimmer or trailing edge(reverse-phase) dimmer according to dimmable LED light or driver.

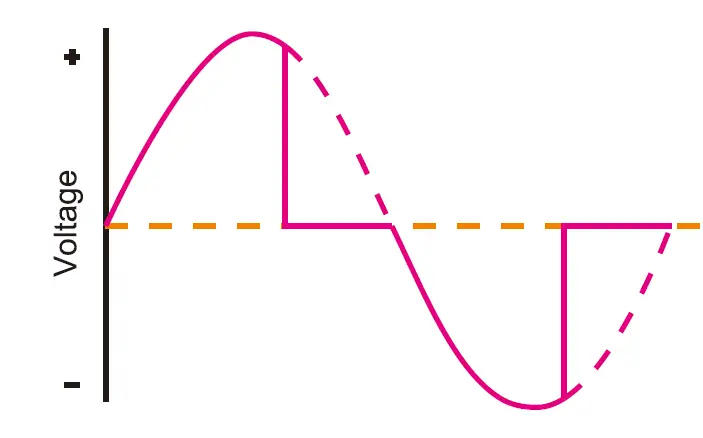

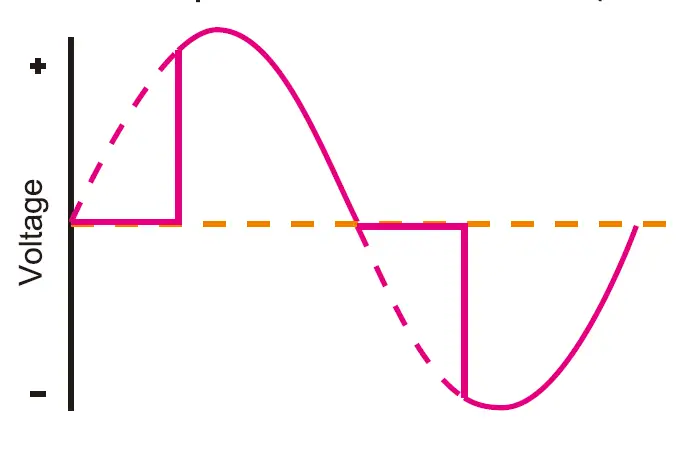

Forward-phase control dimmer(TRIAC) Reverse-phase control dimmer

Caution: before power on, you must confirm the selection of dip switch.

Min brightness setting
Long press Min set key for 2s, the light blink 2 times, ready for min brightness set, then short press Min set key 1-6 times, to get 6 min brightness: 5%, 10%, 15%, 20%, 25% or 30%, the light will output the current min brightness immediately,
Long press Min set key for 2s or wait 8s, quit min brightness set, the light will output 100% brightness automatically.

Light on/off fade time
Long press Match key 5s, then short press Match key 3 times, the light on/off time will be set to 3s, the indicator light blink 3 times.
Long press Match key 10s, restore factory default parameter, the light on/off time also restore to 0.5s.

Match Remote Control (three match ways)
The AC triac rotary panel dimmer can also match with the RF dimming remote (optional).
End user can choose the suitable match/delete ways. Three options are offered for selection:

Use Match key

• Match: Short press Match key, immediately press on/off key(single zone remote) or zone key(multiple zone remote) of the remote. Delete: Press and hold Match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted.

Use Knob

• Match: Turn on light, turn off, immediately push the knob for 5s, then press on/off key (single zone remote) or zone key (multiple zone remote) of the RF remote within 5s. The LED indicator fast flash 3 times means match is successful.
• Delete: Turn on light, turn off, immediately push the knob for 10s to delete all match, The LED indicator fast flash 6 times means all matched remotes were deleted.

Use Power Restart

• Match: Switch off the power, then switch on power, repeat again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times means match is successful.
• Delete: Switch off the power, then switch on power, repeat again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
