GAMDIAS TALOS-M1 Elite Tempered Glass RGB Mid-Tower Chassis Installation Guide

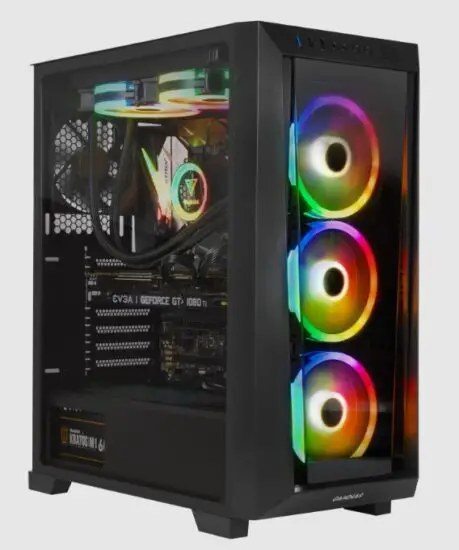

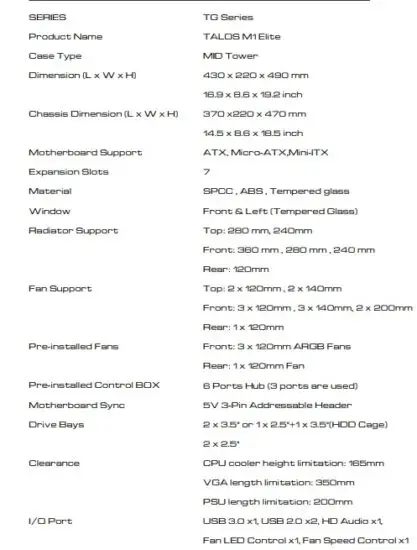

SPECIFICATIONS

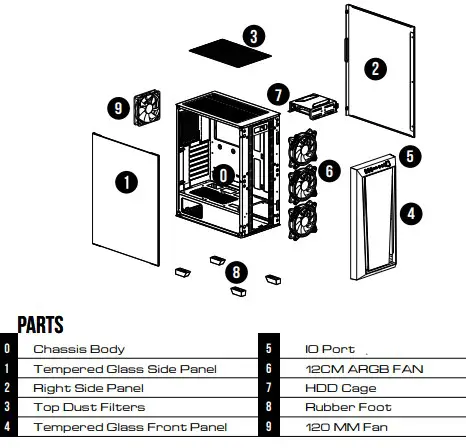

EXPLODED VIEW PARTS

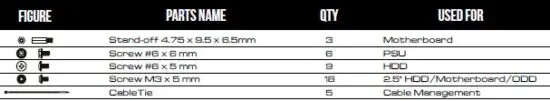

ACCESSORY

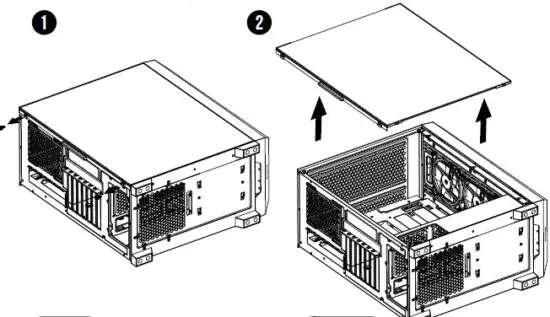

SIDE PANEL REMOVAL

Remove the side panel

MOTHERBOARD INSTALLATION

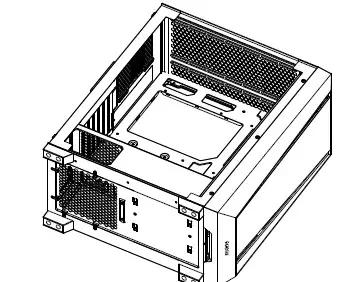

Lay down the chassis

Install the motherboard in proper location and secure it with screws

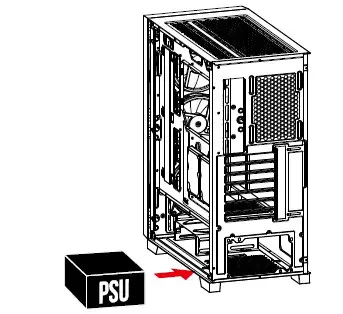

PSU INSTALLATION

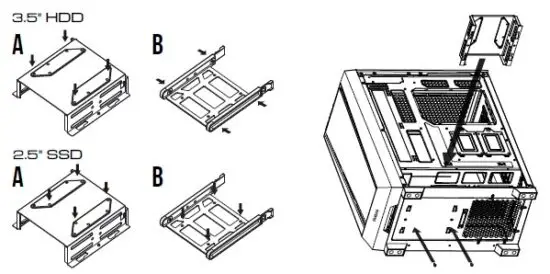

3.5″ 2.5″ HDD INSTALLATION

A. 3.5″ HDD

Align the HDD into the mounting holes and screw in. B. 2.5″ SSD
Align the SSD into the mounting holes and screw in.

AIR COOLING COMPATIBILITY

Top Front Rear

2 x 120mm or 2 x 140mm
3 x 120mm or 3 x 140mm or
2 x 200mm
1 x 120mm

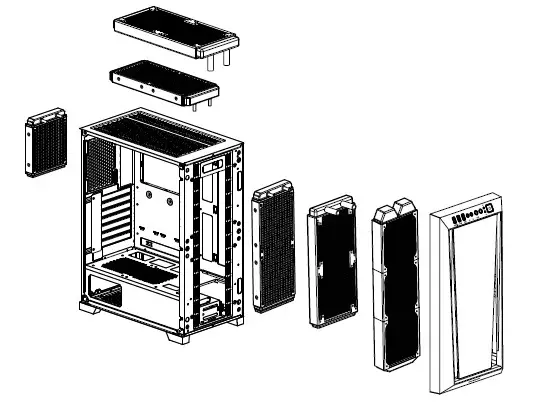

RADIATOR COMPATIBILITY

Top Front Rear

280 mm or 240 mm
360 mm or 280 mm
or 240 mm
120 mm

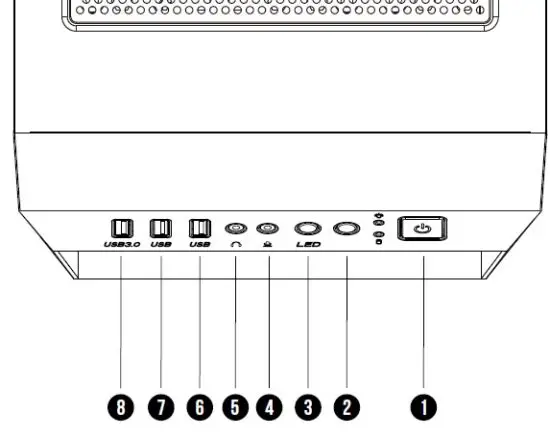

I/O PORTS

1. Sync With Motherboard : Press and Hold the FAN Speed Control Button for 3 Seconds.
2. Fan LED Off : Press and Hold the FAN LED Control Button for 3 Seconds.

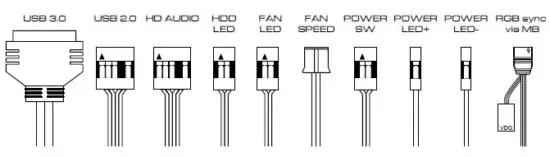

USB 3.0 USB 2.0 HD AUDIO POWER

See your motherboard’s manual for front panel header locations and pin-outs.

Read More About This Manual & Download PDF:
