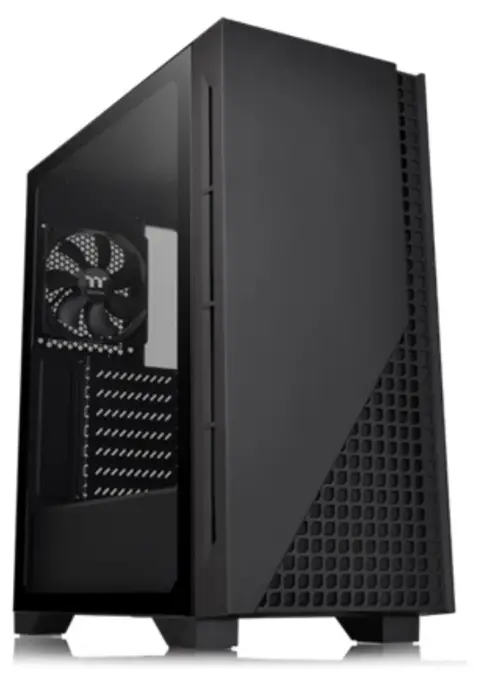

Mid Tower
H 330 TG
User’s Manual
Specifications
| Model | H330 TG |
| Case Type | Middle tower |
| Dimension(H*W*D) | 419 x 210 x 480 mm(16.5 x 8.27 x 18.9 inch) |
| Side Panel | 4 mm Tempered Glass x 1(Left) |
| Cooling System | Rear (exhaust): 120 x 120 x 25 mm fan(1000 rpm, 16 dBA) |
| Drive Bays – Accessible – Hidden | 2 x 3.5” or 2 x 2.5”(HDD Rack); 2 x 2.5”(HDD Bracket) |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7”(Mini ITX), 9.6” x 9.6”(Micro ATX), 12” x 9.6”(ATX) |
| I/O Port | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120 mm or 2 x 120 mm or 1 x 120 mm 2 x 140 mm or 1 x 140 mm 2 x 200 mm or 1 x 200 mm Top: 2 x 120 mm or 1 x 120 mm 2 x 140 mm or 1 x 140 mm Rear: 1 x 120 mm |
| Radiator Support | Front: 1 x 360 mm or 1 x 240 mm or 1 x 120 mm 1 x 280 mm or 1 x 140 mm Top: 1 x 240 mm or 1 x 120 mm Rear: 1 x 120 mm |
| Clearance | CPU cooler height limitation: 150 mm PSU length limitation: 160 mm(With HDD Rack) 200 mm(Without HDD Rack) VGA length limitation: 300 mm RAM height limitation: 60 mm(With radiator series) |
Accessory
| Figure | Parts Name | Q’ty | Used for |
 | Screw M3 x 5mm | 18 | Motherboard/2.5” SSD |
 | Screw #6-32 x 5mm | 8 | 3.5” HDD |
 | Screw #6-32 x 6mm | 4 | Power Supply |
 | Stand-off #6-32 x 6mm | 3 | Motherboard |
 | Screw T5 x 12mm | 20 | Case Fan |
 | Stand #6-32 x 30mm | 8 | Case Fan |
 | Cable Tie | 10 | Cable Management |
 | Buzzer | 1 | Motherboard Alarm |
 | PCI Slot | 2 | PCI Slot |
Warning and Notice
Warning!!
- Height limit for the CPU heatsink:
The height limit for the CPU heatsink is 150 mm (5.9 inches). - Length limit for the VGA (graphics card):
The length limit for the VGA (graphics card) is 300 mm (11.8 inches).
TT Premium To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding, and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations, and Boundless Creativity to provide a high-performance PC product for every enthusiast. http://ttpremium.com
Tt LCS-Liquid Cooling Support Certification
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts’ standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Join Tt Community To Receive Benefits
Dear Valued Customer,
Thank you for choosing Thermaltake.
As new users, we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.
http://community.thermaltake.com
Benefits of being a member:
- Quick and responsive user support
- Receive help and advice with new builds
- Keep up to date with new product releases
- Share your thoughts and builds with the community
- Enter monthly contests and giveaways
Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/ThermaltakeInc
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com
Tt RGB Plus Ecosystem
 |  |
| Tt RGB Plus Software Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs. | Tt Al Voice Control Give you full control over the TT RGB PLUS products with your voice. |
SyncALL, Say ”’ Hello TT”
 |  |  |
| https://itunes.apple.com/app/riing-plus-rgb/id1196653067?mt=8&ign-mpt=uo%3D4 | https://play.google.com/store/apps/details?id=riing.riingrgbplus | http://ttrgbplus.thermaltake.com/ |
© 2020 Thermaltake Technology Co., Ltd. All Rights Reserved. A-2020.07
All other registered trademarks belong to their respective companies. www.thermaltake.com
