Thermaltake Suppressor F31 Tempered Glass Edition User Manual

Thermaltake Suppressor F31 Tempered Glass Edition

Specification

Accessory

Figure	Parts Name	Q’ty	Used for
	Stand-off＃6-32 x 6mm	2	Motherboard
	Screw＃6-32 x 6mm	4	Power
	Screw＃6-32 x 5mm	12	3.5”HDD
	Rubber	12	3.5”HDD
	Screw M3 x 5mm	22	Motherboard, 2.5”HDD
	Nut Setter	1	Stand-off
	Screw Ø5 x 12mm	4	Case Fan
	Cable Tie	5	Cable Management
	Buzzer	1	Motherboard Alarm

Warning and Notice

Warning!!

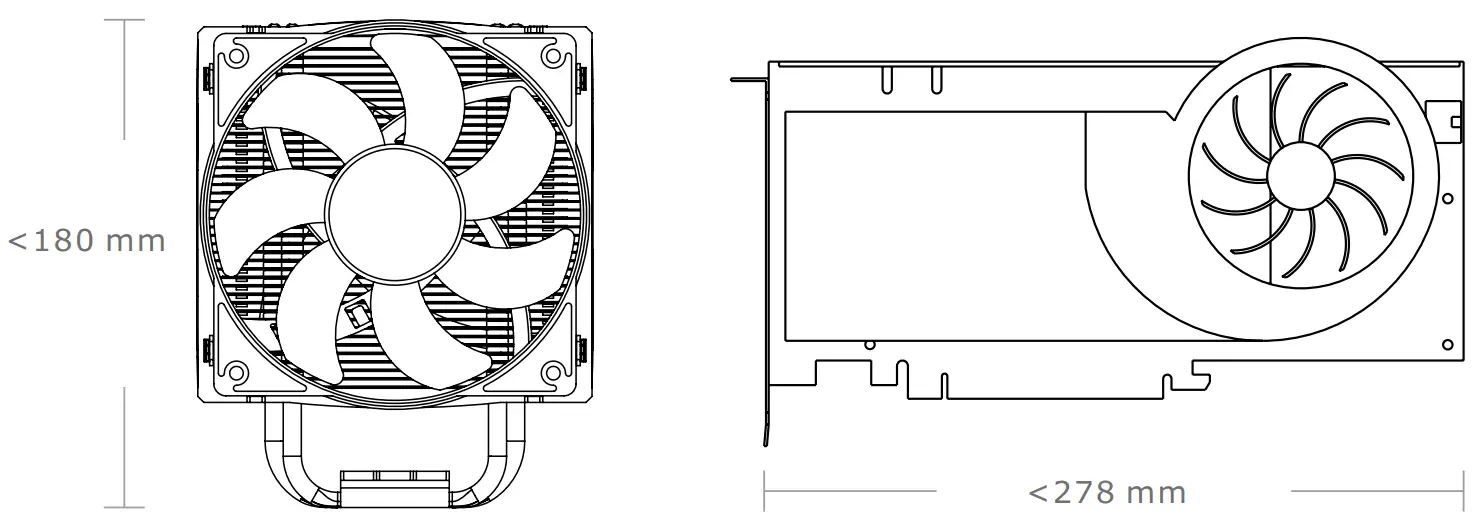

CPU Cooler Height Limitation:
Please ensure that your CPU cooler does NOT exceed 180mm (7.1 inches) height.
VGA (Add-on card) Length Limitation:
Please ensure that your VGA (Add-on card) does NOT exceed 278mm (10.9 inches) length.

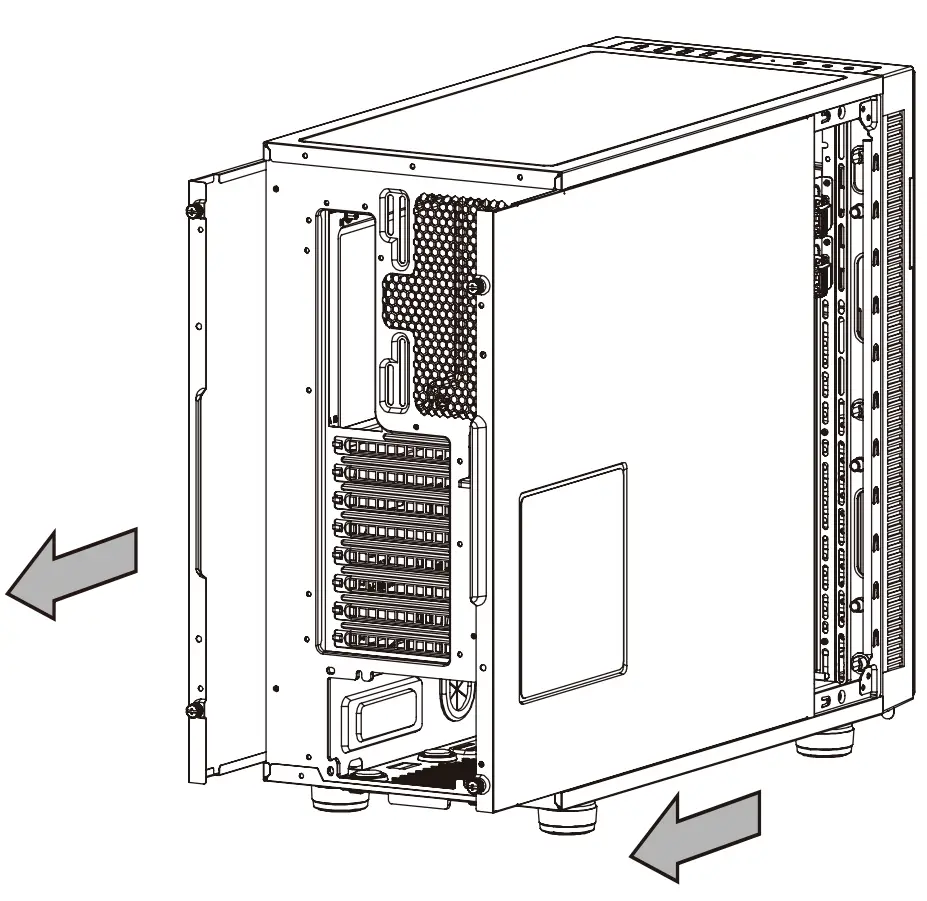

Side Panels Disassembly

Remove the screws on the back of the chassis, and open the side panel

Power Supply Unit (PSU) Installation

1. Place the PSU in proper location.
2. Adjust the PSU supporting bridge to the proper location and secure the PSU with screws.


Motherboard Installation

1. Lay down the chassis.
2. Install the motherboard in proper location and secure it with screws.

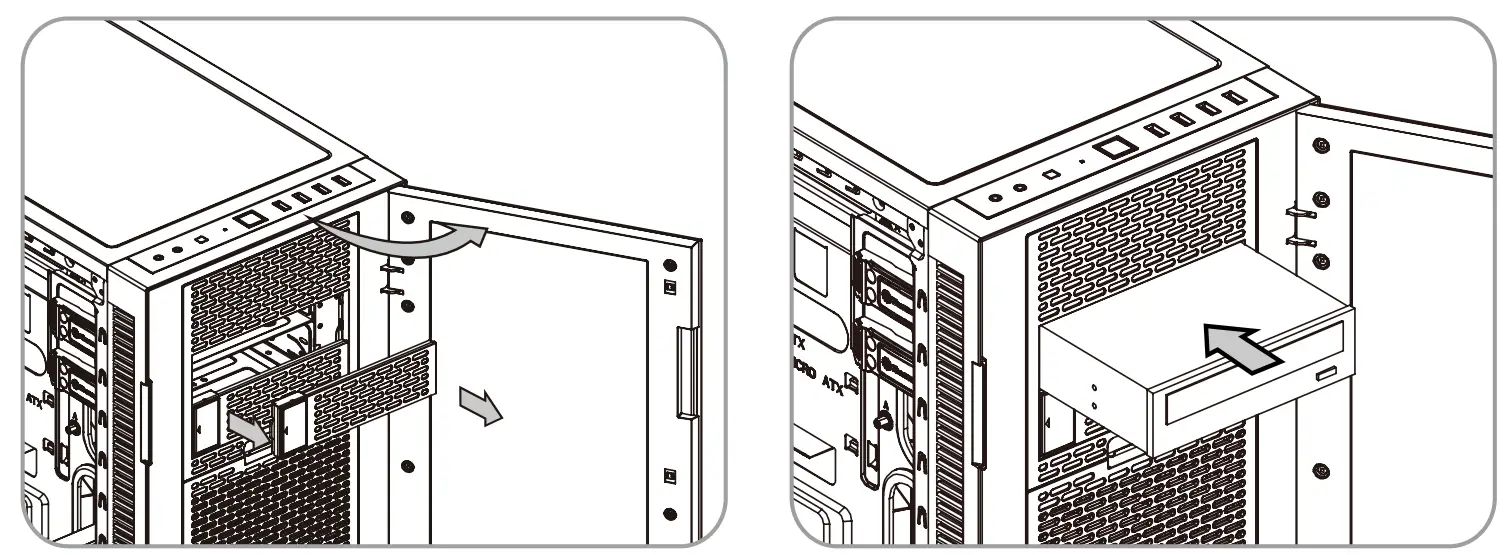

5.25″ Device Installation

1. Remove the 5.25” drive bay cover.
2. Slide the 5.25” device into the drive bay to lock the device.
   Note: Press the 5.25” tool-free mechanism to unlock the device.

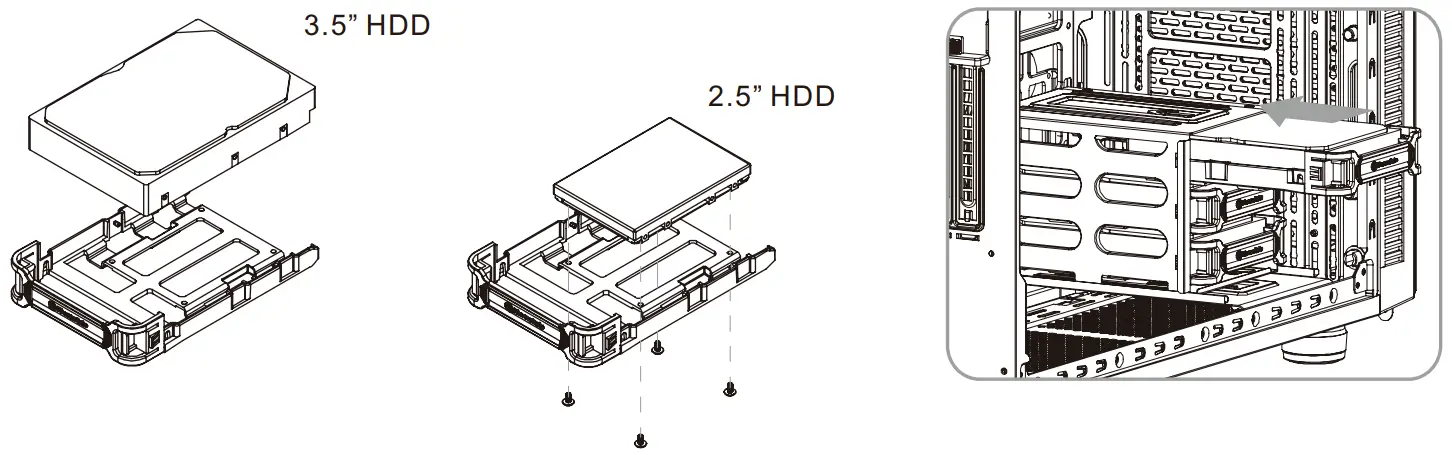

3.5″ & 2.5″ HDD Installation

1. Pull the HDD tray out.
2. Place the 2.5” or 3.5” hard drive on the tray and secure it with screws.
3. Slide the HDD tray back to the HDD cage.

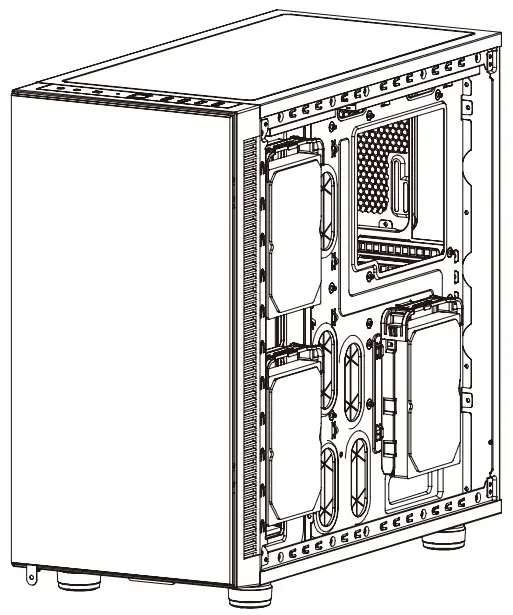

   Type A

   Type B

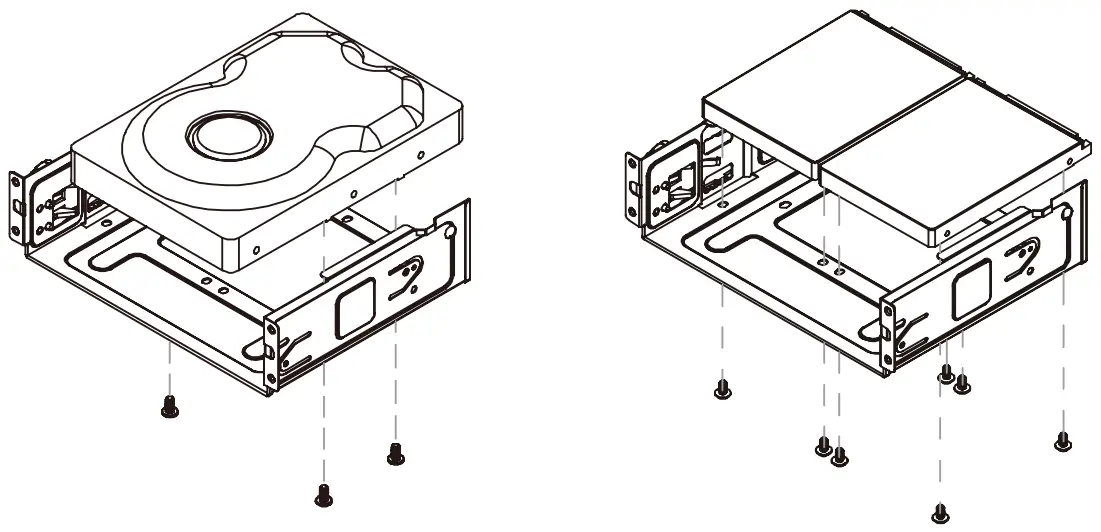

   Type C ODD Tray Installation


PCI Card Installation

Type A Direct installing to Motherboard

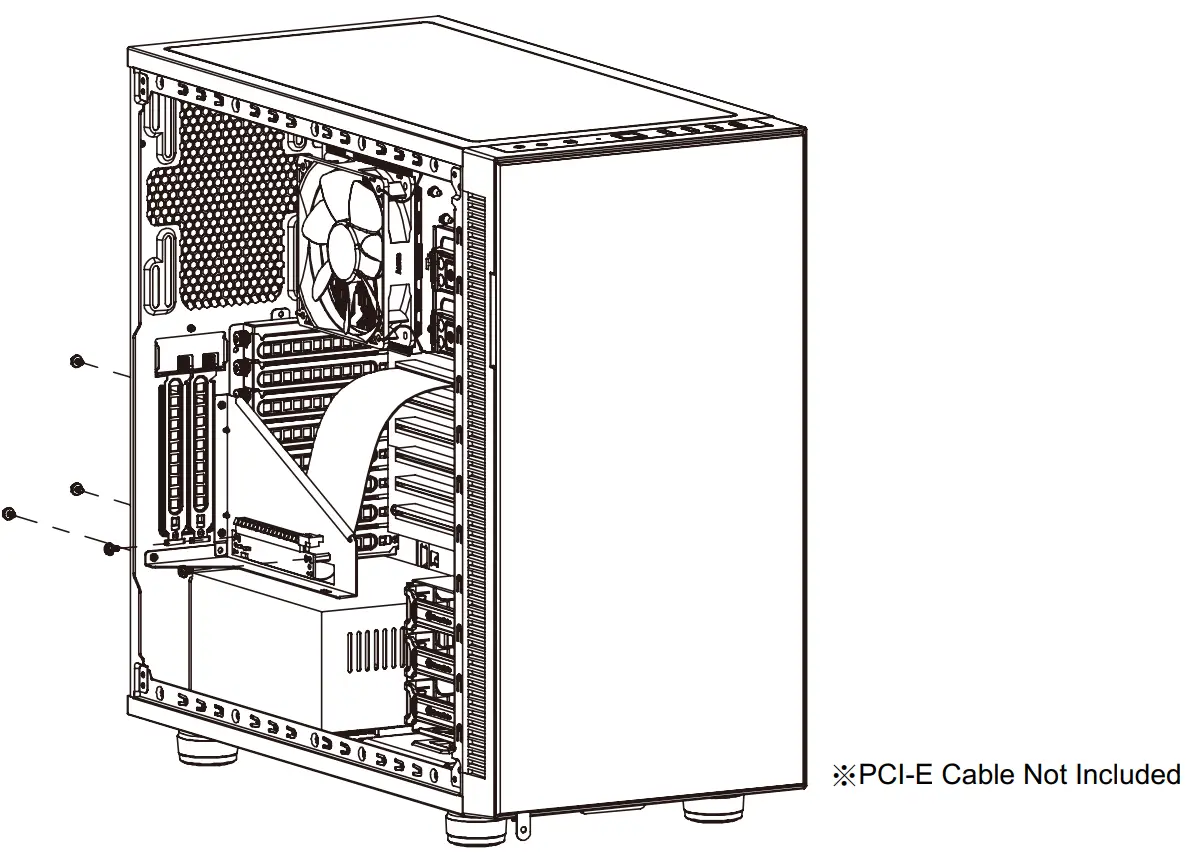

Type B Extend installing to Motherboard (Optional)

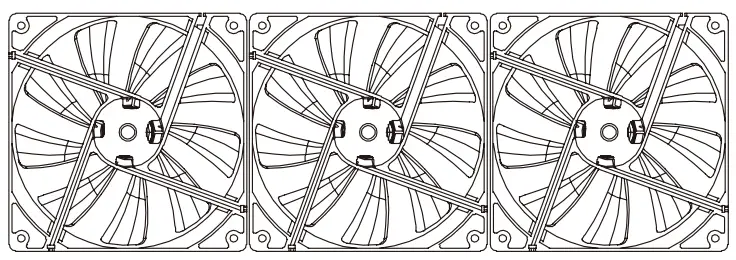

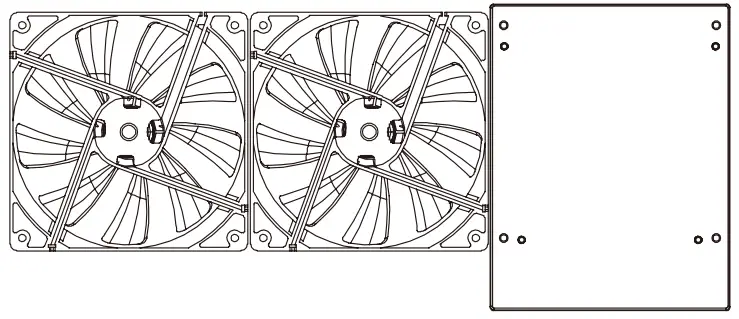

Air Cooling Installation

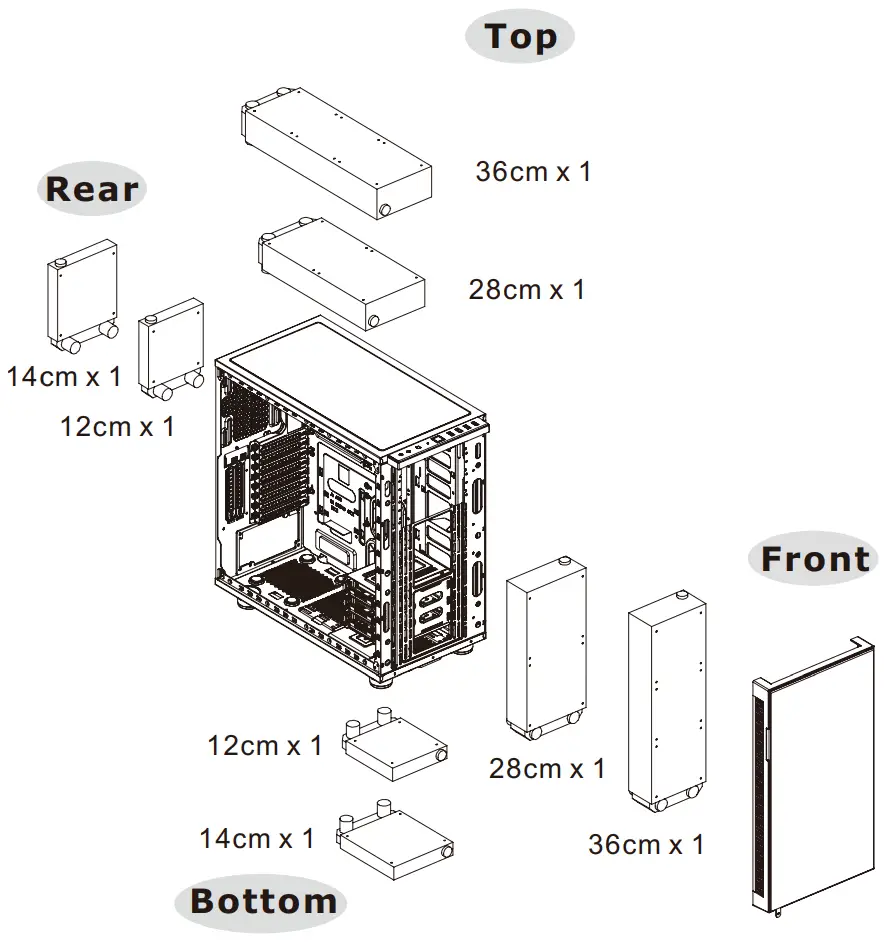

Liquid Cooling Installation

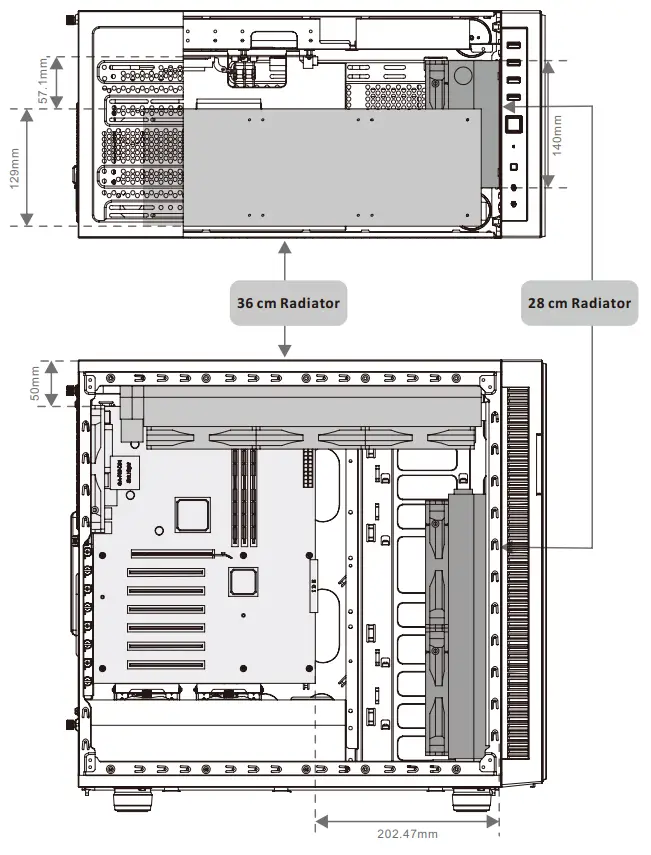

Maximum Radiator Installation Notice

Top Radiator Installation Notice
* Please consult radiator & memory height for proper installation

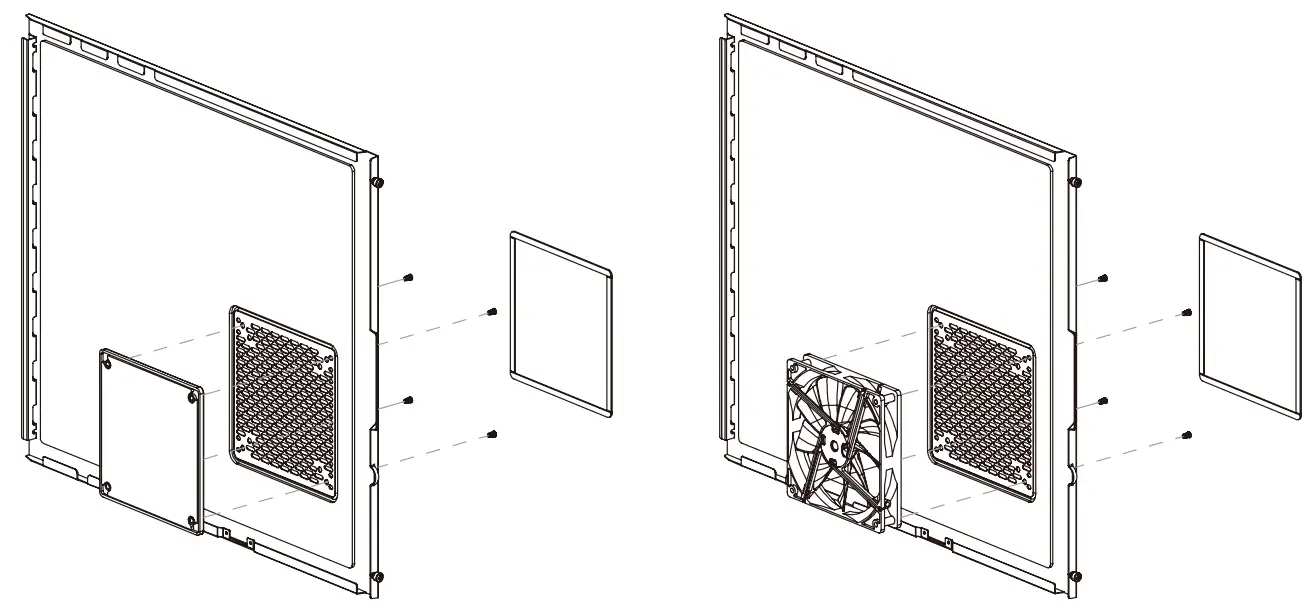

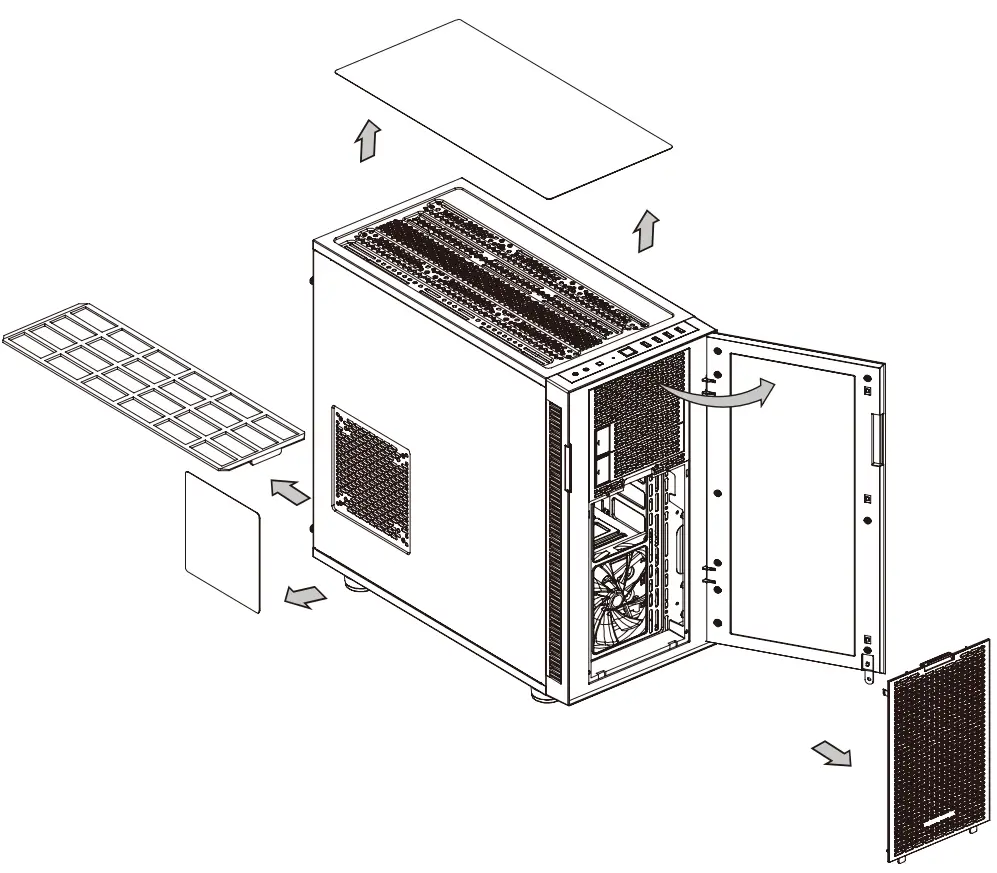

Filter Installation

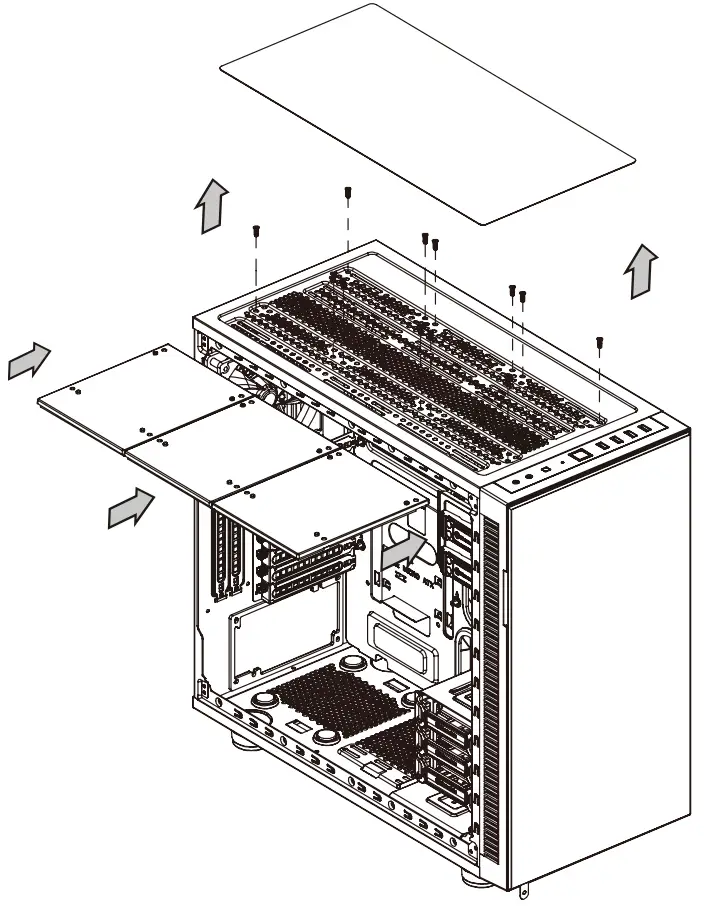

Soundproofed cover installation

Top panel Remove soundproofed cover for additional fan slots

Side panel For No Window Side Panel Only

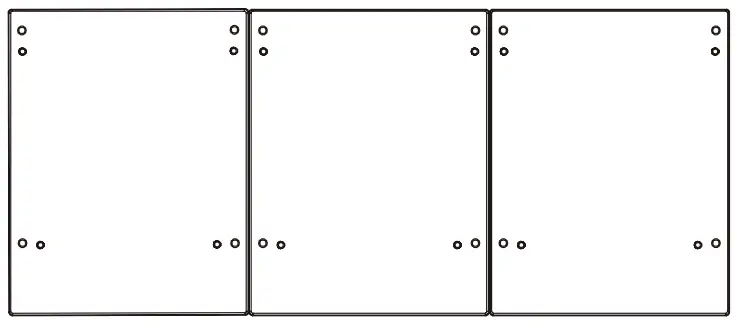

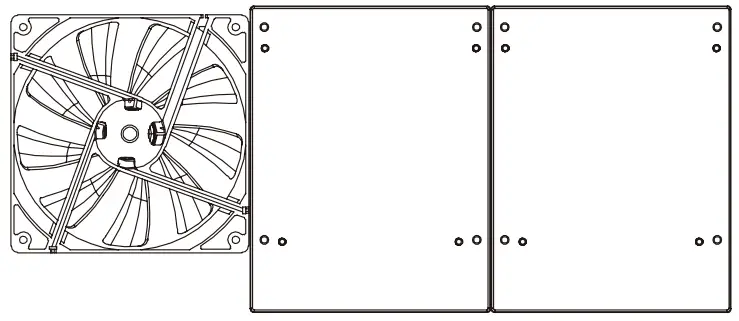

Flexible covers mounting, for balance air flow and sound absorbing

Type A

Type B

Type C

Type D

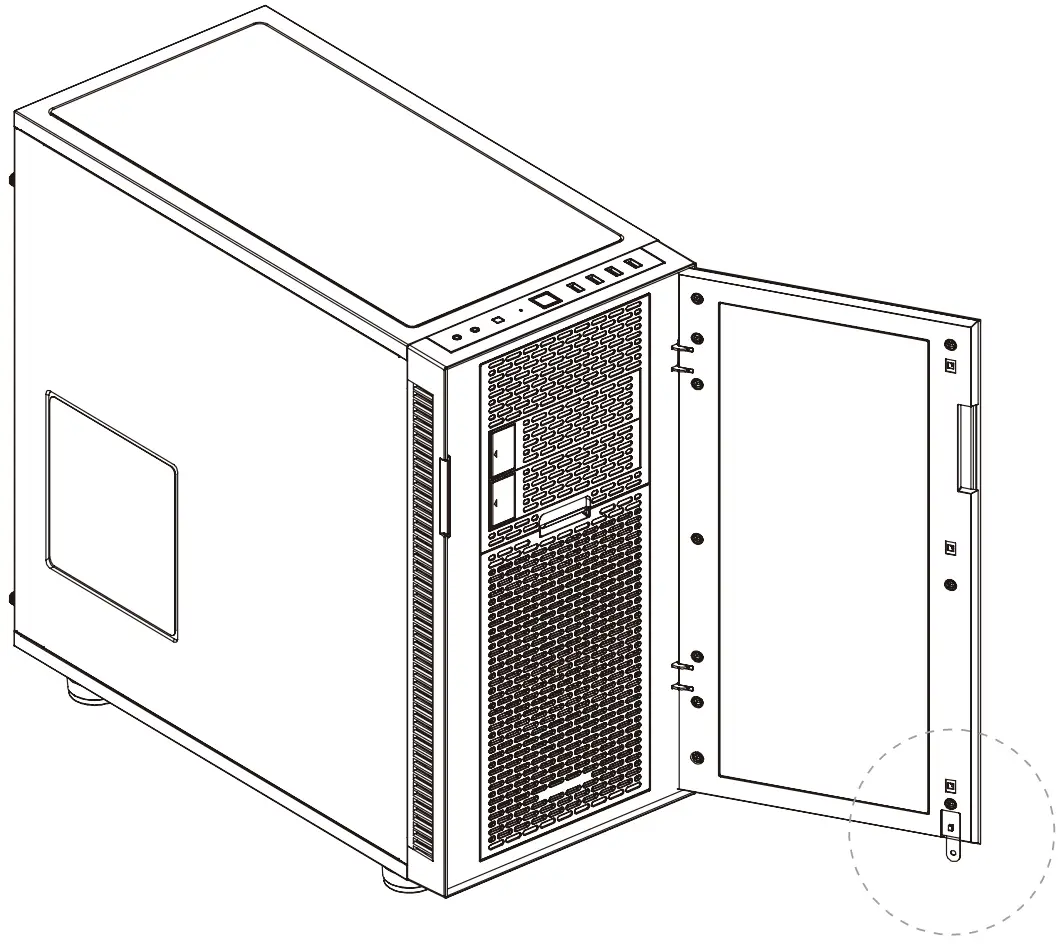

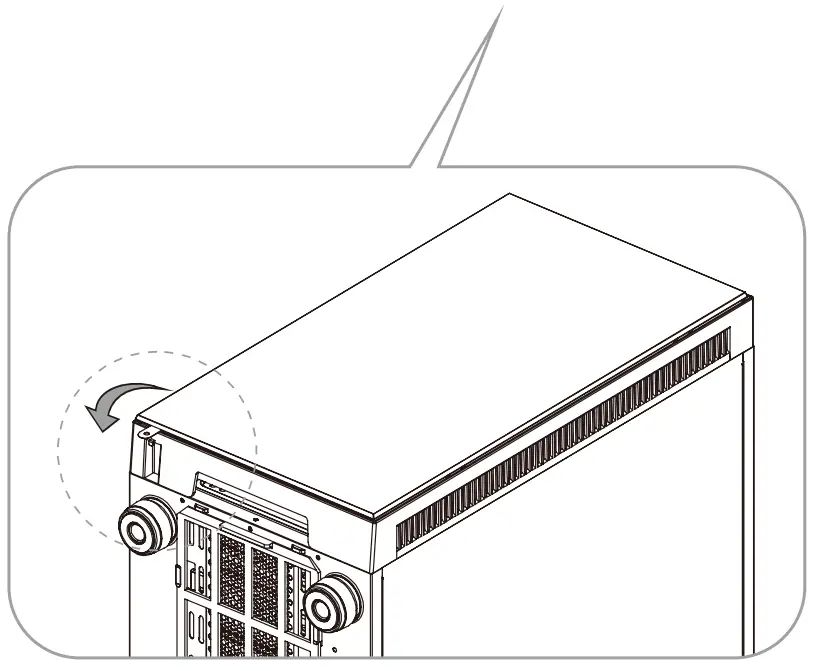

Door Lock Usage

Buckle the rubber band to fix the door

Leads Installation

Leads Installation Guide

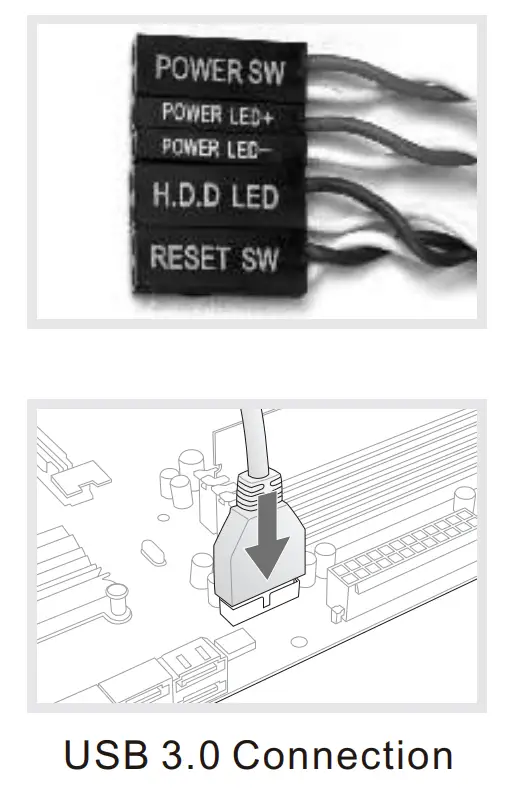

Case LED Connection / On the front of the case, you can find some LEDs and switch leads. Please consult your user manual of your motherboard manufacturer, then connect these leads to the panel header on the motherboard.
USB 2.0 Connection /
Please consult your motherboard manual to find out the section of “USB connection”.
USB 3.0 connection /

1. Make sure your motherboard supports USB 3.0 connection.

2. Connect the USB 3.0 cable to the available USB 3.0 port on your computer.
   Audio Connection / Please refer to the following illustration of Audio connector and your motherboard user manual.
   Please select the motherboard which used AC’97 or HD Audio(Azalia),(be aware of that your audio supports AC’97 or HD Audio (Azalia)) or it will damage your device(s).

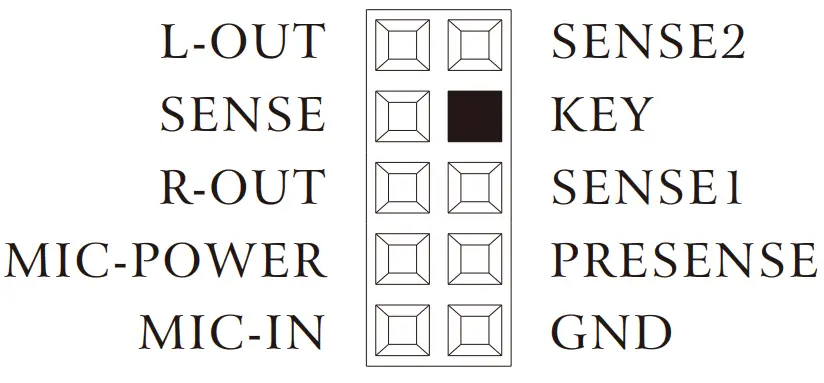

AUDIO AZALIA Function

AUDIO AC’97 Function

 Join Tt Community To Receive Benefits

Dear Valued Customer,
Thank you for choosing Thermaltake. As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.

Benefits of being a member:

• Quick and responsive user support
• Receive help and advice with new builds
• Keep up to date with new product releases
• Share your thoughts and builds with the community
• Enter monthly contests and giveaways

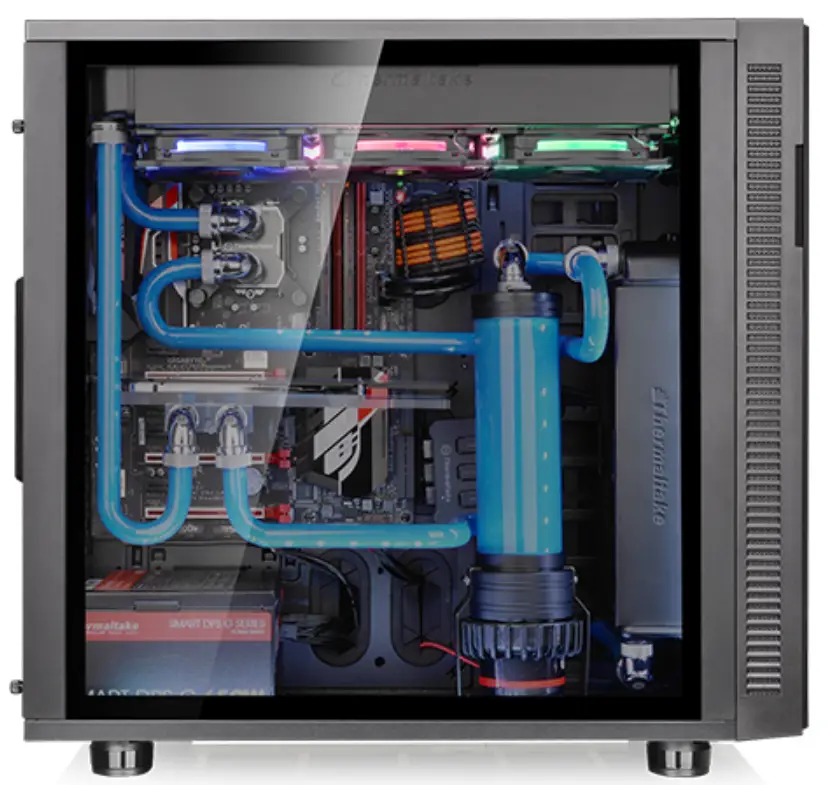

 Tt LCS-Liquid Cooling Support Certification
