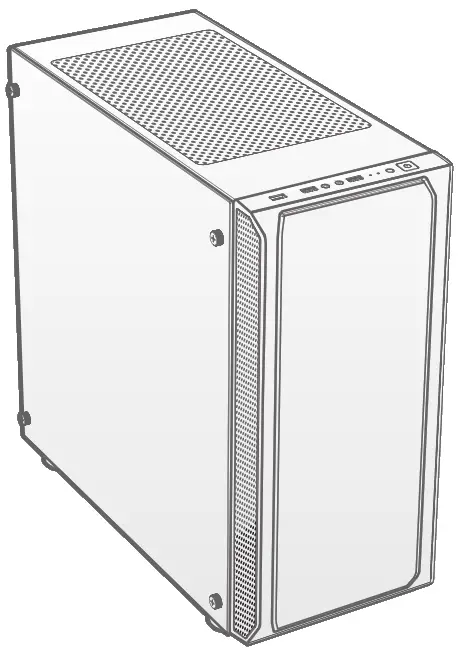

Thermaltake Tempered Glass Mid Tower Chassis User Manual (+ PDF)

Model	Versa J23 TG	Versa J23 TG RGB
Case Type	Middle tower
Dimension(HWD)	447 x 205 x 455 mm (17.6 x 8.1 x 17.9 inch)
Side Panel	4 mm Tempered Glass x 1
Material	SPCC
Cooling System	Rear (exhaust): 120 x 120 x 25 mm fan (1000 rpm, 16 dBA)	Rear (exhaust): 120 x 120 x 25 mm fan (1000 rpm, 16 dBA) Front (Intake) : 120 x 120 x 25 mm RGB fan (1000 rpm, 16 dBA) x 3
Drive Bays – Accessible – Hidden	2 x 2.5” 2 x 3.5” or 2 x 2.5”(HDD Tray); 2 x 2.5”(HDD Bracket)
Fan Support	Front: 3 x 120 mm, 2 x 140 mm Top: 2 x 120 mm, 2 x 140 mm Rear: 1 x 120 mm
Radiator Support	Front: 1 x 240 mm, 1 x 280 mm Top: 1 x 240 mm Rear: 1 x 120 mm
Clearance	CPU cooler height limitation: 160 mm VGA length limitation: 310 mm PSU length limitation: 170 mm

Accessory

Figure	Parts Name	Q’ty	Used for
	Screw #6-32 x 6.5mm	3	Pillars
	Screw #6-32 x 6mm	6	Power Supply
	Screw #6-32 x 6mm	8	Motherboard / 3.5” HDD
	Screw M3 x 5mm	18	2.5″ HDD
	Screw #6-32 x 28mm	8	Fans
	Screw T5 x 10mm	12	Fans
	Movable Tie	4	Cable Management

Warning and Notice

CPU Cooler Height Limitation

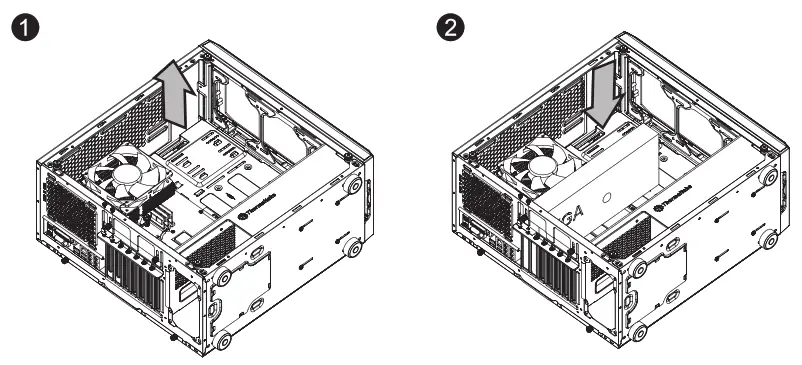

VGA (Add-on card) Length Limitation

Warning!!

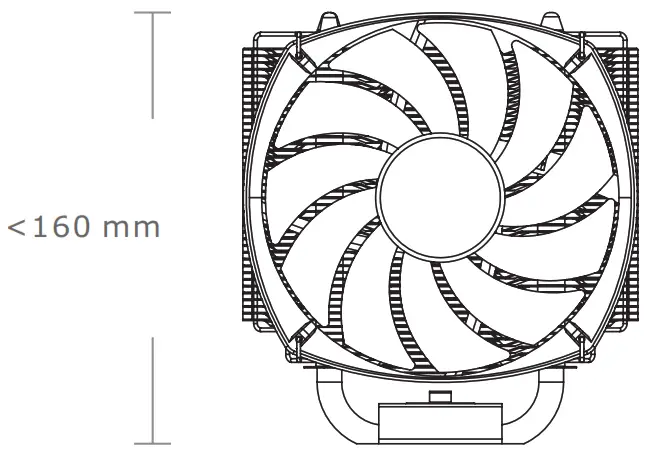

Height limit for the CPU heatsink:
The height limit for the CPU heatsink is 160 mm (6.3 inches).

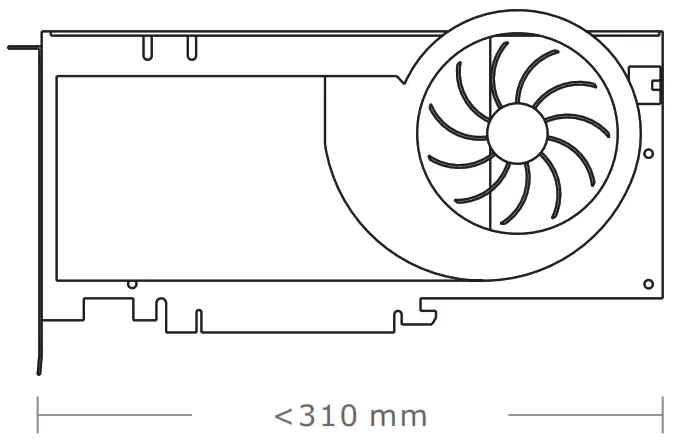

Length limit for the VGA (graphics card):
The length limit for the VGA (graphics card) is 310 mm (12.2 inches).

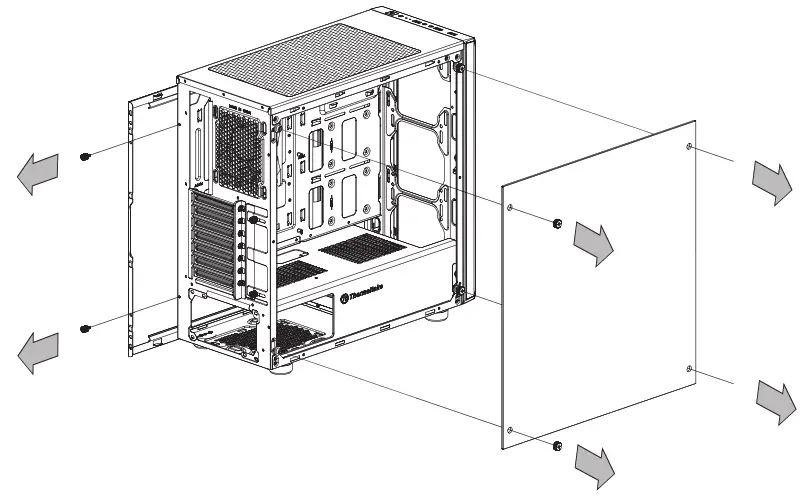

Side Panel Disassembly

Remove the screws on the back of the chassis, and open the side panel.

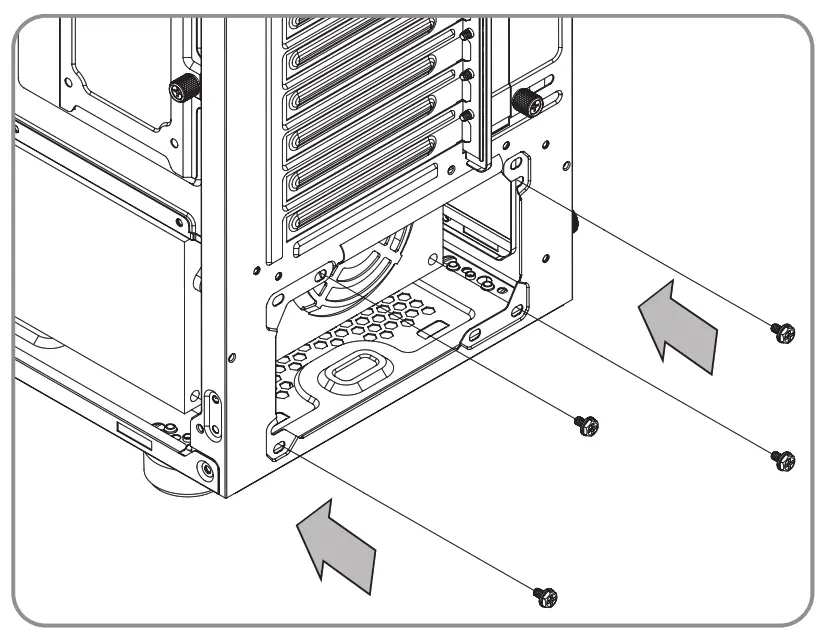

PSU Installation

Place the power supply in proper location and secure it with screws.

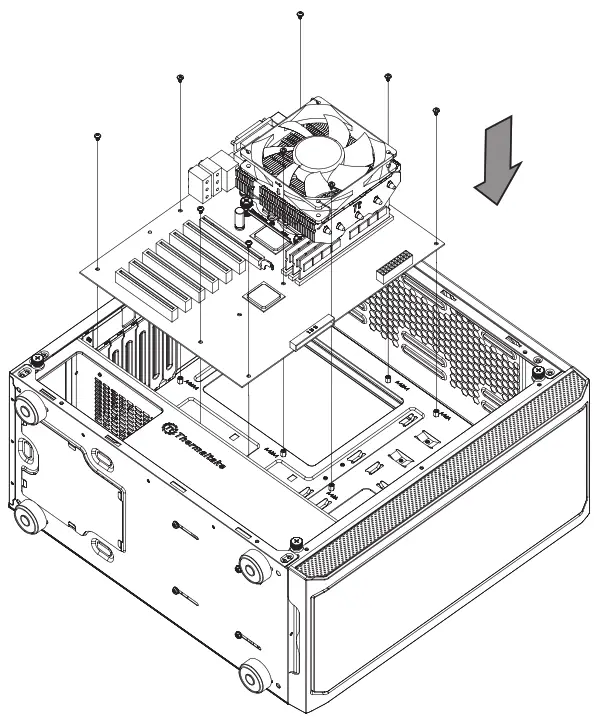

Motherboard Installation

Lay down the chassis.
Install the motherboard in proper location and secure it with screws.

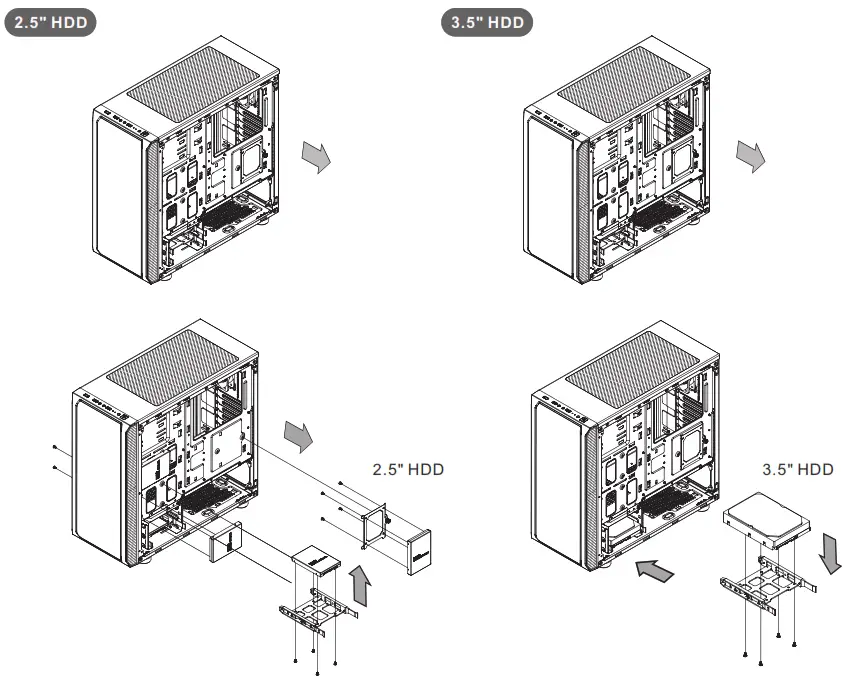

3.5″ & 2.5″ HDD Installation

Insert the HDD and tighten it with the screws.

PCI Slot Usage

Loosen the screws with a screwdriver.
Install the PCI card in proper location and secure it with screws.

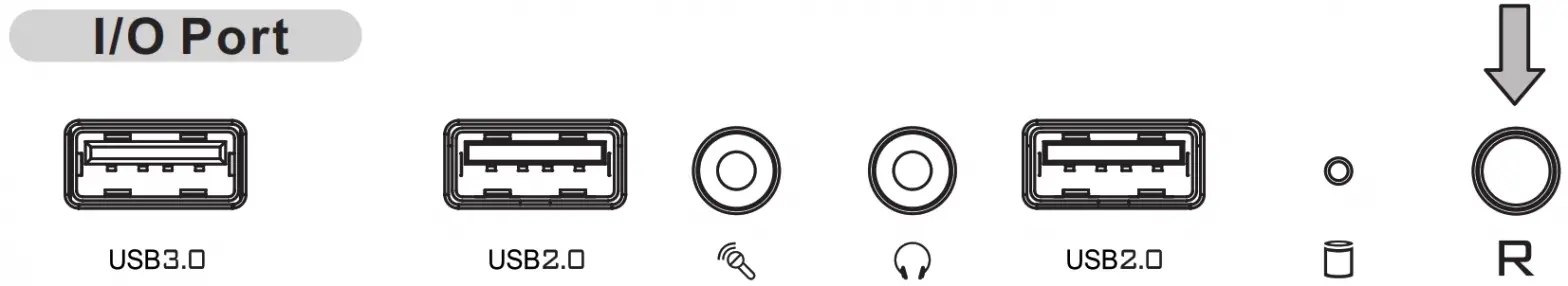

RGB Switch Mode (RGB Edition only)

RGB Lighting: Mode 1
Single Color: Mode 2~8 (Red, Yellow, Green, Cyan, Blue, White, Purple)
Breath Mode: Mode 9~15 (Red, Yellow, Green, Cyan, Blue, White, Purple)
Light Off: Mode 16

※Long press on RGB button for 3 seconds, fans will blink red light twice which now are controlled by MB software. And vice versa.

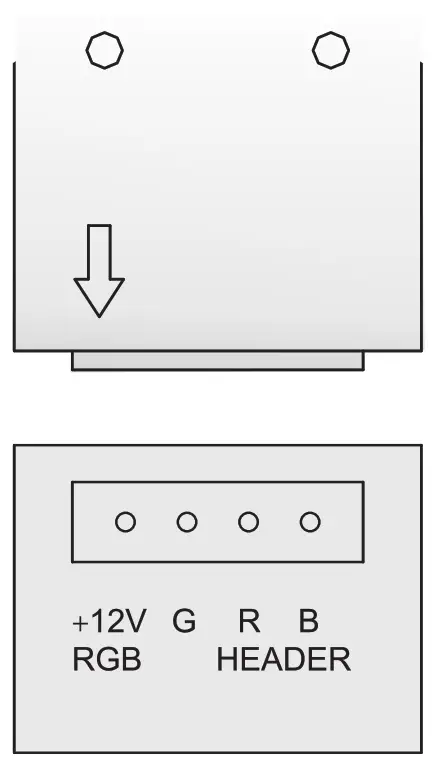

How to connect MB

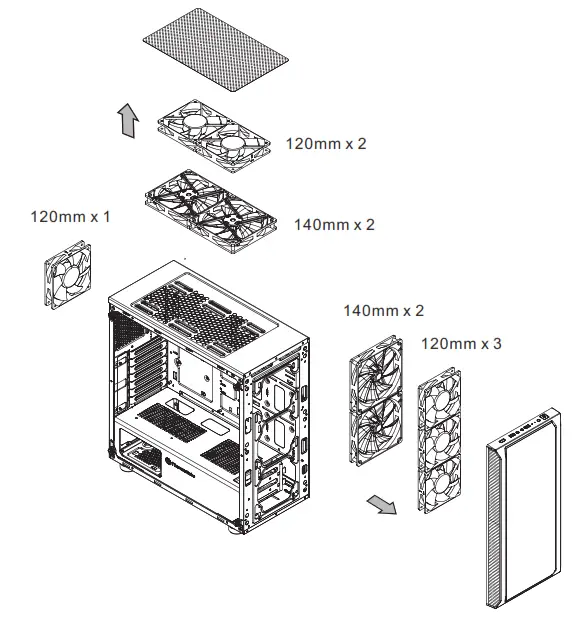

Air Cooling Installation

Radiator Installation

※The radiator is applicable up to 40mm high

Leads Installation

Leads Installation Guide
Case LED Connection / On the front of the case, you can find some LEDs and switch leads. Please consult your user manual of your motherboard manufacturer, then connect these leads to the panel header on the motherboard.
USB 2.0 Connection / Please consult your motherboard manual to find out the section of “USB connection”.
USB 3.0 connection /
1. Make sure your motherboard supports USB 3.0 connection.
2. Connect the USB 3.0 cable to the available USB 3.0 port on your computer.
Audio Connection / Please refer to the following illustration of Audio connector and your motherboard user manual. Please select the motherboard which used AC’97 or HD Audio(Azalia),(be aware of that your audio supports AC’97 or HD
Audio (Azalia)) or it will damage your device(s).

Thermaltake Power Supply Series (Optional)

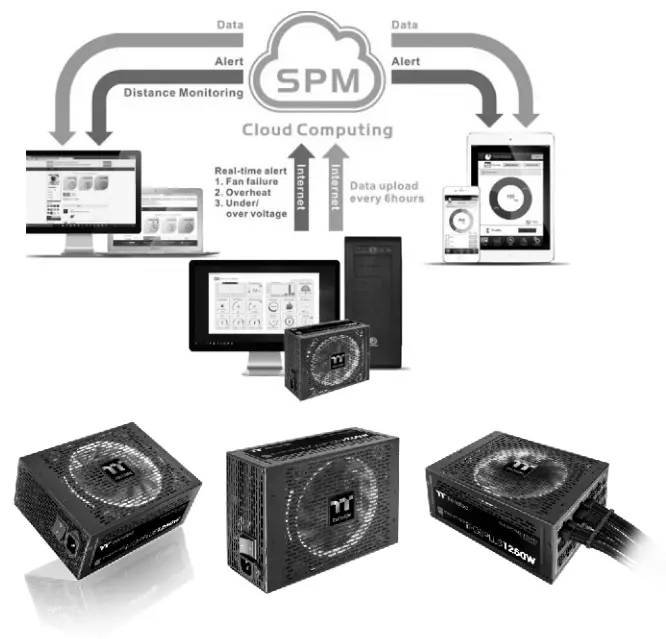

What is Smart Power Management (SPM)?
Smart Power Management (SPM) is a cloud-based software that seamlessly integrates three intelligent platforms — DPS G PC APP 3.0, DPS G Smart Power Management Cloud 1.0 and DPS G Mobile APP 1.0 — and compiles key statistics about your PC into detailed charts and breakdowns for your instant PC status view and management.
With easy access to SPM through your PC or mobile devices, whether you are outside or indoors, enjoy taking full control of your build anytime, anywhere!
