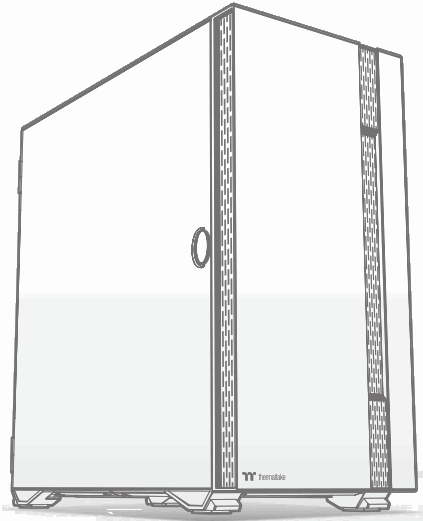

H700 TG Mid Tower ARGB Tempered Glass Computer Case
User Manual
Specification
| Model | H700 TG |
| Case Type | Mid Tower |
| Dimension (H*W*D) | 493 x 233 x 466 mm (19.4 x 9.2 x 18.3 inch) |
| Side Panel | Tempered Glass x 1 |
| Material | SPCC |
| Cooling System | Front (intake) : 120 x 120 x 25 mm standard fan (1100 rpm, 22.5 dBA) x 1 Rear (exhaust) : 120 x 120 x 25 mm standard fan (1100 rpm, 22.5 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 2 x 2.5” or 4 x 2.5” |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| I/O Port | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, LED Button x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm 3 x 140 mm, 2 x 140 mm, 1 x 140 mm Top: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm 2 x 140 mm, 1 x 140 mm Rear: 1 x 120 mm, 1 x 140 mm |
| Radiator Support | Front: 1 x 360 mm, 1 x 240 mm, 1 x 120 mm 1 x 280 mm, 1 x 140 mm Top: 1 x 360 mm, 1 x 240 mm, 1 x 120 mm 1 x 280 mm, 1 x 140 mm Rear: 1 x 120 mm |
| Clearance | CPU cooler height limitation: 180 mm VGA length limitation: 340 mm(With Radiator) 395 mm(Without Radiator) PSU length limitation: 180mm(With HDD Cage) 220mm(Without HDD Cage) |
| Figure | Parts Name | Q’ty | Used for |
 | Stand-off #6-32 x 6.5mm | 2 | Motherboard |

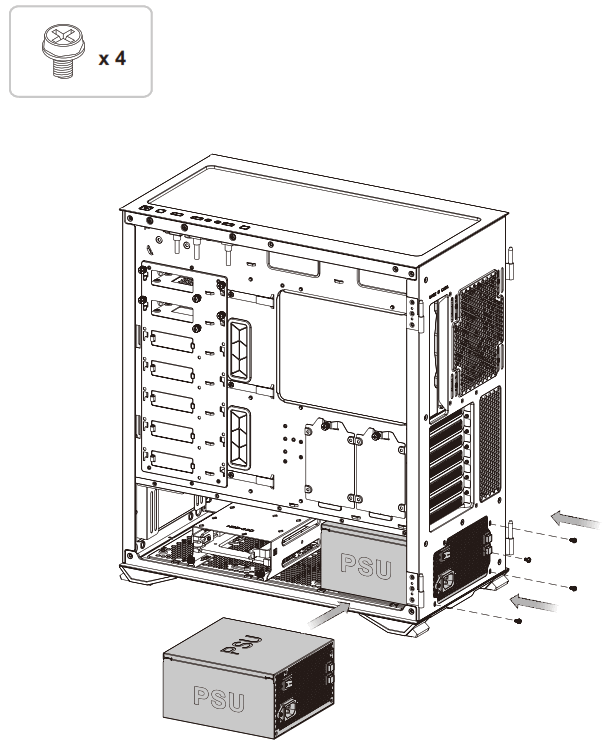

 | Screw #6-32 x 6mm | 4 | Power |
 | Screw M3 x 5mm | 28 | SSD / 2.5” HDD / Motherboard |
 | Screw #6-32 x 10mm | 12 | 3.5” HDD |
| Screw M3 x 10mm | 4 | SSD / 2.5” HDD |
 | HDD / SSD Rubber | 4 | 3.5” HDD / 2.5” HDD |
 | Net Setter | 1 | Motherboard Stand-off |
 | Screw 5 x 10mm | 4 | Case Fan |
 | Spacer Support 6.5mm | 1 | E-ATX Motherboard |
 | Cable Tie | 5 | Cable Management |
 | HDD Hole cover | 2 | Backup |
 | Buzzer | 1 | Motherboard Alarm |
 | Wipe cloth | 1 | Tempered glass |
Warning and Notice

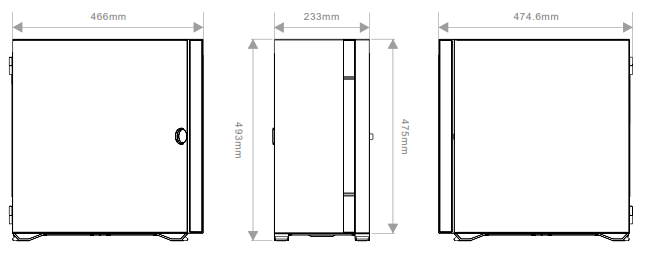

Chassis dimension

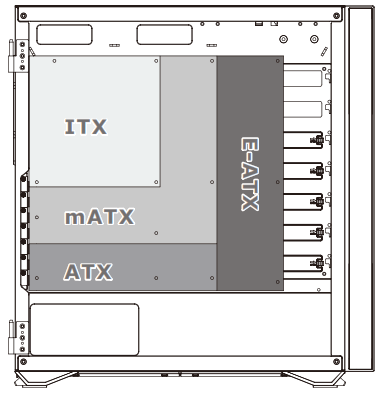

Motherboard Compatibility: ITX / mATX / ATX / E-ATX (Up to 330.2mm wide)

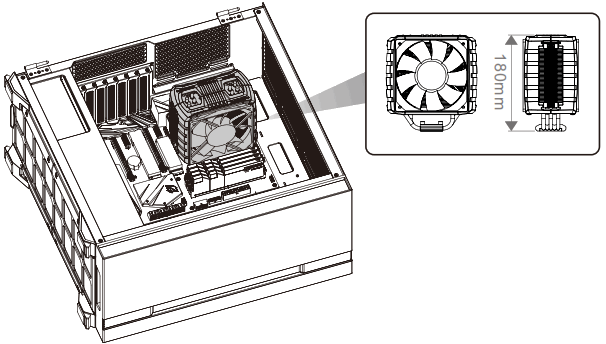

CPU cooler max height: 180mm

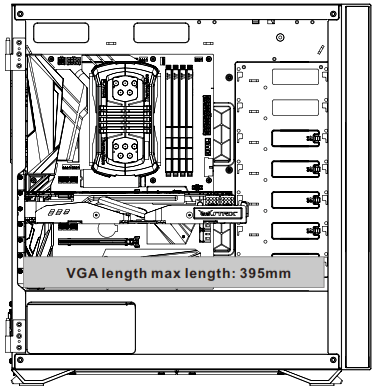

VGA length max length: 395mm
PSU max length: 180mm

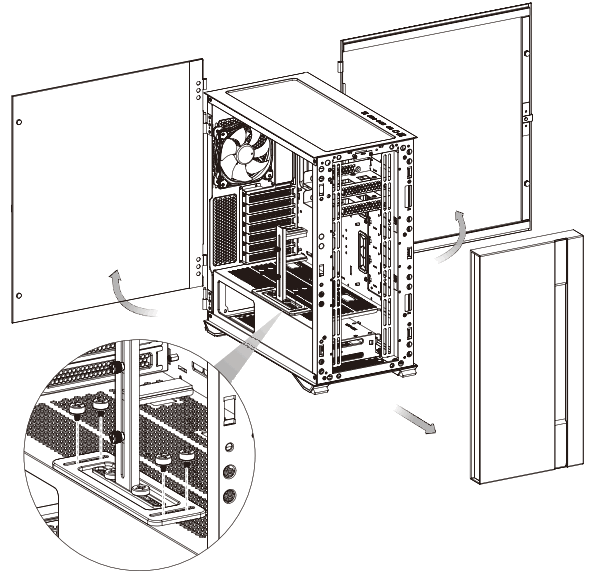

Remove Components

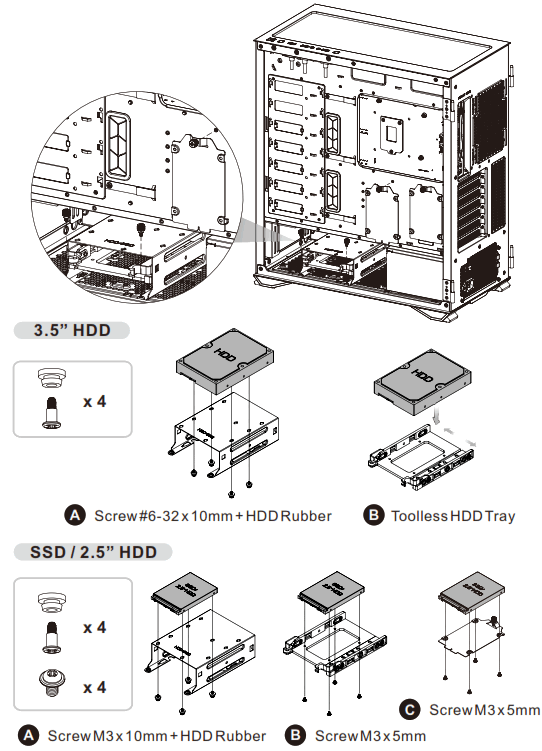

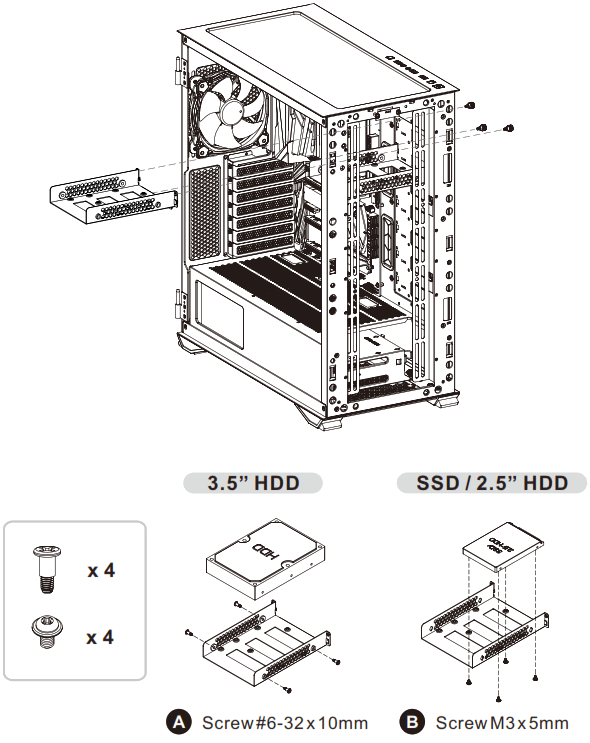

HDD Installation

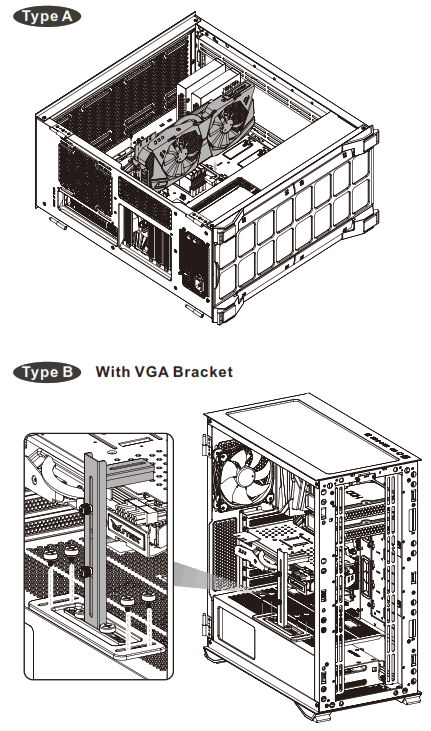

PCI Card Installation

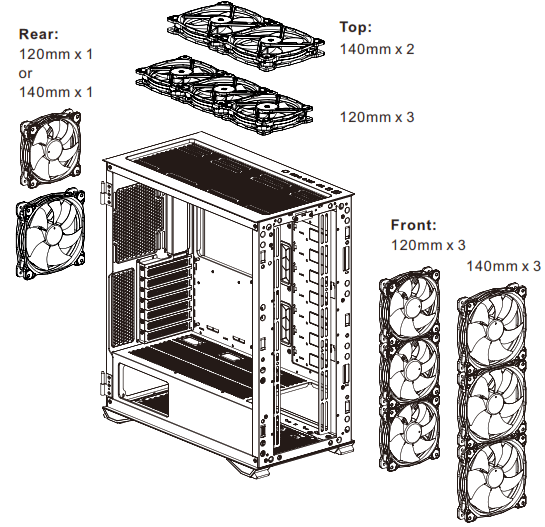

Air Cooling Installation
AIO Liquid Cooling Installation

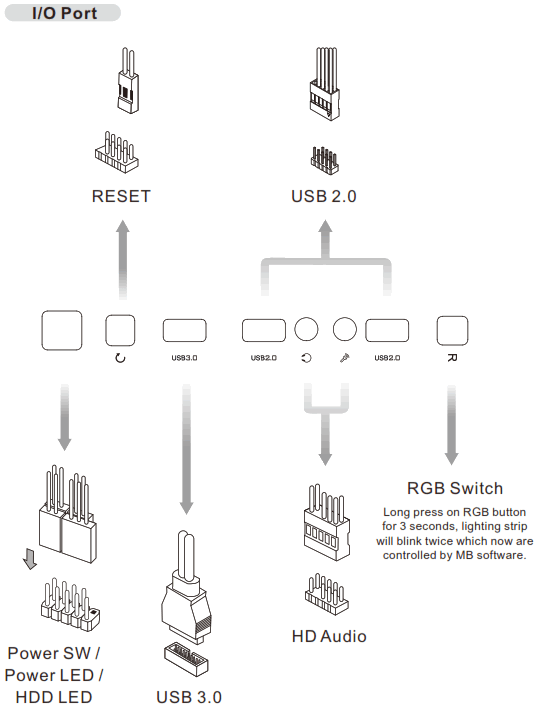

I/O Connection
Lighting Strip Introduction

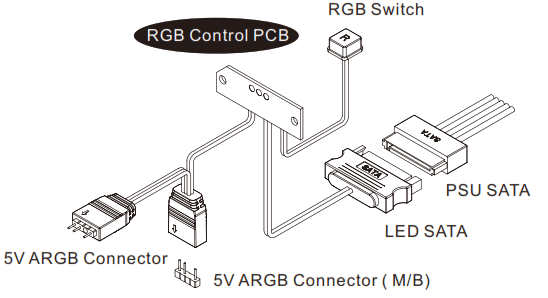

Lighting Strip Connection

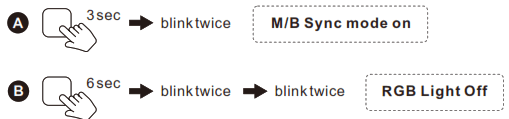

Lighting Strip LED Mode
- Rainbow
- Breath
- Gradient
- Blink Transition
- Scrolling
- Volume Pulse
- Light Blocks
- Static Single Color (Red, Green, Blue, Yellow, Sky Blue, Purple, White)

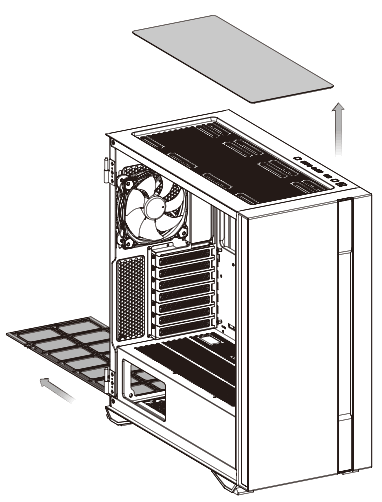

Remove Filters
