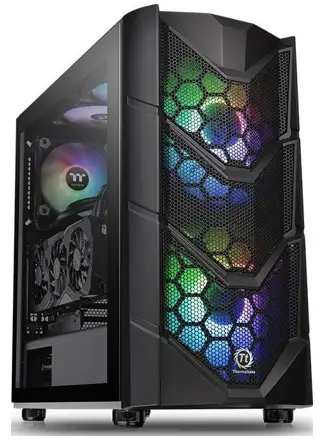

Thermaltake 200 Tg Argb Mid Tower Chassis User Manual (+ PDF)

Mid Tower Chassis
User Manual

View 200 TG ARGB

Contents hide

8 Documents / Resources

8.1 References

9 Related Posts

Specification

Case Type	Mid Tower
Dimension (H’W*D)	460 x 210 x 395.3 mm (18.11 x 8.27 x 15.56 inch)
Side Panel	Tempered Glass x 1
Material	SPCC
Cooling System	Front (intake): 120 x 120 x 25 mm ARGB Lite fan (1000 rpm. 22.3 dBA) x 3
Drive Bays	2 x 3.5″. 2 x 2.5″ or 1 x 3.5′. 3 x 2.5′
Expansion Slots	7
Motherboards	6.7′ x 6.7″ (Mini ITX). x 9.6′ (Micro ATX). 12′ x 9.6′ (ATX)
I/O Port	USB 3.0 x 2. HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Front	3x 120 mm, 2x 120 mm.1 x 120 mm	2 x 140 mm, 1 x 140mm
	Top	2 x 120 mm.1 x 120 mm	2 x 140 mm, 1 x 140mm
	Rear	1 x 120 mm
Radiator Support	Front	1 x 360 mm. 1 x 240 mm,1 x 120 mm	1 x 280 mm, 1 x 140 mm
	Top	1 x 240 mm,1 x 120 mm
	Rear	1 x 120 mm
Clearances	CPU cooler height limitation	166 mm
	VGA length limitation	Jou mm (With radiator) 330 mm (Without radiator)
	PSU length limitation	190 mm (With HDD Cage)

Accessory

Figure	Parts Name	Q’ty	Used for
	Stand-off #6-32 x 6mm	3	Motherboard
	Screw #6-32 x 6mm	6	Power
	Screw M3 x 5mm	17	SSD / 2.5” HDD / Motherboard
	Screw #6-32 x 5mm	8	3.5” HDD
	Net Setter	1	Motherboard Stand-off
	Buzzer	1	Motherboard Alarm
	Cable Tie	5	Cable Management

For ARGB Lite Version Only

Figure	Parts Name	Q’ty	Used for
	Fan Splitter	1	Case Fan

Warning and Notice

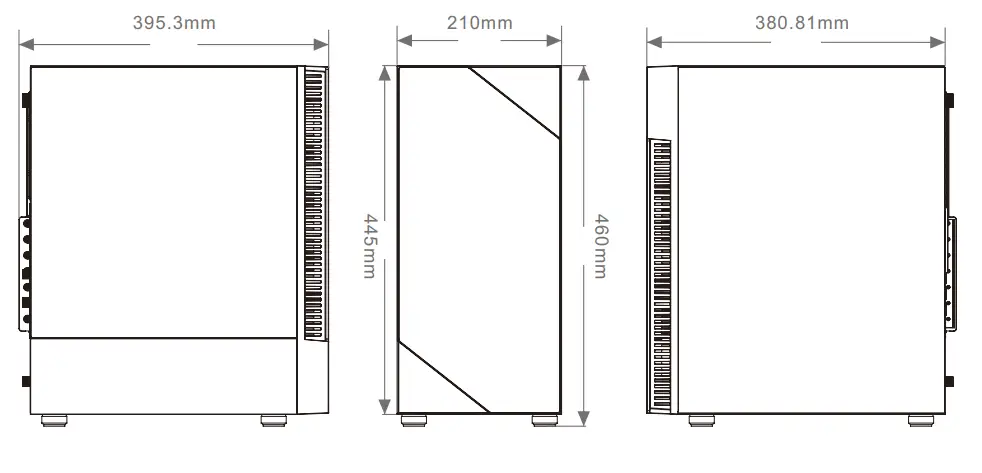

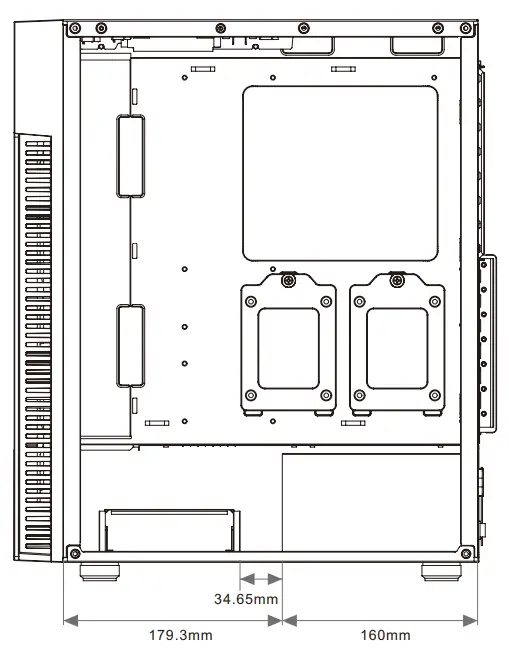

Chassis dimension

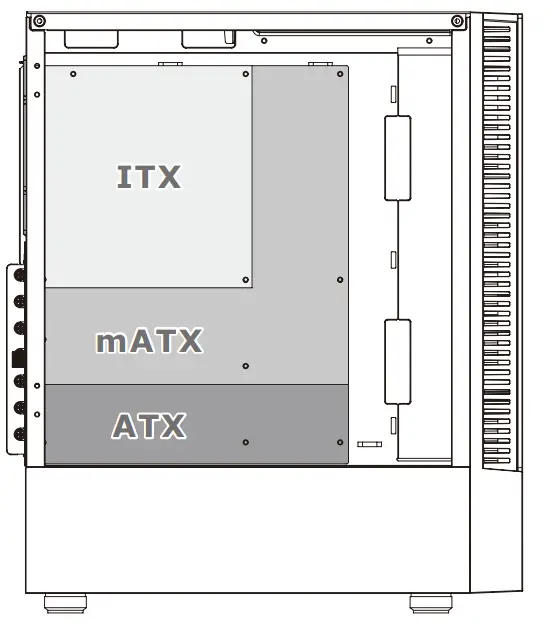

Motherboard Compatibility: ITX / mATX / ATX (Up to 244mm wide)

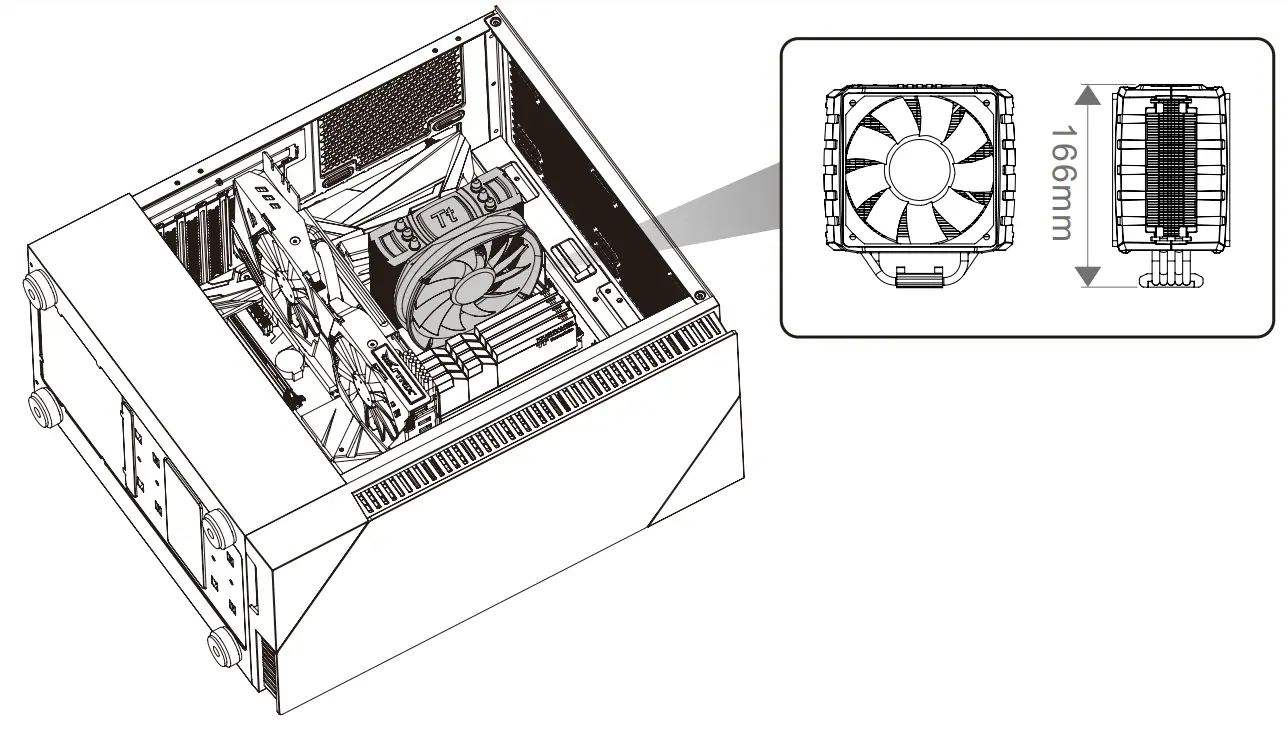

CPU cooler max height: 166mm

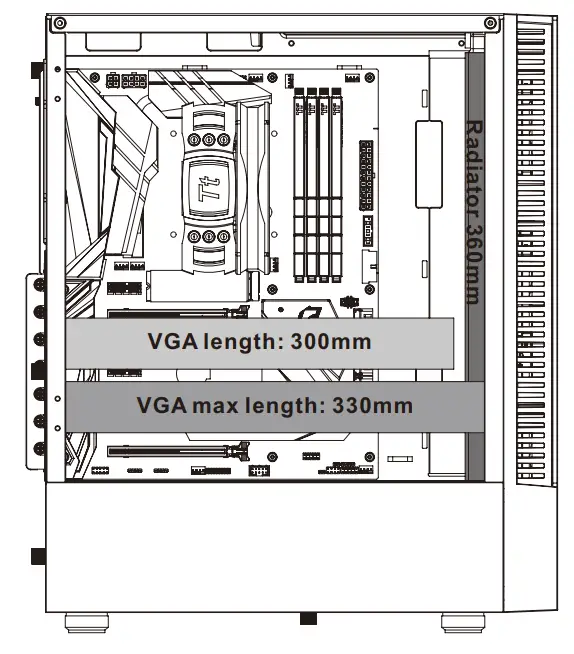

VGA max length: 330mm

PSU max length: 190mm

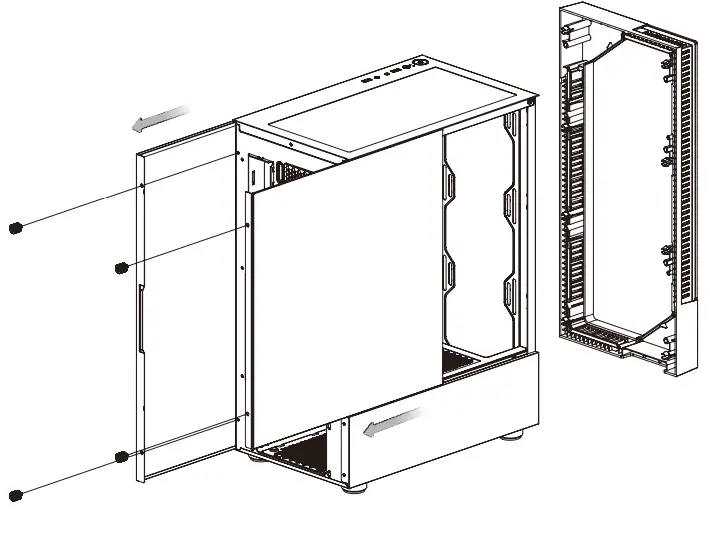

Remove Components

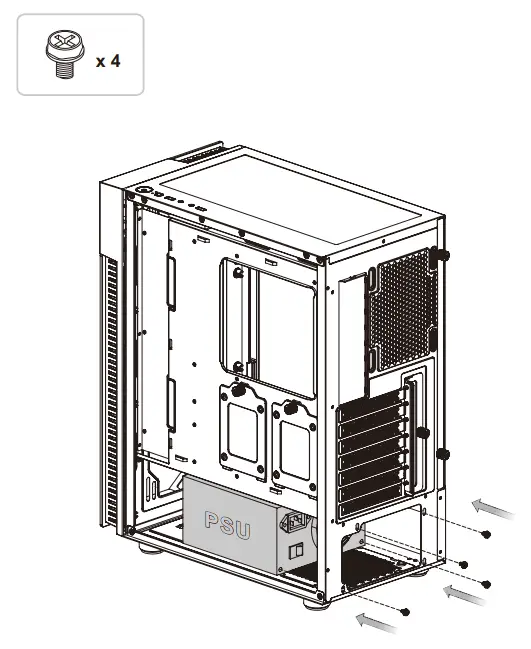

PSU Installation

Motherboard Installation

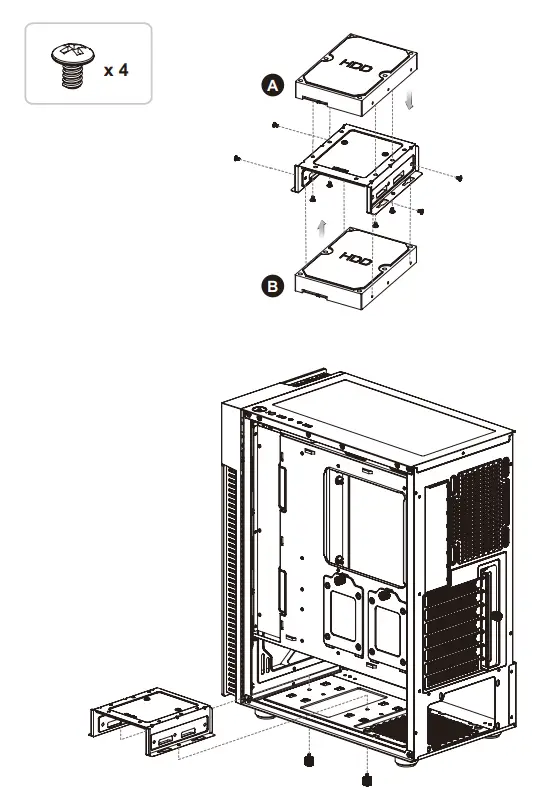

3.5” HDD Installation

2.5” HDD Installation

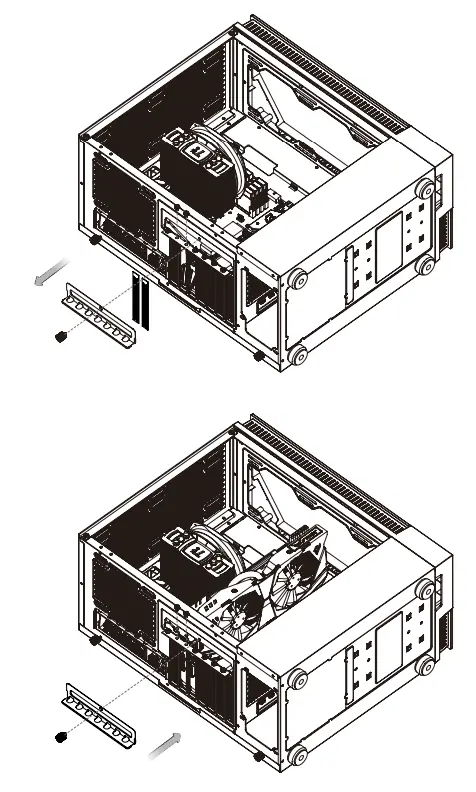

PCI Card Installation

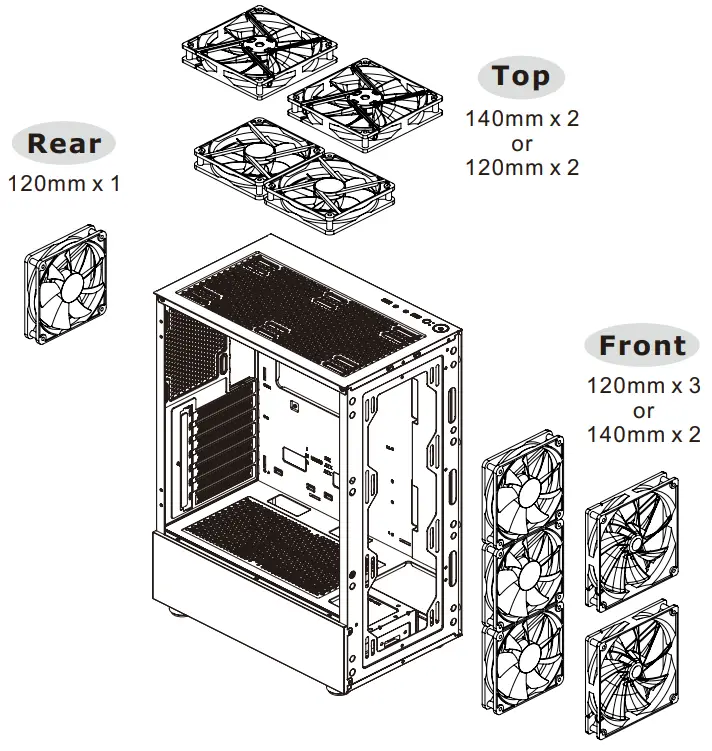

Air Cooling Installation

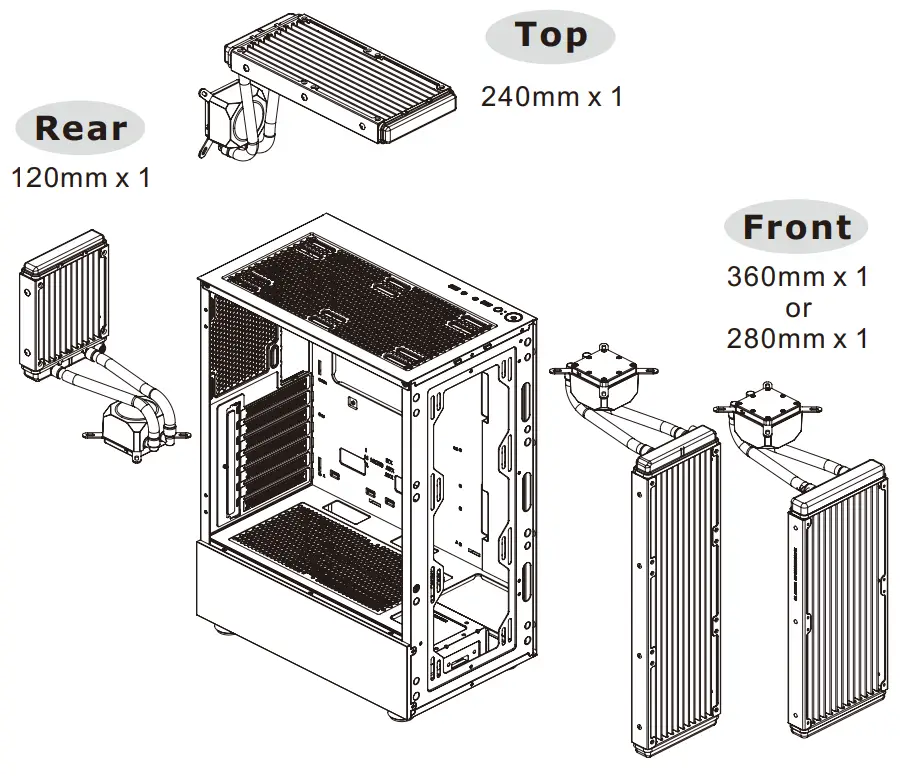

AIO Liquid Cooling Installation

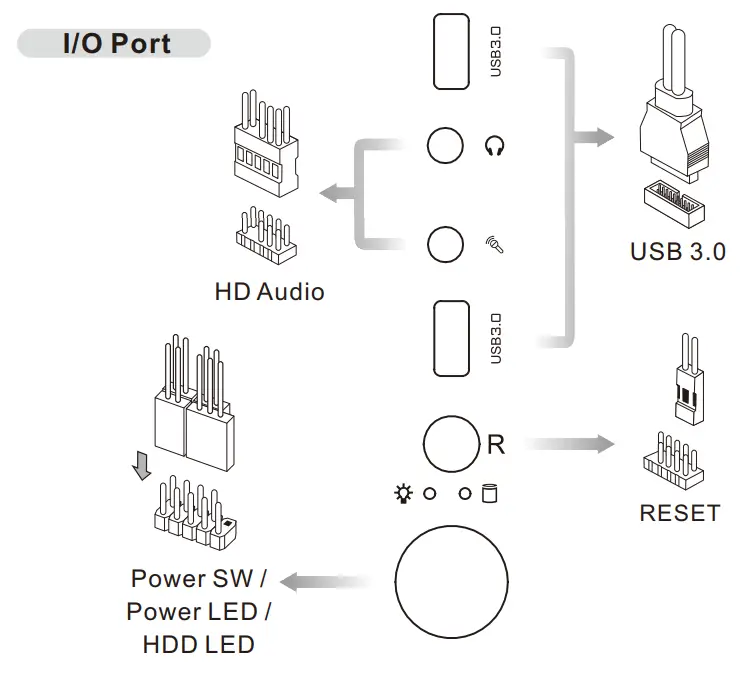

I/O Connection

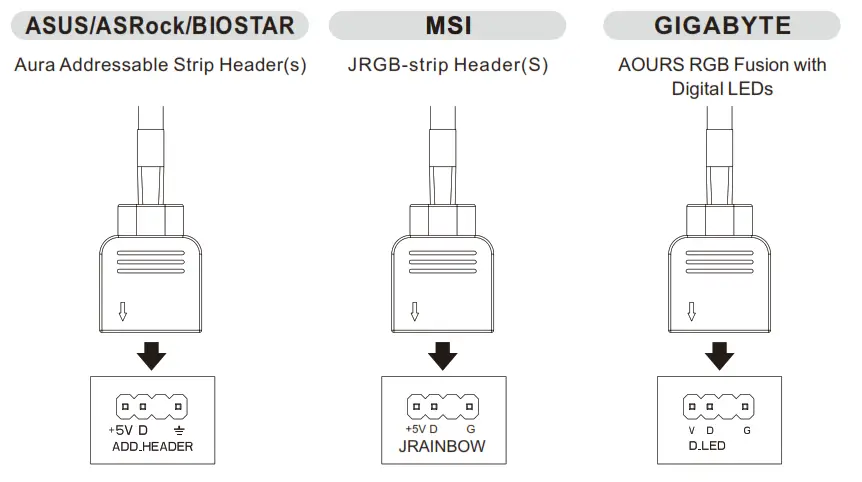

ARGB Control Instruction – How to connect MB

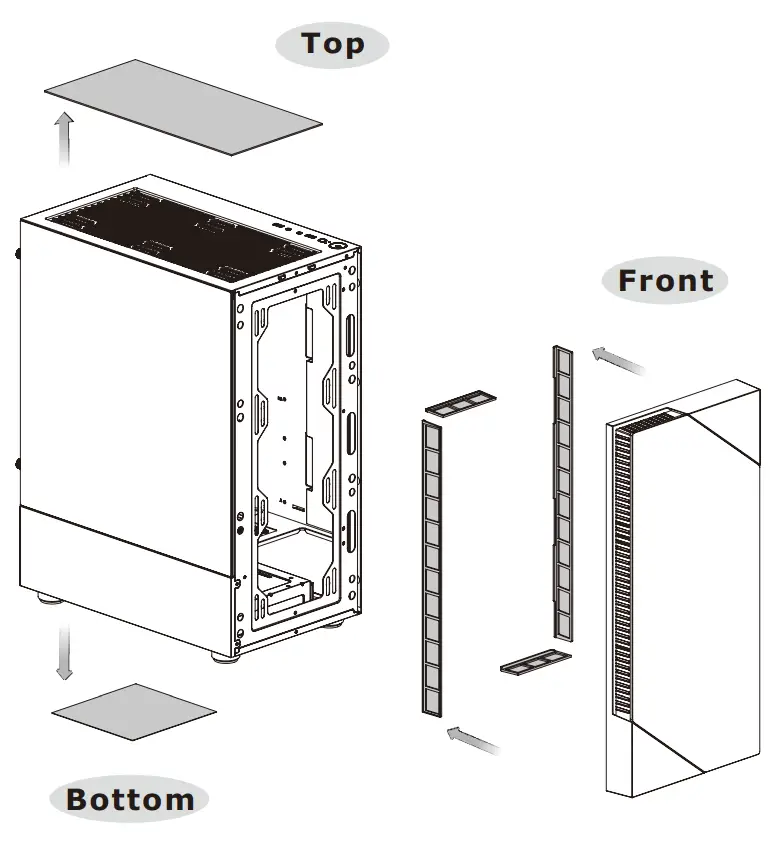

Remove Filters
