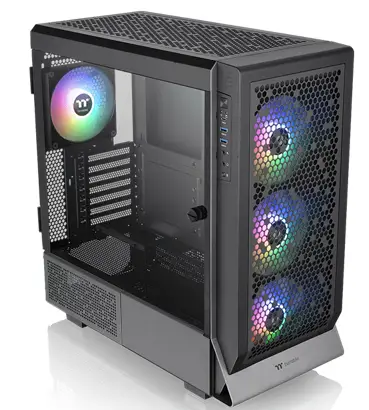

Ceres 500 TG ARGB Mid Tower Chassis
User Manual
Ceres 500 TG ARGB Mid Tower Chassis
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. http://ttpremium.com
Tt LCS-Liquid Cooling Support Certification
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Join Tt Community To Receive Benefits
Dear Valued Customer, Thank you for choosing Thermaltake. As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.
Benefits of being a member:
http://community.thermaltake.com
- Quick and responsive user support
- Receive help and advice with new builds
- Keep up to date with new product releases
- Share your thoughts and builds with the community
- Enter monthly contests and giveaways
Brand official website: http://www.thermaltake.com/
Taiwan Facebook: http://www.facebook.com/ThermaltakeTW
Global Facebook: https://www.facebook.com/ThermaltakeInc
Global community forums: http://community.thermaltake.com
Specification
| Case Type | Mid Tower |
| Dimension (H*W*D) | 525 x 245 x 507.7 mm (20.7 x 9.6 x 20 inch) |
| Side Panel | Tempered Glass x 1 |
| Material | SPCC |
| Cooling System | Front (intake): 140 x 140 x 25 mm CT140ARGB fan (1500rpm, 30.5 dBA) x 3 Rear (exhaust): 140 x 140 x 25 mm CT140ARGB fan (1500rpm, 30.5 dBA) x 1 |
| Drive Bays | 2 x 3.5″, 6 x 2.5″ or 8 x 2.5″ |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Motherboards | 6.7″ x 6.7″ (Mini ITX), 9.6″ x 9.6″ (Micro ATX), 12″ x 9.6″ (ATX), 12″ x 13″ (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio xl |
| PSU | Standard PS2 PSU (optional) |

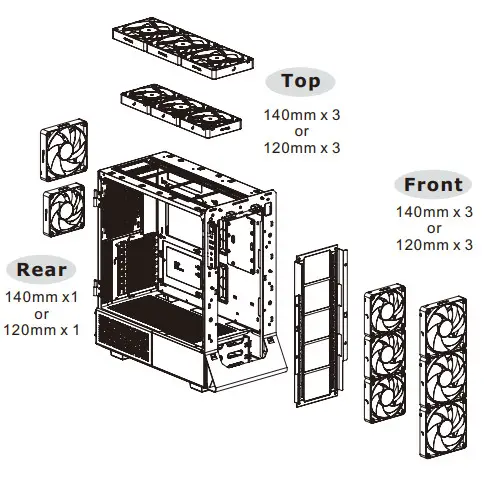

| Fan Support | Front: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm 3x 140 mm, 2 x 140 mm, 1 x 140 mm Top: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm 3x 140 mm, 2 x 140 mm, 1 x 140 mm Rear: 1 x 120 mm, 1 x 140 mm |
| Radiator Support | Front: 1 x 360 mm, 1 x 240 mm, 1 x 120 mm 1 x 420 mm, 1 x 280 mm, 1 x 140 mm Top: 1 x 360 mm, 1 x 240 mm, 1 x 120 mm 1 x 280 mm, 1 x 140 mm Rear: 1 x 120 mm |

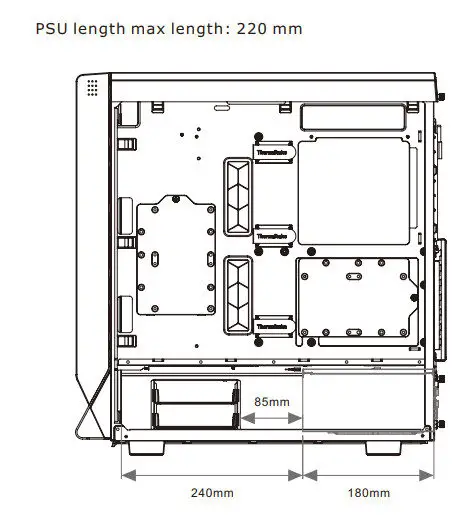

| Clearance | CPU cooler height limitation: 185mm VGA length limitation: 395mm (With Radiator) 425mm (Without Radiator) PSU length limitation: 220mm |
Accessory
| Figure | Part Name | Q`ty | Use For |
 | Screw #6-32 x 6 mm | 4 | For PSU |
 | Screw M3 x 5 mm | 32 | For 2.5” HDD/SSD |
 | Screw #6-32 x 6 mm | 35 | For Motherboard/3.5” HDD |
 | Stand-off #6-32 x 6.5 mm | 3 | Backup |
 | Net setter | 1 | Motherboard Stand-off |
 | Screw 5 x 10 mm | 4 | For Case Fan |
 | Thumb Screw #6-32 x 8 mm | 2 | Backup |
 | Buzzer | 1 | Motherboard Alarm |
 | Cable Ties | 10 | Cable Management |
Warning and Notice

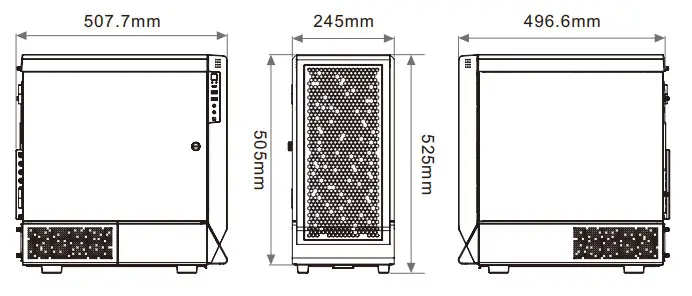

Chassis dimension

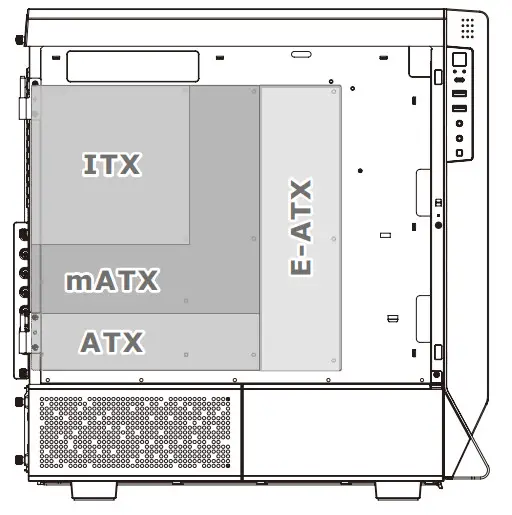

Motherboard Compatibility: ITX/mATX/ATX/E-ATX (Up to 330.2mm wide)

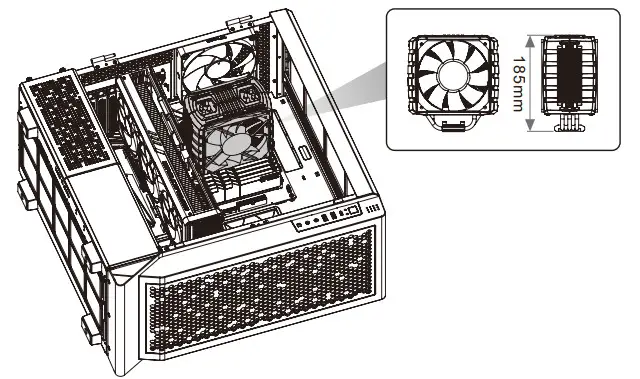

CPU cooler max height: 185m

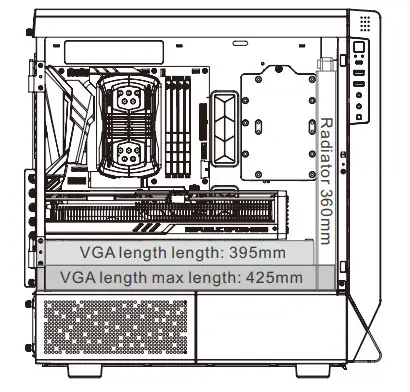

VGA length max length: 425mm

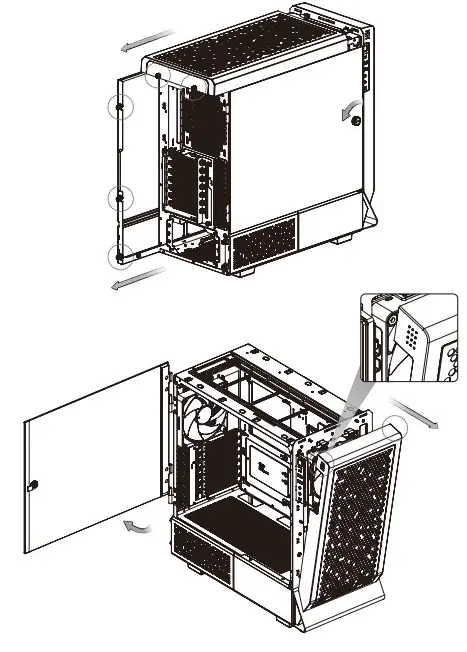

Remove Components

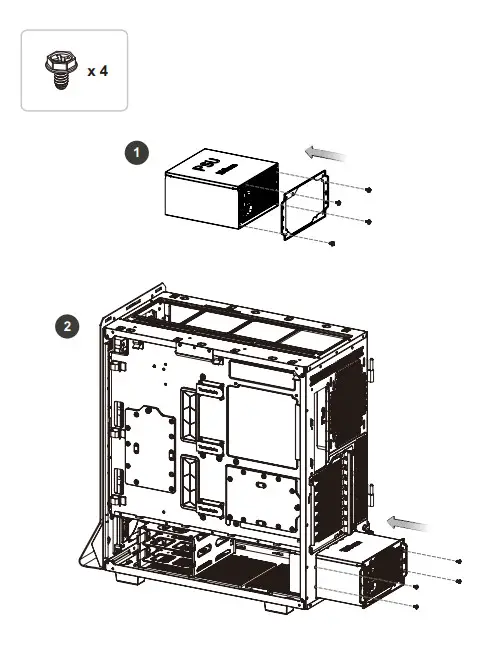

Power Supply Unit Installation

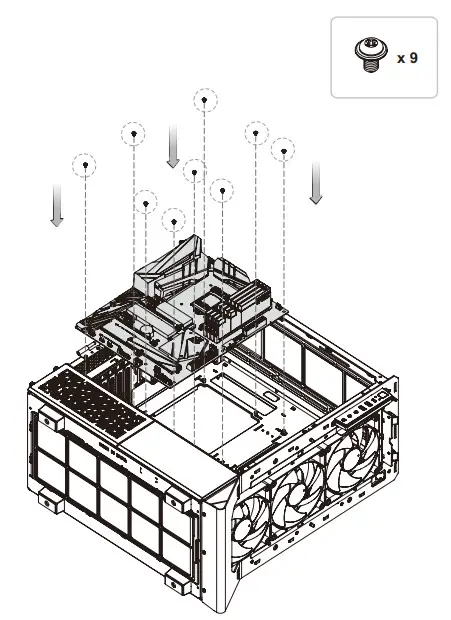

Motherboard Installatio

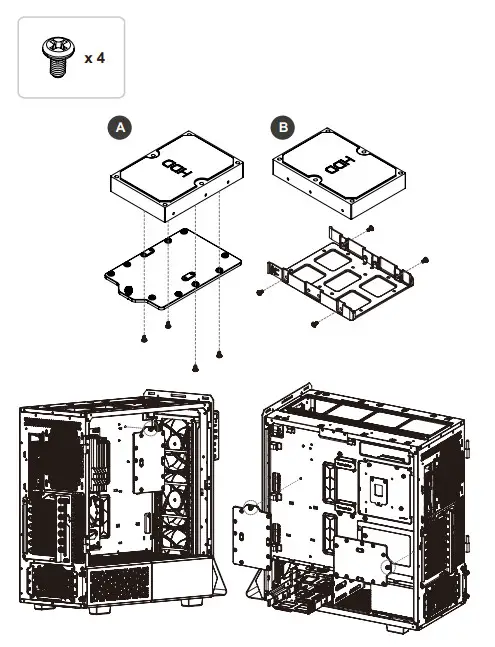

3.5” HDD Installation

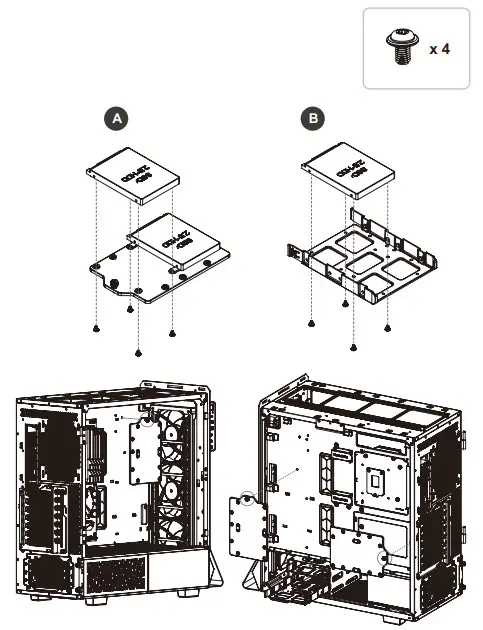

2.5” HDD Installation

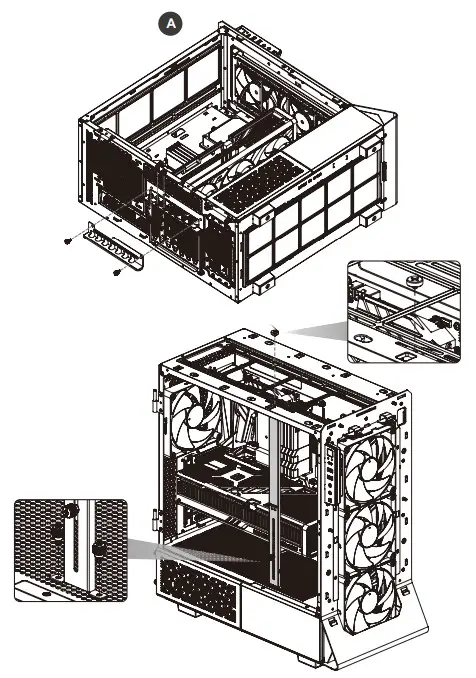

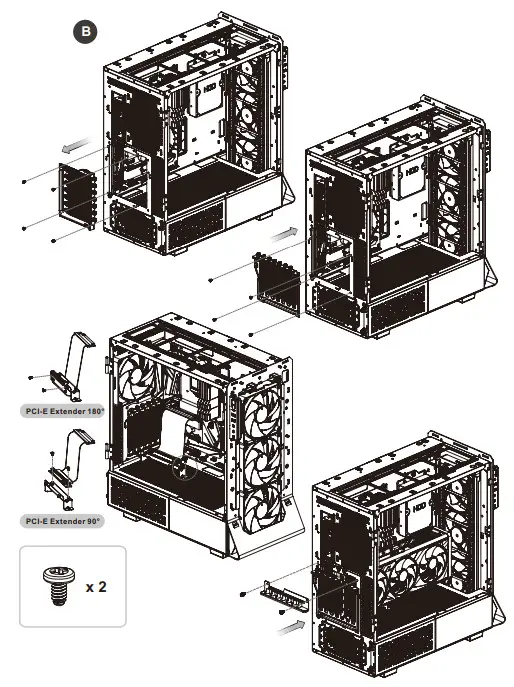

PCI Card Installation
 |  |
Air Cooling Installation

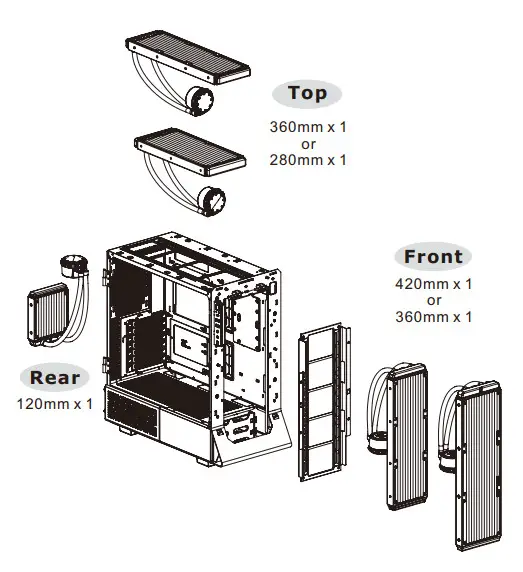

AIO Liquid Cooling Installation

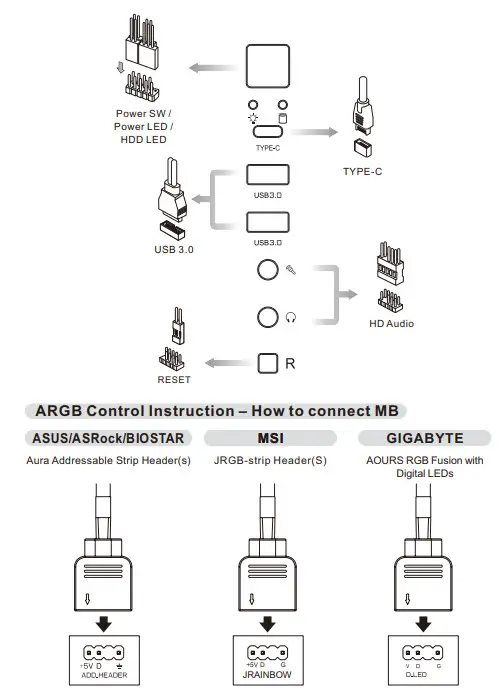

I/O Connection

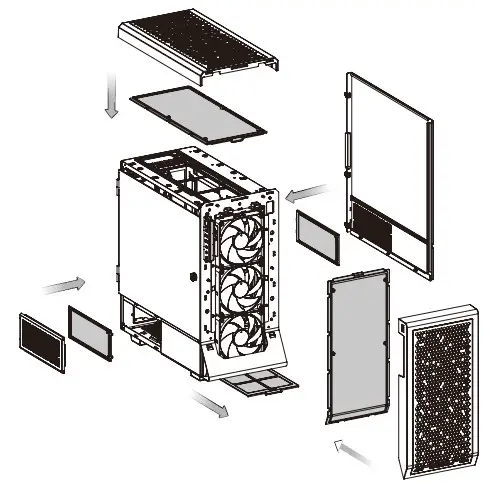

Remove Filters
