Thermaltake Divider 500 Tg Air Mid Tower Chassis User Manual (+ PDF)

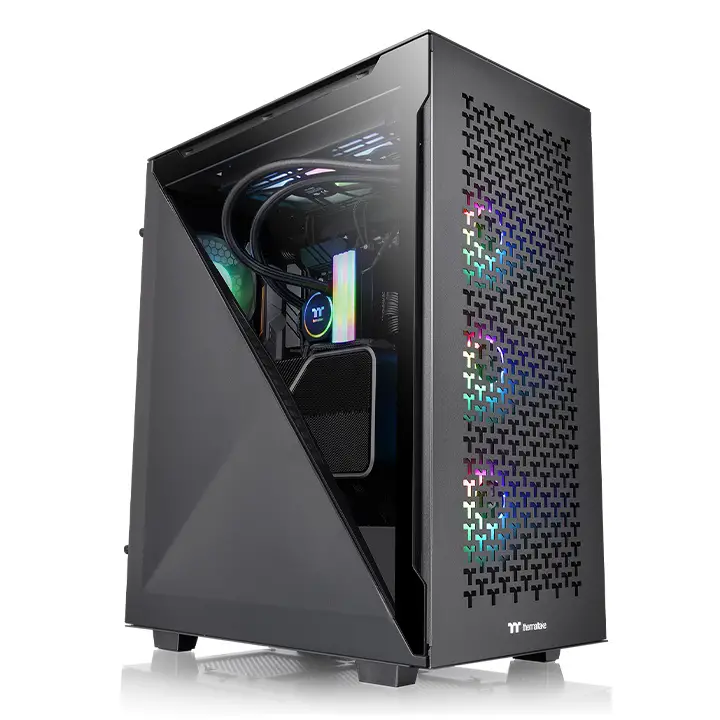

Divider 500 TG Air
Picture is for reference only
User’s Manual

TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding, and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations, and Boundless Creativity to provide a high-performance PC product for every enthusiast. http://ttpremium.com

Tt LCS-Liquid Cooling Support Certification

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts’ standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Join Tt Community To Receive Benefits
Dear Valued Customer,
Thank you for choosing Thermaltake.
As new users, we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.

Benefits of being a member:

Quick and responsive user support
Receive help and advice with new builds
Keep up to date with new product releases
Share your thoughts and builds with the community
Enter monthly contests and giveaways

http://community.thermaltake.com

Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/ThermaltakeInc
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com

Contents hide

1 Specification

2 Warning and Notice

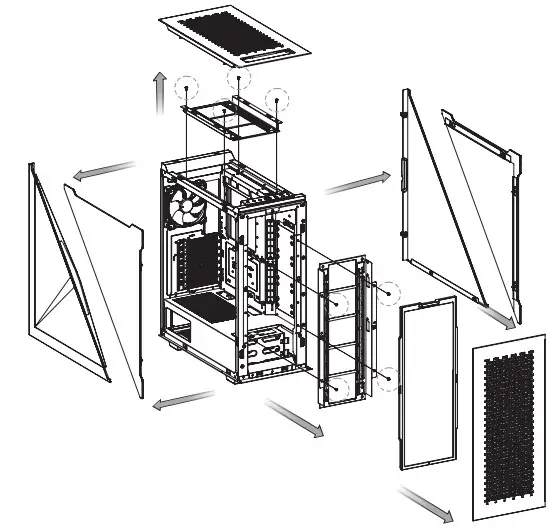

3 Remove Components

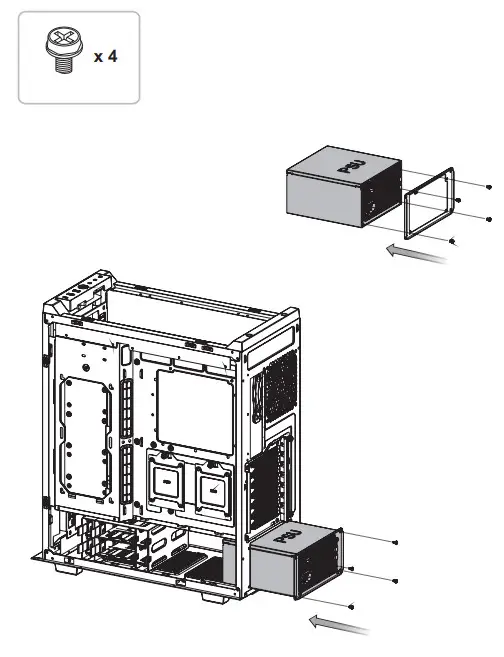

4 Power Supply Unit Installation

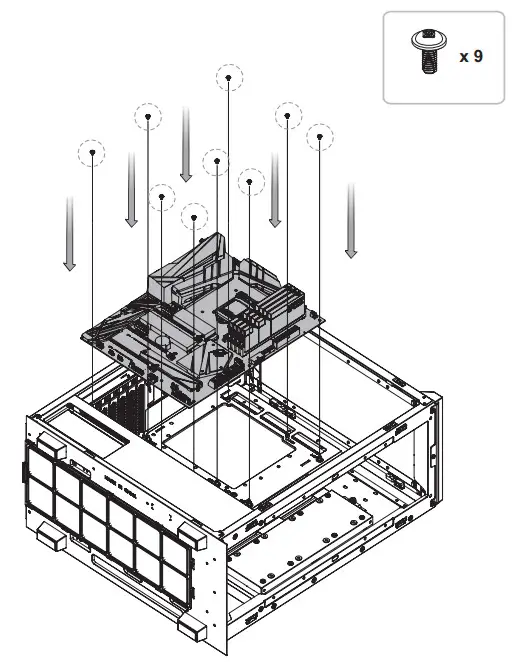

5 Motherboard Installation

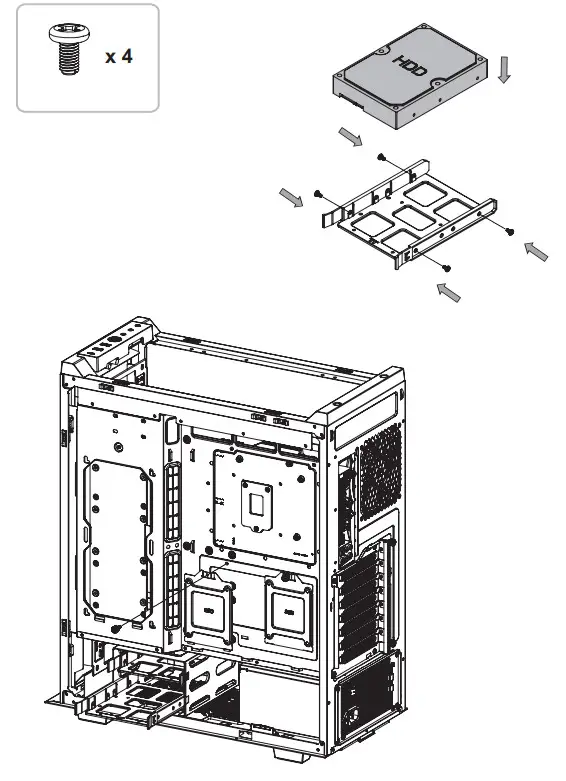

6 3.5” HDD Installation

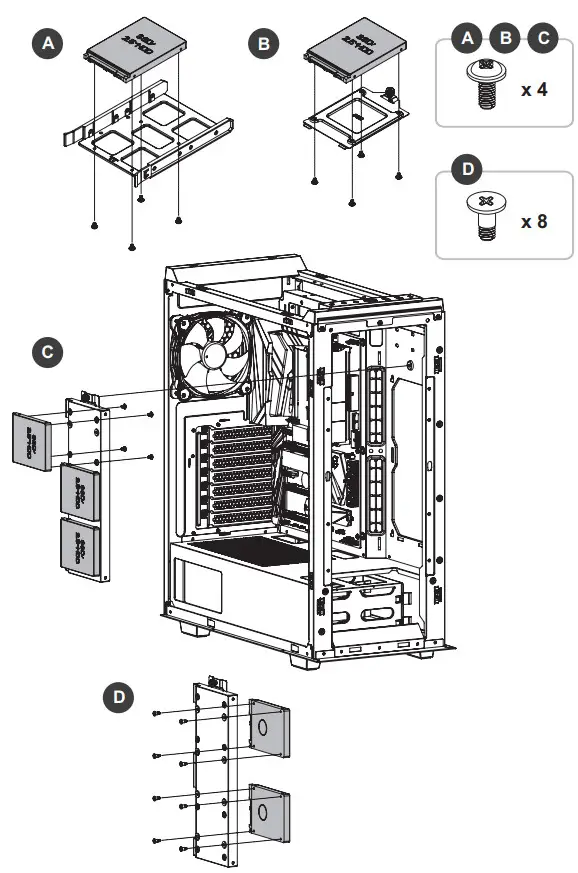

7 2.5” HDD Installation

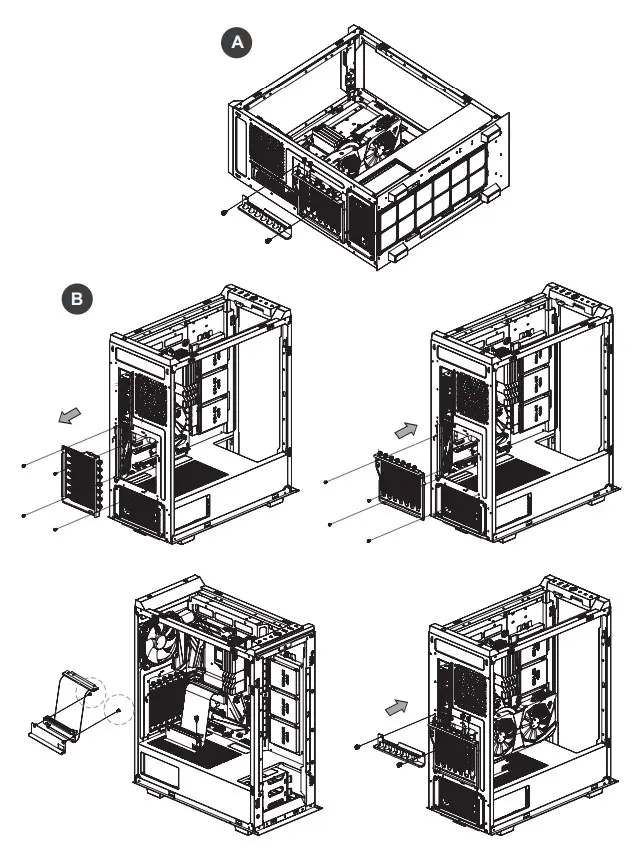

8 PCI Card Installation

9 Air Cooling Installation

10 AIO Liquid Cooling Installation

11 I/O Connection

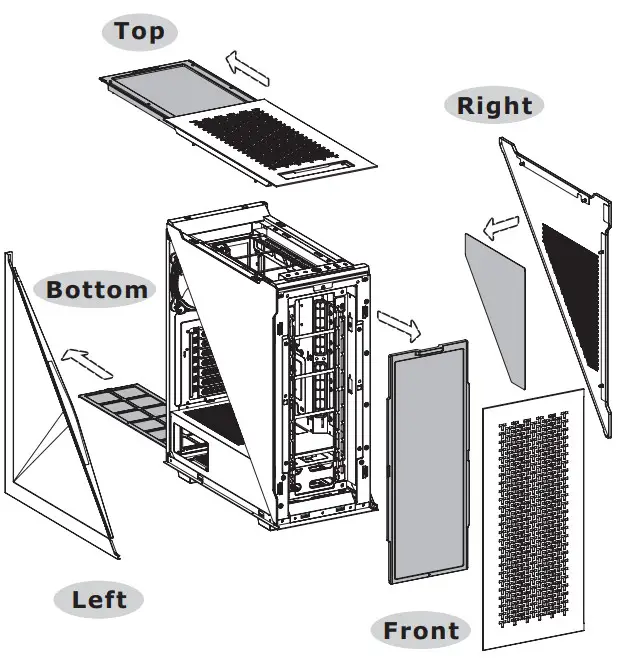

12 Remove Filters

13 Documents / Resources

13.1 References

14 Related Posts

Specification

Model	Divider 500 TG Air	Divider 500 TG Air Snow
Case Type	Mid Tower

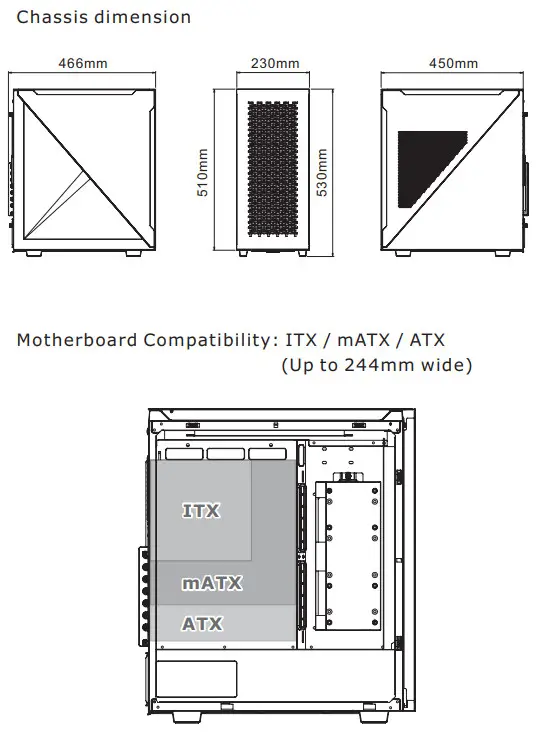

Dimension (HWD)	530 x 230 x 466 mm (20.9 x 9.1 x 18.3 inch)

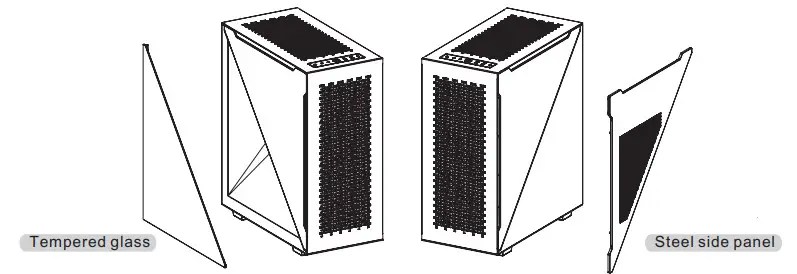

Side Panel	3mm Tempered Glass x 2	White
Color	Black
Material	SPCC
Cooling system	Front (intake) : 120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1 Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1
Drive Bays	2 x 3.5”, 5 x 2.5”or 7 x 2.5”
Expansion Slots	7 (Rotatable Patented Design)
Motherboards	6.7″ x 6.7″ (Mini ITX), 9.6″ x 9.6″ (Micro ATX), 12″ x 9.6″ (ATX)

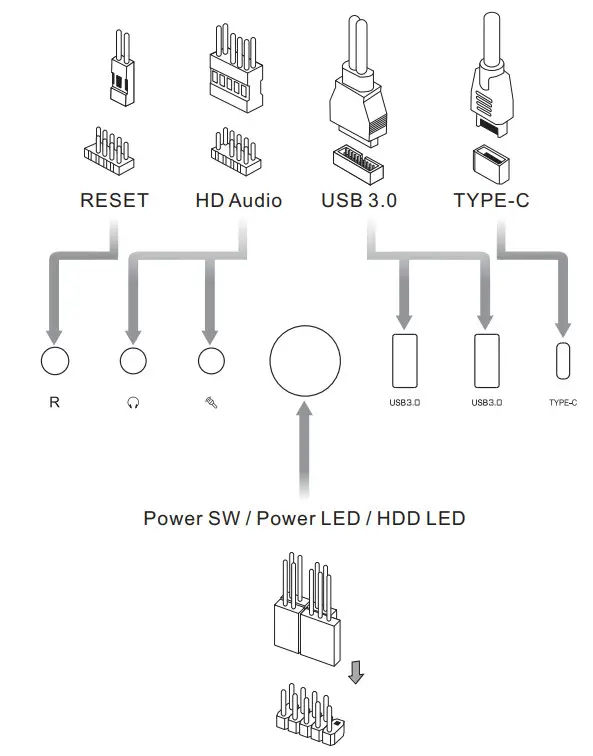

I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)

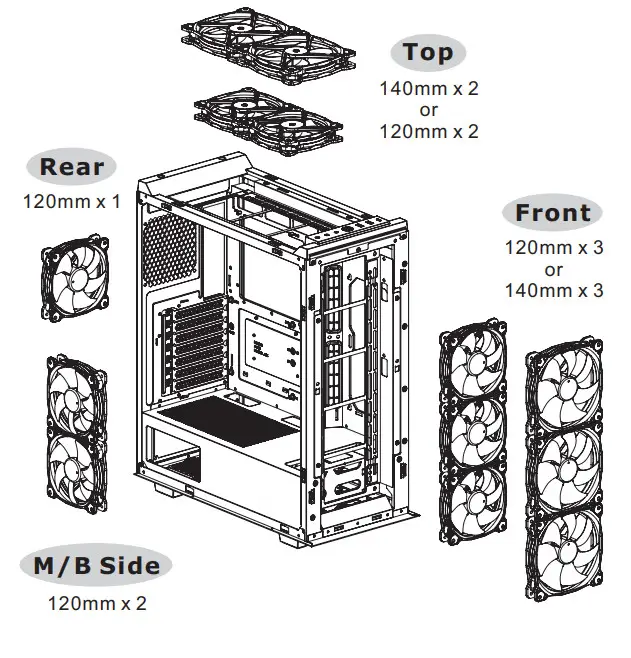

Fan Support	Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm

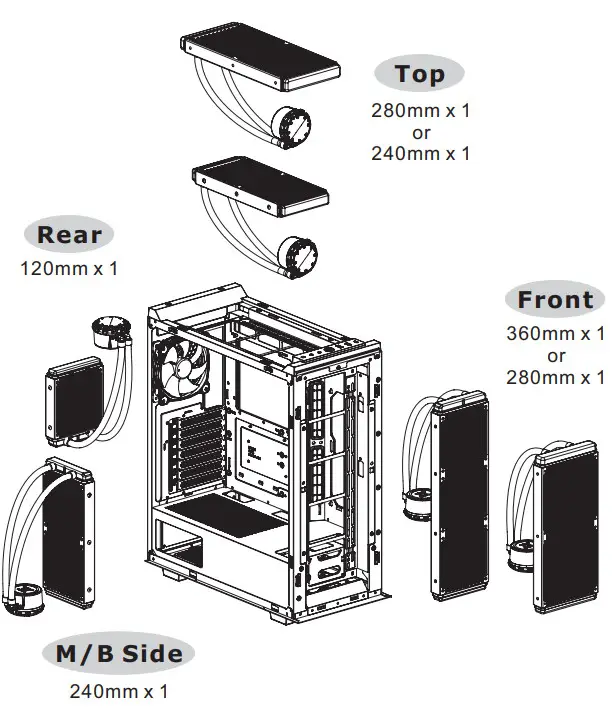

Radiator Support	Top: 1 x 280mm, 1 x 140mm 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 240mm, 1 x 120mm Rear: 1 x 120mm

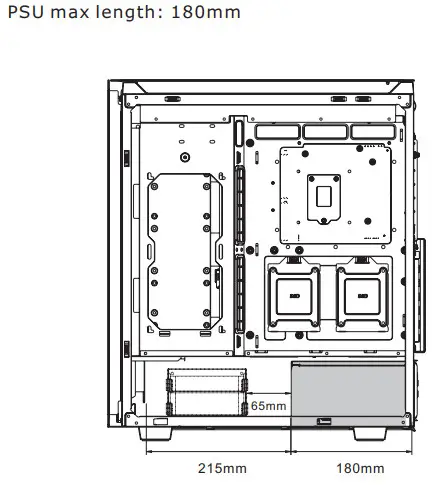

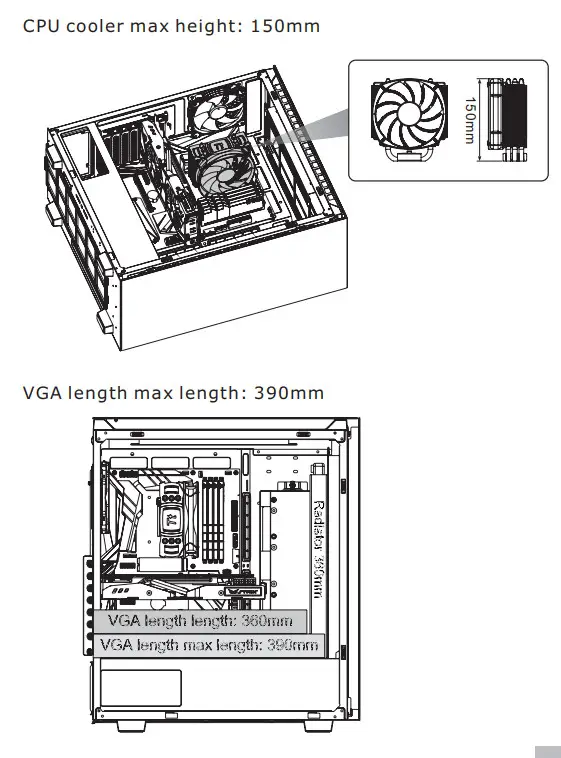

Clearance	CPU cooler max-height: 155mm (with one TG and one steel side panel) 170mm (with two TG) VGA max length: 360mm (with radiator) 390mm (without radiator) PSU max length: 180mm (with HDD cage) 220mm (without HDD cage)
