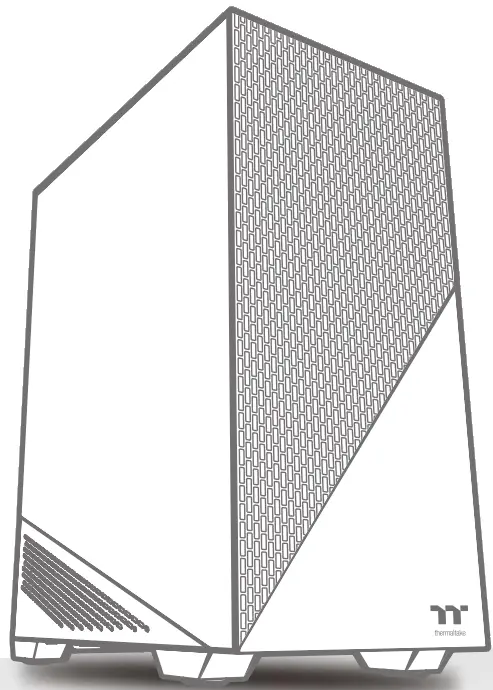

thermaltake 370 TG ARGB Divider Mid Tower Chassis
Contents hide
Specification
| Case Type | Mid Tower | ||
| Dimension (H*W*D) | 491 x 220.3 x 469.1 mm (19.3 x 8.7 x 18.5 inch) | ||
| Side Panel | Tempered Glass x 1 | ||
| Material | SPCC | ||
| Cooling System | Front (intake): 120 x 120 x 25 mm ARGB PWM fan (1500 rpm, 27.2 dBA) x 2 Rear (exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500 rpm, 27.2 dBA) x 1 | ||
| Drive Bays | 2 x 3.5”, 2 x 2.5” or 4 x 2.5” | ||
| Expansion Slots | 7 | ||
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6 (ATX), 12” x 13” (E-ATX) | ||
| I/O Port | USB 3.0 x 2, HD Audio x 1 | ||
| PSU | Standard PS2 PSU (optional) | ||
| Fan Support | Front | 3 x 120 mm, 2 x 120 mm,1 x 120 mm | 3 x 140 mm, 2 x 140 mm, 1 x 140 mm |
| Top | 3 x 120 mm, 2 x 120 mm,1 x 120 mm | 2 x 140 mm, 1 x 140 mm | |
| Right (M/B Side) | 2 x 120 mm, 1 x 120 mm | ||
| Rear | 1 x 120 mm | ||
| Radiator Support | Front | 1 x 360 mm, 1 x 240 mm, 1 x 120 mm | 1 x 280 mm, 1 x 140 mm |
| Top | 1 x 360 mm, 1 x 240 mm, 1 x 120 mm | 1 x 280 mm, 1 x 140 mm | |
| Right (M/B Side) | 1 x 240 mm, 1 x 120 mm | ||
| Rear | 1 x 120 mm | ||
| Clearances | CPU cooler height limitation | 170 mm | |
| VGA length limitation | 340 mm (With radiator) 400 mm (Without radiator) | ||
| PSU length limitation | 230 mm (With HDD Cage) | ||
Accessory
For ARGB Version Only
| Figure | Parts Name | Q’ty | Used for |

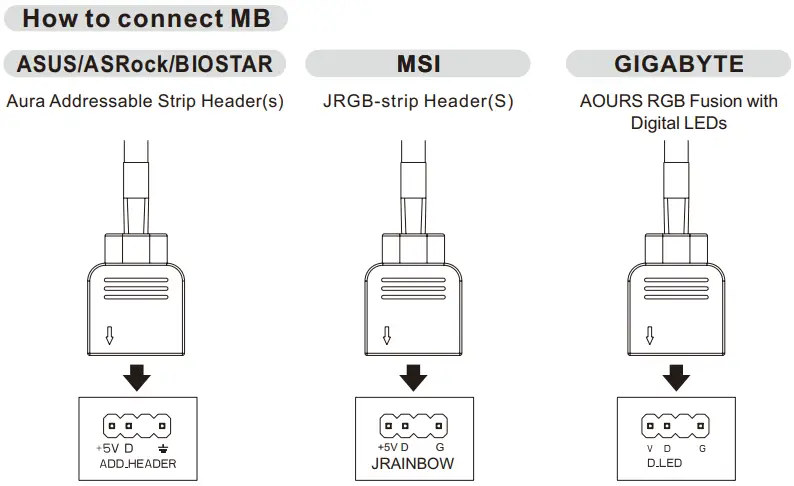

 | MB Signal Bridge Cable (ASUS/MSI/ASROCK/GIGABYTE) | 1 | LED Signal Sync |
Warning and Notice

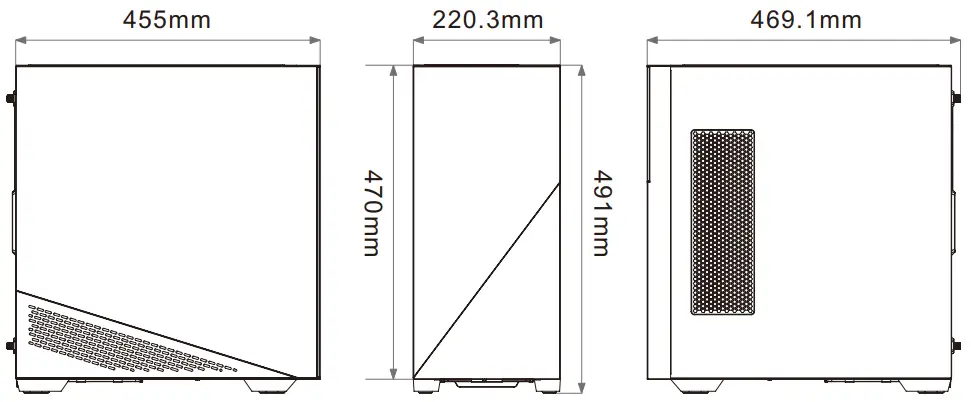

Chassis dimension

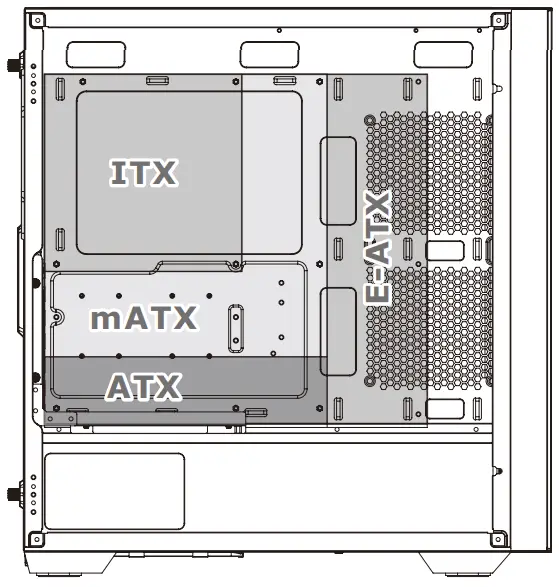

Motherboard Compatibility: ITX / mATX / ATX / E-ATX (Up to 330.2mm wide)

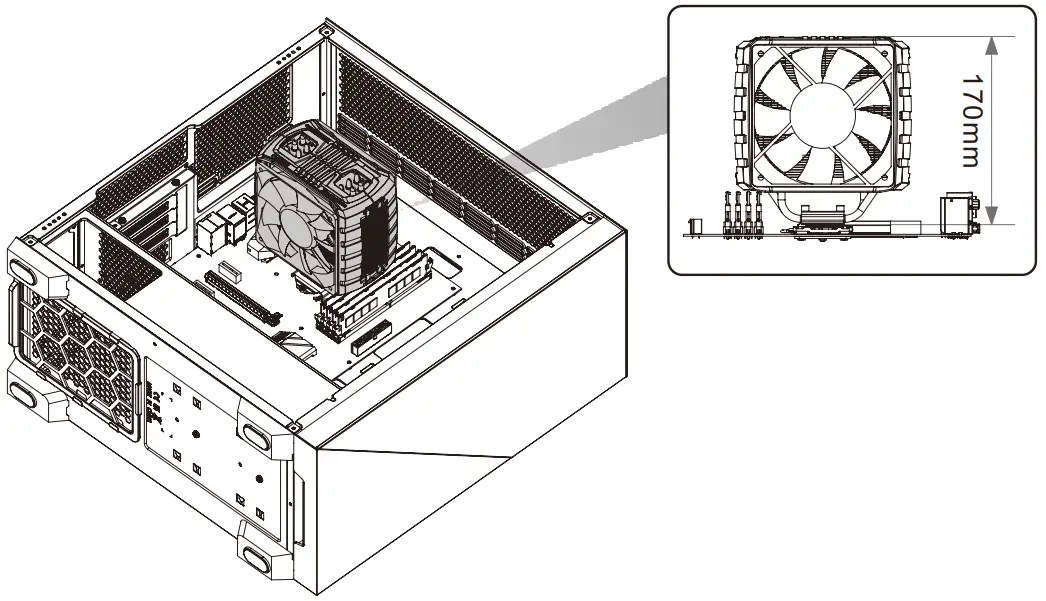

CPU cooler max height: 170mm
VGA length max length: 400mm

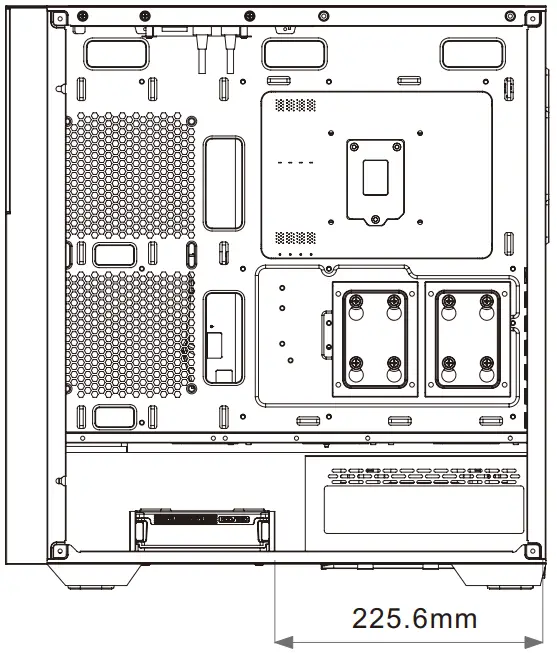

PSU max length: 230mm

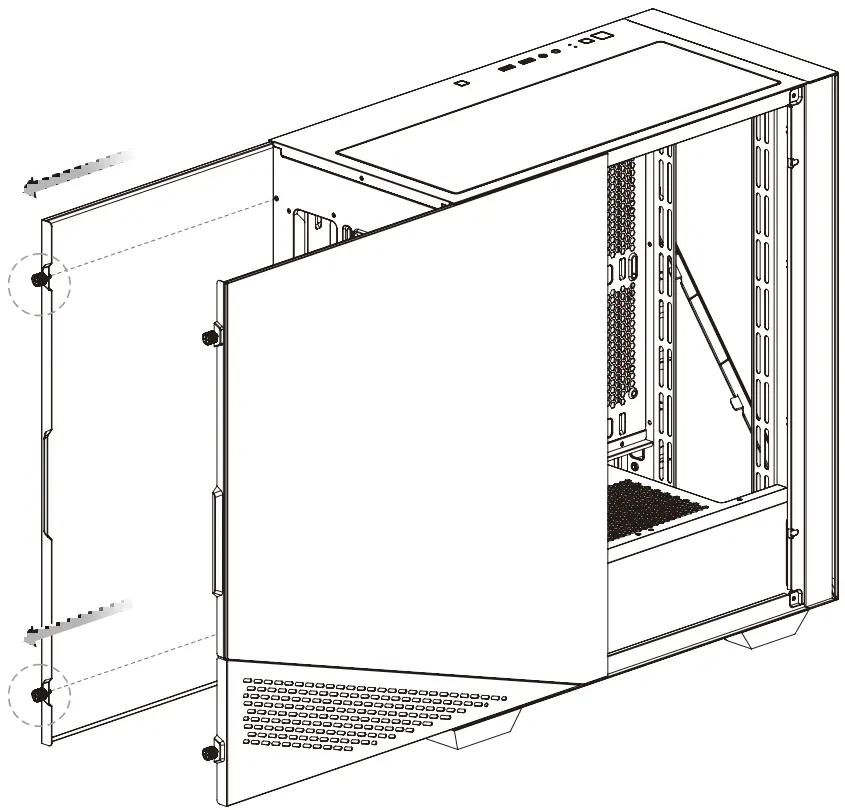

Remove Components

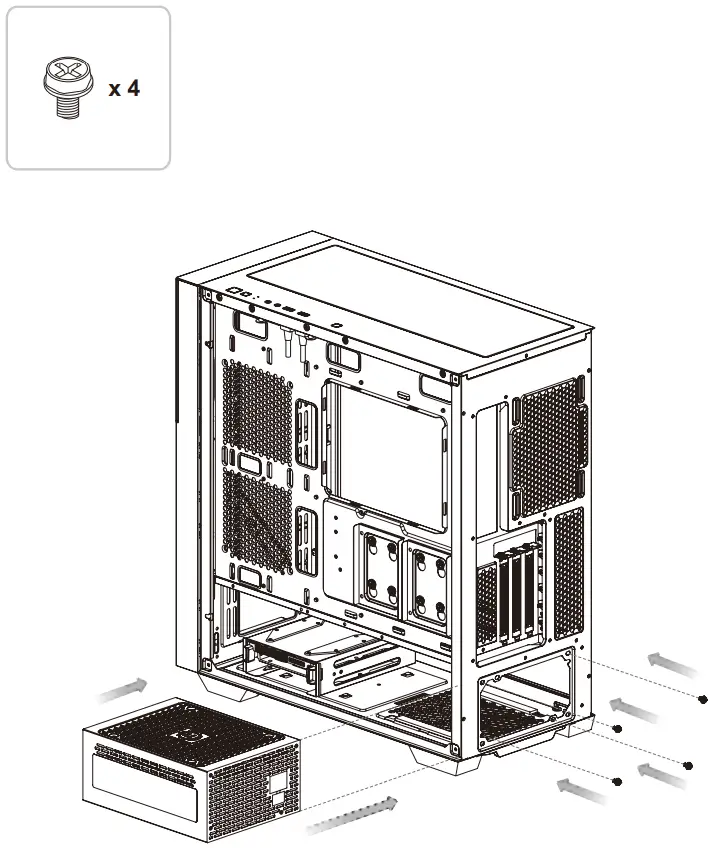

Power Supply Unit Installation

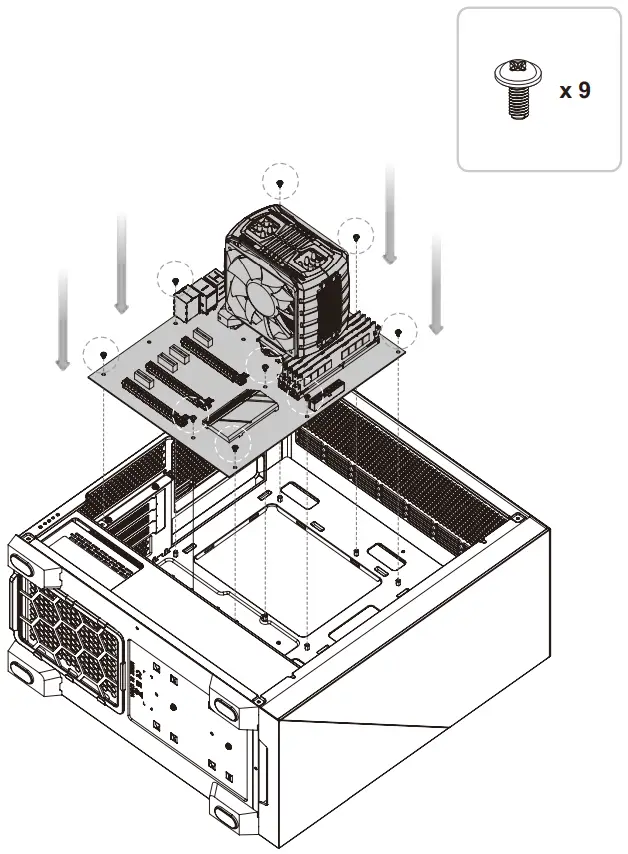

Motherboard Installation

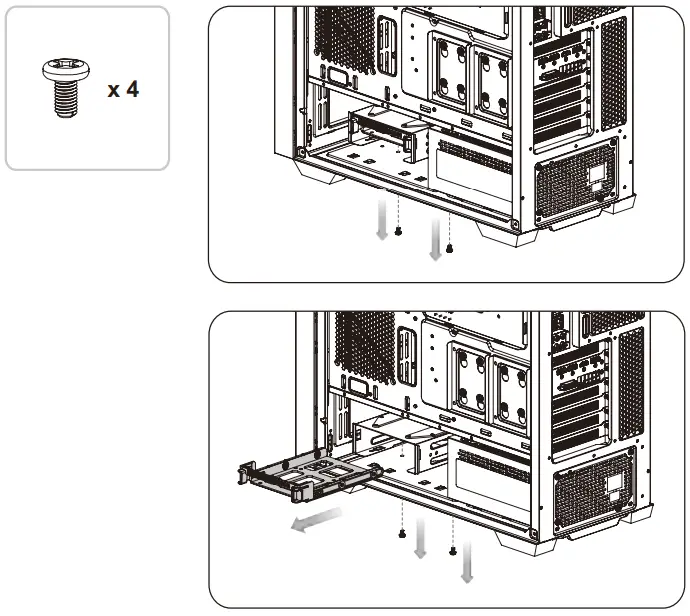

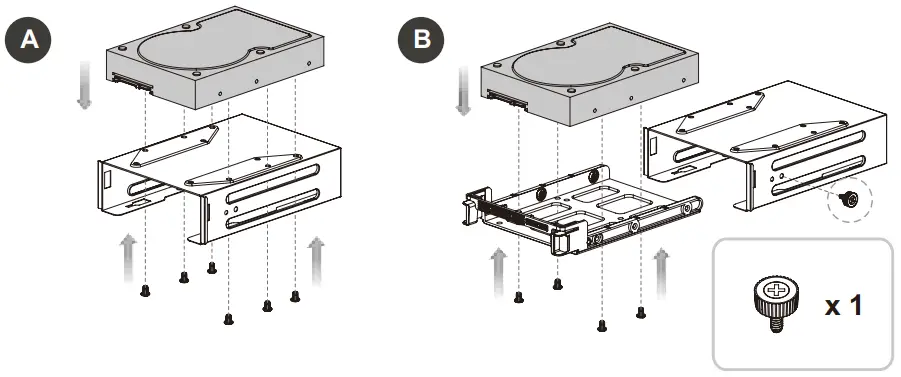

3.5” HDD Installation

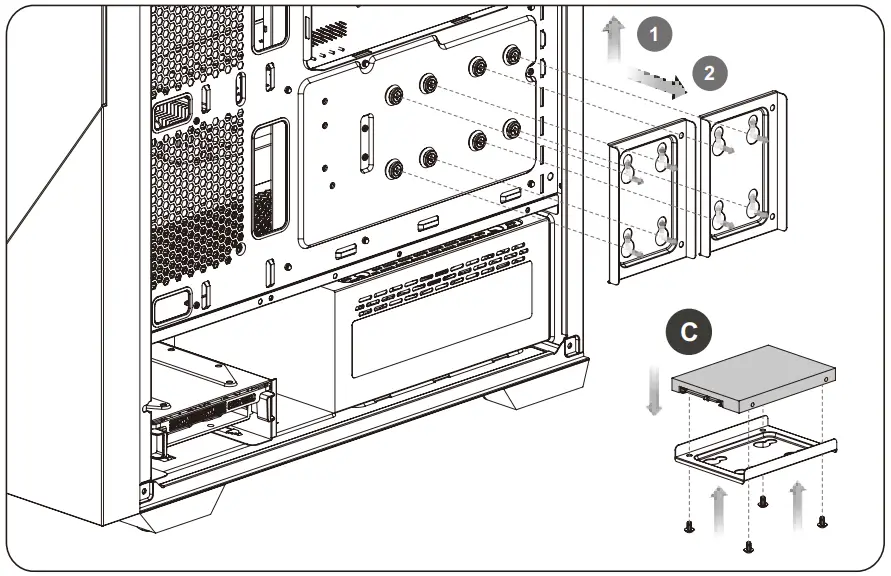

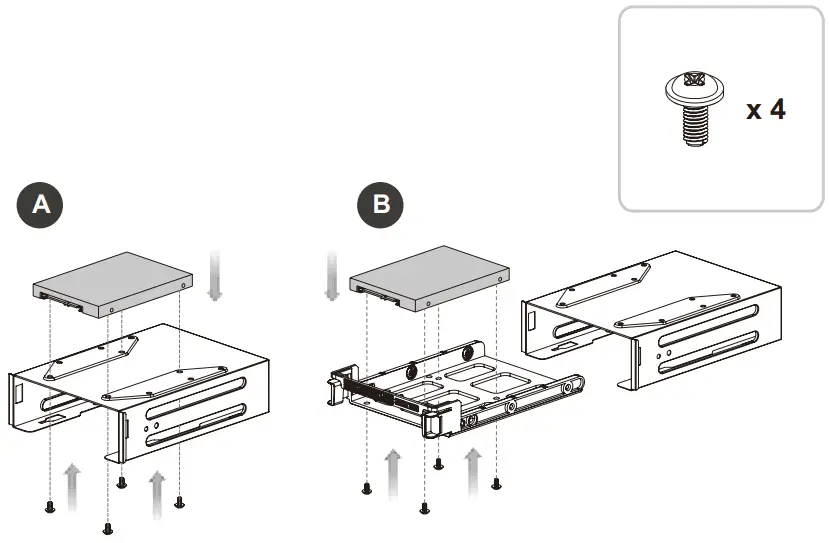

2.5” HDD Installation

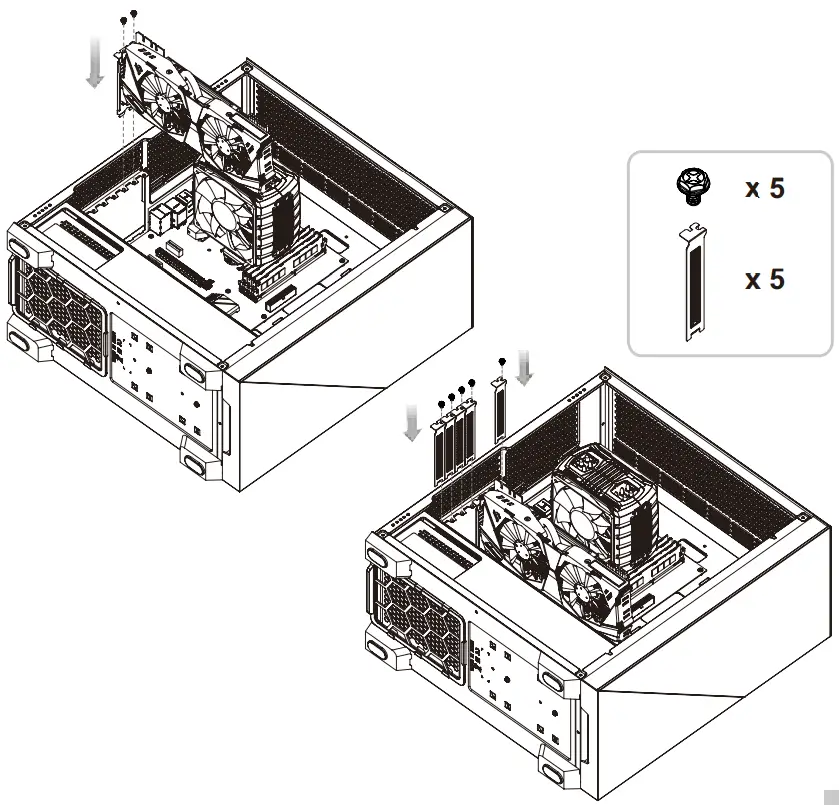

PCI Card Installation

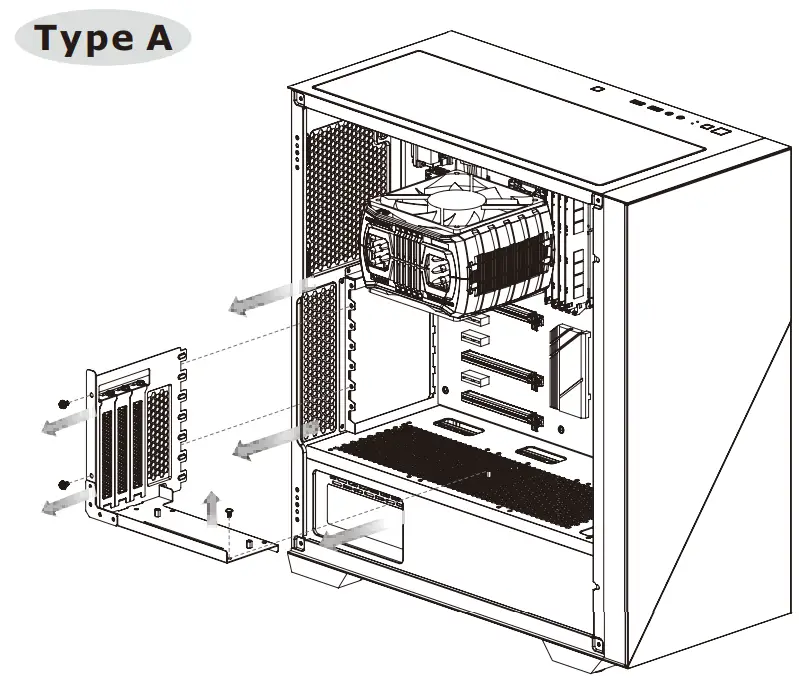

Air Cooling Installation

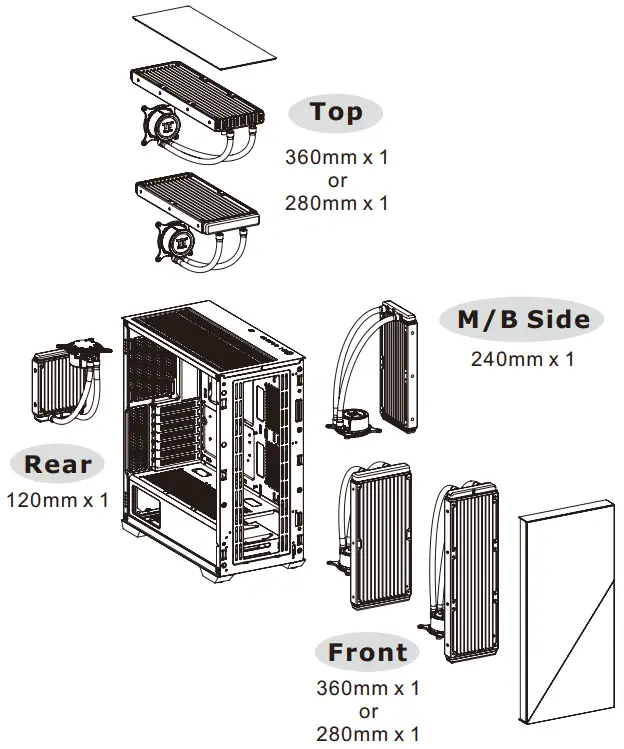

AIO Liquid Cooling Installation
I/O Connection

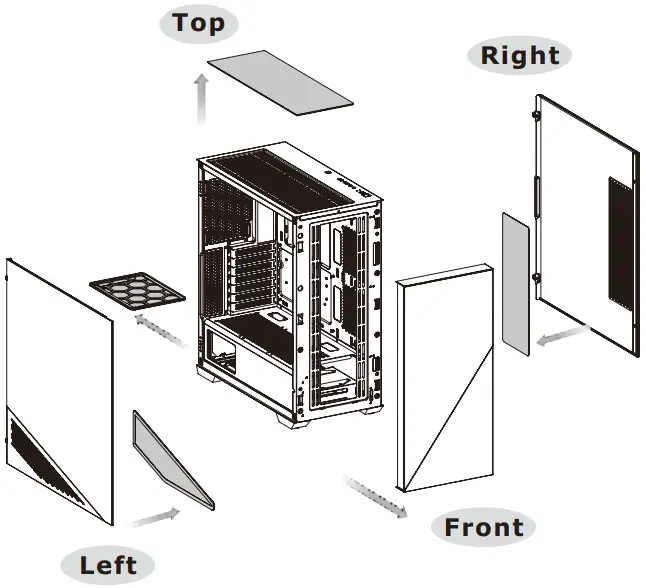

Remove Filters

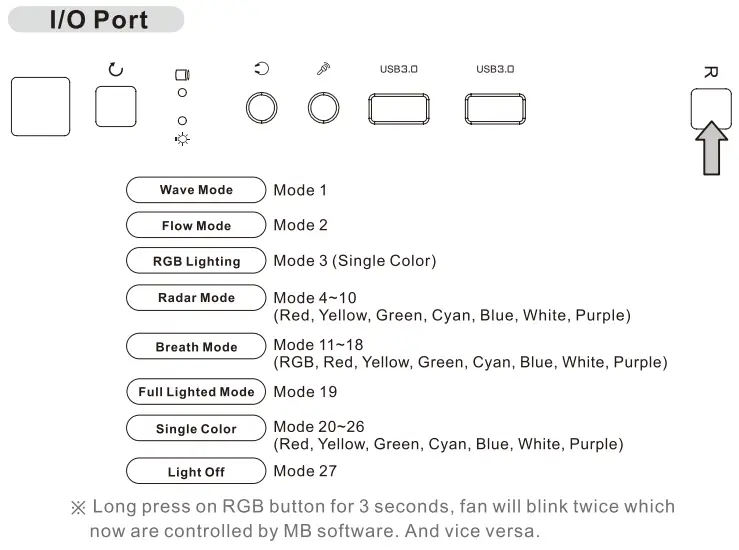

ARGB Control Instruction

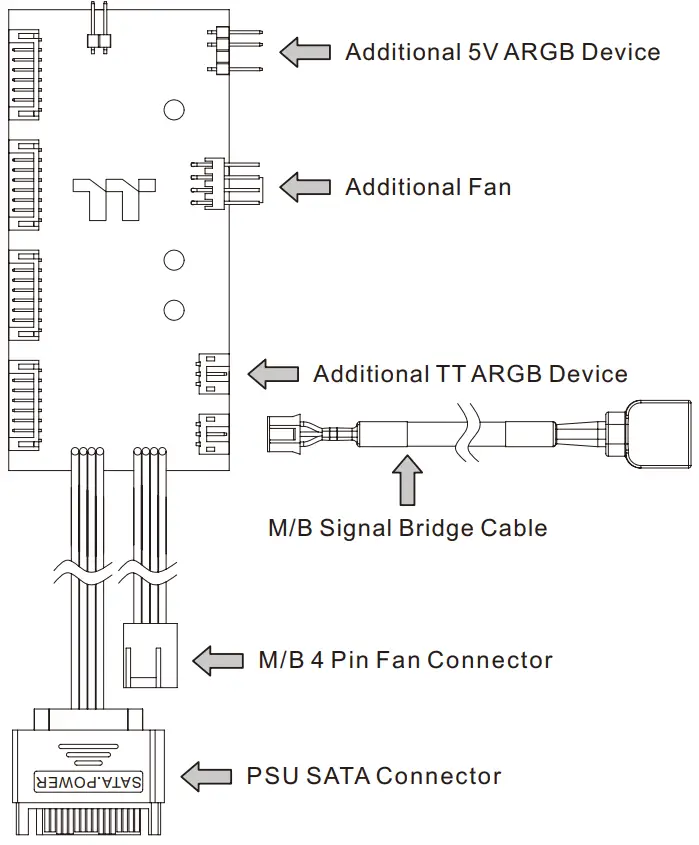

PWM ARGB Control Board Connection
