Thermaltake S200 Tg Argb Tower Chassis User Manual (+ PDF)

Case Type	Mid Tower

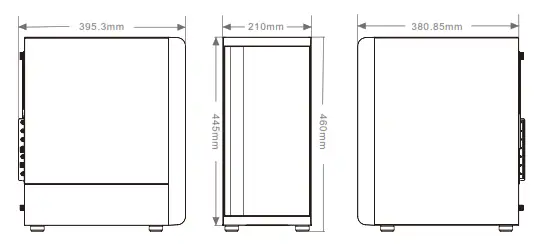

Dimension (H’W’D)	460 x 210 x 395.3 mm (18.11 x 8.27 x 15.56 inch)
Side Panel	Tempered Glass x 1
Material	SPCC
Cooling System	Front (intake): 120 x 120 x 25 mm ARGB Lite fan (1000 rpm, 22.3 dBA) x 3
Drive Bays	2 x 3.5% 2 x 2.5′ or x 3.5′, 3 x 2.5′
Expansion Slots	7
Motherboards	6.7′ x 6.7′ (Mini ITX), 9.6′ x 9.6′ (Micro ATX), 12′ x 9.6′ (ATX)
I/O Port	USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Front	3 x 120 mm, 2 x 120 mm,1 x 120 mm	2x 140 mm, 1x 140 mm
	Top	2x 120 mm,1 x 120 mm	2x 140 mm, 1x 140 mm
	Rear	1 x 120 mm
Radiator Support	Front	1 x 360 mm, 1 x 240 mm,1 x 120 mm	1 x 280 mm, 1 x 140 mm
	Top	1x 240 mm,1 x 120 mm
	Rear	1 x 120 mm
Clearances	CPU cooler height limitation	166 mm

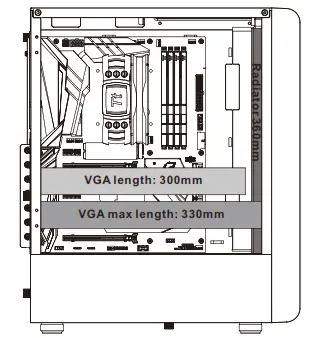

	VGA length limitation	300 mm (With radiator) 330 mm (Without radiator)
	PSU length limitation	190 mm (With HDD Cage)

Accessory

Figure	Parts Name	Q’ty	Used for
	Stand-off #6-32 x 6mm	3	Motherboard
	Screw #6-32 x 6mm	6	Power
	Screw M3 x 5mm	17	SSD / 2.5” HDD / Motherboard
	Screw #6-32 x 5mm	8	3.5” HDD
	Net Setter	1	Motherboard Stand-off
	Buzzer	1	Motherboard Alarm
	Cable Tie	5	Cable Management

For ARGB Lite Version Only

Figure	Parts Name	Q’ty	Used For
	Fan Splitter	1	Case Fan

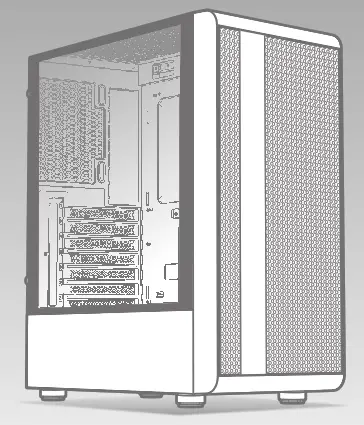

S200 TG ARGB

Warning and Notice

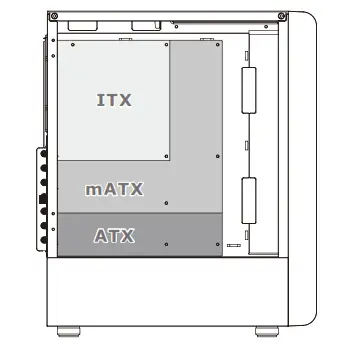

Motherboard Compatibility: ITX / mATX / ATX (Up to 244mm wide)

CPU cooler max height: 166mmVGA max length: 330mm

PSU max length: 190mm

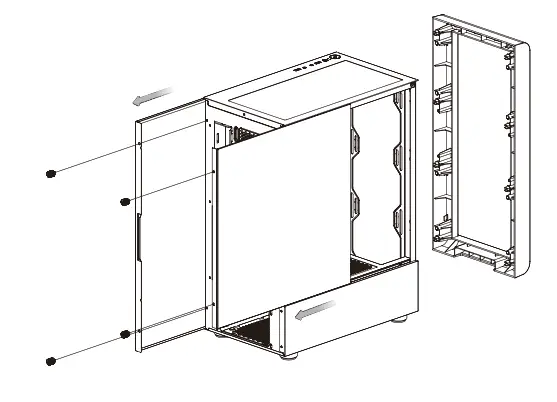

Remove Components

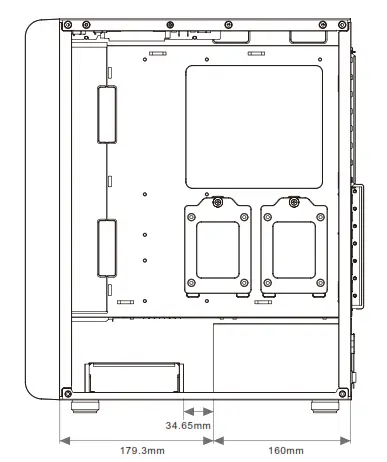

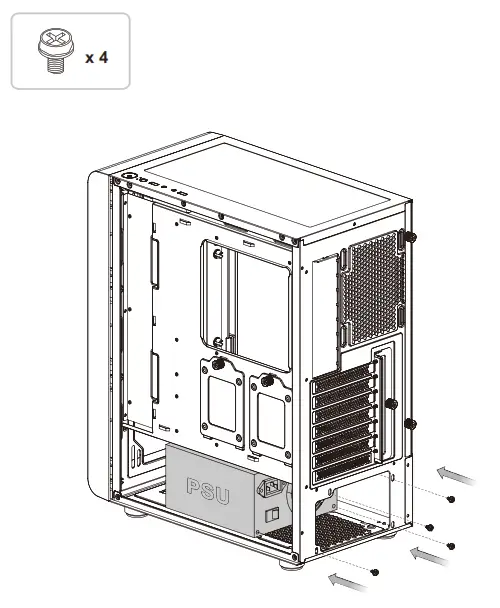

PSU Installation

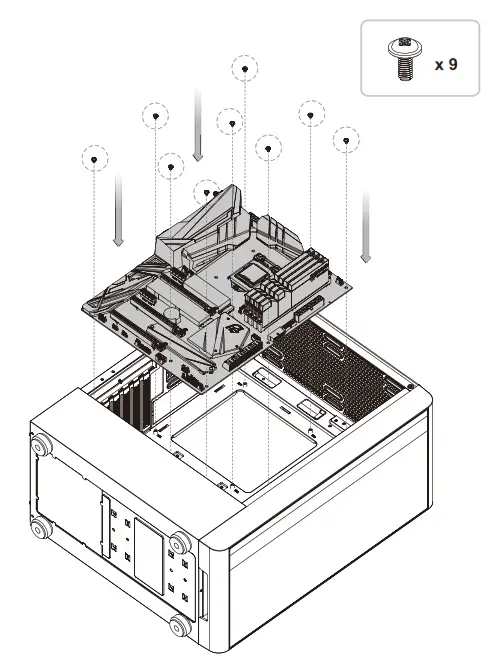

Motherboard Installation

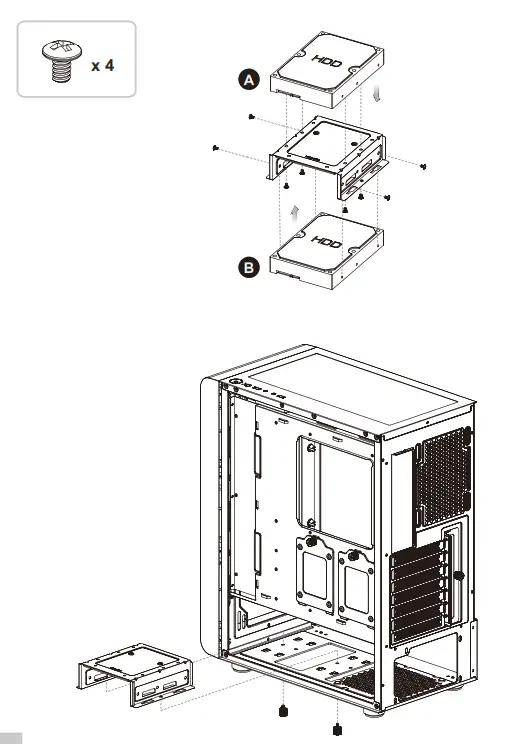

3.5” HDD Installation

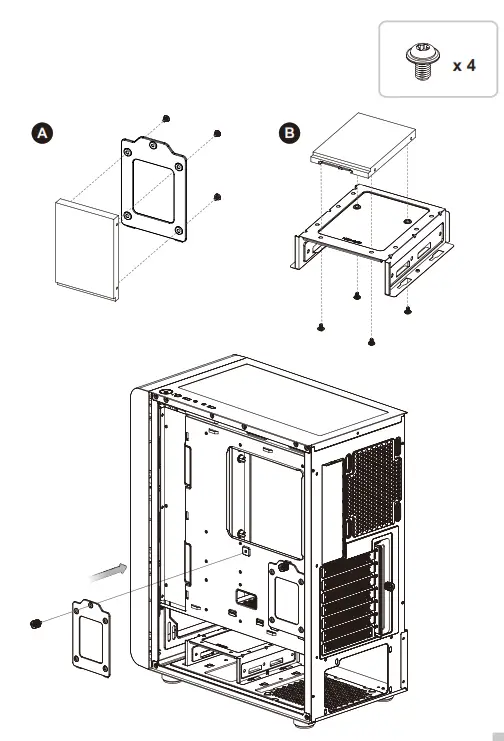

2.5” HDD Installation

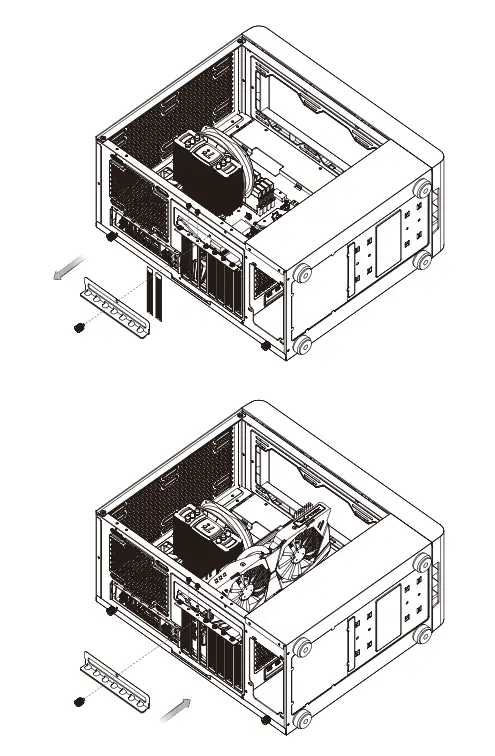

PCI Card Installation

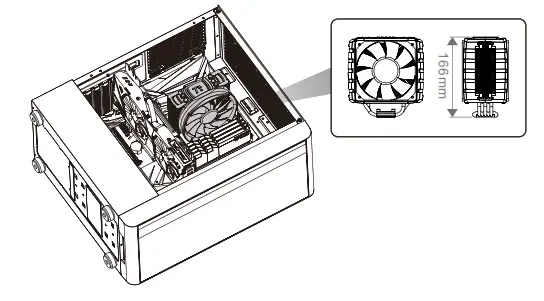

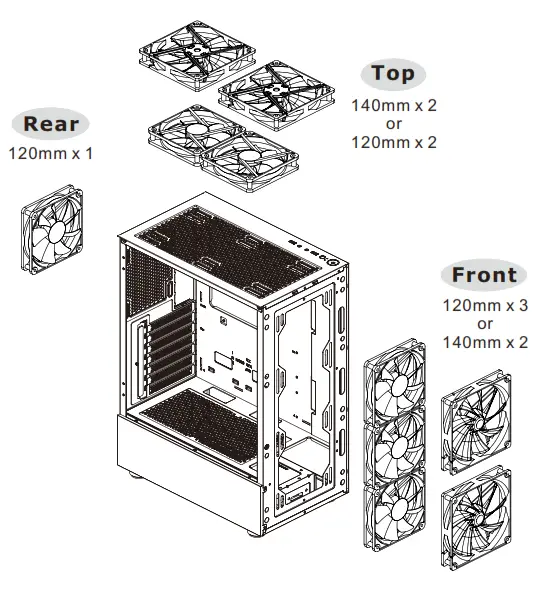

Air Cooling Installation

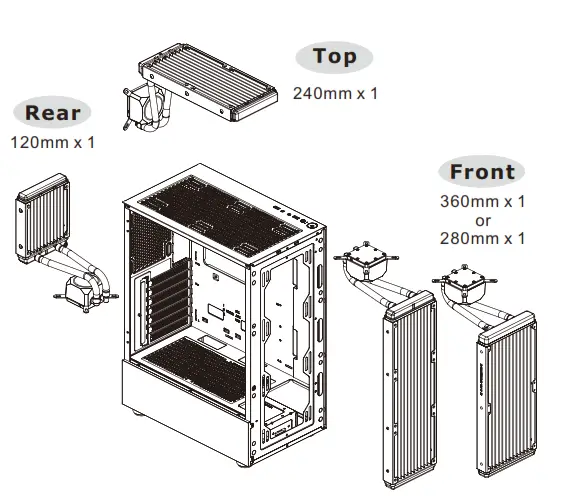

AIO Liquid Cooling Installation

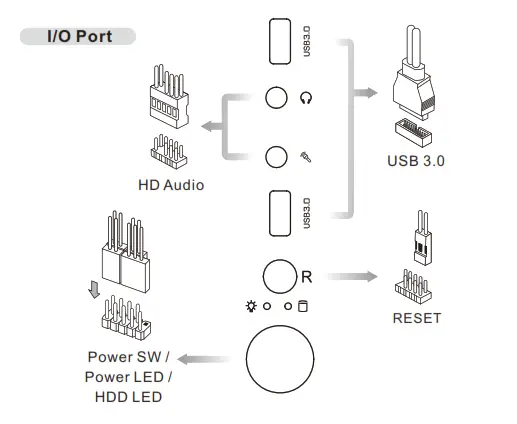

I/O Connection

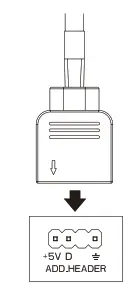

ARGB Control Instruction – How to connect MB

ASUS/ASRock/BIOSTAR Aura Addressable Strip Header(s)	MIAMI JRGB-strip Header(S)	GIGABYTE HOURS RGB Fusion with Digital LEDs

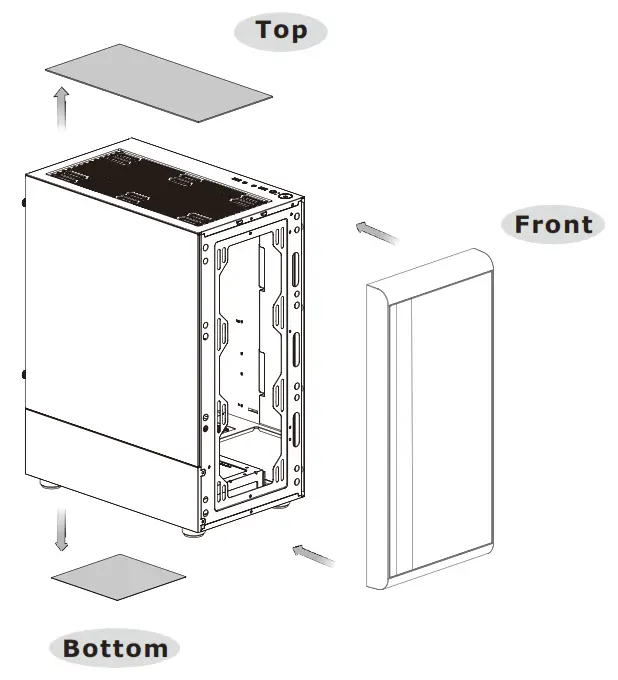

Remove Filters

TT Premium

TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high-performance PC product for every enthusiast. http://ttpremium.com

Tt LCS-Liquid Cooling Support CertificationTt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts’ standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Join Tt Community To Receive BenefitsDear Valued Customer,
Thank you for choosing Thermaltake.
As new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.

http://community.thermaltake.com

Benefits of being a member:

Quick and responsive user support
Receive help and advice with new builds
Keep up to date with new product releases
Share your thoughts and builds with the community
Enter monthly contests and giveaways

All other registered trademarks belong to their respective companies. www.thermaltake.com
© 2022 Thermaltake Technology Co., Ltd. All Rights Reserved. 2022.08
