Thermaltake H590 Tg Argb Mid Tower User Manual (+ PDF)

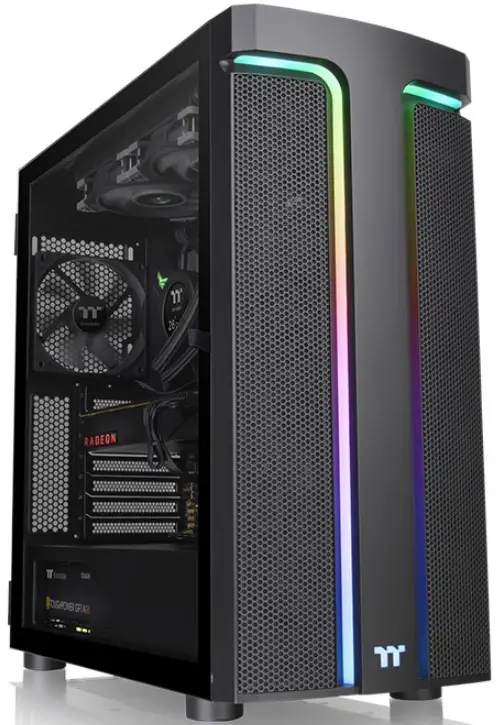

thermaltake H590 TG ARGB Mid Tower User Manual

TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. http://ttpremium.com

Tt LCS-Liquid Cooling Support Certification

Tt LCS Certified is a Thermal take exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermal take can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Join Tt Community To Receive Benefits

Dear Valued Customer,
Thank you for choosing Thermal take.
As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermal take would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.

Benefits of being a member:

Quick and responsive user support
Receive help and advice with new builds
Keep up to date with new product releases
Share your thoughts and builds with the community
Enter monthly contests and giveaways

Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/ThermaltakeInc
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com

Specification

Model H590 TG ARGB
Case Type Mid Tower
Dimension (H*W*D) 487 x 216 x 467 mm (19.2 x 8.5 x 18.4 inch)
Side Panel Tempered Glass x 1
Material SPCC
Cooling System
Front (intake) :
120 x 120 x 25 mm Standard fan (1100 rpm, 22.5 dBA) x 1
Rear (exhaust) :
120 x 120 x 25 mm Standard fan (1100 rpm, 22.5 dBA) x 1
Drive Bays 2 x 3.5”, 2 x 2.5” or 4 x 2.5”
Expansion Slots 7

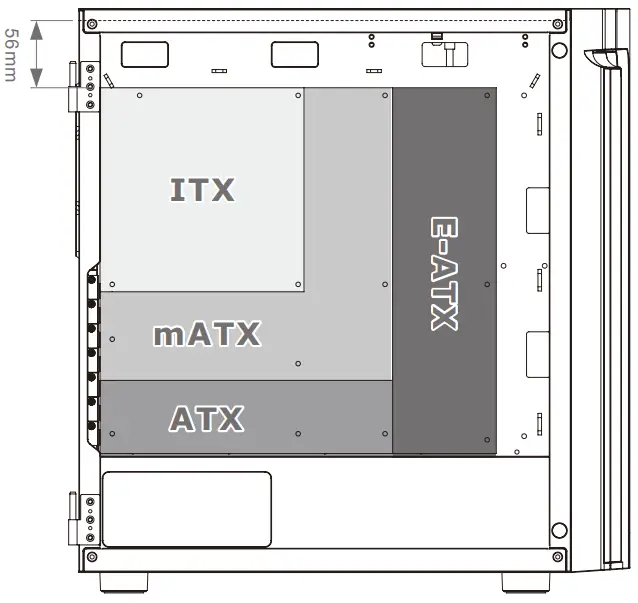

Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX)

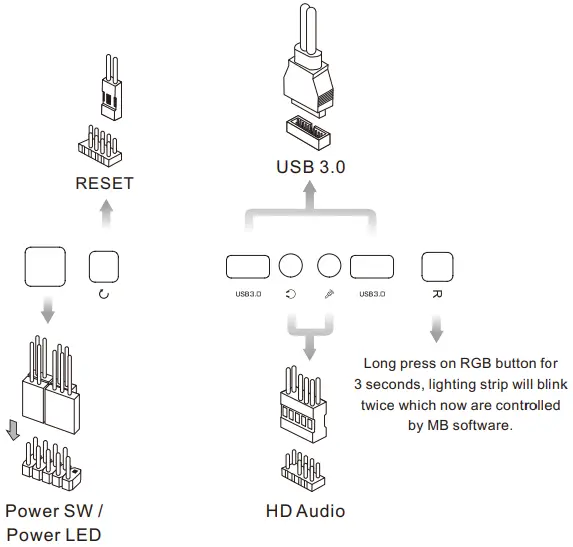

I/O Port USB 3.0 x 2, HD Audio x 1, LED Button x 1
PSU Standard PS2 PSU (optional)

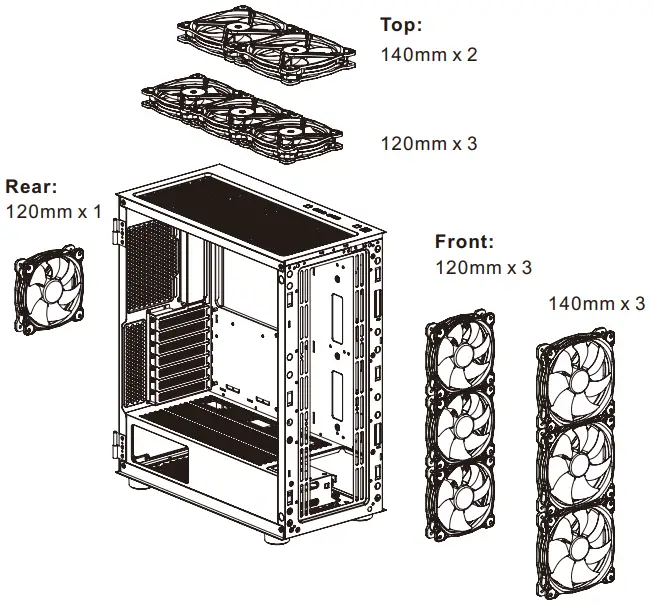

Fan Support
Front: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm
3 x 140 mm, 2 x 140 mm, 1 x 140 mm
Top: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm
2 x 140 mm, 1 x 140 mm
Rear: 1 x 120 mm

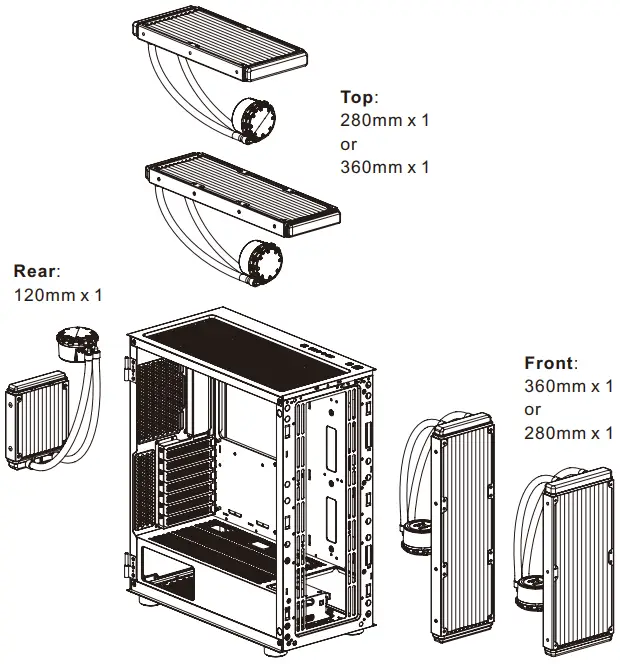

Radiator Support
Front: 1 x 360 mm, 1 x 240 mm, 1 x 120 mm
1 x 280 mm, 1 x 140 mm
Top: 1 x 360 mm, 1 x 240 mm, 1 x 120 mm
1 x 280 mm, 1 x 140 mm
Rear: 1 x 120 mm
Clearance

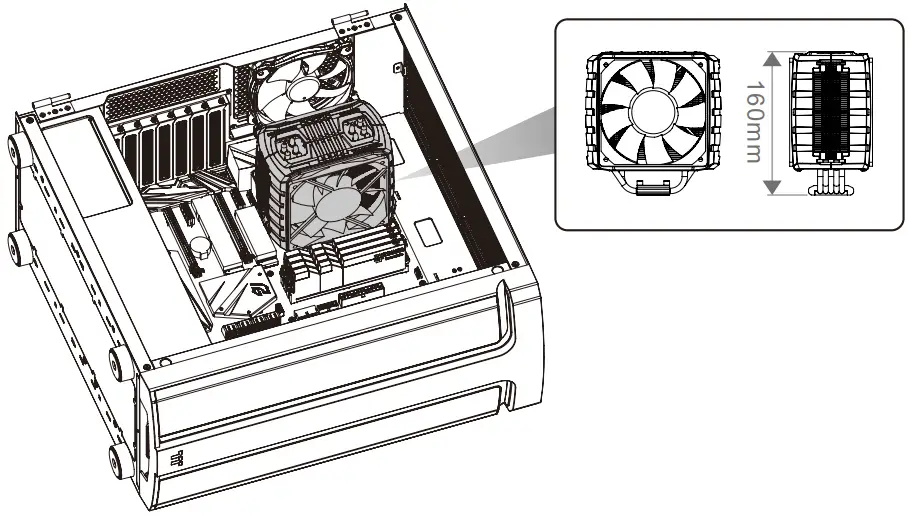

CPU cooler height limitation: 160 mm

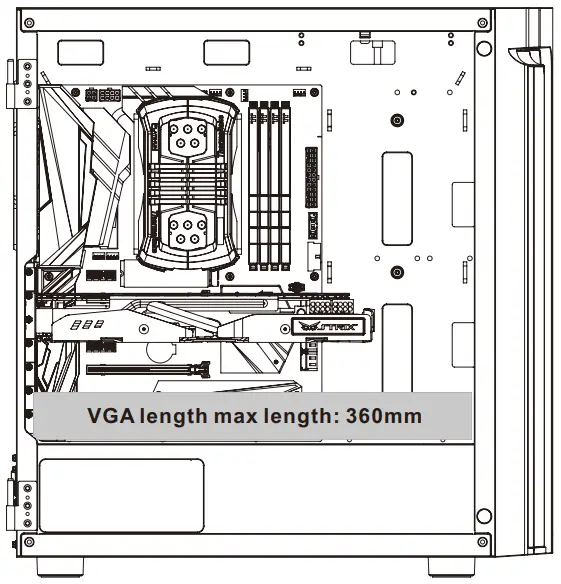

VGA length limitation: 360 mm

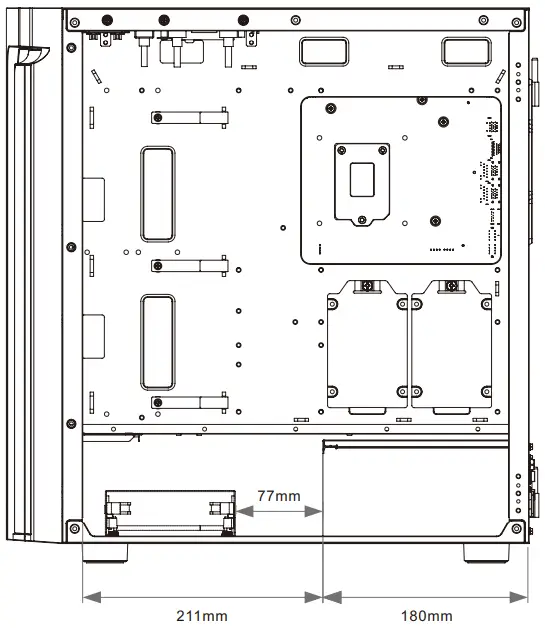

PSU length limitation: 180mm

Accessory

Figure	Parts Name	Q’ty	Used for

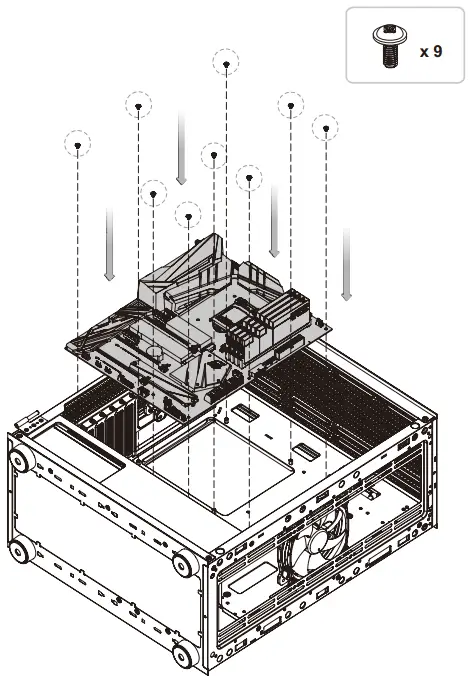

	Stand-off #6-32 x 6.5mm	2	Motherboard

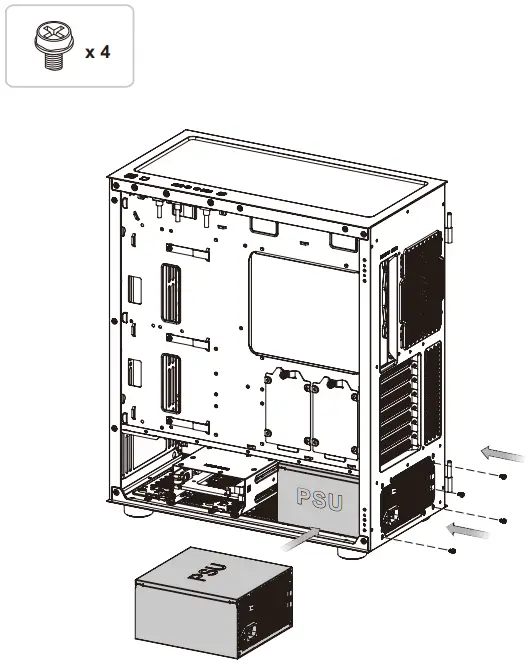

	Screw #6-32 x 6mm	4	Power
	Screw M3 x 5mm	24	SSD / 2.5” HDD / Motherboard

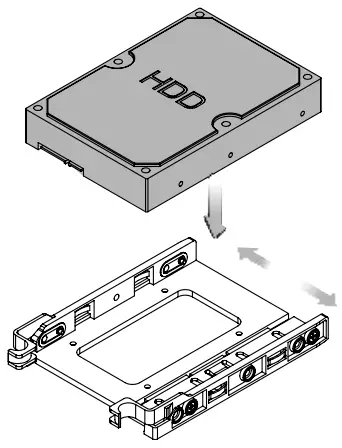

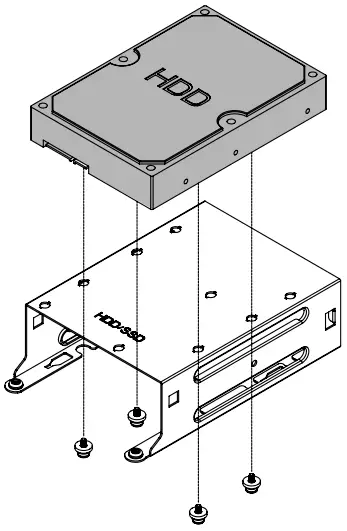

	Screw #6-32 x 10mm	4	3.5” HDD

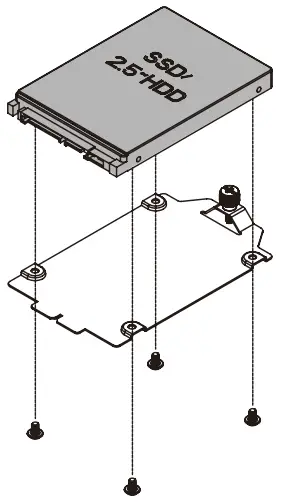

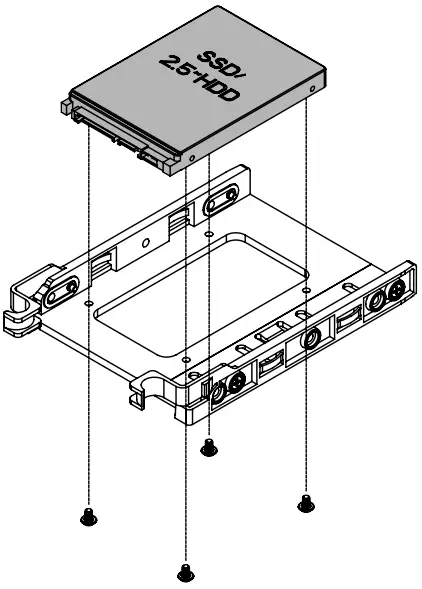

	Screw M3 x 10mm	4	SSD / 2.5” HDD
	HDD / SSD Rubber	4	3.5” HDD / 2.5” HDD
	Net Setter	1	Motherboard Stand-off
	Screw 5 x 10mm	4	Case Fan
	Spacer Support 6.5mm	1	E-ATX Motherboard
	Cable Tie	5	Cable Management
	Buzzer	1	Motherboard Alarm
