Mid Tower
H 200 TG
User’s Manual
Specification
| Model | H200 TG RGB | H200 TG RGB Snow Editon |
| Case Type | Middle tower | |
| Chassis Dimension(H*W*D) | 454 x 210 x 416 mm (17.9 x 8.3 x 16.4 inch) | |
| Side Panel | 4mm Tempered Glass x 1 | |
| Cooling System | Rear (exhaust) : 120 x 120 x 25 mm fan (1000 rpm, 16 dBA) | |
| Drive Bays – Accessible – Hidden | – 3 x 2.5” or 2 x 3.5” | |
| Expansion Slots | 7 | |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) | |
| I/O Port | USB 3.0 x 2, HD Audio x 1, RGB Button x 1 | |
| Radiator Support | Front: 1 x 240 mm, 1 x 280 mm Top: 1 x 240 mm | |
| Clearance | CPU cooler height limitation: 180 mm VGA length limitation: 320 mm | |
Accessory
| Figure | Parts Name | Q’ty | Used for |
| Screw M3 x 5mm | 9 | Motherboard | |
| Stand-off #6-32 x 6mm | 3 | Motherboard | |
| Buzzer | 1 | Motherboard Alarm | |
| Stand-off tool | 1 | Stand-off | |
| Screw #6-32 x 6mm | 4 | Power Supply | |
| Screw M3 x 5mm | 8 | 2.5″SSD | |
| Screw M3 x 5mm | 4 | 2.5″SSD | |
| HDD/SSD Rubber | 4 | 2.5″SSD/ 3.5″HDD | |
| Screw #6-32 x 10mm | 8 | 3.5″HDD | |
| Screw T5 x 12mm | 12 | Case Fan | |
| Movable Tie | 10 | Cable Management |

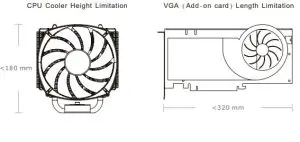

Warning and Notice
Warning!!
– Height limit for the CPU heatsink: The height limit for the CPU heatsink is 180 mm (7.1 inches).
– Length limit for the VGA (graphics card): The length limit for the VGA (graphics card) is 320 mm (12.6 inches).

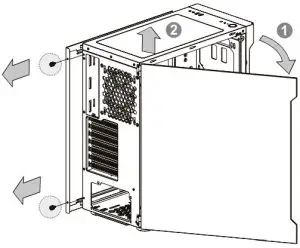

Side Panel Disassembly
Remove the screws on the back of the chassis, and open the side panel.

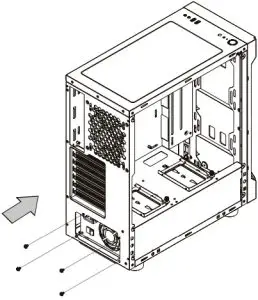

PSU Installation
Place the power supply in the proper location and secure it with screws.

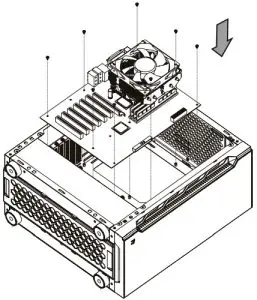

Motherboard Installation
- Lay down the chassis.
- Install the motherboard in the proper location and secure it with screws.

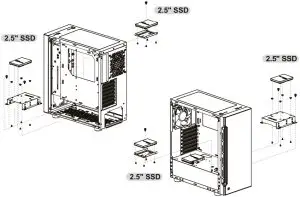

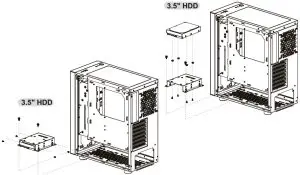

3.5″ & 2.5″ HDD Installation
 |  |

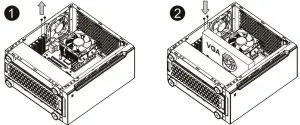

PCI Card Installation
- Loosen the screws with a screwdriver.
- Install the PCI card in the proper location and secure it with screws.
RGB Switch Mode
| Flow Mode | Mode 1 |
| Flow Mode | Mode 2 (Single Color) |
| Wave Mode | Mode 3 |
| RGB Mode | Mode 4 (Single Color) |
| Breath Mode | Mode 5~11 (Red, Green, Blue, Pink, Cyan, Yellow, White) |
| Full Lighted Mode | Mode 12~18 (Red, Green, Blue, Pink, Cyan, Yellow, White) |
| Full Lighted Mode | Mode 19 |
※ Long press the RGB button for 3 seconds to TURN OFF the lighting strip.

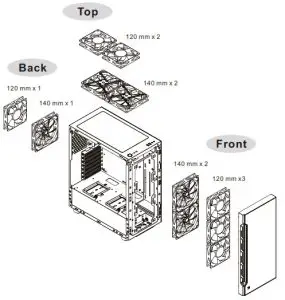

Air Cooling Installation

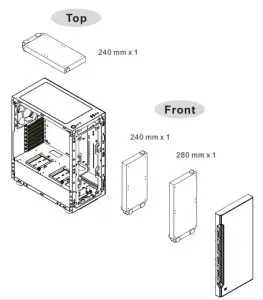

Radiator Installation
※The radiator is applicable up to 40 mm high

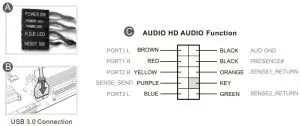

Leads Installation
Leads Installation Guide
A. Case LED Connection/On the front of the case, you can find some LEDs and switch leads. Please consult the user manual of your motherboard manufacturer, then connects these leads to the panel header on the motherboard.
B. USB 3.0 connection /
1. Make sure your motherboard supports a USB 3.0 connection.
2. Connect the USB 3.0 cable to the available USB 3.0 port on your computer.
C. Audio Connection/Please refer to the following illustration of the Audio connector and your motherboard user manual. Please select the motherboard which used AC’97 or HD Audio(Azalia),(be aware that your audio supports AC’97 or HD Audio (Azalia)) or it will damage your device(s).
Other
Thermaltake Power Supply Series (Optional)

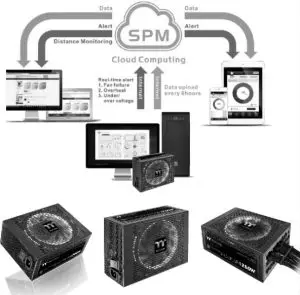

What is Smart Power Management (SPM)?
