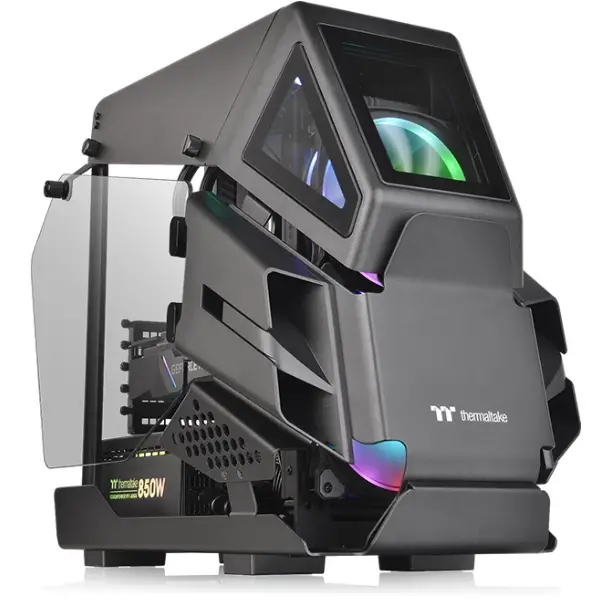

thermaltake AH T200 Micro Tower
Specification & Accessory
- Micro Case
- Radiator Support Front : 1 x 240mm , 1 x 120mm 1 x 280mm , 1 x 140mm Case Type
- Dimension (HxWxD)444 x 282 x 552 mm (17.5 x 11.1 x 21.7 inch)
- Side Panel Tempered Glass x 2
- Material SPCC

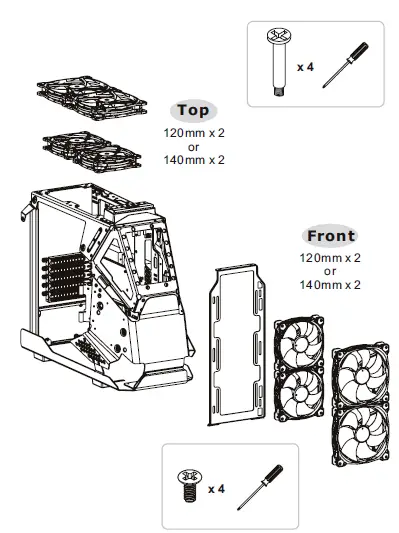

- Fan Support Front : 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Top : 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm
- Expansion Slots 5
- Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
- I/O Port 1 x Type-C, 2 x USB 3.0, 1 x HD Audio
- PSU Standard PS2 PSU (optional)
| Figure | Part Name | Q’ty | Used For |
| 1 | Scrwe #6-32 x 6.0mm | 4 | Power Supply |
| 2 | Nut Setter | 1 | Motherboard Stand-off Installation |
| 3 | Stand-off #6-32 x 6.5mm | 2 | Motherboard |
| 4 | Buzzer | 1 | Motherboard Alarm |
| 5 | Scrwe #6-32 x 6.0mm | 18 | Motherboard 3.5″ HDD |
| 6 | Screw M3 x 5mm | 20 | 2.5″ HDD SSD |
| 7 | Rubber Pad | 8 | 2.5″ HDD SSD |
| 8 | Screw #6-32 x 29mm | 8 | Top Fan |
| 9 | Cable Ties | 10 | Cable Management |
Warning and Notice

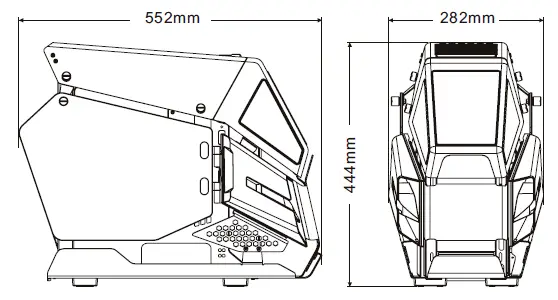

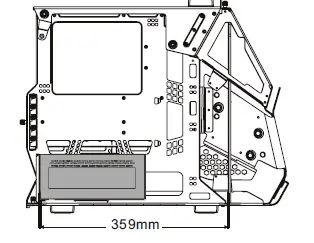

- Chassis dimension

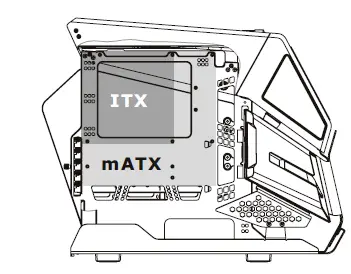

- Motherboard Compatibility: mATX / ITX (up to 285 mm wide)

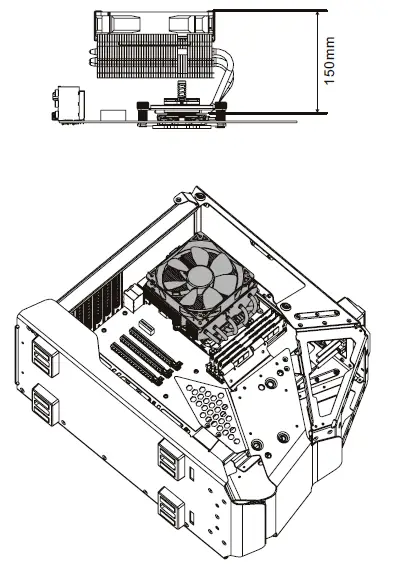

- CPU cooler max height: 150mm
- VGA length max length: 320mm
- PSU max length: 180mm
Installation Guide

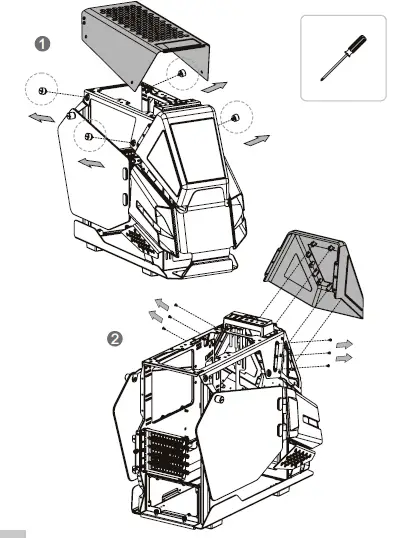

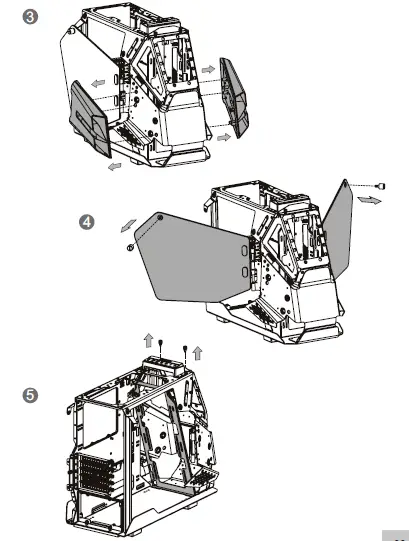

Remove Components
Power Supply U AH T200 nit (PSU) Installation

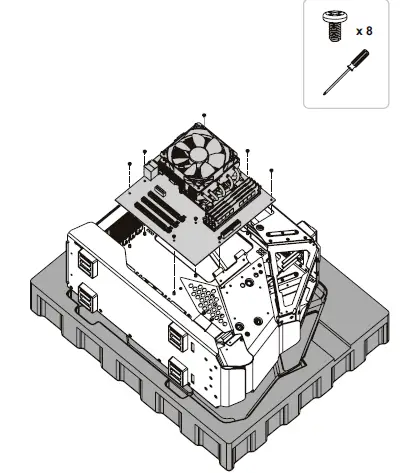

Motherboard Installation

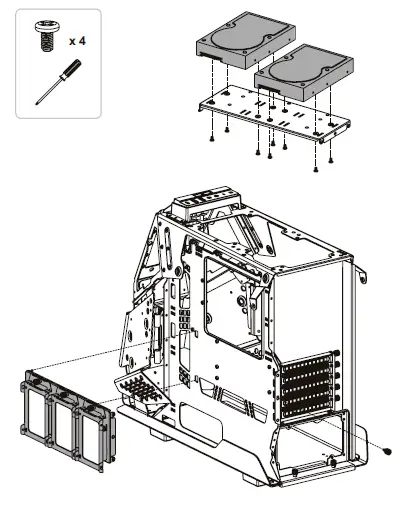

3.5” HDD Installation

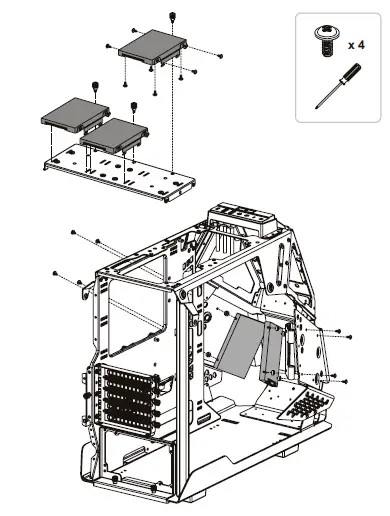

2.5” HDD Installation

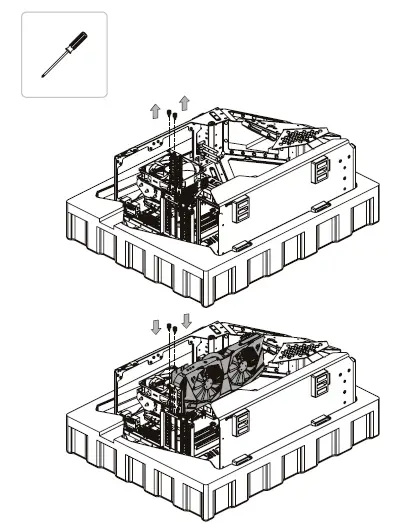

PCI Card Installation
Air Cooling Installation

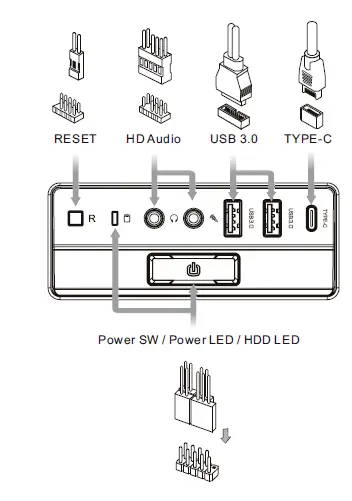

I/O Connection
