thermaltake H570 TG Mid Tower
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high-performance PC product for every enthusiast. http://ttpremium.com
Tt LCS-Liquid Cooling Support Certification
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts’ standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Join Tt Community To Receive Benefits
Dear Valued Customer, Thank you for choosing Thermaltake. As new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.
Benefits of being a member:
- Quick and responsive user support
- Receive help and advice with new builds
- Keep up to date with new product releases
- Share your thoughts and builds with the community Enter monthly contests and giveaways
Specification
| Model | H570 TG |
| Case Type | Mid Tower |
| Dimension (H*W*D) | 487 x 216 x 463.6 mm (19.2 x 8.5 x 18.3 inch) |
| Side Panel | Tempered Glass x 1 |
| Material | SPCC |
|
Cooling System | Front (intake) : 120 x 120 x 25 mm ARGB fan (1000 rpm, 27.2 dBA) x 3 Rear (exhaust) : 120 x 120 x 25 mm standard fan (1100 rpm, 22.5 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 2 x 2.5” or 4 x 2.5” |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| I/O Port | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, LED Button x 1 |
| PSU | Standard PS2 PSU (optional) |
|

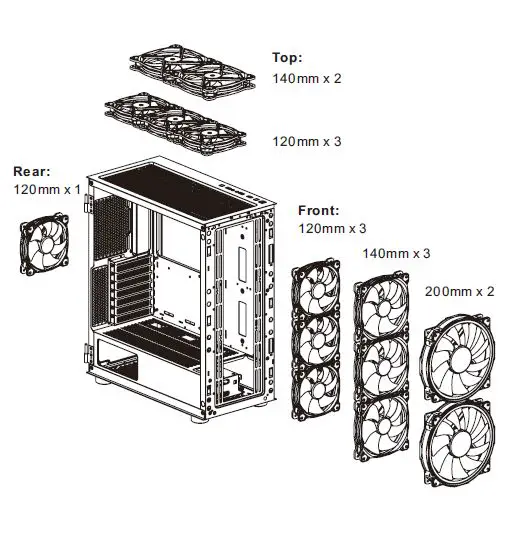

Fan Support | Front: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm 3 x 140 mm, 2 x 140 mm, 1 x 140 mm 2 x 200 mm, 1 x 200 mm Top: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm 2 x 140 mm, 1 x 140 mm Rear: 1 x 120 mm |
|
Radiator Support | Front: 1 x 360 mm, 1 x 240 mm, 1 x 120 mm 1 x 280 mm, 1 x 140 mm Top: 1 x 360 mm, 1 x 240 mm, 1 x 120 mm 1 x 280 mm, 1 x 140 mm Rear: 1 x 120 mm |
| Clearance | CPU cooler height limitation: 160 mm VGA length limitation: 375 mm PSU length limitation: 180mm |

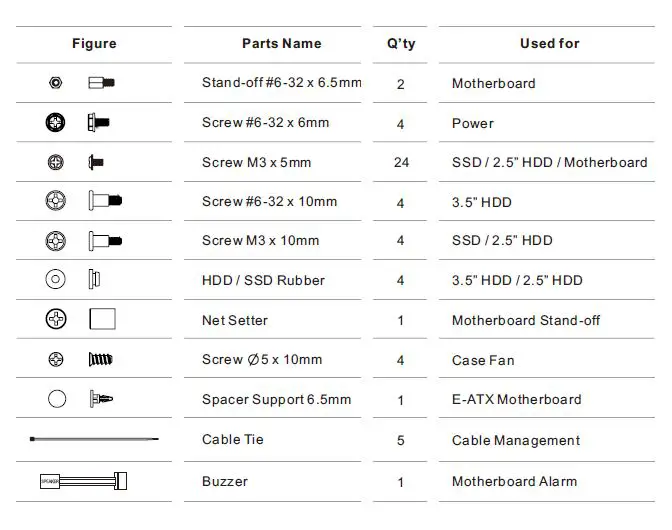

Accessory
Warning and Notice

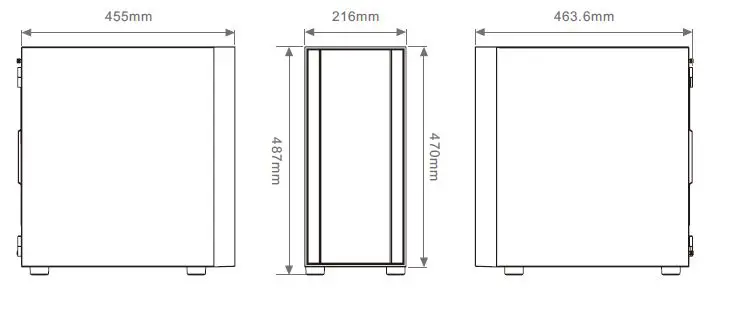

Chassis dimension

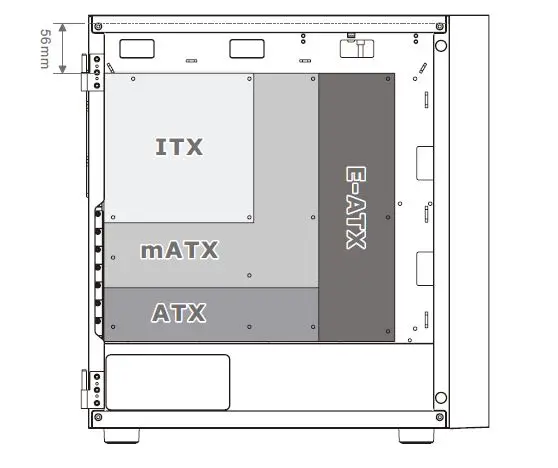

Motherboard Compatibility: ITX / mATX / ATX / E-ATX (Up to 330.2mm wide) The clearance between M/B to top panel: 56mm

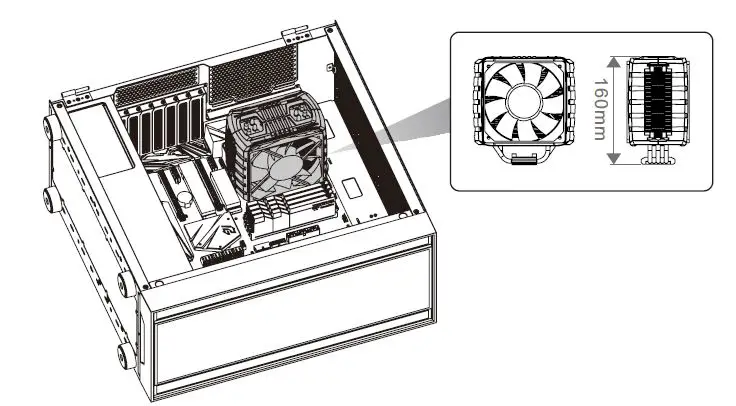

CPU cooler max-height: 160mm

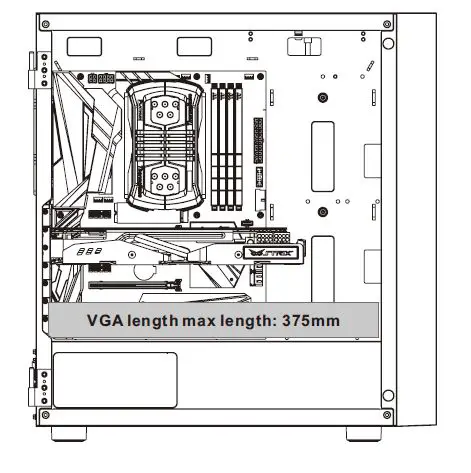

VGA length max length: 375mm

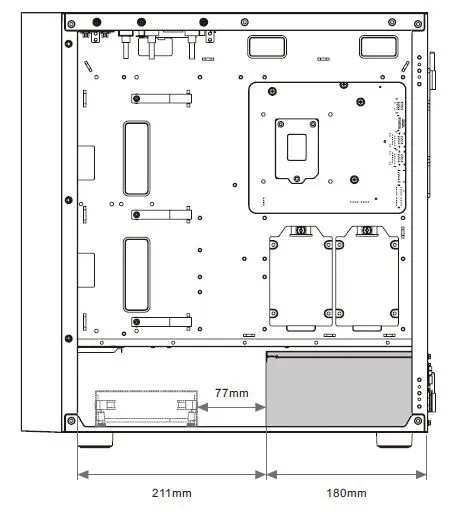

PSU max length: 180mm

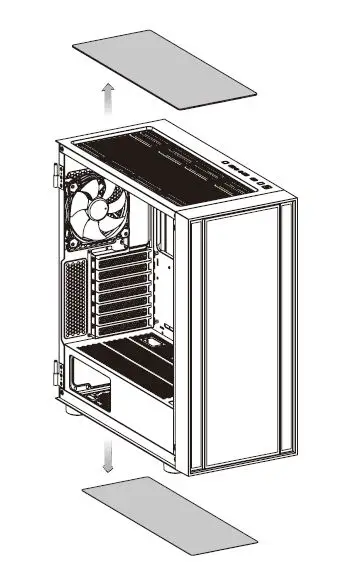

Remove Components

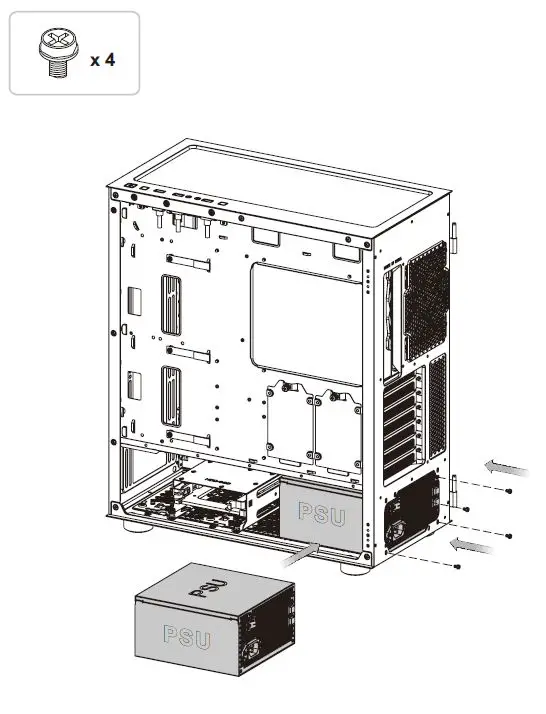

PSU Installation

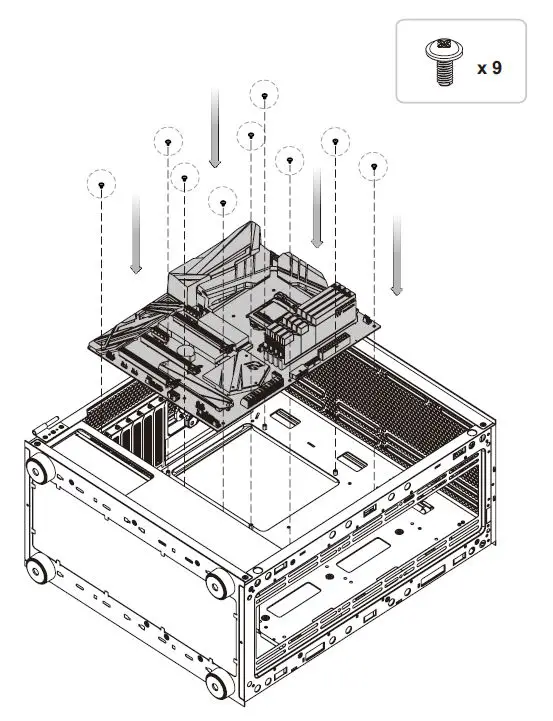

Motherboard Installation

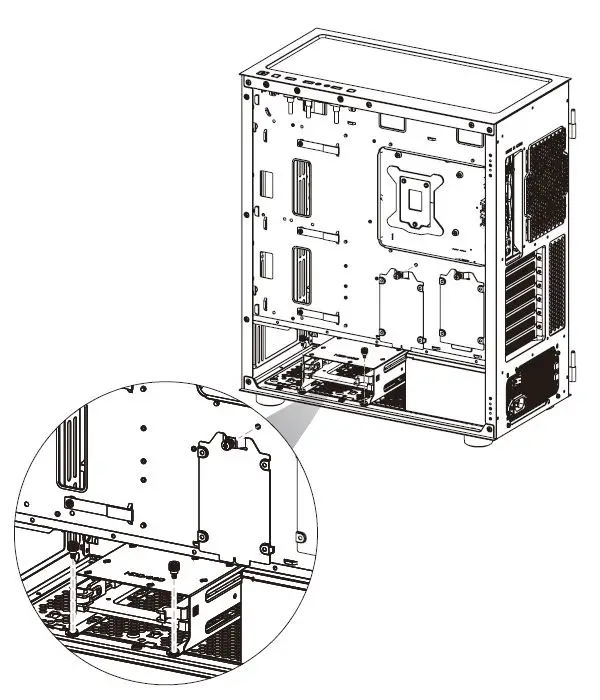

HDD Installation

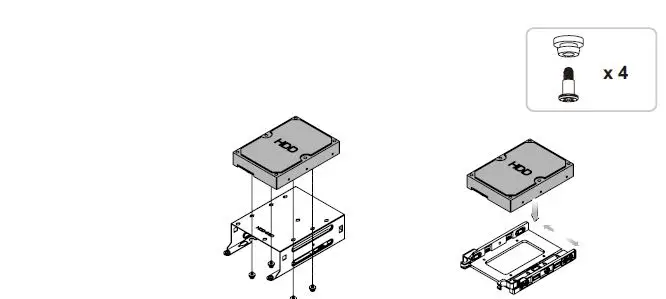

3.5” HDD
- Screw #6-32 x 10mm + HDD Rubber
- Toolless HDD Tray

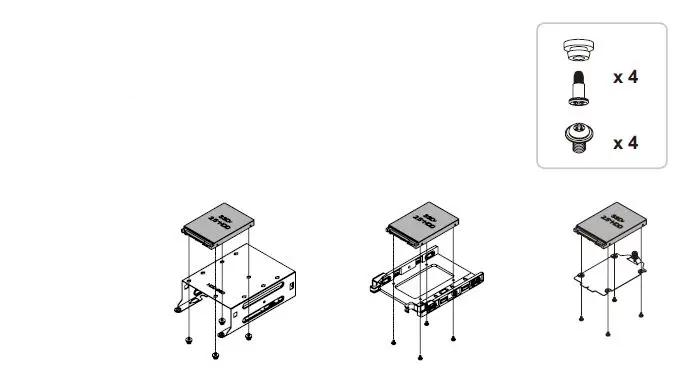

SSD / 2.5” HDD
- Screw M3 x 10mm + HDD Rubber
- Screw M3 x 5mm
- Screw M3 x 5mm

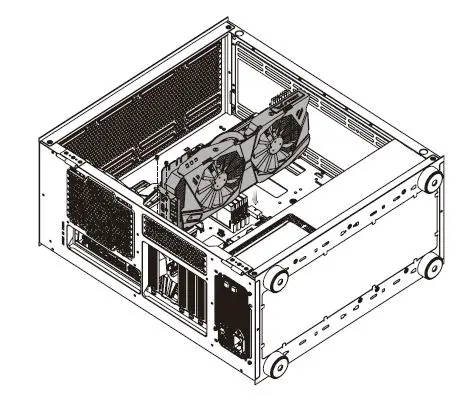

PCI Card Installation
Air Cooling Installation

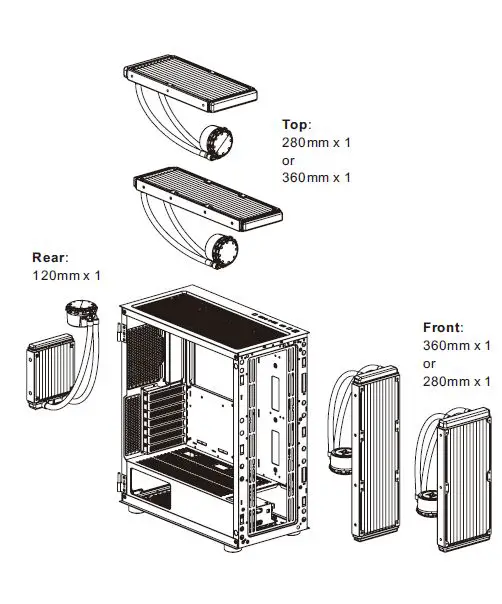

AIO Liquid Cooling Installation

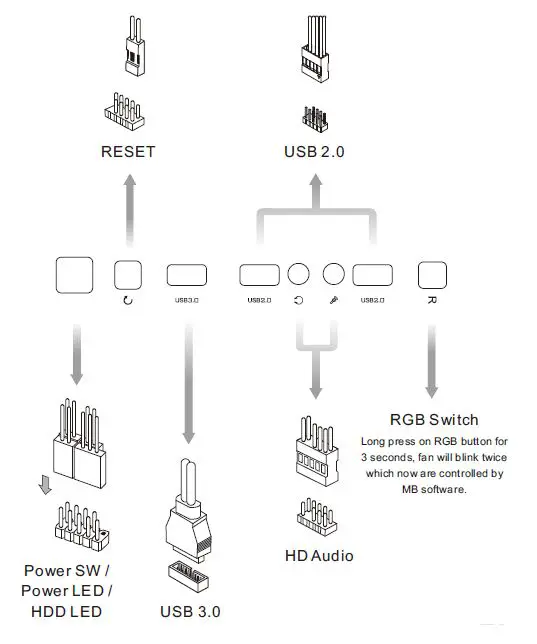

I/O Connection
