Thermaltake T35 Tg Tempered Glass Rgb Mid Tower Chassis User Manual

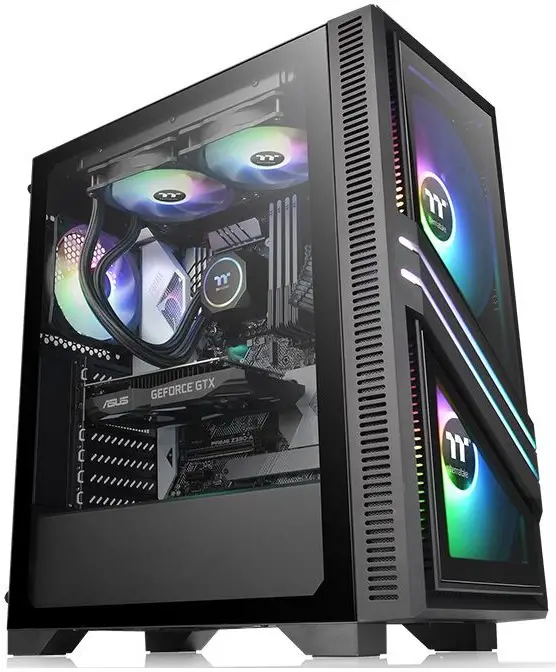

thermaltake T35 TG Tempered Glass RGB Mid Tower Chassis User Manual

TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire o be the most innovative brand in the PC hardware market. To satisfy the demand of the  high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. http://ttpremium.com

Tt LCS-Liquid Cooling Support Certification

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Join Tt Community To Receive Benefits

Dear Valued Customer, Thank you for choosing Thermaltake. As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our
Community Forums. Register today to start enjoying the full benefits of our community.

Benefits of being a member:

• Quick and responsive user support
• Receive help and advice with new builds
• Keep up to date with new product releases
• Share your thoughts and builds with the community
• Enter monthly contests and giveaways

Specification

Accessory

Figure	Parts Name	Q’ty	Used for
	Screw M3 x 5mm	18	Motherboard/2.5” SSD
	Screw #6-32 x 5mm	8	3.5” HDD
	Screw #6-32 x 6mm	4	Power Supply
	Stand-off #6-32 x 6mm	3	Motherboard
	Screw T5 x 12mm	20	Case Fan
	Stand #6-32 x 30mm	8	Case Fan
	Cable Tie	10	Cable Management
	Buzzer	1	Motherboard Alarm
	PCI Slot	2	PCI Slot

Warning and Notice

• CPU Cooler Height Limitation

• VGA (Add-on card) Length Limitation


Warning

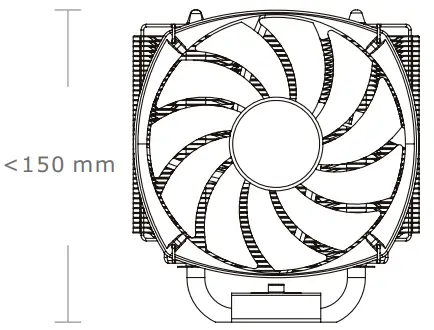

• Height limit for the CPU heatsink:
  • The height limit for the CPU heatsink is 150 mm (5.9 inches).

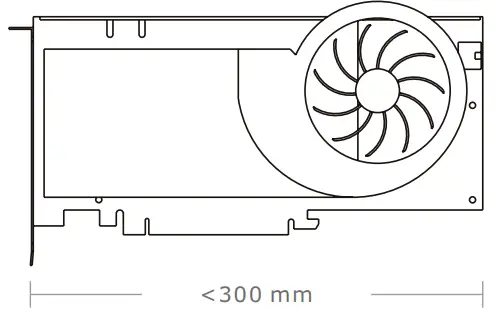

• Length limit for the VGA (graphics card):
  • The length limit for the VGA (graphics card) is 300 mm (11.8 inches).

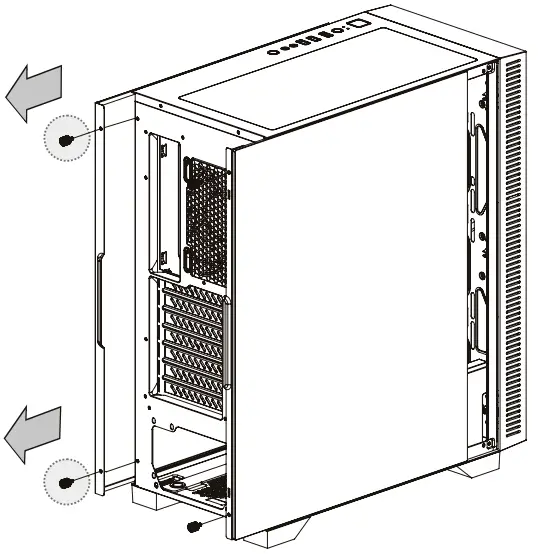

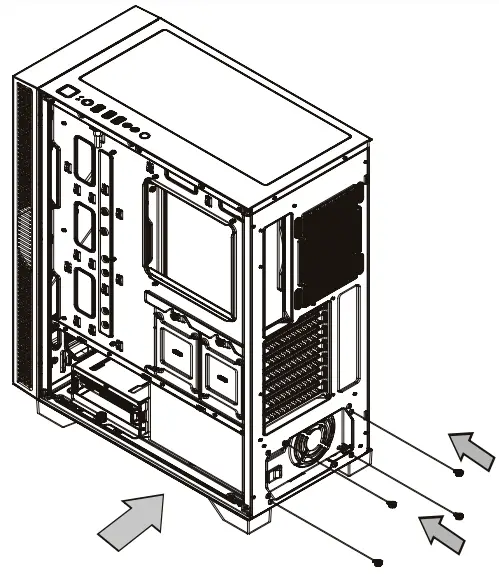

Side Panel Disassembly PSU Installation

• Remove the screws on the back of the chassis, and open the side panel.

Side Panel Disassembly PSU Installation

• Place the power supply in proper location and secure it with screws.

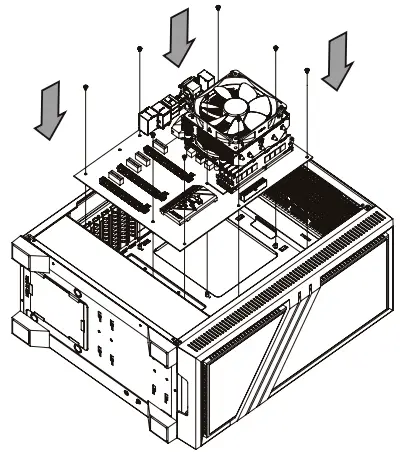

Motherboard Installation

1. Lay down the chassis.
2. Install the motherboard in proper location and secure it with screws.

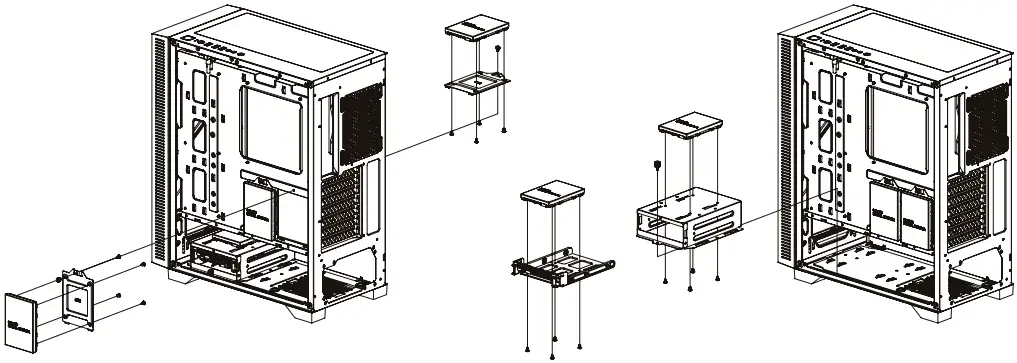

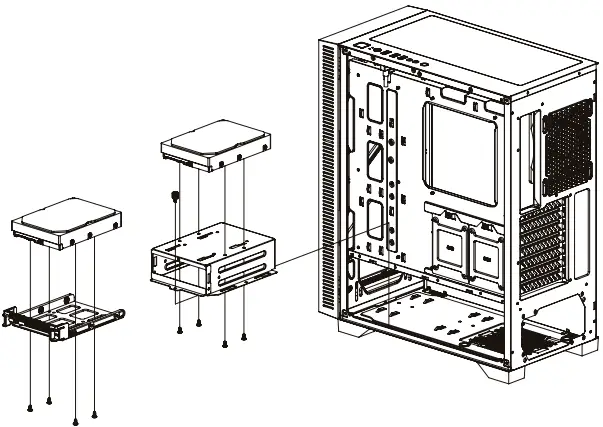

3.5” & 2.5″ HDD Installation

3.5″ HDD

2.5″ HDD

• Insert the HDD and tighten it with the screws.

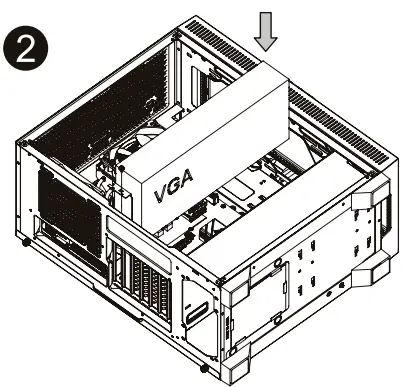

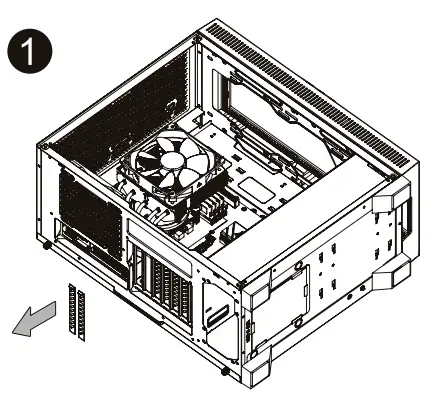

PCI Card Installation

1. Loosen the screws with a screwdriver.

2. Install the PCI card in proper location and secure it with screws.

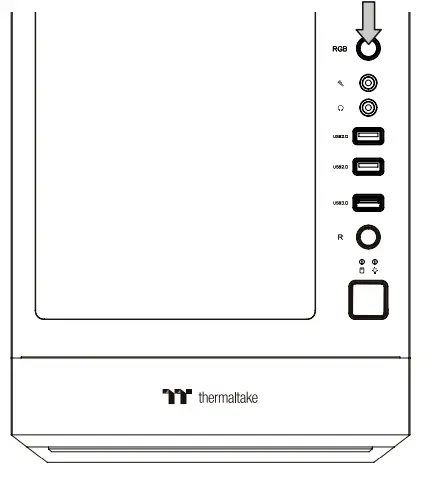

 RGB Switch Mode

• Flow Mode    Mode 1
• Flow Mode    Mode 2 (Single Color)
• Wave Mode    Mode 3
• RGB Mode    Mode 4 (Single Color)
• Breath Mode    Mode 5~11 (Red, Green, Blue, Pink, Cyan, Yellow, White)
• Full Lighted Mode    Mode 12~18 (Red, Green, Blue, Pink, Cyan, Yellow, White)
• Full Lighted Mod      Mode 19

Long press the RGB button for 3 seconds to TURN OFF the lighting strip.

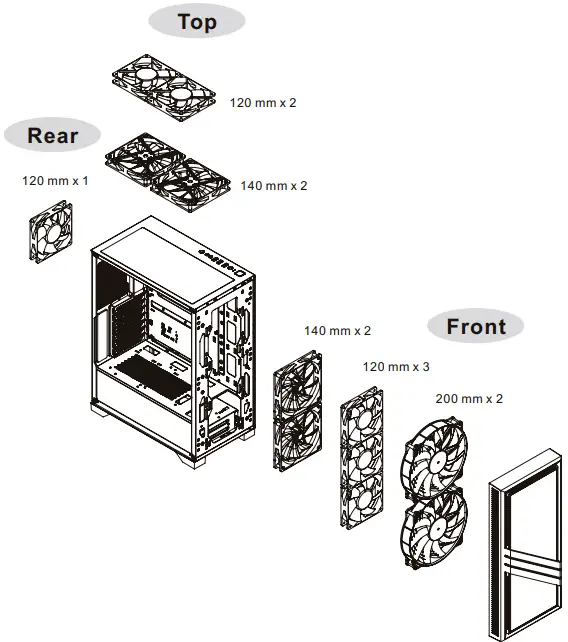

Air Cooling Installation

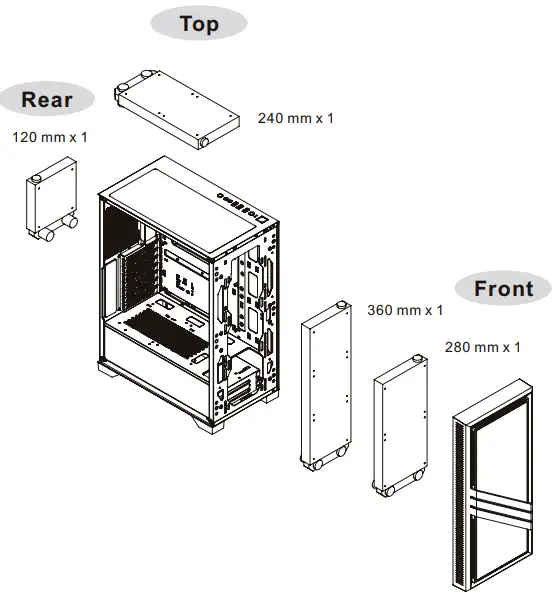

Radiator Installation

• The radiator is applicable up to 40 mm high


Leads Installation

Leads Installation Guide

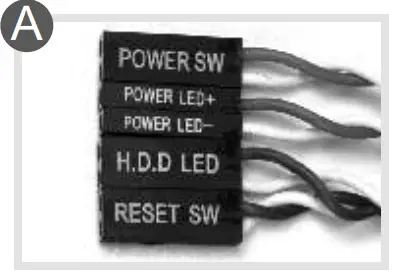

A. Case LED Connection: / On the front of the case, you can find some LEDs and switch leads. Please consult your user manual of your motherboard manufacturer, then connect these leads to the panel header on the motherboard.

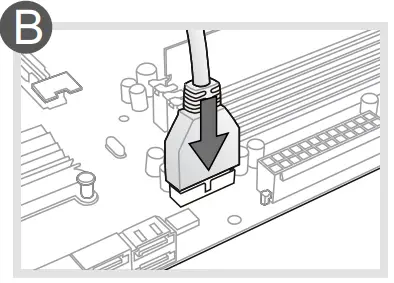

B. USB 3.0 connection /

1. Make sure your motherboard supports USB 3.0 connection.
2. Connect the USB 3.0 cable to the available USB 3.0 port on your computer

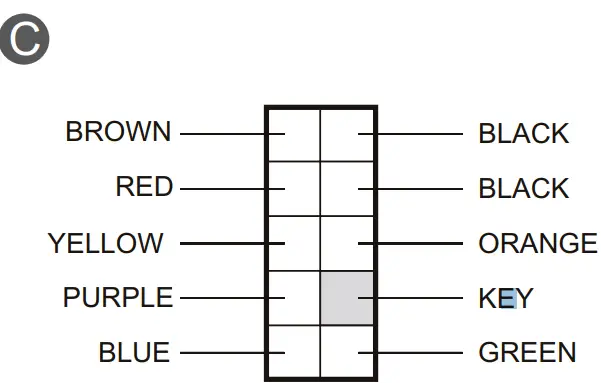

C . Audio Connection / Please refer to the following illustration of Audio connector and your motherboard user manual. Please select the motherboard which used AC’97 or HD Audio(Azalia),(be aware of that your audio supports AC’97 or HD Audio (Azalia)) or it will damage your device(s).

Thermaltake Power Supply Series (Optional)

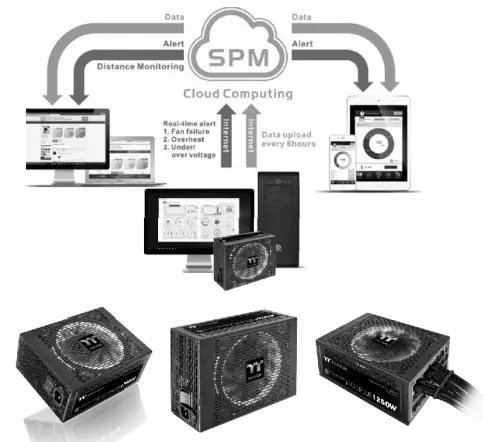

What is Smart Power Management (SPM)?
Smart Power Management (SPM) is a cloud-based software that seamlessly integrates three intelligent platforms — DPS G PC APP 3.0, DPS G Smart Power Management Cloud 1.0 and DPS G Mobile APP 1.0 — and compiles key statistics about your PC into detailed charts and breakdowns for your instant PC status view and management. With easy access to SPM through your PC or mobile devices, whether you are outside or indoors, enjoy taking full control of your build anytime, anywhere!

Thermaltake has several power supply product lines; please refer to our official website and Facebook Fan Page for more detail information! Brand official website: http://www.thermaltake.com/ Global Facebook : https://www.facebook.com/ThermaltakeInc Taiwan Facebook https://www.facebook.com/ThermaltakeTW

Tt RGB Plus Ecosystem

Tt RGB Plus Software
Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.

Tt Al Voice Control
Give you full control over the TT RGB PLUS products with your voice.

SyncALL, Say “Hello TT”
