Thermaltake A500 Tg Aluminum Tempered Glass Edition Mid Tower Chassis User Manual

thermaltake A500 TG Aluminum Tempered Glass Edition Mid Tower Chassis

TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed ‘TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, It represents the passion In DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the hlgh-end PC users, TT Premium follows Its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. http://ttpremlum.com
Tt LCS-Liquid Cooling Support Certification
Tt LCS Certified Is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and filment.
Join Tt Community To Receive Benefits
Dear Valued Customer,
Thank you for choosing Thermaltake. As a new user we value your thoughts and opinions and your feedback Is Important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community
Benefits of being a member:

• Quick and responsive user support
•  Receive help and advice with new bullds
• Keep up to date with new product release
• Share your thoughts and builds with the community
• Enter monthly contests and giveaways

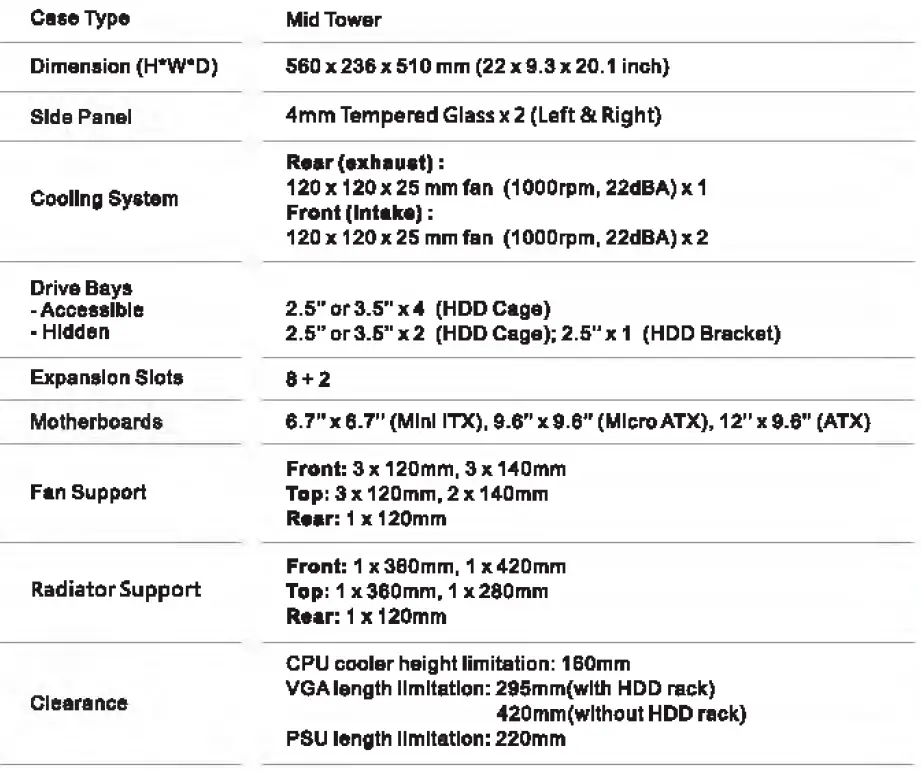

Specification

Accessory

Figure	Parts Name	Q’ty	Used for
	Screw M3 x 5mm	12	Motherboard
	Screw M3 x 5mm	28	2.5″ SSD
	Screw M3 x 5mm	4	2.5″ SSD
	HDD / SSD Rubber	4	2.5″ SSD
	Screw #6-32 x 6mm	4	Power

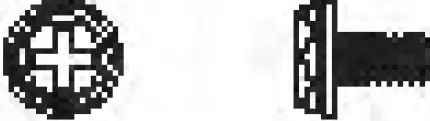

	Screw T5 x 12mm	12	Case Fan

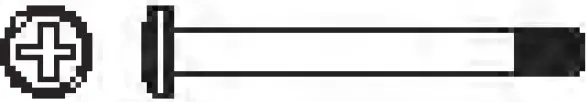

	Screw #6-32 x 28mm	12	Case Fan

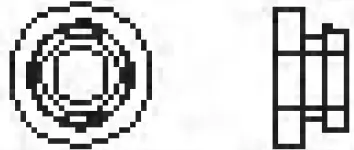

	Stand-off #6-32 x 6mm	3	Motherboard
	Cable Tie	10	Cable Management
	Buzzer	1	Motherboard Alarm

Warning and Notice

Warning!!

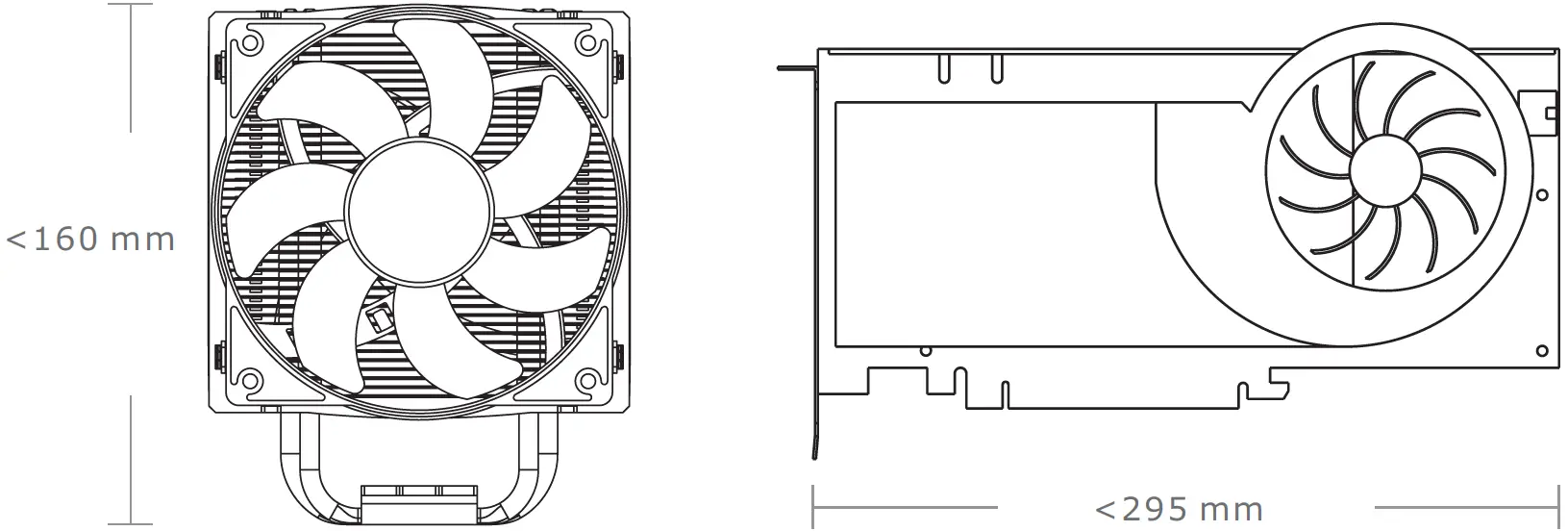

CPU Cooler Height Limitation:
Please ensure that your CPU cooler does NOT exceed 160mm (6.3 inches) height.
VGA (Add-on card) Length Limitation:
Please ensure that your VGA (Add-on card) does NOT exceed 295mm (11.6 inches) length.
Side Panels Disassembly

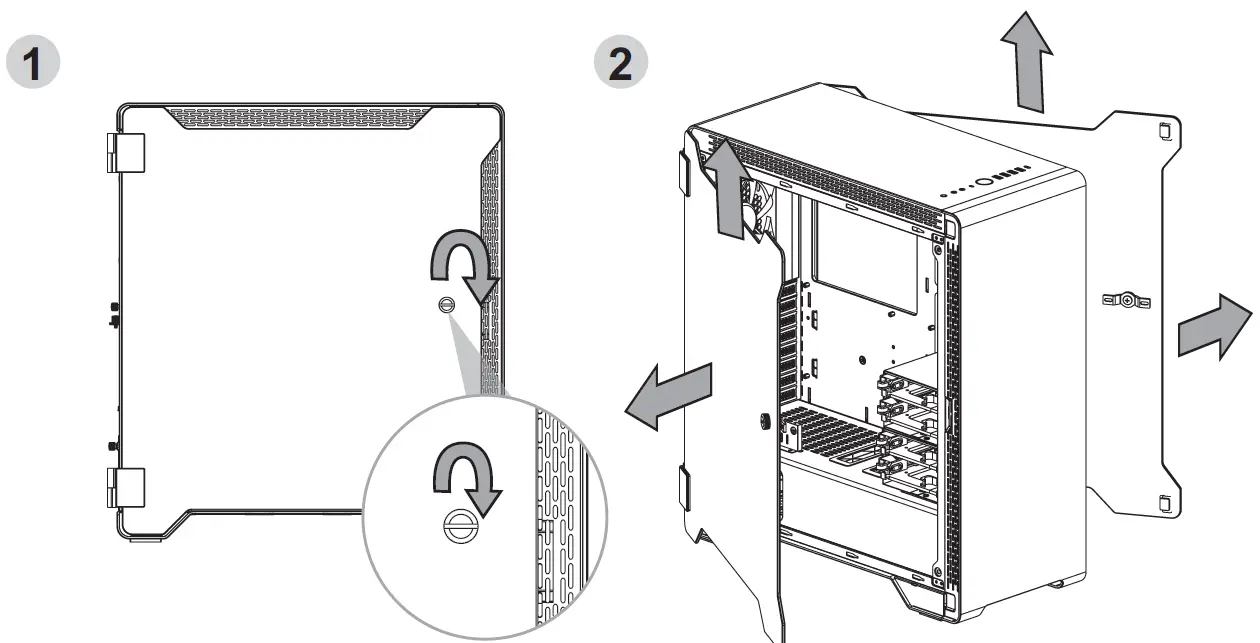

• Remove the screws on the back of the chassis, and open the side panel

Power Supply Unit (PSU) Installation

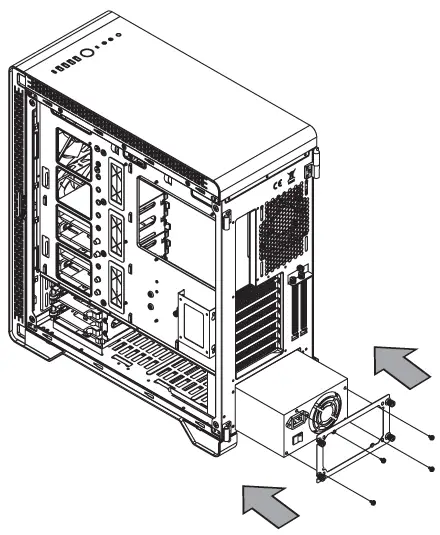

• Place the PSU in proper location.

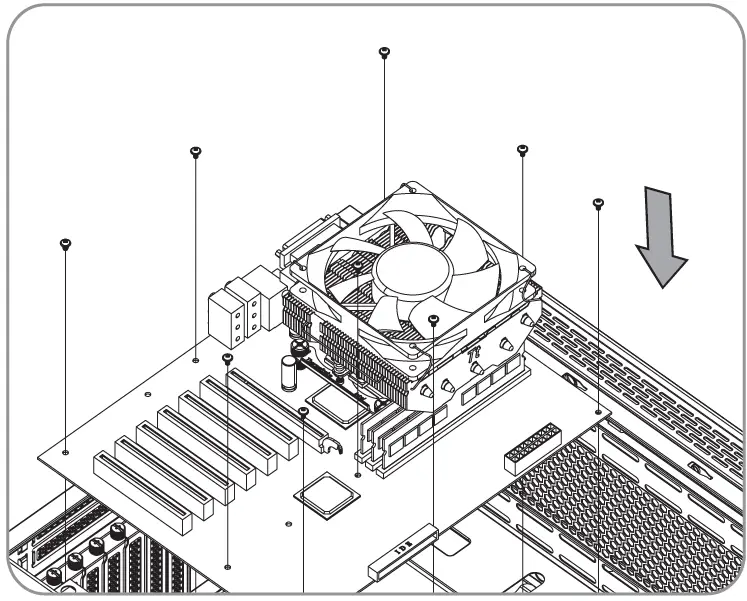

Motherboard Installation

1.  Lay down the chassis.
2. Install the motherboard in proper location and secure it with screws.

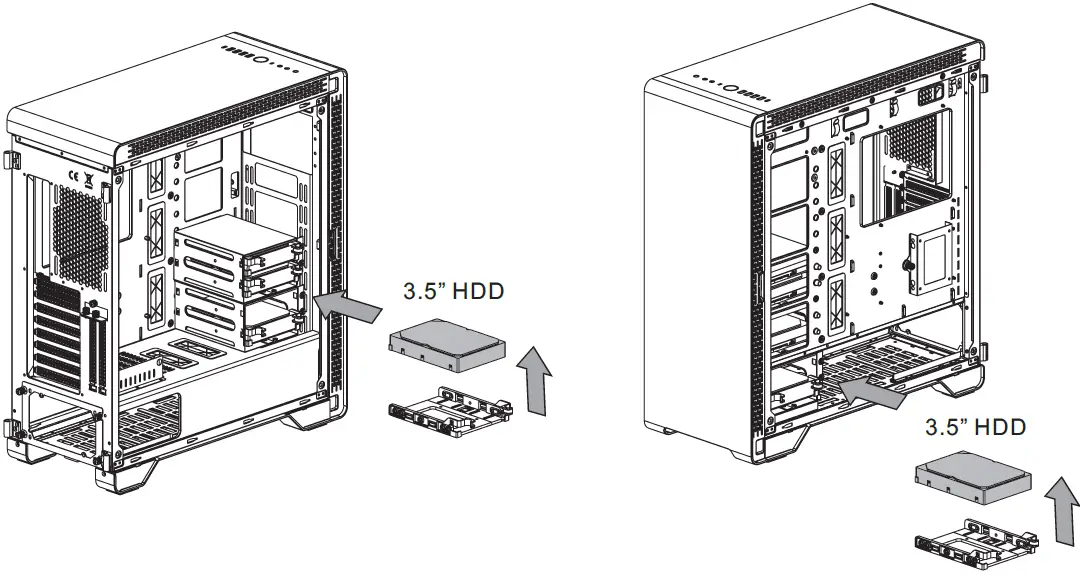

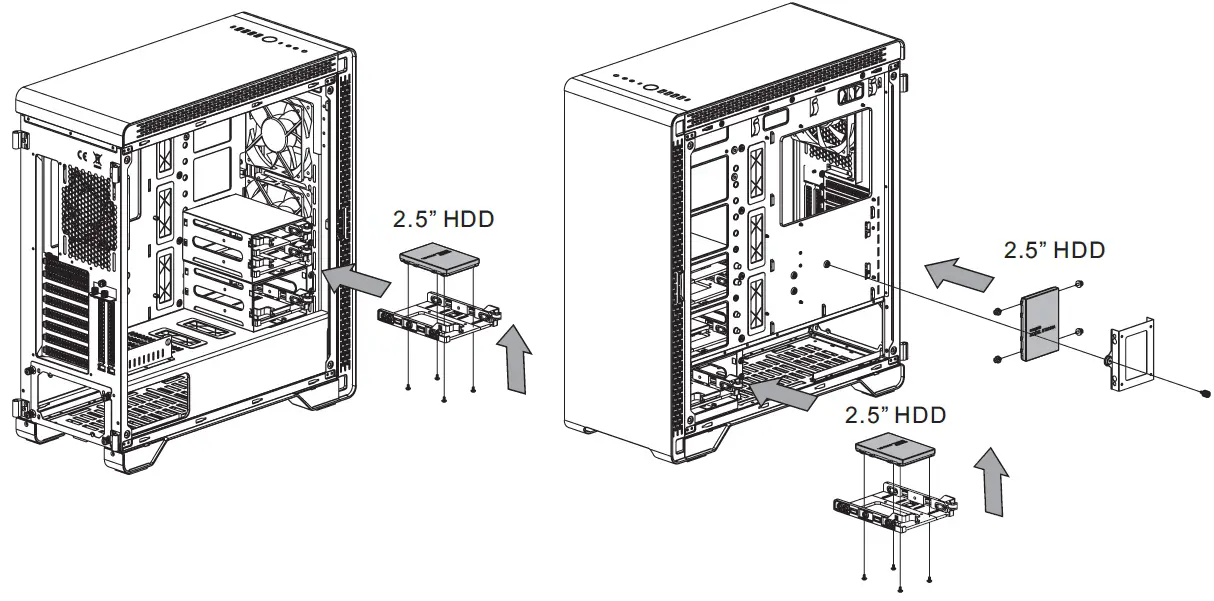

3.5″ & 2.5″ HDD Installation

2.5″ HDD
3.5″ HDD

1.  Pull the HDD tray out.
2.  Place the 2.5” or 3.5” hard drive on the tray and secure it with screws.
3. Slide the HDD tray back to the HDD cage.


PCI Card Installation

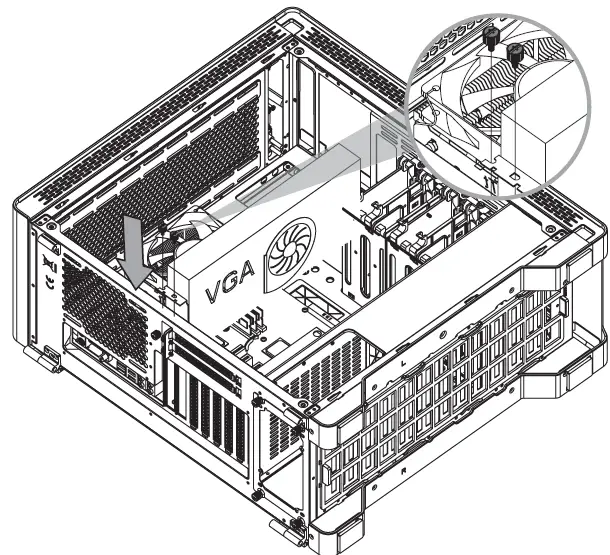

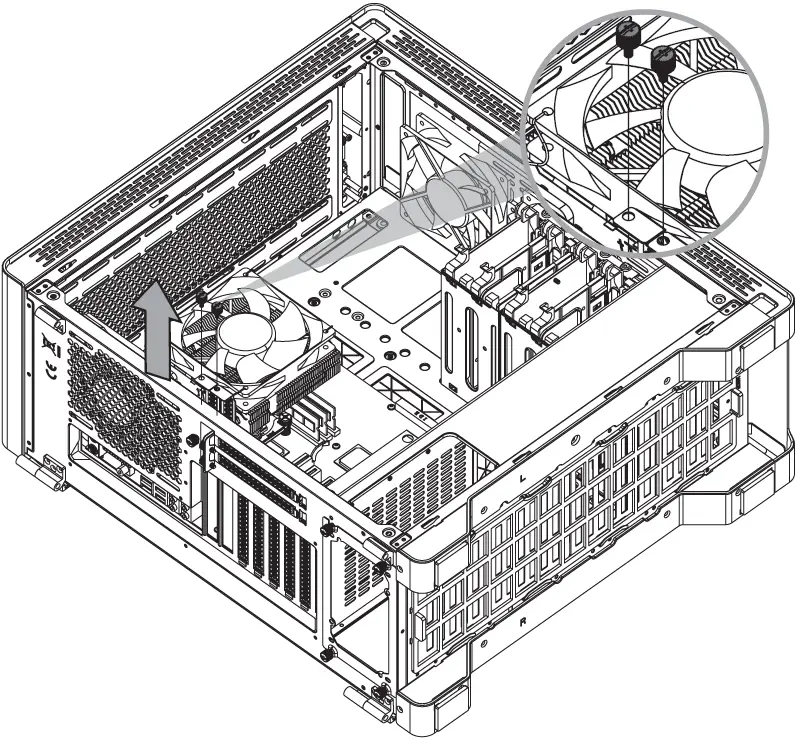

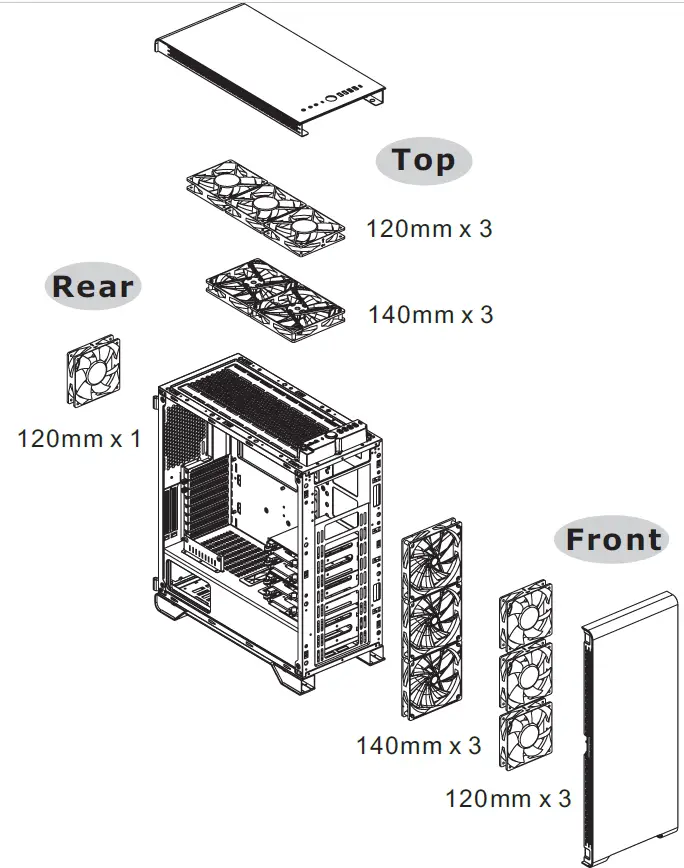

Air Cooling Installation

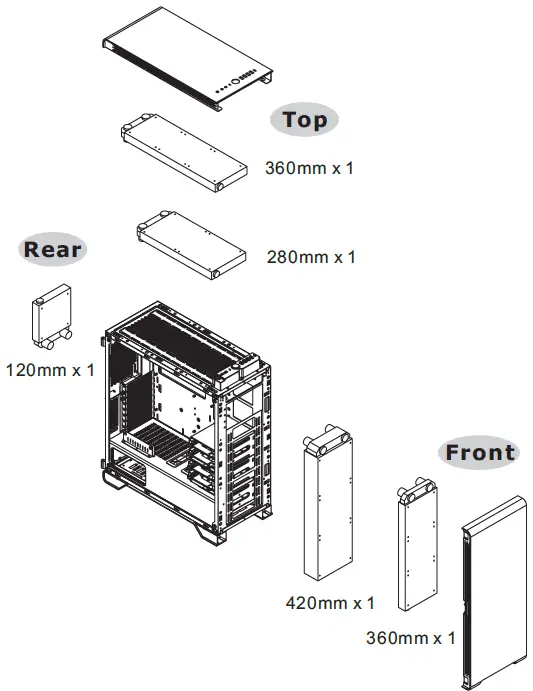

Liquid Cooling Installation

Leads Installation

Leads Installation Guide

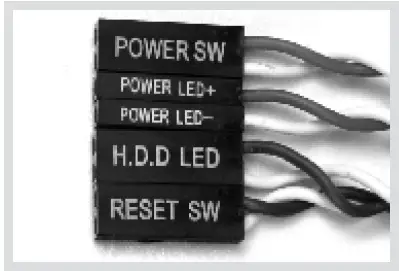

Case LED Connection / On the front of the case, you can find some LEDs and switch leads. Please consult your user manual of your motherboard manufacturer, then connect these leads to the panel header on the motherboard.

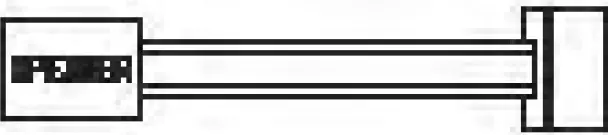

USB 2.0 Connection / Please consult your motherboard manual to find out the section of “USB connection”.

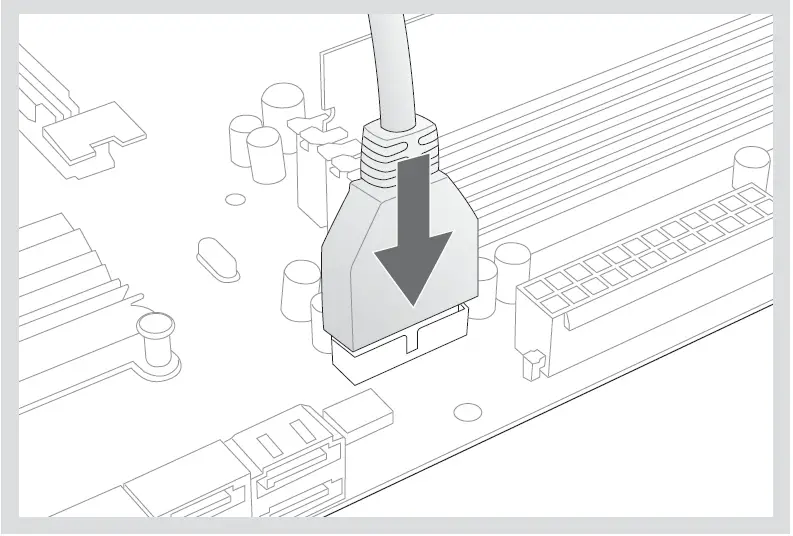

USB 3.0 connection /

1. Make sure your motherboard supports USB 3.0 connection.
2. Connect the USB 3.0 cable to the available USB 3.0 port on your computer.

Audio Connection / Please refer to the following illustration of Audio connector and your motherboard user manual.
Please select the motherboard which used AC’97 or HD Audio(Azalia),(be aware of that your audio supports AC’97 or HD
Audio (Azalia)) or it will damage your device(s).

• USB 3.0 Connection

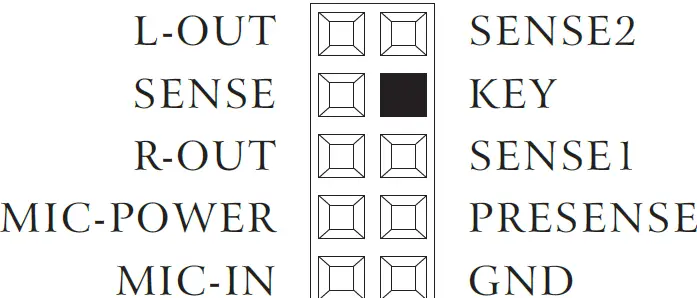

AUDIO AZALIA Function

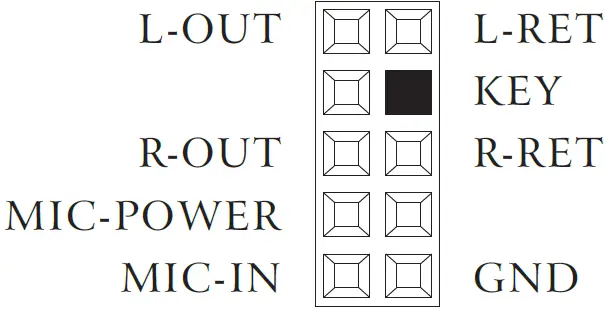

AUDIO AC’97 Function
Thermaltake Power Supply Series (Optional)

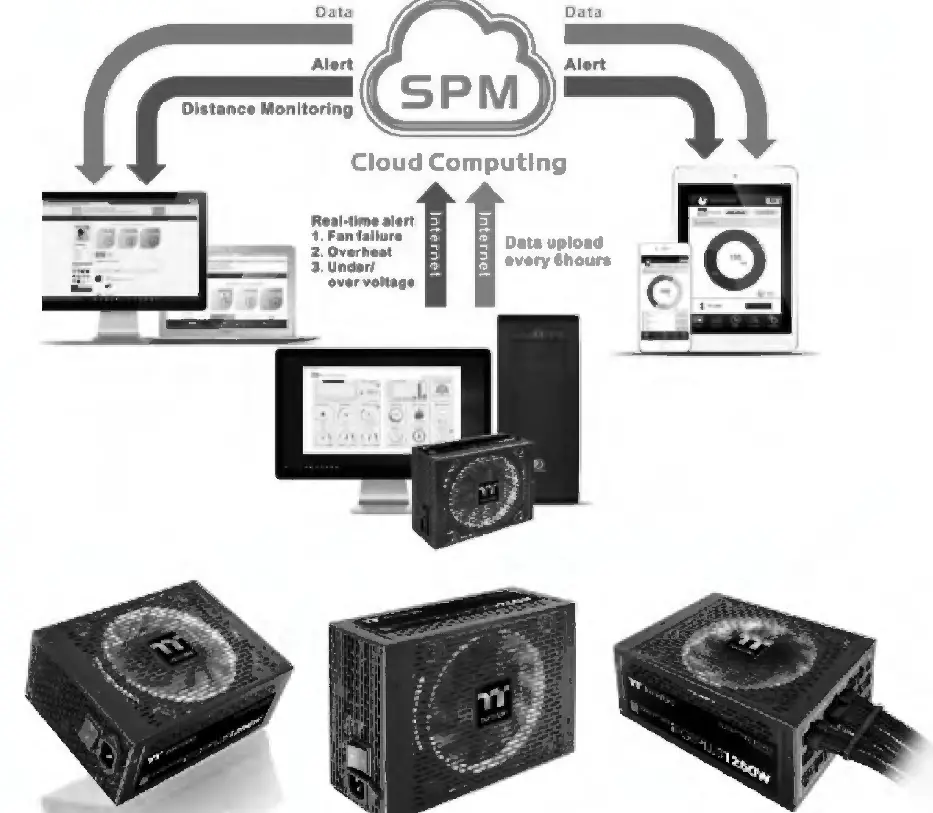

What is Smart Power Management (SPM)?
Smart Power Management (SPM) is a cloud-based software that seamlessly integrates three intelligent platforms – DPSG PC APP 3.0, DPS G Smart Power Management Cloud 1.0 and DPS G Mobile APP 1.0 – and compiles key statistics about your PC into detailed charts and breakdowns for your instant PC status view and management. With easy access to SPM through your PC or mobile devices, whether you are outside or indoors, enjoy taking full control of your build anytime, anywhere!

Thermaltake has several power supply product lines;
please refer to our official website and Facebook Fan Page for more detail information!
Brand official website:
http://www.thermaltake.com/
Global Facebook :
https://www.facebook.com/Thermaltakelnc
Taiwan Facebook
https://www.facebook.com/ThermaltakeTW

References

• Thermaltake
