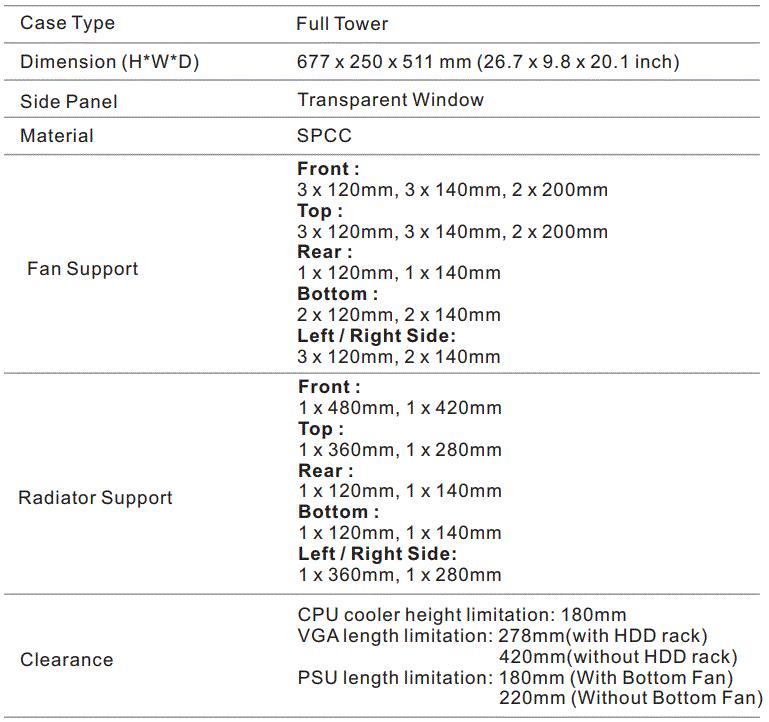

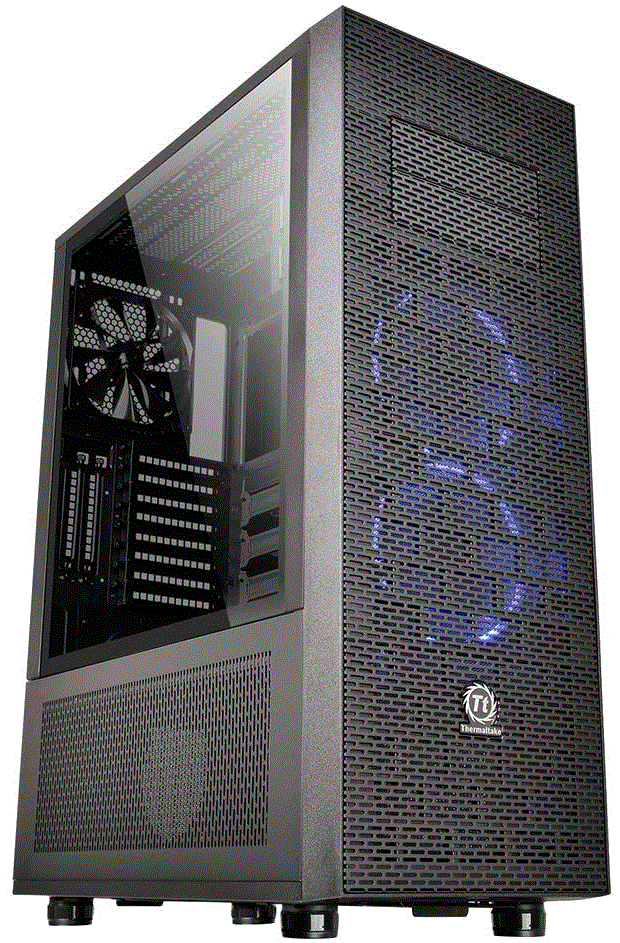

Specification
Accessory
Accessory
Warning and Notice
Warning!!

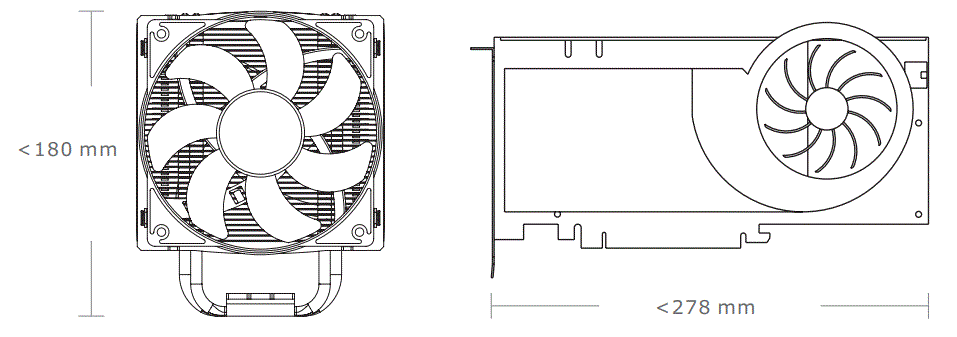

CPU Cooler Height Limitation: Please ensure that your CPU cooler does NOT exceed 180mm (7.1 inches) height.
VGA (Add-on card) Length Limitation: Please ensure that your VGA (Add-on card) does NOT exceed 278mm (10.9 inches) length.

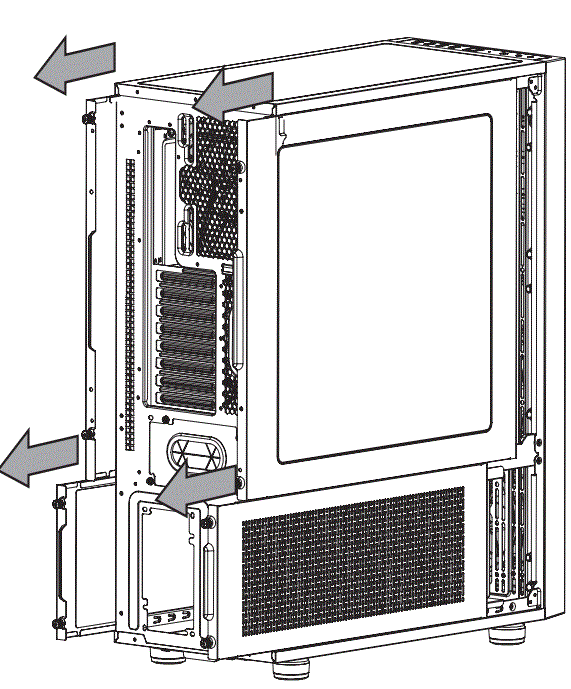

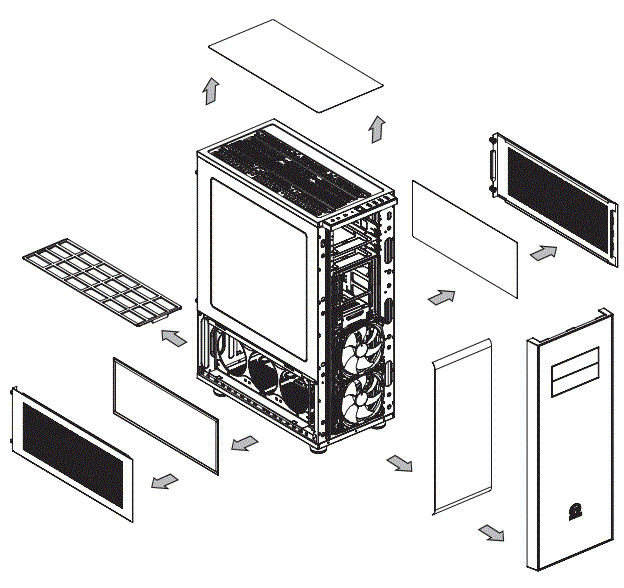

Side Panels Disassembly

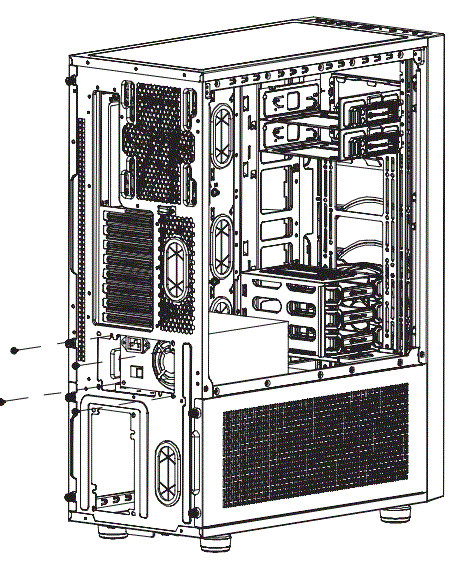

Remove the screws on the back of the chassis, and open the side panel.
Power Supply Unit (PSU) Installation
Position A
Place the PSU in proper location.
Position B
Motherboard Installation
- Lay down the chassis.
- Install the motherboard in proper location and secure it with screws.

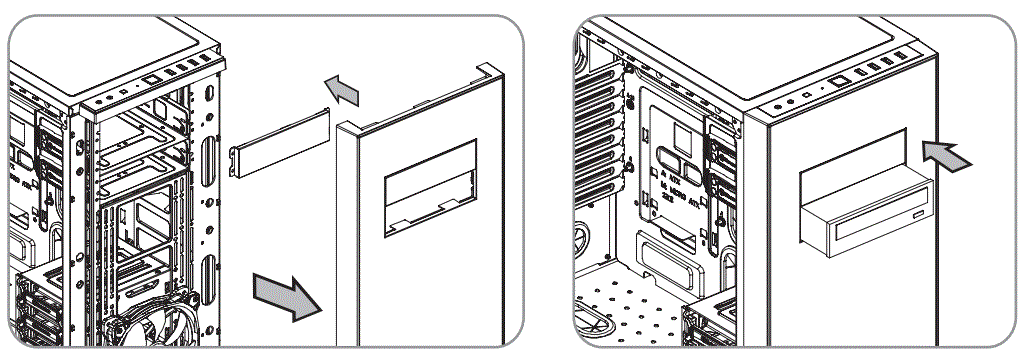

5.25″ Device Installation
- Remove the 5.25” drive bay cover.
- Slide the 5.25” device into the drive bay to lock the device.
Note: Press the 5.25” tool-free mechanism to unlock the device.

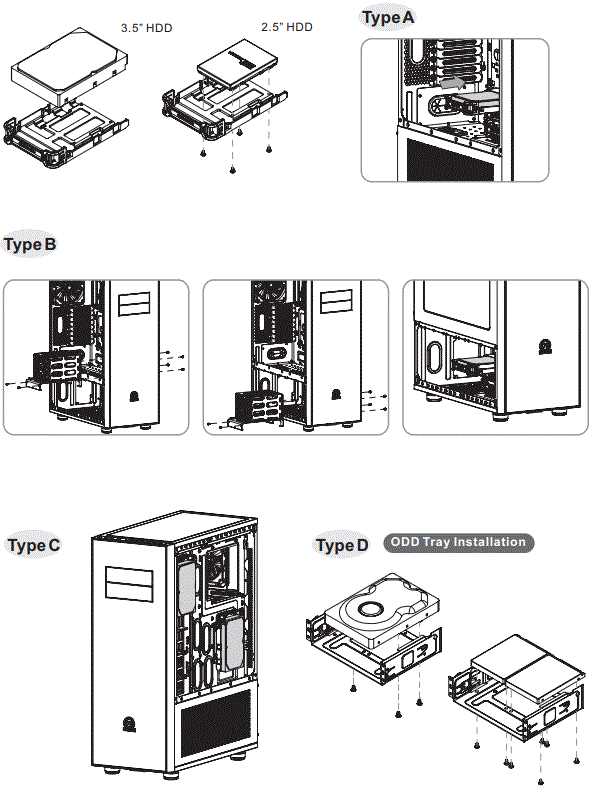

3.5″ & 2.5″ HDD Installation
- Pull the HDD tray out.
- Place the 2.5” or 3.5” hard drive on the tray and secure it with screws.
- Slide the HDD tray back to the HDD cage.
PCI Card Installation
Insert the PCI card into the PCI slot, and secure it with screw.
Keyboard & Mouse Security Lock Usage

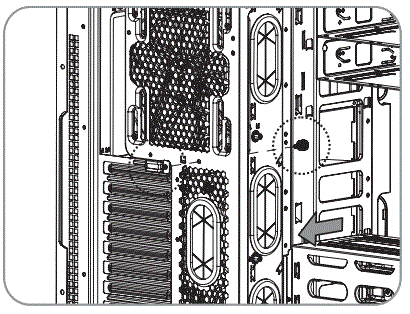

Place the keyboard or mouse cables through the “Keyboard & Mouse Security Lock” then secure it back to the back panel from inside of the chassis with screw.

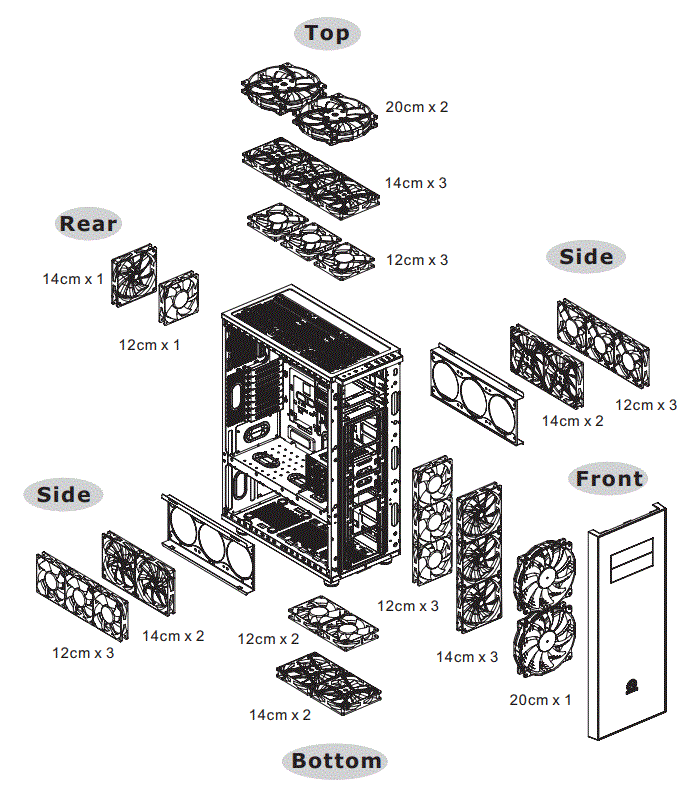

Air Cooling Installation
Liquid Cooling Installation

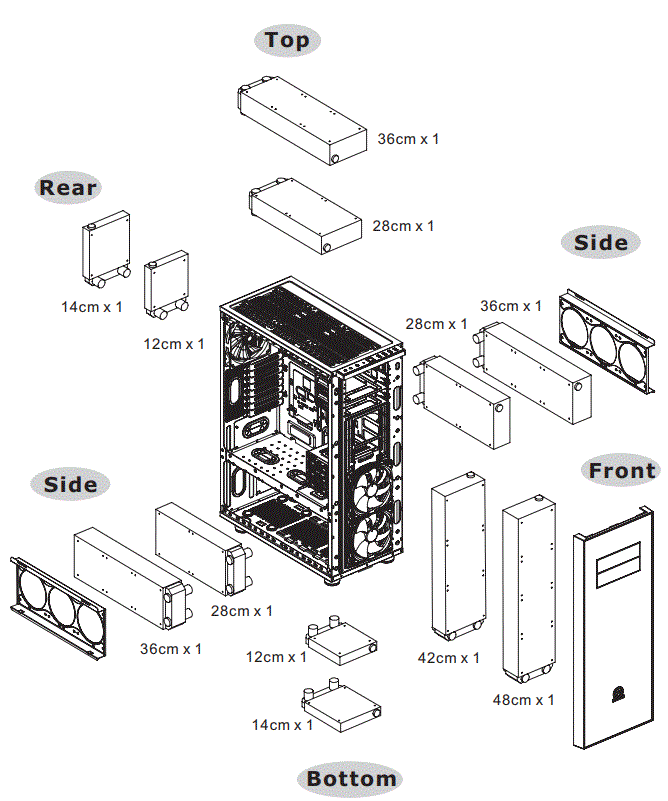

Maximum Radiator Installation Notice

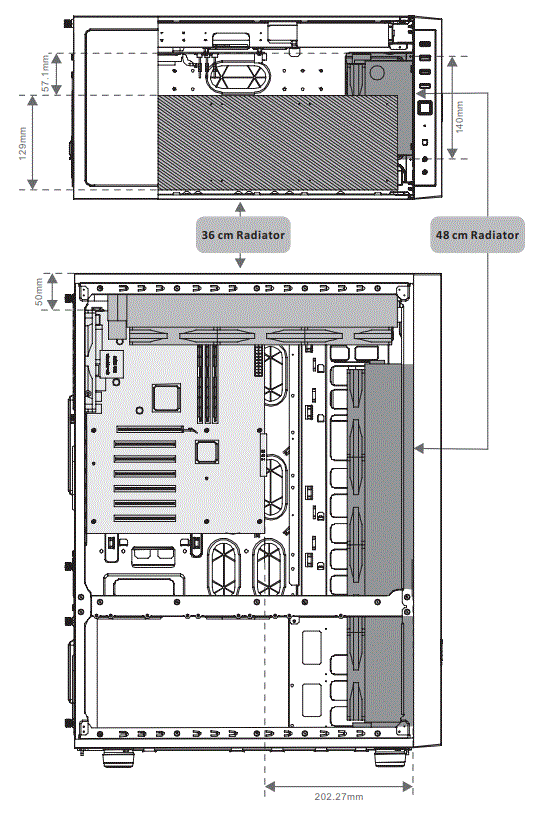

Top Radiator Installation Notice
* Please consult radiator & memory height for proper installation
Filter Installation
Leads Installation
Leads Installation Guide
Case LED Connection / On the front of the case, you can find some LEDs and switch leads. Please consult the user manual of your motherboard manufacturer, then connect these leads to the panel header on the motherboard.
USB 2.0 Connection / Please consult your motherboard manual to find out the section of “USB connection”.
USB 3.0 connection /
- Make sure your motherboard supports USB 3.0 connection.
- Connect the USB 3.0 cable to the available USB 3.0 port on your computer.

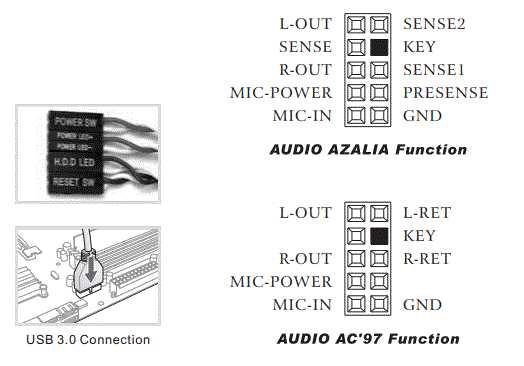

Audio Connection / Please refer to the following illustration of Audio connector and your motherboard user manual. Please select the motherboard which used AC’97 or HD Audio(Azalia),(be aware of that your audio supports AC’97 or HD Audio (Azalia)) or it will damage your device(s).
