Break units
Braukmann CBU146
Compact Booster Unit To ensure the quality of drinking water according to EN 1717
APPLICATION

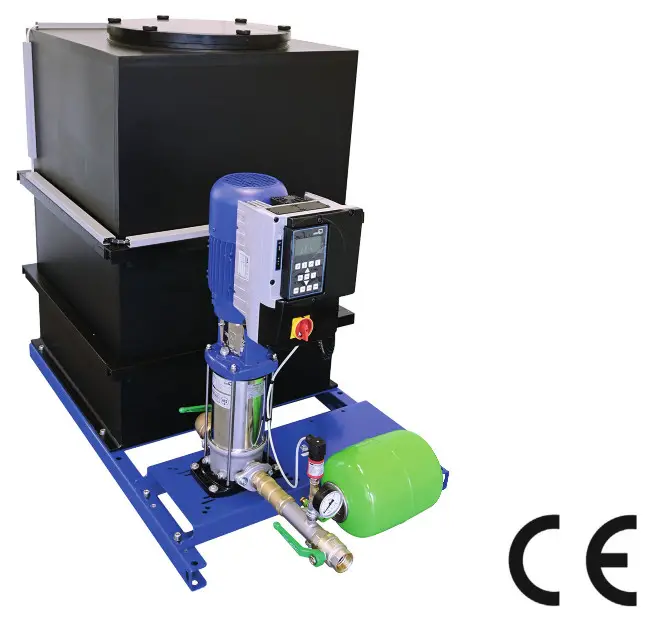

Speed controlled compact booster unit with a vertical high-pressure pump as a safety device to separate potable water from category 5 fluids according to EN 1717.
Fully automatic, fully wired Compact Booster Unit with a modular design comprising a single pump system and a buffer tank for the hygienic separation of potable water and category 5 fluids according to EN 1717, on a common base frame.
The modular design makes it possible to disconnect modules for installation in buildings with limited space. The system is switched on and off regulated by pressure, the flow rate is controlled via a frequency inverter.
APPROVALS
- CE
SPECIAL FEATURES
- Pre-assembled, ready for installation
- No risk of microbial contamination due to hygienic separation of potable water from non-potable water
- Flow rate regulation per frequency inverter
- Easy installation due to modular construction and draining with integrated siphon trap
- Reliable operation due to buffer tank with usable volume according to EN 806-2
TECHNICAL DATA
Separation of systems as a means to protect potable water from being contaminated by fluids of the category 5 according to EN 1717.
| Media | |
| Pump Medium: | Non-portable water Without aggressive, abrasive and solid components |
| Flow rate: | see Chapter Dimensions |
| Pumping head: | Adjustable within the range of pump characteristics, preset to 60 m see chapter Dimensions |
| Pressure values | |
| Nominal pressure p: | PN 16 |
| Inlet pressure: | 1.5 – 8 bar (depending upon the model) |
| Operating temperatures | |
| Medium temperature: | up to 30 °C |
| Ambient temperature | up to 40 °C |
| Specifications | |
| Supply voltage: | 3/PE, AC 400 V, 50 Hz |
MATERIALS
| Pump | |
| Part: | Material: |
| Inlet housing | Stainless steel |
| End housing | Stainless steel |
| Hydraulics | Stainless steel |
| Seal | FPM 80 |
| Sliding bearing | Aluminium oxide |
| Floating ring seal | according to EN 12756 |
| Floating ring | Silicon carbide |
| Counter ring | Hard coal |
| Elastomer | EPDM |
| Hydraulic components | |
| Part: | Material: |
| Pipeline | Chrome steel |
| Switching device | Steel, lacquered |
| Control tank | Connection made of stainless steel |
| Membrane | Suitable for potable water |
| Shut-off valves | |
| Part: | Material: |
| Housing | Spheroidal cast iron |
| Butterfly disc | Stainless steel |
| Bellows ring material | EPDM-XV |
| Buffer tank | Polyethylene |
| Check valve | Cast steel |
CONSTRUCTION

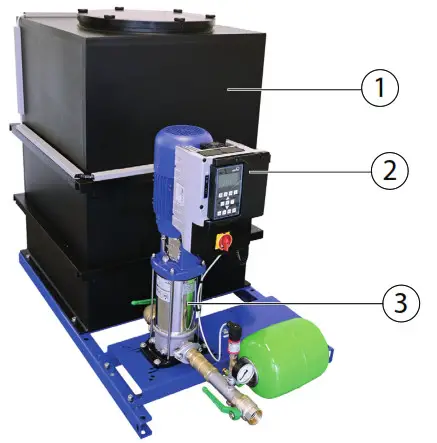

Overview | Components | Materials | |
 | 1 | Speed-controlled compact booster unit with: • One normal sucking, vertical high-pressure rotary pump with all components in contact with the medium • High efficiency motor with frequency inverter, energy efficiency class IE4 according to IEC-CD60034 – 30 ED. 2 • Check valve • Shut-off valve on the inlet and outlet sides • Diaphragm expansion vessel on the outlet side as vessel • Pressure sensor on the pressure side • Vibration damper between pump and base frame • Pressure gauge display • Shut-off valve, lockable • Piping • The system is connected to the installation pipeline with G1 ¼”, G2″ or G2 1/2″ (depending on version) • Base frame | • Stainless steel • Stainless steel • Coated steel |
| 2 | Self-cooled frequency converter adapted on the motor • Refer to instructions of frequency inverter | ||
| 3 | Buffer tank: • Non-circular, free overflow according to EN 13077, Type AB • Drainage connection with integrated siphon trap: DN100 for CBU146-32A-060 and CBU146-40A060 DN150 for CBU146-50A-060, CBU146-65A-060, CBU146-65B-060 and CBU146-80B-060 •Tank volume according to DIN 1988-500 or individual approved • Potable water backfeed via float valve, suitable for potable water | ||
| Not depicted components: | |||
| Switch cabinet consists of: • Power supply connection via 3/N/PE, AC 400V,50Hz • Lockable emergency stop main switch (repairswitch) • LED, green for normal function, yellow for warning, red for alarm and description text in the display. • Motor protection device (included in the frequency inverter) • Terminal strip/clamps with labels for all connections • Plug connectors to connect easily with the electrical equipment fitted to the supply container | |||
| Messages sent via potential-free contact for • Alarms and warnings • Pump run indicator |
TRANSPORTATION AND STORAGE
Keep parts in their original packaging and unpack them shortly before use. The following parameters apply during transportation and storage:
| Parameter | Value |
| Environment: | clean, dry and dust free |
| Max. ambient temperature: | up to 40 °C |
| Max. ambient relative humidity: | 60 % * |
*non condensing
TECHNICAL CHARACTERISTICS

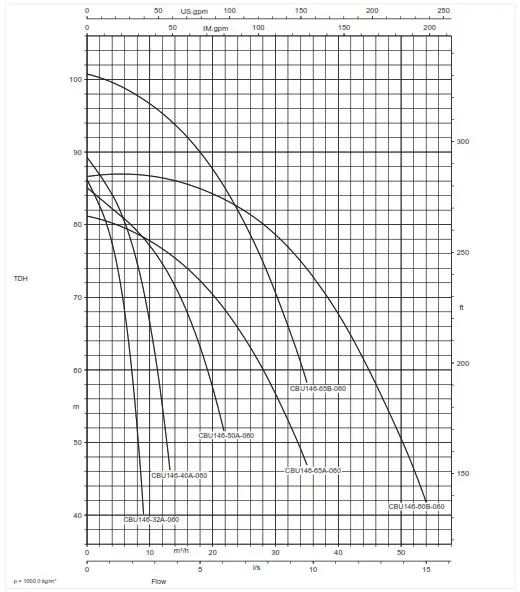

Pressure drop characteristics
DIMENSIONS
Overview
| Parameter | Values | |||||||
| Length: | [L] | mm | 1543 | 1600 | 1965 | 1990 | 1990 | 2000 |
| Width: | [B] | 800 | 800 | 800 | 800 | 800 | 800 | |
| Height: | [H] | 1185 | 1185 | 1600 | 1600 | 1600 | 1600 | |
| Weight: | kg | 195 | 218 | 324 | 346 | 444 | 411 | |
Noise expectancy values
Refer to pump manual for noise value of the pump.
Authorised environmental conditions
Ambient temperature 5°C …40°C
Relative air humidity max. 60% r.h. at 40 °C ambient temprature
ORDERING INFORMATION
The following tables contain all the information you need to make an order of an item of your choice. When ordering, please always state the type, the ordering or the part number.
Options
CBU14632A-060 | CBU14640A-060 | CBU14650A-060 | CBU14665A-060 | CBU14665B-060 | CBU14680B-060 | ||
| Volumetric flow rate Qmin: | m3/h | 0.6 | 1.1 | 1.6 | 4.0 | 4.0 | 4.6 |
| Volumetric flow rate Qmax: | 7.0 | 11.0 | 19.0 | 28.0 | 34.0 | 43.0 | |
| max. pump head* | m | 86 | 89 | 85 | 81 | 100 | 86 |
| Connection:
| Inlet | G21/4” | G21/4” | G2″ | G2″ | G21/2” | G21/2″ |
| Pump | DN32 | DN40 | DN50 | DN65 | DN65 | DN80 | |
| Nominal performance: | P2 kW | 2.2 | 3.0 | 5.5 | 7.5 | 11.0 | 15.0 |
| Usable volume: | l | 350 | 350 | 540 | 540 | 540 | 540 |
* Pump head is depending on the flow rate. See characteristic curves on following pages.

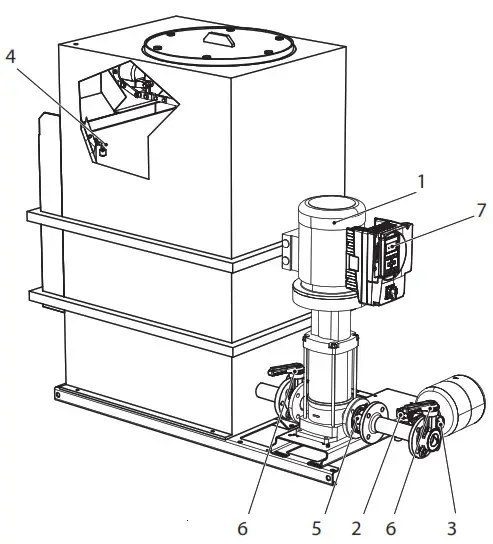

Spare Parts
Overview | Description | Dimension | Part No. | |
 | 1 | Pump Movitec | ||
| V 0609 B | DN32 | 0904149 | ||
| V 1008 B | DN40 | 0904150 | ||
| VF 1506 B | DN50 | 0904151 | ||
| VF 2504 B | DN65A | 0904152 | ||
| VF 2505 B | DN65B | 0904153 | ||
| VF 4004-2 B | DN80 | 0904154 | ||
| 2 | Pressure sensor | |||
| all | 0904155 | |||
| 3 | Pressure gauge | |||
| all | 0904156 | |||
| 4 | ||||
| all | 0904157 | |||
| 5 | ||||
| 1 1/4″ | DN32 and DN40 | 0904158 | ||
| DN50 | 0904159 | |||
| DN65 | 0904160 | |||
| DN80 | 0904161 | |||
| 6 | Shut-off valve | |||
| 1 1/4″ | DN32 and DN40 | 0904162 | ||
| 1 1/2″ | DN32 and DN40 | 0904163 | ||
| DN50 | 0904164 | |||
| DN65 | 0904165 | |||
| DN80 | 0904166 | |||
| 7 | Shut-off valve | |||
| Pump drive 2.2 kW | DN32 | 0904167 | ||
| Pump drive 3 kW | DN40 | 0904168 | ||
| Pump drive 5.5 kW | DN50 | 0904169 | ||
| Pump drive 7.5 kW | DN65A | 0904170 | ||
| Pump drive 11 kW | DN65B | 0904171 | ||
| Pump drive 15 kW | DN80 | 0904172 | ||
