Filter
Braukmann
F78TS

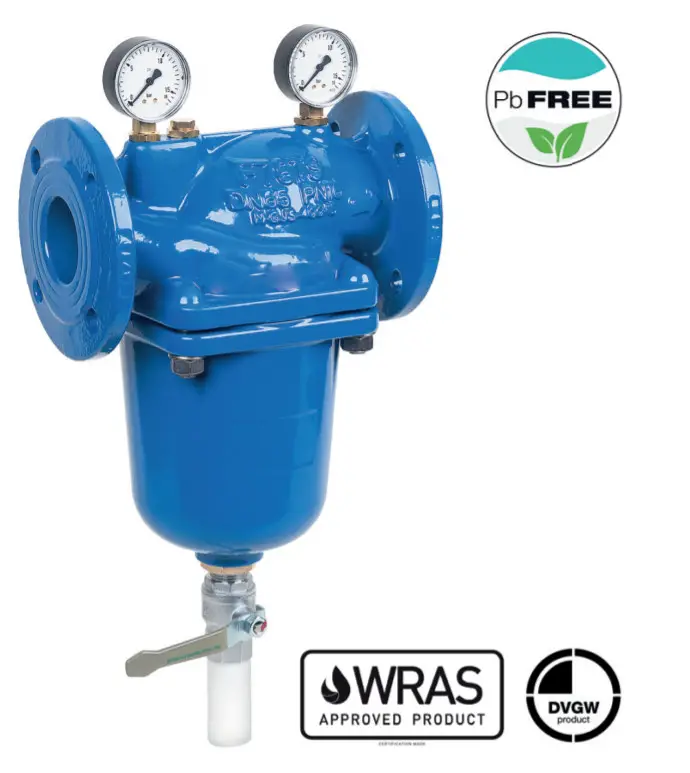

Reverse rinsing fine filter with flanges
APPLICATION
F78TS flanged reverse rinsing filters are for installations with high water demand. They can be used in large residential buildings, for central water supply, and in commercial or industrial applications.
F78TS flanged filters have the same highly efficient reverse rinsing filtering system as the range of household fine filters. The F78TS can be retrofitted with the Z11AS fully automatic reverse rinsing actuator and the DDS76 differential pressure switch.
The fine filter prevents the ingress of foreign bodies, for example, rust particles, strands of hemp, and grains of sand, and thus reduces the probability of corrosion.
APPROVALS
- DVGW (for connection sizes DN65-DN100 with 100 μm
mesh size) - WARS
SPECIAL FEATURES
- LEAD-FREE: Pb content of all materials less than 0.1 %
- Filtered water supplied even during reverse rinsing
- Filter insert fully replaceable
- Patented reverse rinsing system – fast and thorough cleaning of the filter
- Fully automatic reverse rinsing with retrofittable automatic reverse rinsing actuator
- The differential pressure switches can be retrofitted
- Memory ring indicates when the next manual reverse rinsing is due
- Polyamide coating gives a high level of corrosion protection
- Forced flow provides optimal water exchange in the filter bowl
- ACS certified
- All materials are KTW approved
- DM174 conform
- Discharge of the reverse rinsed water according to EN 1717
TECHNICAL DATA
| Media | |
| Medium: | Drinking water |
| Connections/Sizes | |
| Flange connection | PN16 acc. to EN 1092-2 |
| Single filter: | DN65 – DN100 DN125 with 2 extension flanges EXF125-A |
| 2 filters parallel: | 2 x DN80, 2 x DN100 |
| Pressure values | |
| Max. operating pressure: | 1.5 – 16 bar |
| Nominal pressure: | PN16 |
| Operating temperatures | |
| Max. operating temperature medium accord. to EN 1567: | 30 °C |
| Max. operating temperature medium: | 65 °C (max. operating pressure 6 bar) |
| Specifications | |
| Installation position: | Horizontal, with filter bowl downwards |
Note:
The filter is constructed for drinking water installations. In the case of a process water application, the filter has to be proven individually.

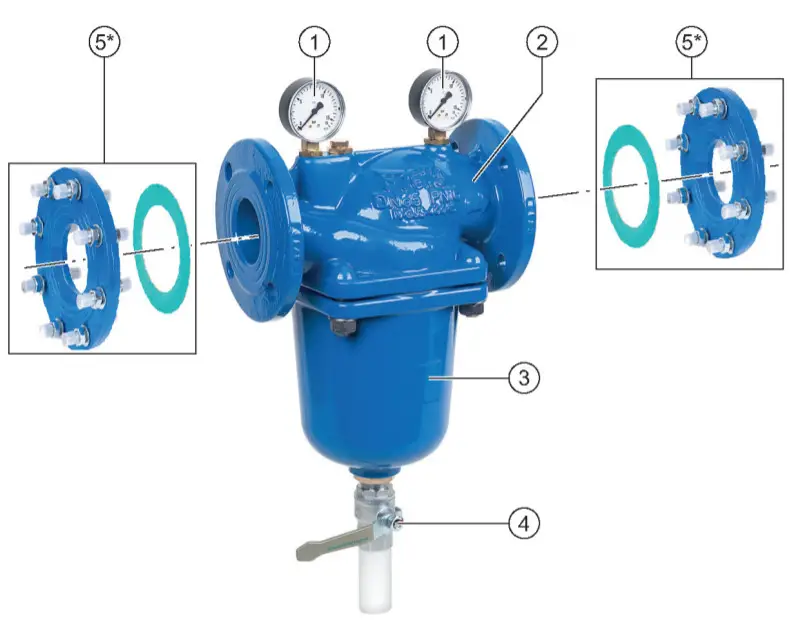

CONSTRUCTION
| Components | Materials | |
| 1 | 2 pressure gauges (1x inlet, 1x outlet including memory indicator) | Metal |
| 2 | Housing with pressure gauge ports (1x inlet, 2x outlet) | Ductile cast iron (EN-GJS400-15 EN 1563), coated with PA (polyamide) |
| 3 | Filter bowl | Ductile cast iron (EN-GJS400-15 EN 1563), coated with PA (polyamide) |
| 4 | Ball valve with lever and drain funnel | Ball Valve body: Brass chrome-plated Ball: Brass chrome-plated Drain adapter: Plastic |
| 5 | Extension flanges for the connection size DN125 | Ductile Cast Iron |
|
| Not depicted components: | |
| Inner parts | Stainless steel, red bronze, brass, and plastic | |
| Fine filter | Stainless steel | |
* Extension flanges for the connection size DN125: F78TS DN125 = 1 pcs.F78TS-100FA/FB/FC/FD + 2 pcs. EXF125-A. The extension flanges have to be ordered
separately.
METHOD OF OPERATION
The filter insert is divided into two parts. In the „filtering“ position, only the lower, larger section is used for filtering. The small upper section does not come in contact with unfiltered water. An oscillating flap integrated in the sieve prevents the deposition of dirt particles on the upper part of the filter. When the ball valve is opened for reverse rinsing, then the whole filter insert is pushed downwards until the water supply to the outer side of the main filter is stopped. Simultaneously, the water flow is opened to the upper part of the filter. The water needed for cleaning the filter passes through the upper filter section, then the rotating impeller with jets and the main filter from inside to outside, i.e. the filter is reverse rinsed with filtered water. The filter automatically switches back to the operating position when the ball valve is closed again.
TRANSPORTATION AND STORAGE
Keep parts in their original packaging and unpack them shortly before use.
The following parameters apply during transportation and storage:
| Parameter | Value |
| Environment: | clean, dry, and dust-free |
| Min. ambient temperature: | 5 °C |
| Max. ambient temperature: | 55 °C |
| Min. ambient relative humidity: | 25 % * |
| Max. ambient relative humidity | 85 % * |
*non condensing
INSTALLATION GUIDELINES
Setup requirements
- Install in horizontal pipework with filter bowl downwards
– This position ensures optimum filter efficiency - Install shut-off valves
- These filters are armatures that need to be maintained regularly
- Ensure good access
– Pressure gauge can be read off easily
– Simplifies maintenance and inspection - The installation location should be protected against frost
- Related to the EN 806-2 it is recommended to install the filter immediately after the water meter
- In order to avoid flooding, it is recommended to arrange a permanent, professionally dimensioned wastewater connection

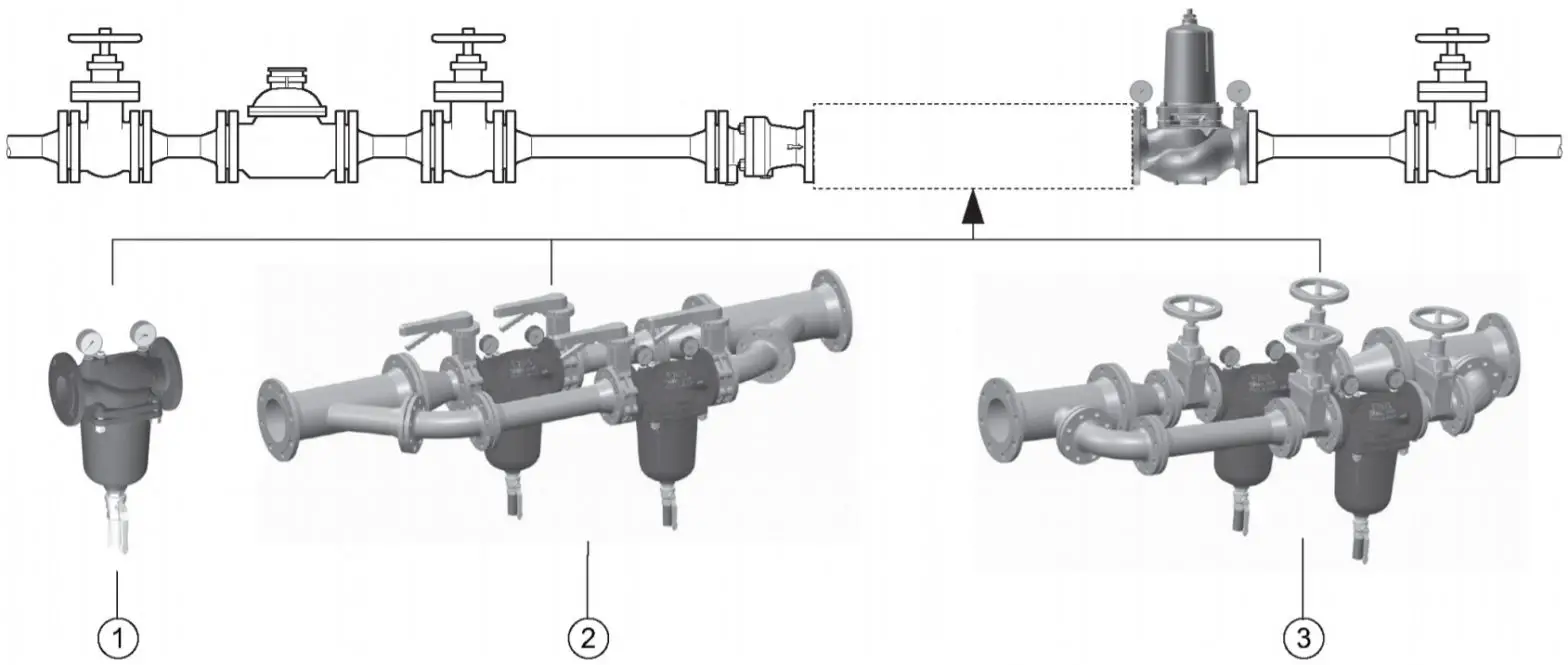

Installation Example
- Single filter
- 2 filters parallel 45°
- 2 filters parallel 90°
TECHNICAL CHARACTERISTICS
kvs-Values
| Single filter | 2 filters parallel | |||||
| Connection sizes: | 65 | 80 | 100 | 125 | 80 | 100 |
| kvs-value (m³/h): | 69 | 113 | 145 | 145 | 226 | 290 |

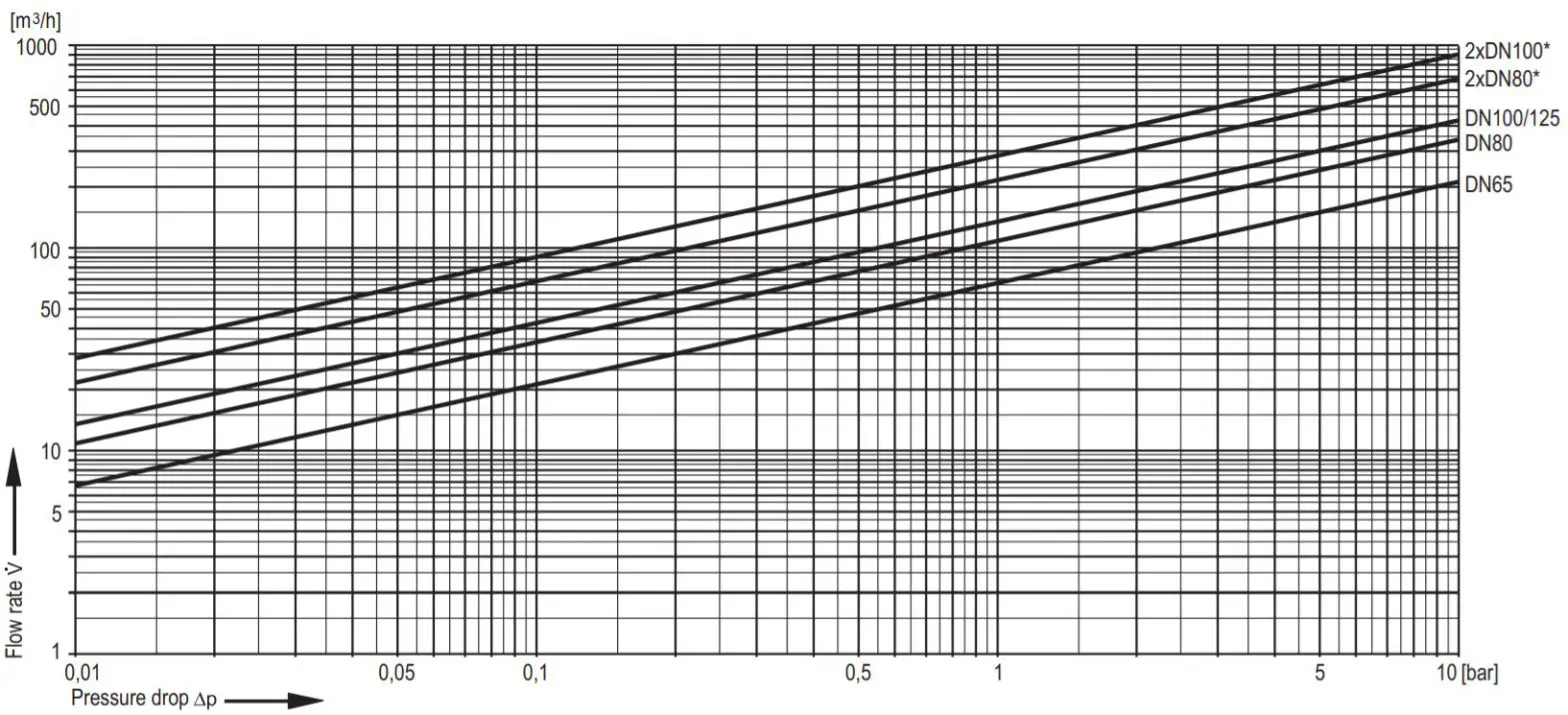

Pressure drop characteristics
* 2 filters parallel

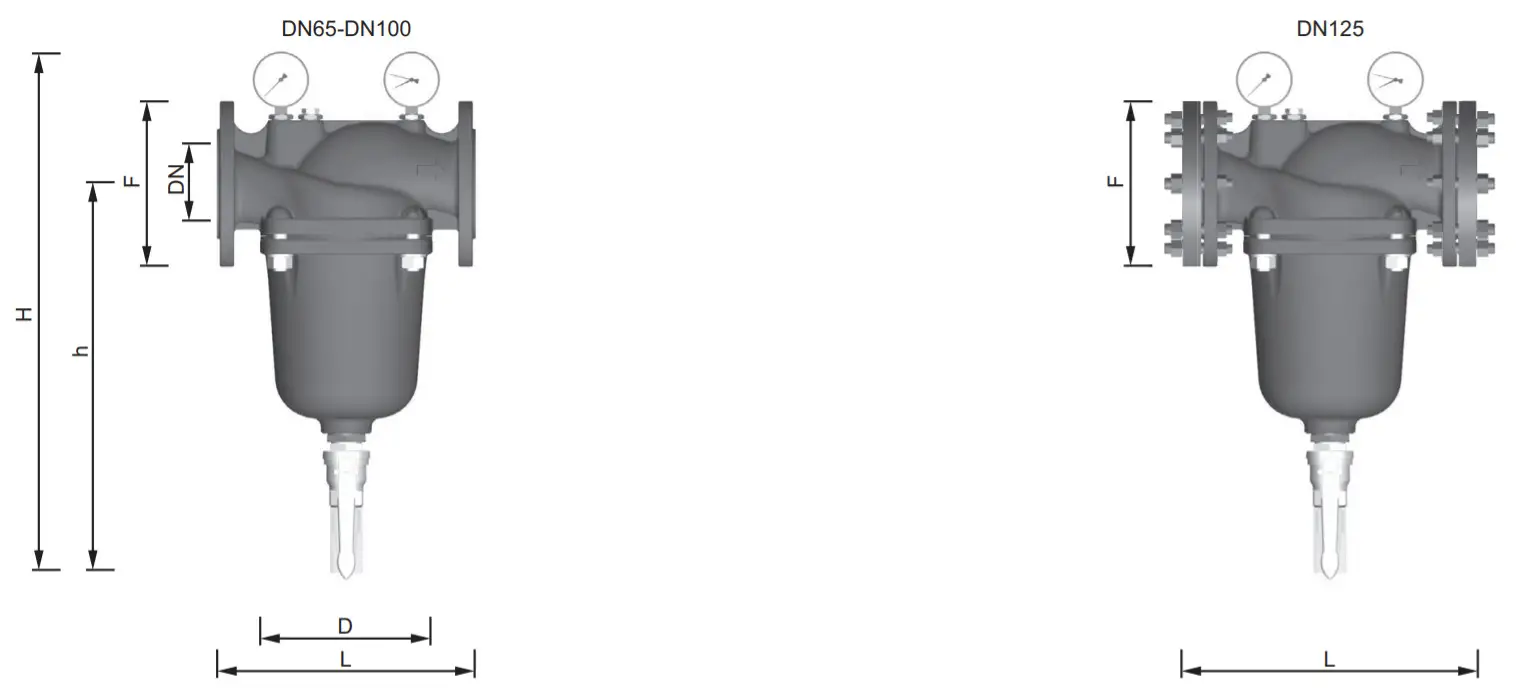

DIMENSIONS
Overview
| Parameter | Values | ||||||
| Nominal sizes: | DN | Single filter* | 2 filters parallel | ||||
| 65 | 80 | 100 | 125 | 80 | 100 | ||
| Weight: | kg | 25 | 35 | 43 | 65 | n.a | n.a |
| Dimensions DN65-DN100: | L | 290 | 310 | 350 | 420 | n.a | n.a |
| H | 581 | 665 | 767 | 767 | n.a | n.a | |
| h | 434 | 508 | 610 | 610 | n.a | n.a | |
| D | 193 | 230 | 247 | 247 | n.a | n.a | |
| F | 185 | 200 | 220 | 250 | n.a | n.a | |
| Flow value at ∆p=0.2 bar: | m³/h | 30 | 48 | 60 | 60 | 96 | 120 |
| Flow value at ∆p=0.5 bar: | m³/h | 48 | 78 | 100 | 100 | 156 | 200 |
| DVGW registration number: | NW-9301CR0186 | – | – | – | |||
Note:
All dimensions in mm unless stated otherwise.
* DN125 with 2 pcs. extension flanges (2 x EXF125-A to be ordered separately)
ORDERING INFORMATION
The following tables contain all the information you need to make an order of an item of your choice. When ordering, please always state the type, the ordering or the part number.
Options
The filter is available in the following sizes: DN65, DN80, and DN100.
• standard
– not available
| Connection type: | F78TS-…FA | F78TS-…FB | F78TS-…FC | F78TS-…FD | |
| Filter mesh size 100 μm | • | – | – | – | |
| Filter mesh size 20 μm | – | • | – | – | |
| Filter mesh size 50 μm | – | – | • | – | |
| Filter mesh size 200 μm | – | – | – | • |
Note: … = space holder for connection size
Note: Ordering number example for DN65 and type FA valve: F78TS-65FA
Note: Filters with other mesh widths available on request
Accessories
| Accessories | Description | Dimension | Part No. | |

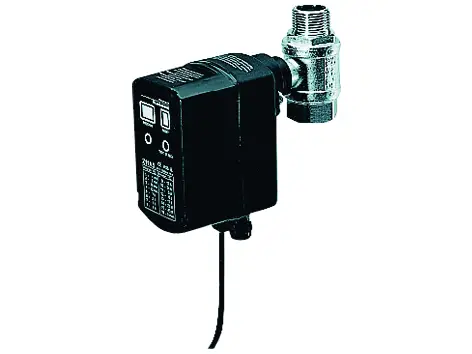

 | Z11AS | Automatic reverse rinsing actuator For automatic reverse rinsing of the filter at presettable intervals | ||
| 230 V, 50/60 Hz, 10 W with molded Schuko electrical plug | Z11AS-1A | |||
| 24 V, 50/60 Hz, 10 W without an electrical plug | Z11AS-1B | |||
| 230 V, 50/60 Hz, 10 W with molded Type 12 electrical plug for Switzerland | Z11AS-1Z | |||

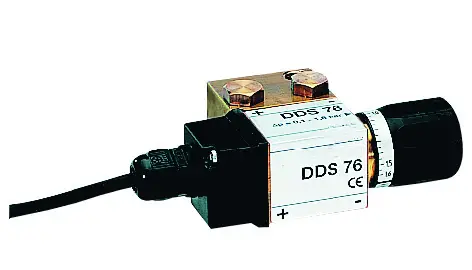

 | DDS76 | Differential pressure switch | ||
| DN65/80/100 | DDS76-1 | |||

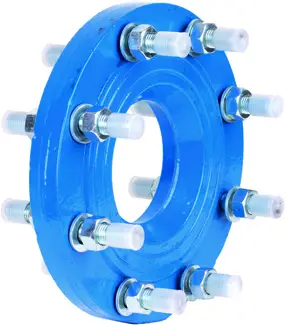

 | EXF125-A | Extension flange DN125 | ||
| Adapter flanges DN100 to DN125 Ductile iron, PN16 acc. ISO 7005-2 and EN 1092-2. Overall length with adapter flanges (without bolts) DN125 L=416mm, DVGW approved, including bolts, nuts, and the seal disc. | ||||
| EXF125-A | ||||

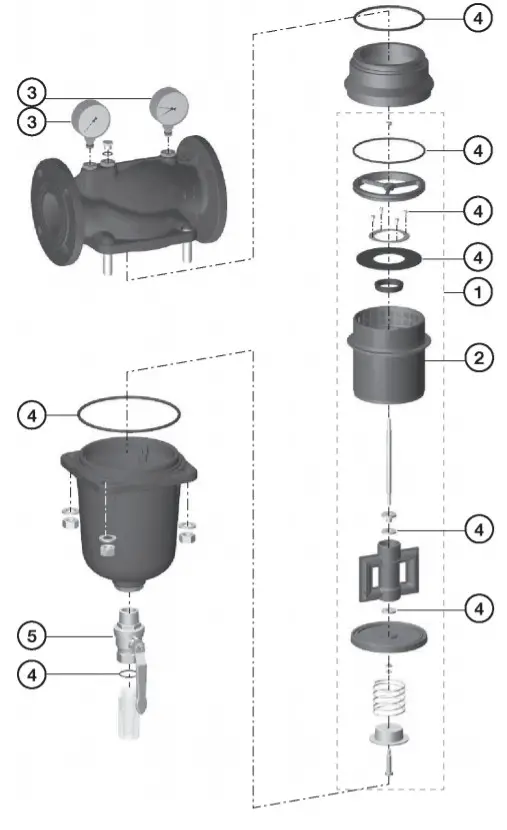

Spare Parts
F78TS Fine Filters with Flanges from 2015 onwards
Overview
| Description | Dimension | Part No. | |
| 1 | Filter insert complete | ||
| Filter mesh 100 μm Filter mesh 100 μm Filter mesh 100 μm Filter mesh 50 μm Filter mesh 50 μm Filter mesh 50 μm Filter mesh 200 μm Filter mesh 200 μm Filter mesh 200 μm | DN65 DN80 DN100 DN65 DN80 DN100 DN65 DN80 DN100 | AF78TS-065A AF78TS-080A AF78TS-100A AF78TS-065C AF78TS-080C AF78TS-100C AF78TS-065D AF78TS-080D AF78TS-100D | |
| 2 | Replacement sieve | ||
| Filter mesh 100 μm Filter mesh 100 μm Filter mesh 100 μm Filter mesh 20 μm Filter mesh 20 μm Filter mesh 20 μm Filter mesh 50 μm Filter mesh 50 μm Filter mesh 50 μm Filter mesh 200 μm Filter mesh 200 μm Filter mesh 200 μm Filter mesh 500 μm Filter mesh 500 μm Filter mesh 500 μm | DN65 DN80 DN100 DN65 DN80 DN100 DN65 DN80 DN100 DN65 DN80 DN100 DN65 DN80 DN100 | ES78TS-065A ES78TS-080A ES78TS-100A ES78TS-065B ES78TS-080B ES78TS-100B ES78TS-065C ES78TS-080C ES78TS-100C ES78TS-065D ES78TS-080D ES78TS-100D ES78TS-065F ES78TS-080F ES78TS-100F | |
| 3 | Pressure gauge | ||
| 0 – 16 bar, G¹/4″ 0 – 16 bar, G¹/4″ with memory indicator | M78M-A16 M78M-A16MR | ||
| 4 | Seal set complete | ||
| DN65 DN80 DN100 | SOS78TS-065 SOS78TS-080 SOS78TS-100 | ||
| 5 | Ball valve | ||
| 5622100 | |||
F78TS – Reverse rinsing fine filter with flanges
Product Specification Sheet • EN0H-1178GE23 R0820 • Subject to change
