Resideo Braukmann Sv300 Installation Guide

Braukmann
SV300

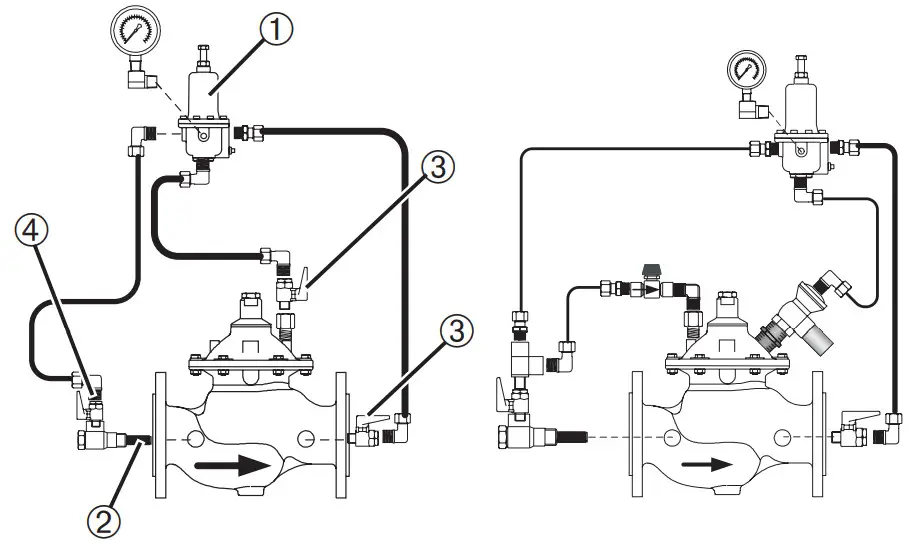

E1 Components

1. Pilot valve
2. Filter insert
3. Manual ball valve
4. Needle Valve

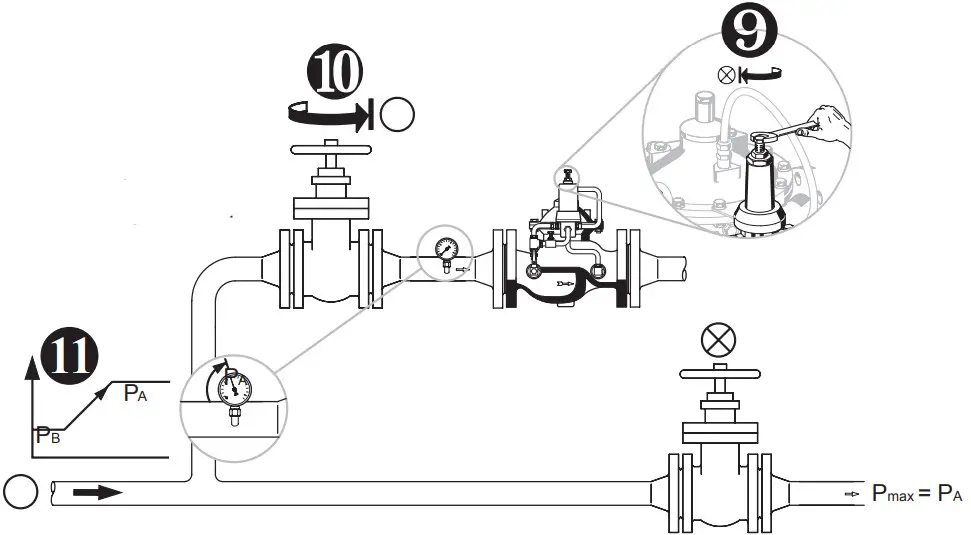

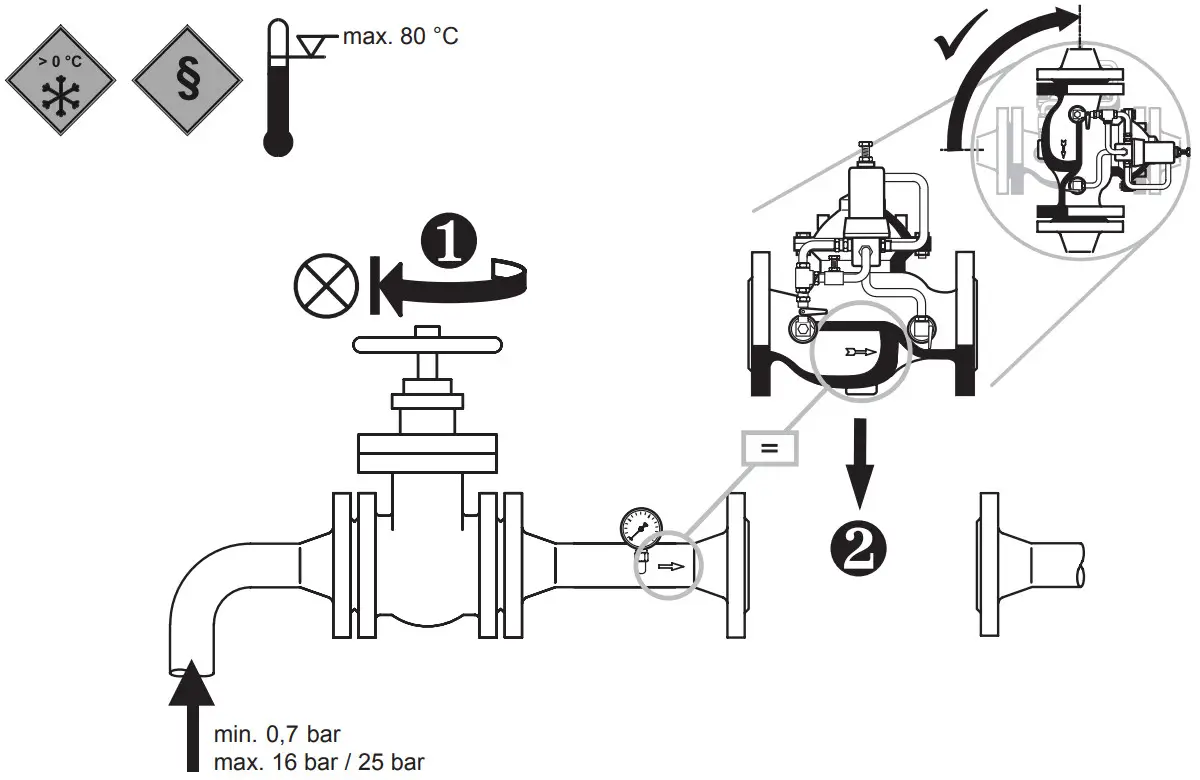

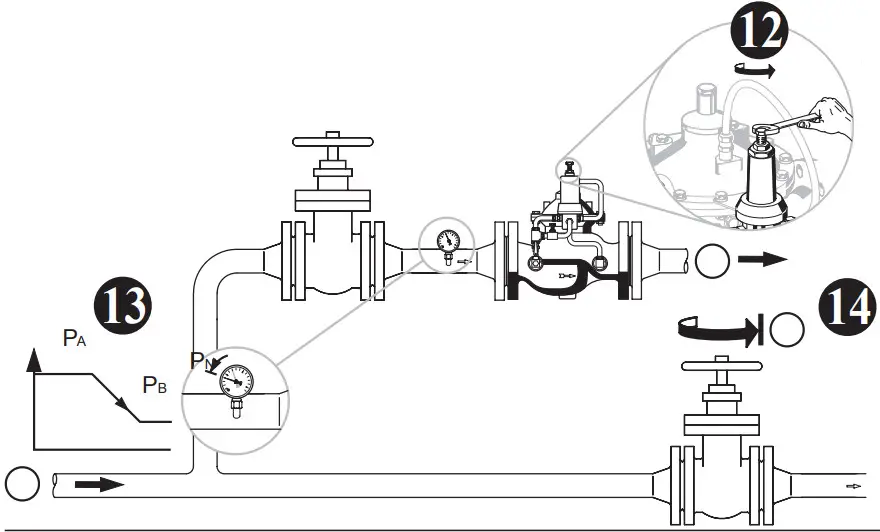

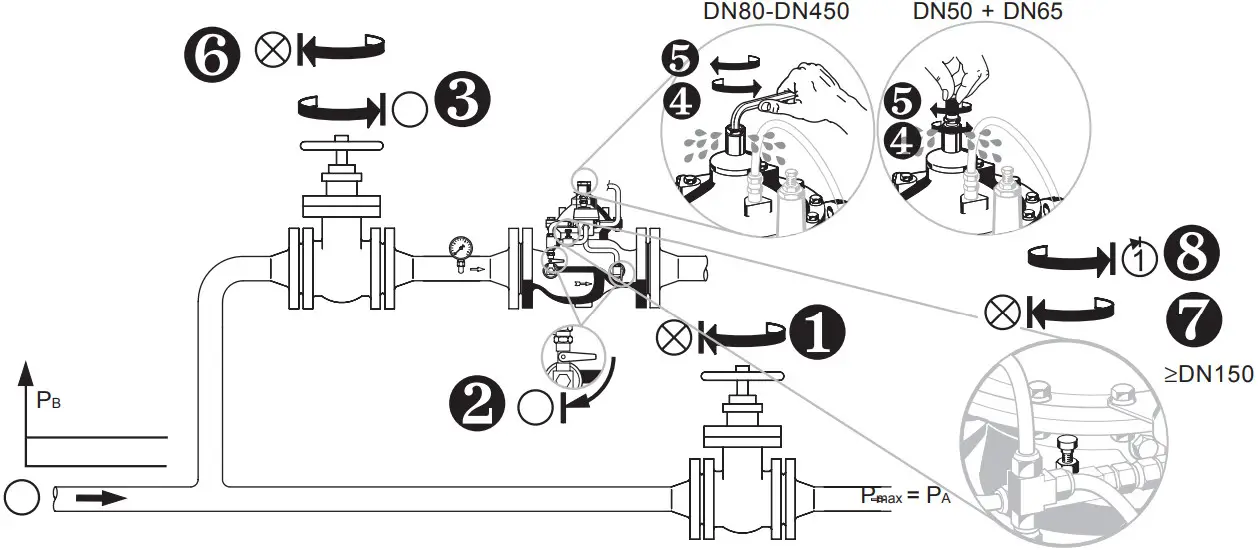

E2 InstallationE3 Commissioning

PB = Operating pressure
PA = Opening pressureuntil SV300 opens

Manufactured for and on behalf of
Pittway Sàrl, Z.A., La Pièce 4,
1180 Rolle, Switzerland
by its authorized representative
Ademco 1 GmbH

For more information
homecomfort.resideo.com/europe
Ademco 1 GmbH, Hardhofweg 40,
74821 MOSBACH, GERMANY
Phone: +49 6261 810
Fax: +49 6261 81309

© 2020 Resideo Technologies, Inc. All rights reserved.
Subject to change. MU1H-1336GE23 R0220
