Resideo Braukmann F76s User Guide

Filter
Braukmann

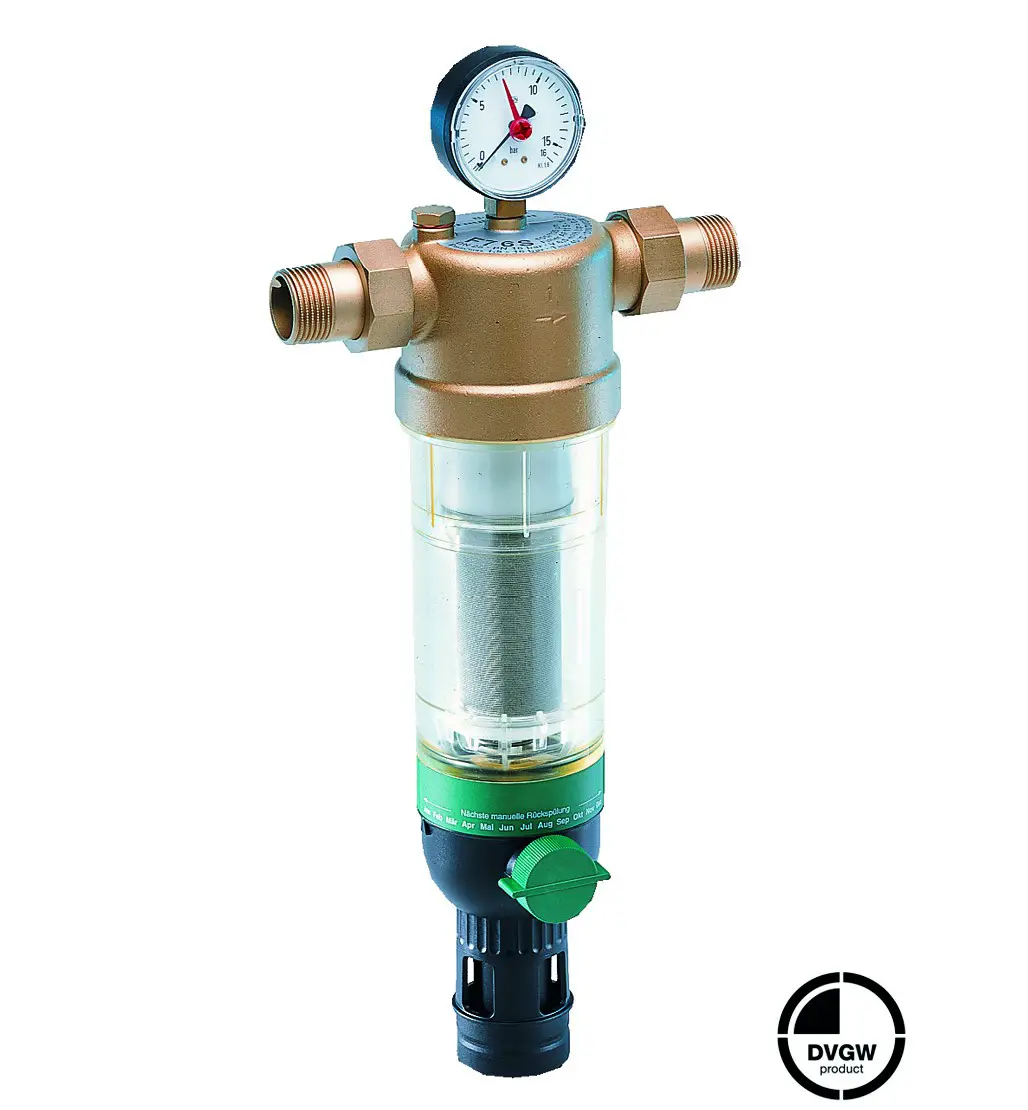

F76S
Reverse rinsing fine filter

APPLICATION

F76S reverse rinsing filters ensure a continuous supply of filtered water. The fine filter prevents the ingress of foreign bodies, for example, rust particles, strands of hemp, and grains of sand, and thus reduces the probability of corrosion. The appliances correspond to the requirements of current DIN/DVGW specifications.
APPROVALS
• DVGW
• SVGW
approval for all filters with 100 μm mesh sizes

SPECIAL FEATURES

• Double Spin Technology for connection sizes
  1/2″ to 1/4″
  – Cartridge with external rotor enabling simultaneous cleaning in lower and upper filter areas
  – Visual function check possible
• Filtered water supplied even during reverse rinsing
• Patented reverse rinsing system – fast and thorough cleaning of the filter with a small amount of water
• Memory ring indicates when next manual reverse rinsing is due
• Automatic reverse rinsing actuator with bayonet connector can be retrofitted
• Large filter surface
• Shock-resistant clear synthetic material filter bowl enables easy checking of filter contamination
• Filter and complete filter bowl are replaceable
• Also available without connections
• Standardized discharge connection
• ACS certified
• All materials are KTW approved
• Approved by TÜV LGA for low noise, Group 1 without limitations

TECHNICAL DATA

downwards
Note: The filter is constructed for drinking water installations. In the case of a process water application, the filter has to be proven individually.

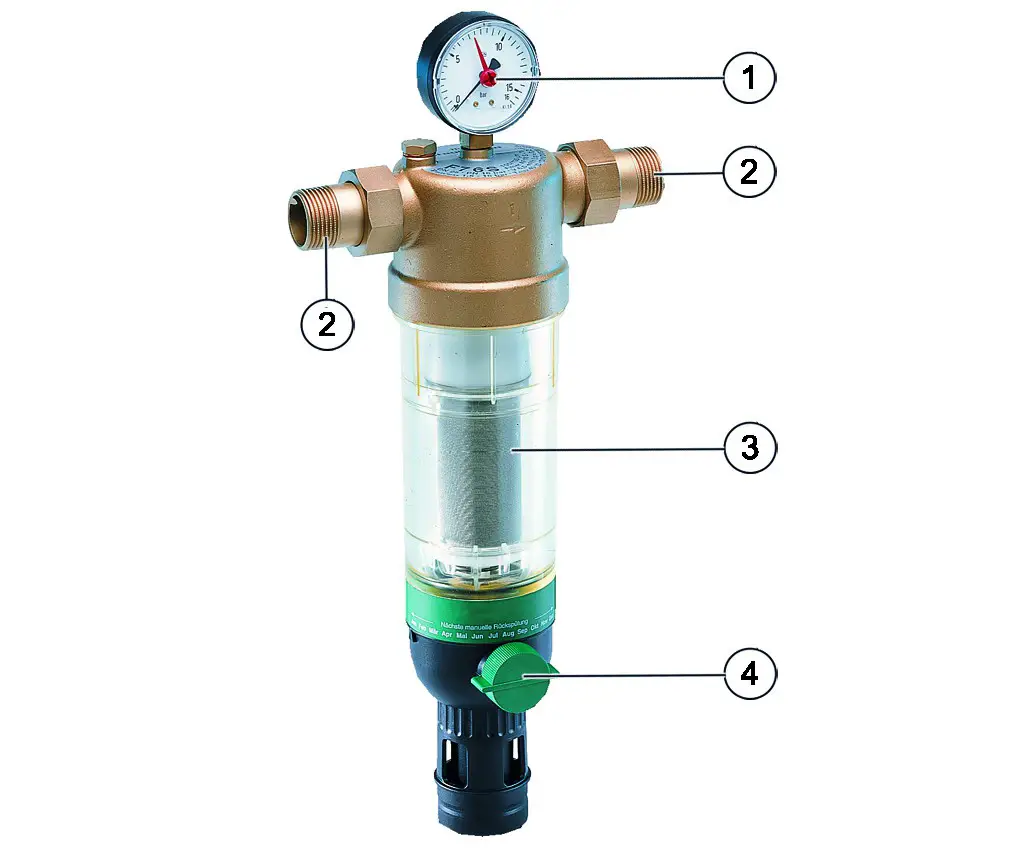

CONSTRUCTION

Overview

METHOD OF OPERATION
The filter insert is divided into two parts. In the “filtering” position, only the lower, larger section is rinsed through by water jets from outside to inside. The small upper section does not come in contact with unfiltered water. When the ball valve is opened for reverse rinsing, then the whole filter insert is pushed downwards until the water supply to the outer side of the main filter is stopped. Simultaneously, the water flow is opened to the upper part of the filter. The water needed for cleaning the filter passes through the upper filter section, then the rotating impeller and the main filter from inside to outside, i.e. the filter is reverse rinsed with filtered water. In that way, the upper filter is also cleaned by jets from the impeller. The filter automatically switches back to the operating position when the ball valve is closed again. Filters with Double Spin Technology have turbine blades that circulate the water and thereby set the rotor on the upper filter into a rotational motion. The internal impeller rinses off particles that have adhered to the upper ilter at the intersecting points with the rotor.
TRANSPORTATION AND STORAGE
Keep parts in their original packaging and unpack them shortly before use.
The following parameters apply during transportation and storage:

*non condensing

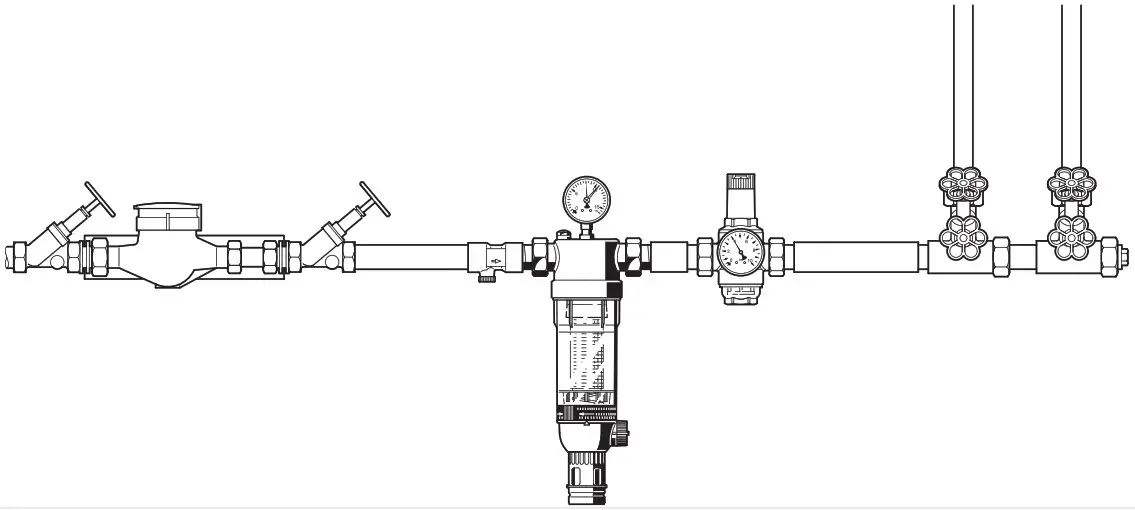

Installation Example

TECHNICAL CHARACTERISTICS

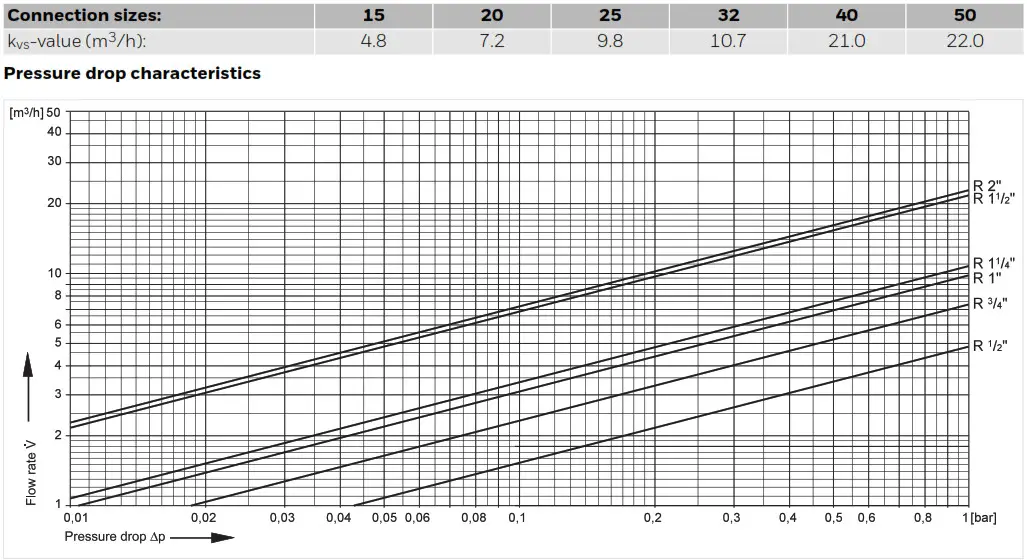

kvs-Values

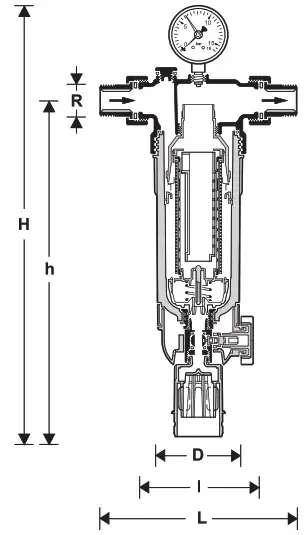

DIMENSIONS

Overview

Note All dimensions in mm unless stated otherwise.

The following tables contain all the information you need to make an order of an item of your choice. When ordering, please always state the type, the ordering or the part number.

Options
The filter is available in the following sizes: 1 3/2″,/4″, 1″, 111/4″, 1/2″ and 2″.
• standard
– not available

Note: … = space holder for connection size
Note: Ordering number example for 1″ and type AA valve: F76S-1AA
Note: Filters with other mesh widths available on request

	Description		Dimension	Part No.

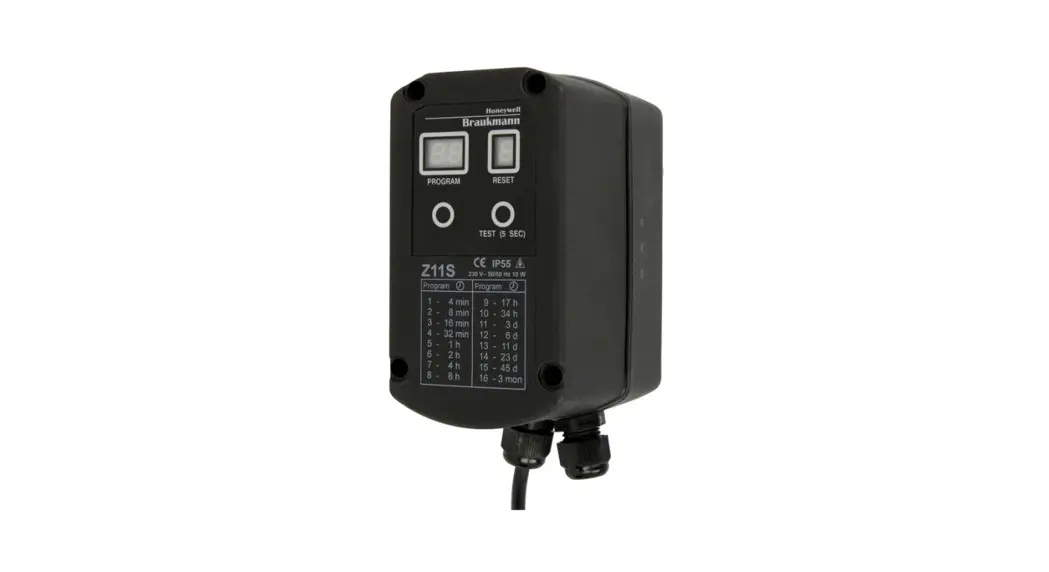

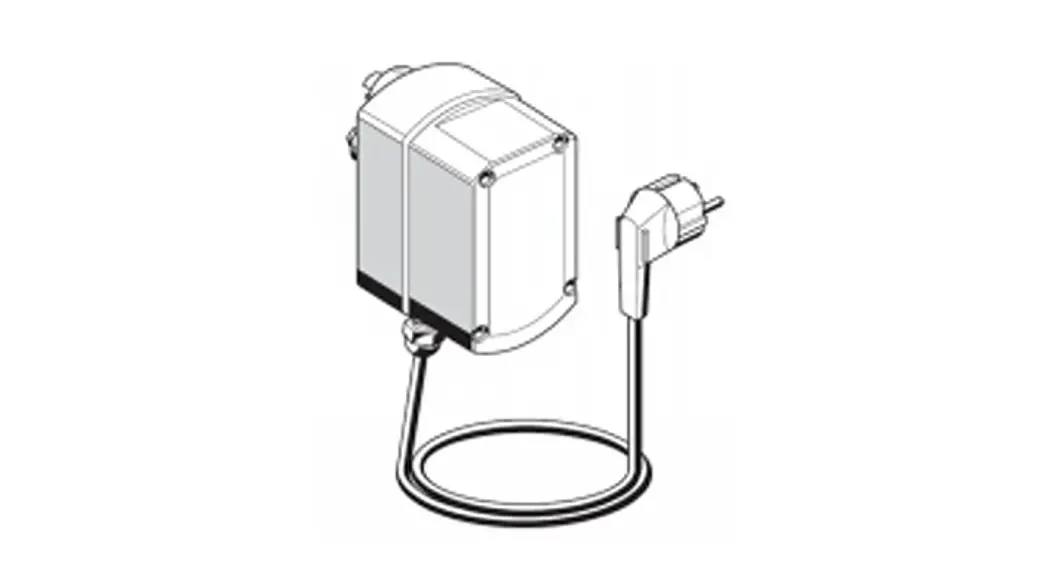

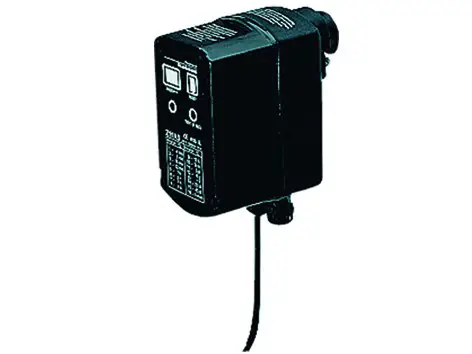

	Z11S	Automatic reverse rinsing actuator For automatic filter cleaning at presettable intervals
		230 V, 50/60 Hz, 10 with molded Schuko electrical plug 24 V, 50/60 Hz, 10 without    electrical plug 230 V, 50/60 Hz, 10 with molded Type 12 electrical plug for Switzerland		Z11S-A Z11S-B Z11S-Z

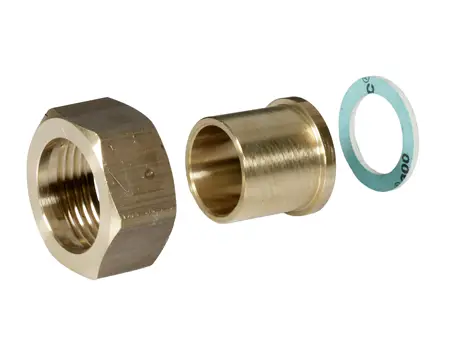

	VST06B	Connection set Solder connections
			1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″	VST06-1/2B VST06-3/4B VST06-1B VST06-11/4B VST06-11/2B VST06-2B

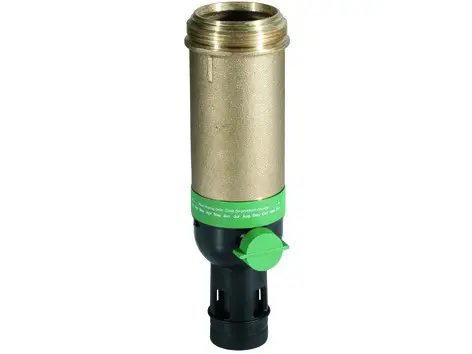

	FT09RS	Red-bronze filter bowl For temperatures up to 70°C and operating pressures up to 25.0 bar
			11/2″ – 1/4″ 11/2″ – 2″	FT09RS-1A FT09RS-11/2A

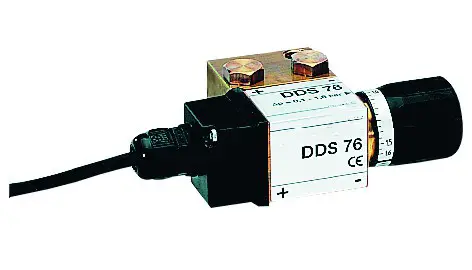

	DDS76	Differential pressure switch
			1/2″ + 3/4″ 1″ + 1 1/4″ 1 1/2″ + 2″	DDS76-1/2 DDS76-1 DDS76-11/2

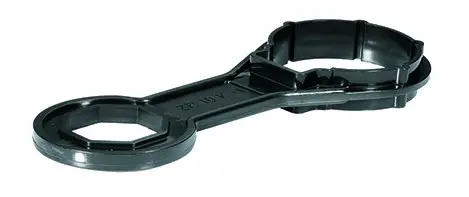

	ZR10K	Double ring wrench for removing the filter bowl
			1/2″ +3/4″ 11″ + 1/4″ 11/2″ + 2″	ZR10K-3/4 ZR10K-1 ZR10K-11/2

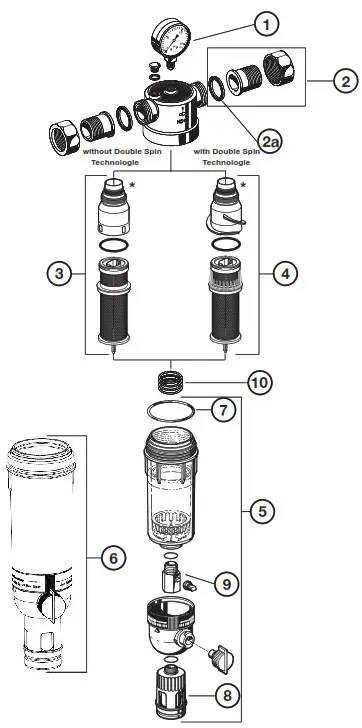

Spare Parts
F76S Fine Filters from 2007 onwards

		Description	Dimension	Part No.
	1	Pressure gauge
			0 – 16 bar	M76K-A16
	2a	Connection set threaded connection
			1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″	VST06-1/2A VST06-3/4A VST06-1A VST06-11/4A VST06-11/2A VST06-2A
	2	Union seal washer (10 pcs.)	1/2″ +3/4″ 1″ 11/4″ 11/2″ 2″	0901444 0901445 0901446 0901447 0901448
	3	Filter insert complete*, filter mesh 100 μm
			1/2″ -3/4″ 1″ – 1 /4″ 11/2″ – 2″	AF11S-1/2A AF11S-1A AF11S-11/2A
	4	Filter insert complete*, for filters with Double Spin Technology, Filter mesh 100 μm
			1  /2″ – 3/4″ 1″ – 1 /4″	AF11DS-1/2A AF11DS-1A
	5	Clear filter bowl
			1/2″ – 11/4″ 11/2″ – 2″	KF11S-1A KF11S-11/2A
	6	Red bronze filter bowl
			1/2″ – 1/4″ 11/2″ – 2″	FT09RS-1A FT09RS-11/ 2A
	7	O-ring set (10 pcs.)
			11/2″ + 1/4″ 11/2″ + 2″	0900747 0900748
	8	Drain connector
			1/2″ – 2″	AA76-1/2A
	9	Ball valve complete
			1/2″ – 2″	KH11S-1A
	10	Spring
			11/2″ – 1/4 ” 11/2″ – 2 “	2074900 2159400

*The filter guide (either with double spin or without double spin feature) is included in the packaging of the replacement filter inserts (AF11DS and AF11S) only for the sizes
1 /2″ up to 11/4″!
