Resideo Fk76cs/fkn76cs Braukmann User Guide

Filter Combinations

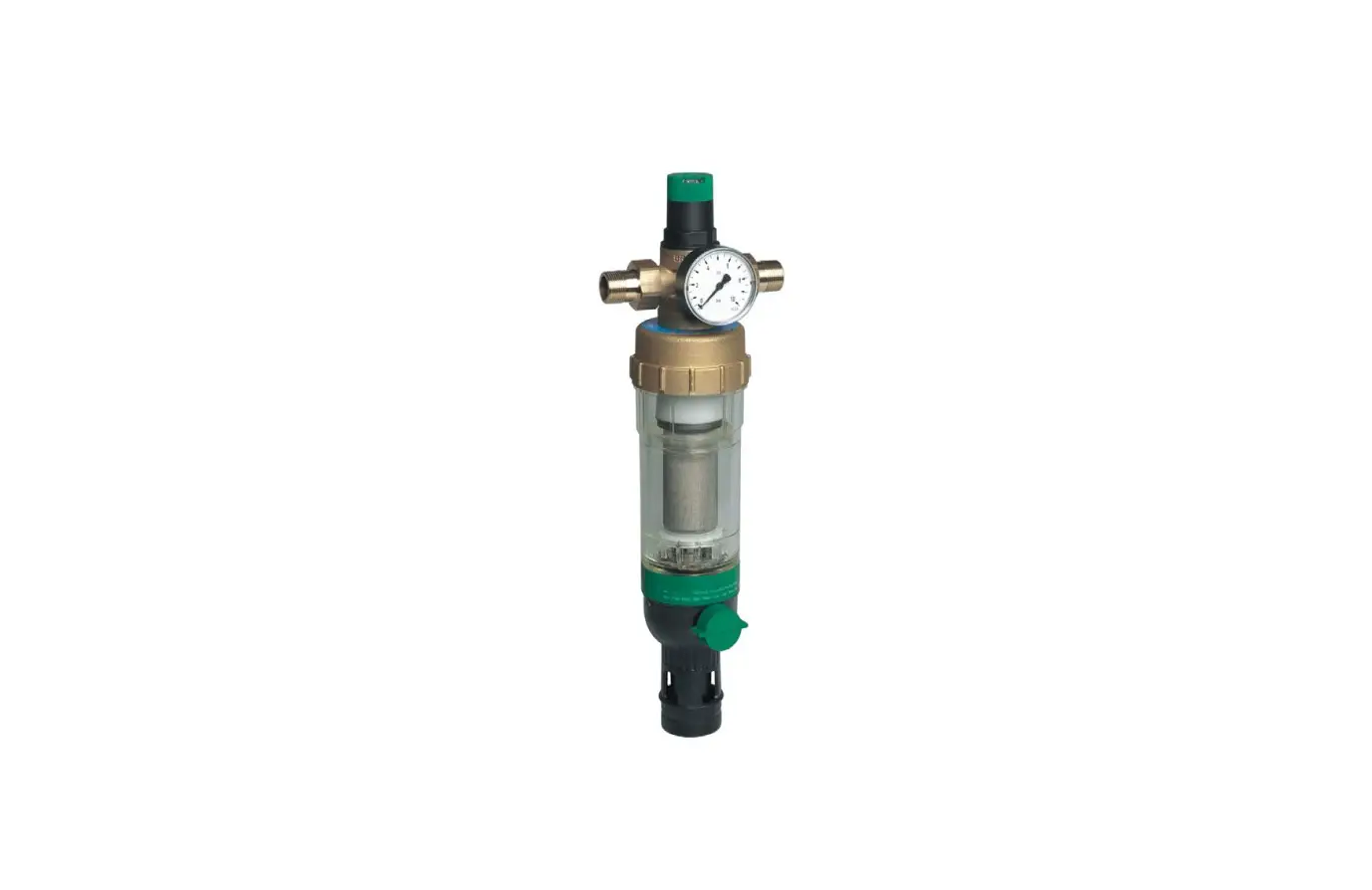

Braukmann
FK76CS/FKN76CS

Reverse rinsing filter combination with rotatable connector flange

APPLICATION

The filter combinations comprise a reverse rinsing filter and pressure reducing valve in one appliance. They ensure a continuous supply of filtered water. The fine filter stops the ingress of foreign bodies, for example, rust particles, strands of hemp and grains of sand and thus reduces the probability of corrosion. The pressure-reducing valve prevents pressure damage and reduces water consumption.
All individual units correspond to the requirements of current DIN/DVGW specifications. Technical features of each unit also apply to the combination assembly.

APPROVALS

• DVGW

approval for all filters with 100 μm mesh sizes

SPECIAL FEATURES

• Double Spin Technology
  – Cartridge with external rotor enabling simultaneous
  cleaning in lower and upper filter areas
  – Visual function check possible
• Balanced seat valve
• Filtered water supplied even during reverse rinsing
• Patented reverse rinsing system – fast and thorough cleaning of the filter with a small amount of water
• Memory ring indicates when the next manual reverse rinsing is due
• Automatic reverse rinsing actuator with bayonet the connector can be retrofitted
• Shock-resistant clear synthetic material filter bowl enables easy checking of filter contamination
• Inlet pressure balancing – no influence on the outlet pressure by fluctuating inlet pressure
• Valve and filter inserts are fully interchangeable
• Large filter surface
• Filter and complete filter bowl are replaceable
• Standardized discharge connection
• All materials are KTW approved
•  Approved by TÜV LGA for low noise, Group 1 without limitations

TECHNICAL DATA

Note:
The filter is constructed for drinking water installations. In the case of a process water application, the filter has to be proven individually.

CONSTRUCTION

Overview		Components	Materials
		Spring bonnet with adjustment knob and setting scale	High-quality synthetic material
		Threaded male connections	Brass
		Rotatable connector piece (FK76CS only)	Red bronze
		Housing with pressure gauge	Red bronze
		Fine filter in clear filter bowl	Shock-resistant, clear transparent synthetic material filter bowl, stainless steel fine filter
		Ball valve with drain connection	Brass (Ball Valve body), Stainless steel (ball), Plasticdurethan (drain adapter)
		Not depicted components:
		Valve insert complete with diaphragm and valve seat	High-quality synthetic material, fibre- einforced NBR diaphragm
		Double wring wrench	Plastic
		Seals	NBR

METHOD OF OPERATION

The filter combination combines reverse rinsing filter and pressure reducing valve in one appliance.
The downstream reverse rinsing fine filter holds back any dirt particles in the water. These particles are then completely flushed out by reverse rinsing.
Filters with Double Spin Technology have turbine blades that circulate the water and thereby set the rotor on the upper filter into a rotational motion. The internal impeller rinses off particles that have adhered to the upper filter at the intersecting points with the rotor.
The integral pressure reducing valve functions on a balanced force principle whereby the force exerted by a diaphragm is balanced against the force of an adjustment spring. The inlet pressure has no influence on the opening or closing of the valve. Inlet pressure fluctuation does not, therefore, affect the outlet pressure.

TRANSPORTATION AND STORAGE

Keep parts in their original packaging and unpack them shortly before use.
The following parameters apply during transportation and storage:

*non condensing

INSTALLATION GUIDELINES

Setup requirements

• Install in horizontal or vertical pipework with filter bowl downwards
  – This position ensures optimum filter efficiency
• Install shut-off valves
• These filters are armatures that need to be maintained regularly
• Ensure good access
  – Pressure gauge can be read off easily
  – Degree of contamination can be easily seen with a clear filter bowl
  – Simplifies maintenance and inspection
• The installation location should be protected against frost
• Fit immediately after the water meter
•  Related to the EN 806-2 it is recommended to install the filter immediately after the water meter
• In order to avoid flooding, it is recommended to arrange a permanent, professionally dimensioned wastewater connection

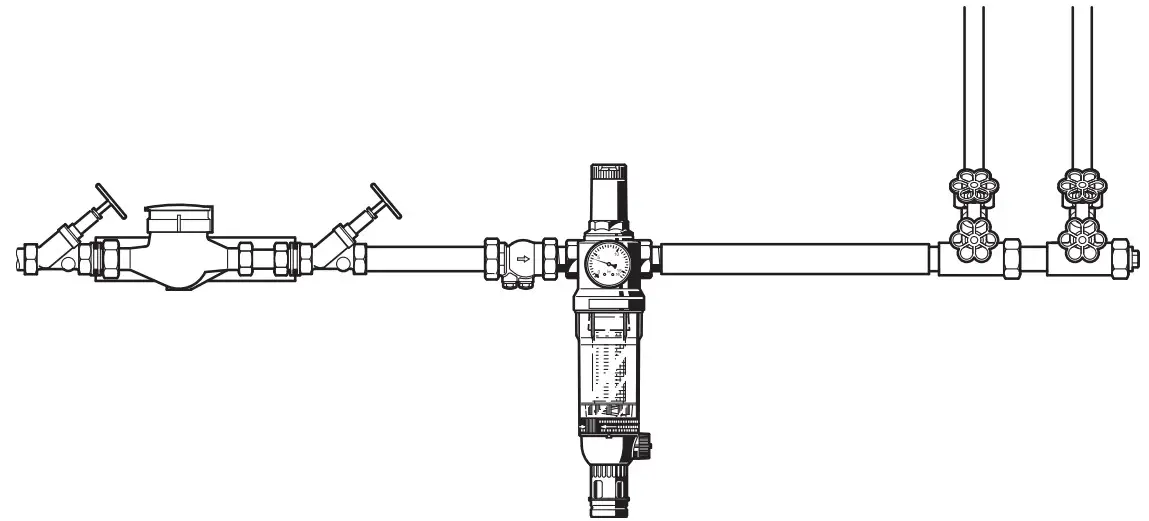

Installation Example

TECHNICAL CHARACTERISTICS

kvs-Values

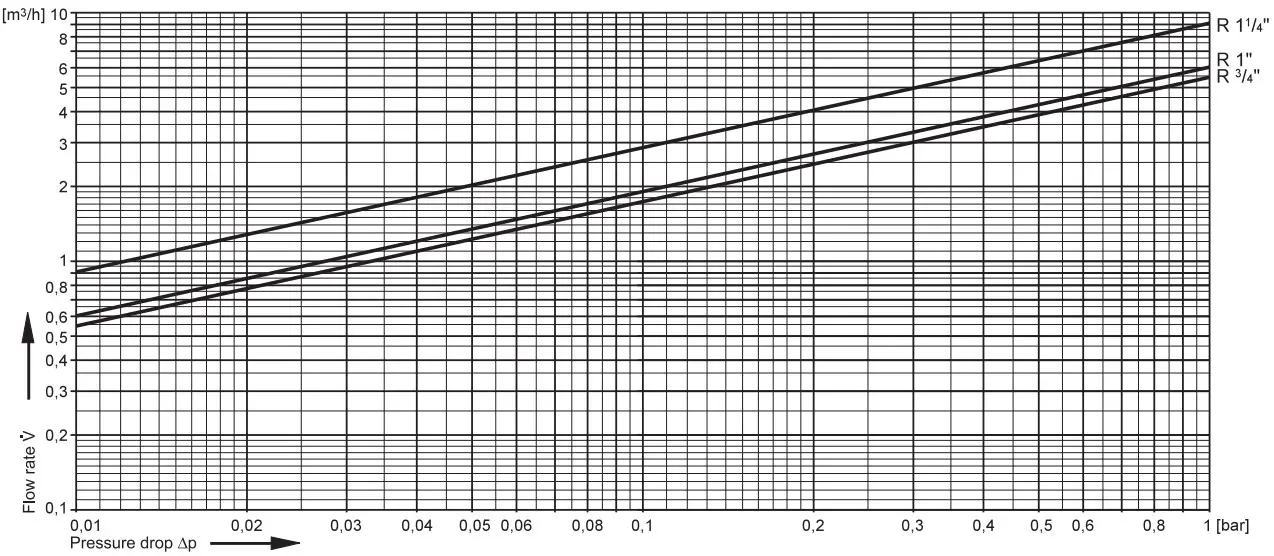

Pressure drop characteristics

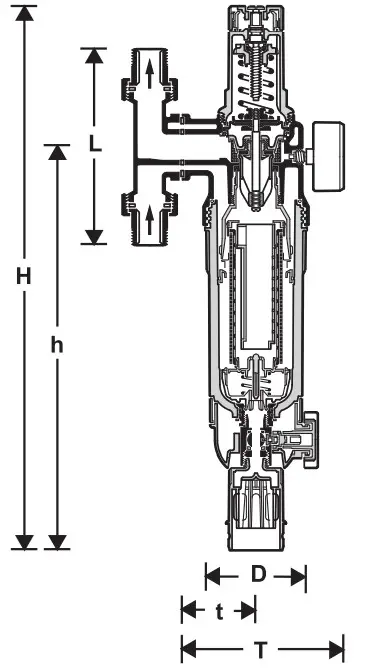

DIMENSIONS

Overview

Note: All dimensions in mm unless stated otherwise.

ORDERING INFORMATION

The following tables contain all the information you need to make an order of an item of your choice. When ordering, please always state the type, the ordering or the part number.

Options
The filter combination is available in the following sizes: 3 /4″, 1″, and 1 ¹/4″.
• standard
– not available

Note: = space holder for connection size

Accessories

	Description		Dimension	Part No.

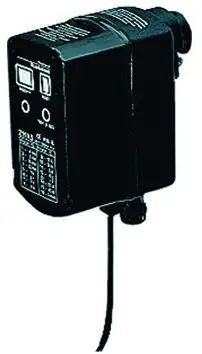

	Z11S	Automatic reverse rinsing actuator  For automatic filter cleaning at presettable intervals
		230 V, 50/60 Hz, 10 with molded Schuko electrical plug		Z11S-A
		24 V, 50/60 Hz, 10 without an electrical plug		Z11S-B
		230 V, 50/60 Hz, 10 with molded Type 12 electrical plug for Switzerland		Z11S-Z

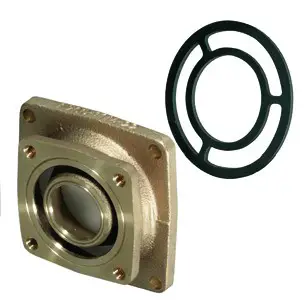

	ZA76C	Connector piece  For conversion of the fine filters with rotatable connector pieces (1¹ /4″ and 1 1 /2″) into retrofit filter combinations (Converts 63 mm hole centers to 45 mm hole centers)
			3 /4″	ZA76C-3/4A
			1	ZA76C-1A
			1 ¹/4″	ZA76C-11/4A

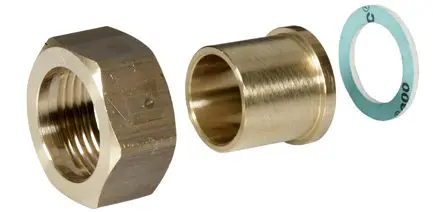

	VST06B	Connection set Solder connections
			1 /2″	VST06-1/2B
			3 /4″	VST06-3/4B
			1″	VST06-1B
			1 ¹/4″	VST06-11/4B
			1 ¹ /2″	VST06-11/2B
			2″	VST06-2B

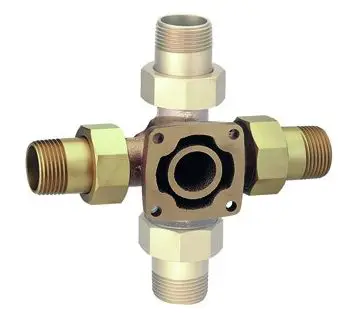

	DA74C	Rotatable connector piece For connection of retrofit filters FN76CS.
			3 /4″	DA74C-3/4A
			1″	DA74C-1A
			1 /4	DA74C-11/4A

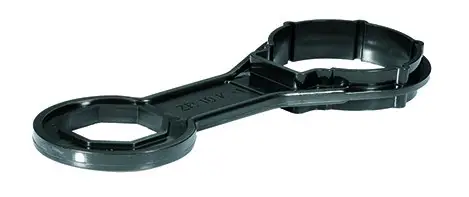

	ZR10K	Double ring wrench for removing the filter bowl
			1 ³/2″ + /4″	ZR10K-1/2
			1 1″ + 1 /4″	ZR10K-1
			1 ¹/2″ + 2″	ZR10K-11/2

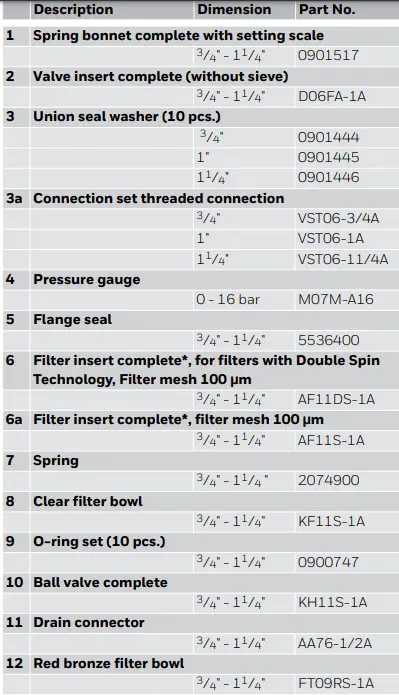

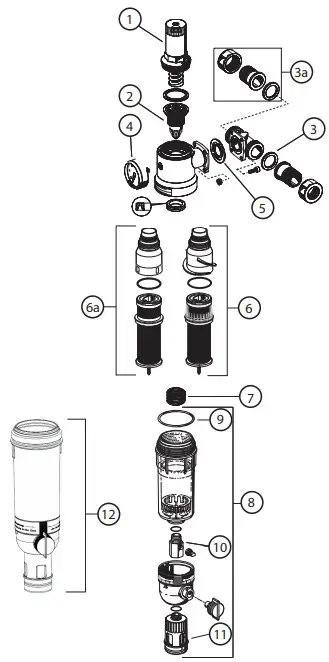

Spare Parts
Filter combinations FK76CS / FKN76CS from 1997 onwards

Overview

*The filter guide (either with double spin or without the double spin feature) is included in the packaging of the replacement filter inserts (AF11DS and AF11S) only for the sizes 1/2″ up to 1 ¹/4″!

Manufactured for and on behalf of Pittway Sàrl, Z.A., La Pièce 4, 1180 Rolle, Switzerland by its authorized representative Ademco 1 GmbH

For more information
homecomfort.resideo.com/europe
Ademco 1 GmbH, Hardhofweg 40, 74821 MOSBACH, GERMANY
Phone: +49 6261 810
Fax: +49 6261 81309
Subject to change. EN0H-1104GE23 R0420

© 2020 Resideo Technologies, Inc. All rights reserved.
