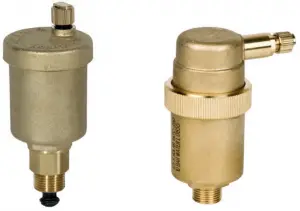

resideo E121S / E125S Braukmann Installation Guide
Safety Guidelines
- Follow the installation instructions.
- Use the appliance
- according to its intended use
- in good condition
- with due regard to safety and risk of danger.
- Note that the appliance is exclusively for use in the applications detailed in these installation instructions (see 2 Technical Data). Any other use will not be considered to comply with requirements and would invalidate the warranty.
- Please take note that any assembly, commissioning, servicing and adjustment work may only be carried out by authorized persons.
- Immediately rectify any malfunctions which may influence safety.
Technical Data
E121S
| Media | |
| Medium: | Water |
| Operating temperatures | |
| Max. operating temperature medium: | 150 °C |
| (not suitable for steam) | |
| Pressure values | |
| Nominal pressure: | 10 bar |
| Max. operating pressure: | 0.5 – 10 bar |
| Connections/Sizes | |
| Connection sizes: | G3/8″ or G1/2″ |
E125S
| Media | |
| Medium: | Water or water-glycol mixture, quality according to VDI 2035 (up to 50 % glycol) |
| Operating temperatures | |
| Max. operating temperature medium: | 150 °C* |
| Pressure values | |
| Max. operating pressure: | 0.5 – 10 bar |
| Nominal pressure: | max. 18 bar |
| Connections/Sizes | |
| Connection sizes: | G 3/8″ or G 1/2″ |
* Not suitable for steam
Options
For Options visit homecomfort.resideo.com/europe
Assembly
Installation Guidelines
Install at the highest points of the system, as well as anywhere where air accumulations can form
- Installation in the flow pipe on the pressure side of the pump is recommended
- The valve cap should remain on the air vent in order to prevent functional disruption due to dirt particles that have entered from the outside
- Therefore the air vent is drip free
Assembly instructions
- Blow out or rinse pipe line out well
- Mount shut-off valve under the air vent
- enables maintenance without emptying the system
- The air vent must be installed vertically
- The lower part of the shut-off valve must be installed in a sufficiently large free cross-section of the pipe
- Sealing is produced by means of the O-rings (3/8″) or sealing’s (1/2″) at the housing floor
Commissioning
- Open knurled cap two rotations
Maintenance
In order to comply with EN 806-5, water fixtures must be inspected and serviced on an annual basis. As all maintenance work must be carried out by an installation company, it is recommended that a servicing contract should be taken out. In accordance with EN 806-5, the following measures must be taken:
Inspection
The air vent must be examined regularly, since malfunctions can occur due to dirt accumulation
Disposal
Observe the local requirements regarding correct waste recycling/disposal!
Accessories
For Accessories visit homecomfort.resideo.com/europe
Manufactured for and on behalf of Pittway Sàrl, Z.A., La Pièce 4, 1180 Rolle, Switzerland by its authorised representative Ademco 1 GmbH
For more information homecomfort.resideo.com/europe Ademco 1 GmbH, Hardhofweg 40, 74821 MOSBACH, GERMANY Phone: +49 6261 810 Fax: +49 6261 81309
© 2020 Resideo Technologies, Inc. All rights reserved. Subject to change. MU1H-13059GE23 R0420
