Filter Combinations
Braukmann
FK09S

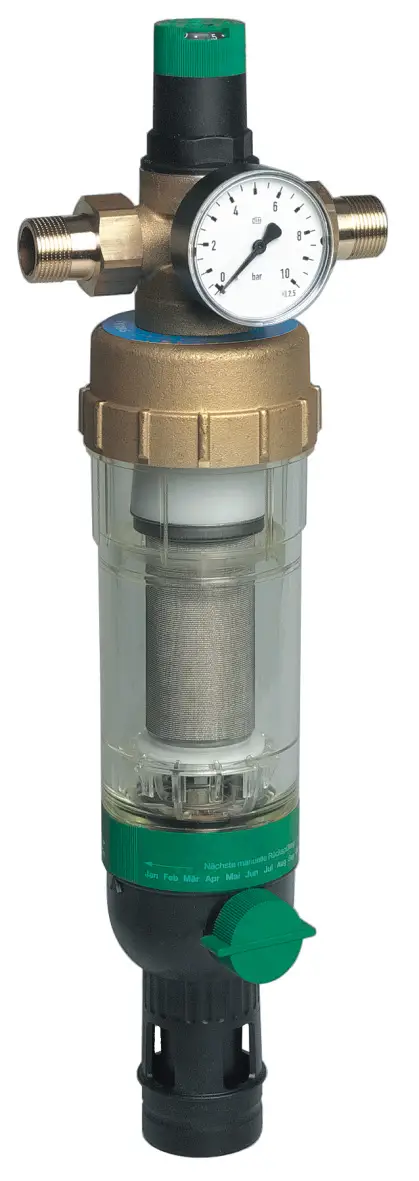

Filter combination with reverse rinsable fine filter
clear filter bowl and balanced-seat pressure reducing valve
APPLICATION
The FK09S filter combinations comprise a reverse rinsing filter and pressure reducing valve in one appliance. They ensure a continuous supply of filtered water. The fine filter stops the ingress of foreign bodies, for example, rust particles, strands of hemp, and grains of sand, and thus reduces the probability of corrosion. The pressure-reducing valve prevents pressure damage and reduces water consumption.
All individual units correspond to the requirements of current DIN/DVGW specifications. Technical features of each unit also apply to the combination assembly.
SPECIAL FEATURES
- Filtered water supplied even during reverse rinsing
- Patented reverse rinsing system – fast and thorough cleaning of the filter with a small amount of water
- Memory ring indicates when the next manual reverse rinsing is due
- Automatic reverse rinsing actuator with bayonet the connector can be retrofitted
- Shock-resistant clear synthetic material filter bowl enables easy checking of filter contamination
- Inlet pressure balancing – no influence on the outlet pressure by fluctuating inlet pressure
- Filter and complete filter bowl are replaceable
- The valve insert is of high-quality synthetic material and can be fully exchanged
- Large filter surface
- Standardized discharge connection
- All materials are KTW approved
TECHNICAL DATA
Media | |
| Medium: | Drinking water |
Connections/Sizes | |
| Connection sizes: | 1/2″ – 2″ |
Pressure values | |
| Min. operating pressure: | 1.5 bar (dynamic pressure) |
| Max. inlet pressure with clear filter bowl: | 16 bar |
| Outlet pressure: | 1.5 – 6 bar |
Operating temperatures | |
| Max. operating temperature medium accord. to EN 1567: | 30 °C |
Specifications | |
| Installation position: | Horizontal with filter bowl downwards |
Note:
The filter is constructed for drinking water installations. In the case of a process water application, the filter has to be proven individually.
CONSTRUCTION

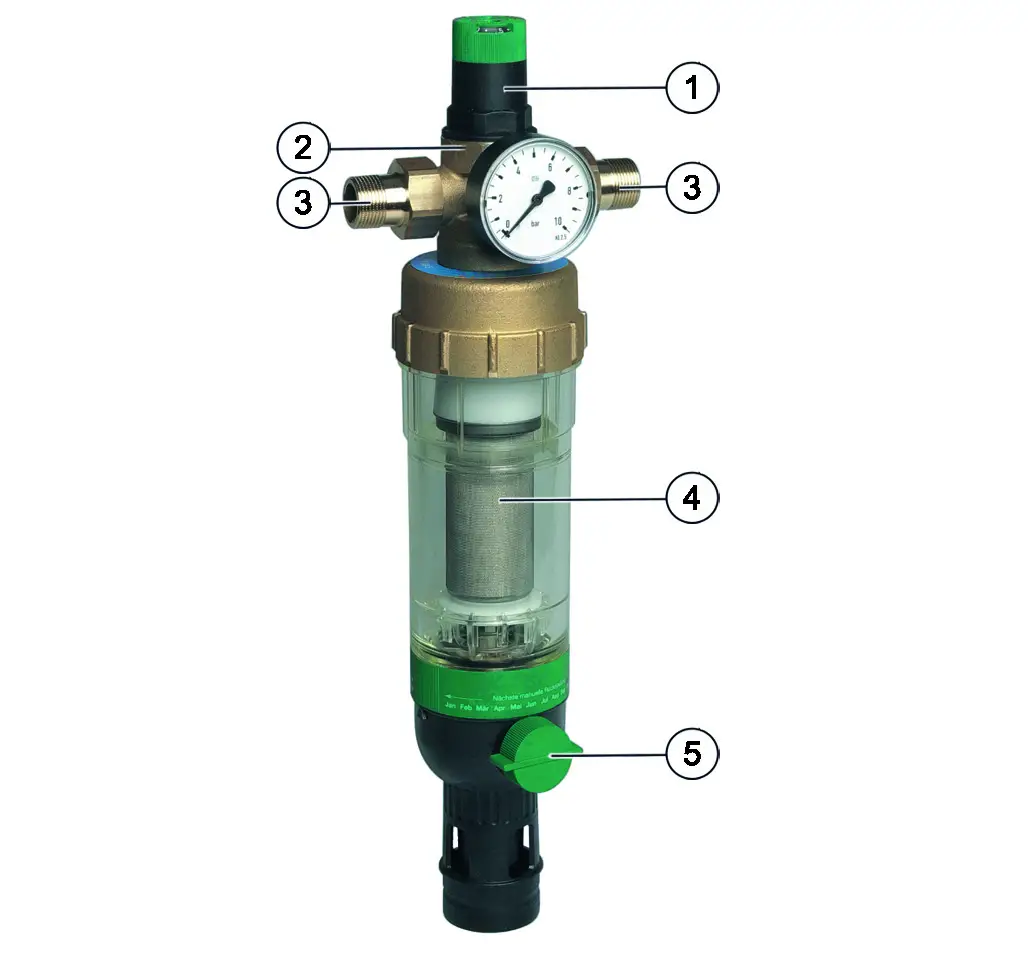

Overview
| Components | Materials | |
| 1 | Spring bonnet with adjustment knob and setting scale | High-quality synthetic material |
| 2 | Housing with pressure gauge connections on both sides | Dezincification-resistant brass |
| 3 | Threaded or soldered union connections | Brass |
| 4 | Fine filter in the clear filter bowl | Stainless steel, shock-resistant, transparent synthetic material filter bowl |
| 5 | Ball valve with drain connection | Brass (Ball Valve body), Stainless steel (ball), Plasticdurethan (drain adapter) |
| Not depicted components: | ||
| Valve insert complete with diaphragm and valve seat | High-quality synthetic material, fibre-reinforced NBR diaphragm | |
| Seals | NBR | |
| Double wring wrench | Plastic | |
METHOD OF OPERATION
The filter combination combines reverse rinsing filter and pressure reducing valve in one appliance.
The filter insert comprises an upper part and a lower combination section. When in the „filtering“ position, the small upper filter is closed so that the water can only pass through the main filter from the outside to the inside. When the ball valve is opened for reverse rinsing, the filter is pushed downwards until the water supply to the outer side of the main filter is stopped. Simultaneously, the water flow is opened to the upper part of the filter. The water needed for cleaning the filter passes through the upper sieve, the rotating impeller, and the main filter from inside to outside. By this means, the filter is fully cleaned over its whole surface area at the full inlet pressure. The filter automatically switches over to the operating position when the ball valve is
closed again.
The integral pressure reducing valve functions on a balanced force principle whereby the force exerted by a diaphragm is balanced against the force of an adjustment spring. The inlet pressure has no influence on the opening or closing of the valve. Inlet pressure fluctuation does not
therefore affect the outlet pressure.
TRANSPORTATION AND STORAGE
Keep parts in their original packaging and unpack them shortly before use.
The following parameters apply during transportation and storage:
| Parameter | Value |
| Environment: | clean, dry, and dust-free |
| Min. ambient temperature: | 5 °C |
| Max. ambient temperature: | 55 °C |
| Min. ambient relative humidity: | 25 % * |
| Max. ambient relative humidity: | 85 % * |
*non condensing
INSTALLATION GUIDELINES
Setup requirements
- Install in horizontal pipework with filter bowl downwards
– This position ensures optimum filter efficiency - Install shut-off valves
- Ensure good access
– Pressure gauge can be read off easily
– Degree of contamination can be easily seen with a clear filter bowl
– Simplifies maintenance and inspection - The installation location should be protected against frost
- Related to the EN 806-2 it is recommended to install the filter immediately after the water meter
- In order to avoid flooding, it is recommended to arrange a permanent professionally dimensioned wastewater connection

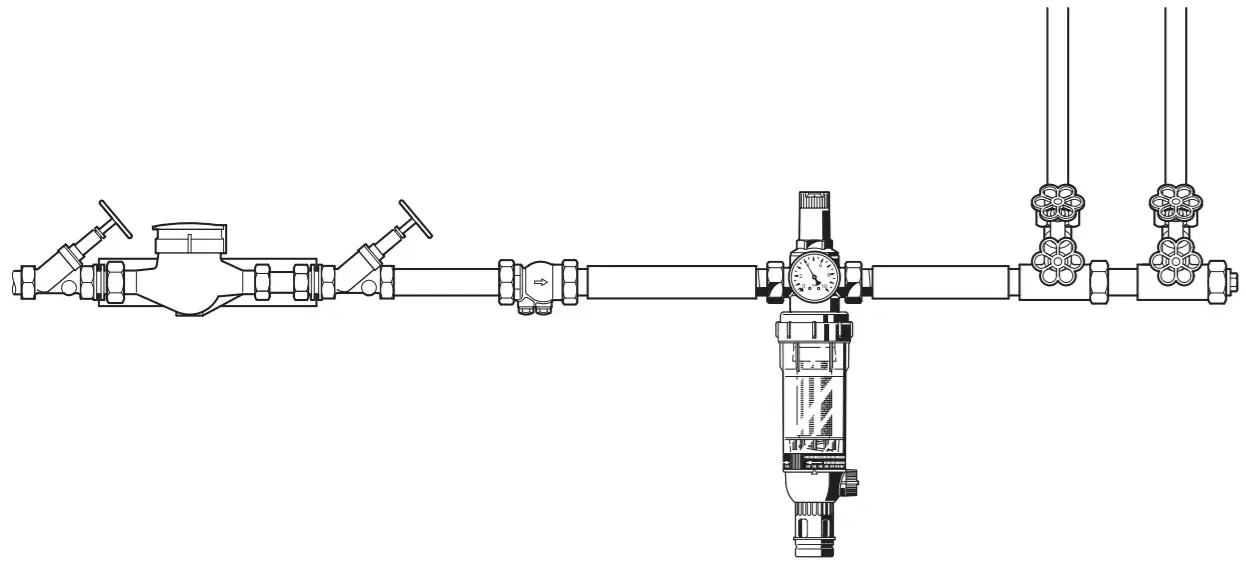

Installation Example
TECHNICAL CHARACTERISTICS
kvs-Values
| Connection sizes: | 15 | 20 | 25 | 32 | 40 | 50 |
| kvs-value (m³/h): | 2.5 | 3 | 5.8 | 5.9 | 5.9 | 5.9 |

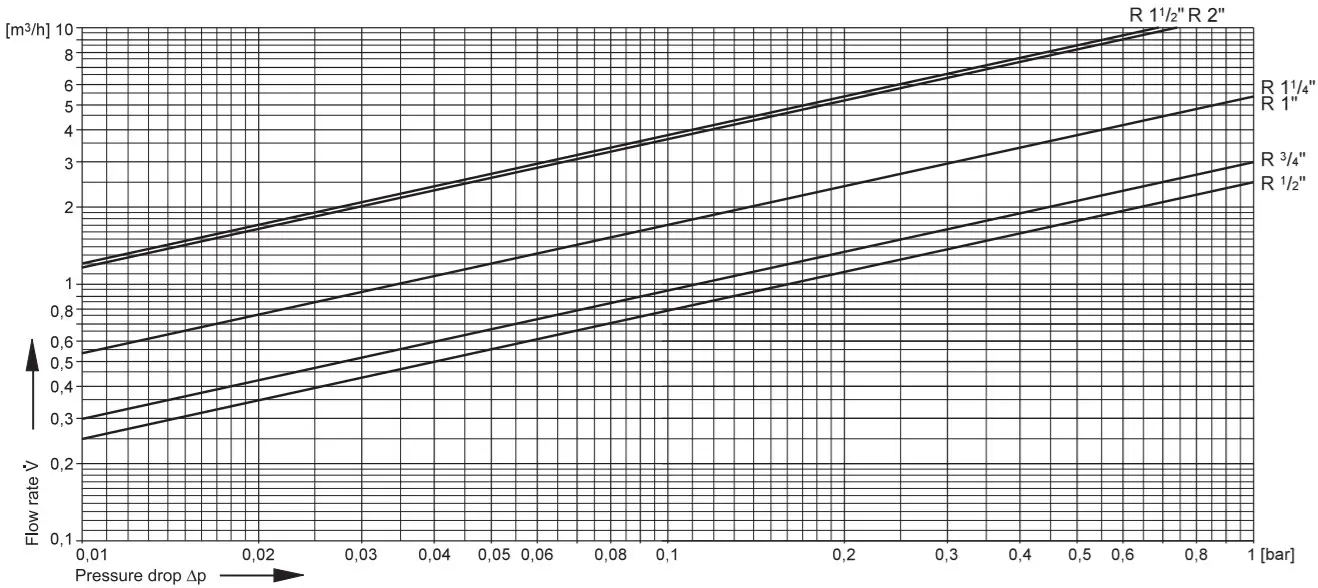

Pressure drop characteristics
DIMENSIONS
Overview
| Parameter | Values | ||||||
| Connection sizes: | R | 1/2″ | 3/4″ | 1″ | 1¹/4″ | 1¹/2″ | 2″ |
| Nominal size diameter: | DN | 15 | 20 | 25 | 32 | 40 | 50 |
| Dimensions: | L | 140 | 158 | 179 | 197 | 226 | 257 |
| I | 80 | 90 | 100 | 100 | 130 | 140 | |
| H | 466 | 466 | 489 | 489 | 617 | 617 | |
| h | 377 | 377 | 379 | 379 | 444 | 444 | |
| D | 100 | 100 | 100 | 100 | 122 | 122 | |
| Weight: | kg | 3 | 3.2 | 3.5 | 3.8 | 6.4 | 7.6 |
Note All dimensions in mm unless stated otherwise.
ORDERING INFORMATION
The following tables contain all the information you need to make an order of an item of your choice. When ordering, please always state the type, the ordering, or the part number.
Options
The filter combination is available in the following sizes: 1/2″,3/4″, 1″, 1¹/4″, 1¹/2″ and 2″.
• standard
– not available
| FK09S-…AA | FK09S-…EA | ||
| Connection type: | Threaded union connectors, filter mesh size 100 μm | • | – |
| Without connections, filter mesh size 100 μm | – | • | |
Note: … = space holder for connection size
Note: Ordering number example for 1″ and type AA valve: FK09S-1AA
| Accessories | Description | Dimension | Part No. | |

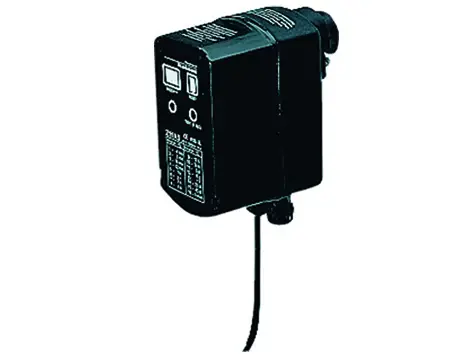

 | Z11S | Automatic reverse rinsing actuator For automatic filter cleaning at presettable intervals | ||
| 230 V, 50/60 Hz, 10 with molded Schuko electrical plug | Z11S-A | |||
| 24 V, 50/60 Hz, 10 without an electrical plug | Z11S-B | |||
| 230 V, 50/60 Hz, 10 with molded Type 12 electrical plug for Switzerland | Z11S-Z | |||

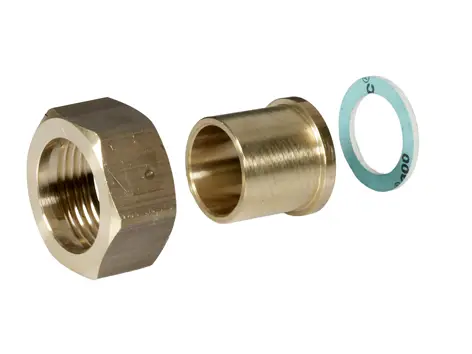

 | VST06B | Connection set Solder connections | ||
| 1/2″ | VST06-1/2B | |||
| 3/4″ | VST06-3/4B | |||
| 1″ | VST06-1B | |||
| 1¹/4″ | VST06-11/4B | |||
| 1¹/2″ | VST06-11/2B | |||
| 2″ | VST06-2B | |||

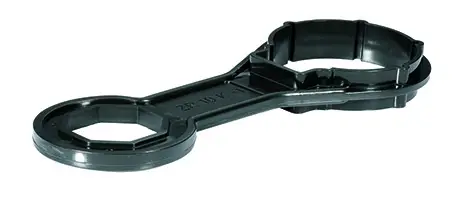

 | ZR10K | Double ring wrench for removing the filter bowl | ||
| 1/2″+3/4” | ZR10K-3/4 | |||
| 1″+1¹/4″ | ZR10K-1 | |||
| 1¹/2″+2″ | ZR10K-11/2 | |||
Spare Parts
FK09S Filter Combinations from 1997 onwards

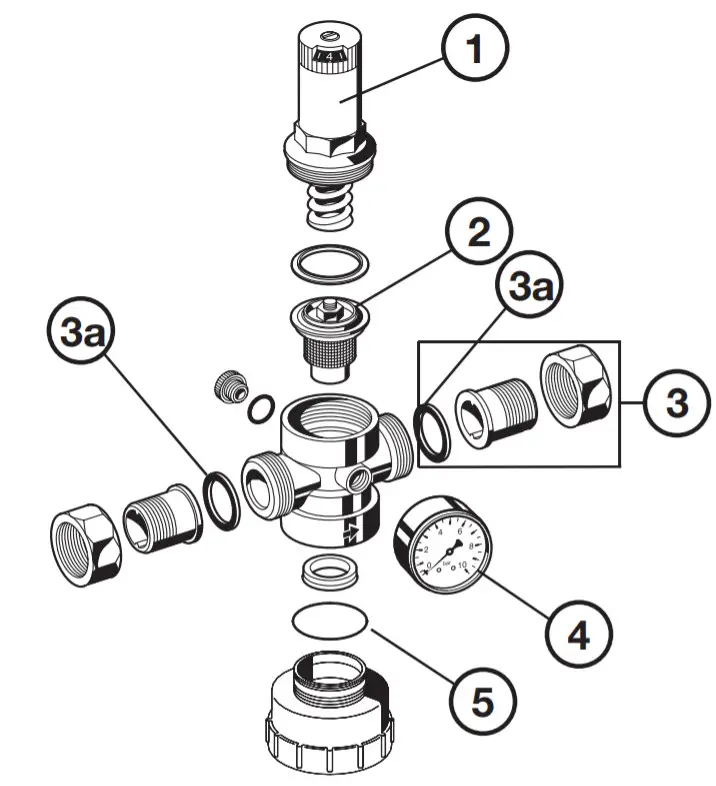

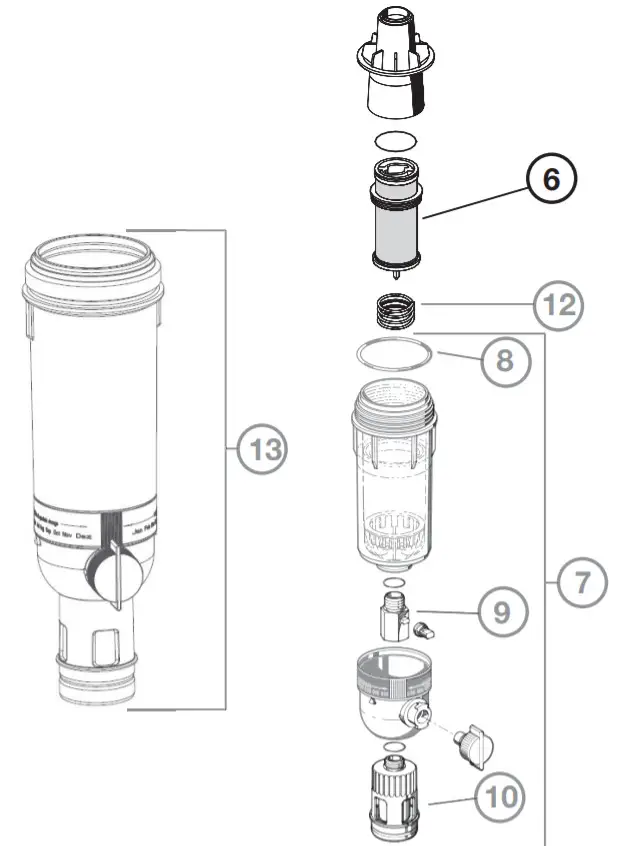

Overview
 |  |
| Description | Dimension | Part No. | |
| 1 | Spring bonnet complete with setting scale | ||
 | 0901515 0901516 0901518 | ||
| 2 | Valve replacement set complete (without strainer) | ||
 | D06FA-1/2 D06FA-1B D06FA-11/2 | ||
| 3 | Connection set threaded connection | ||
 | VST06-1/2A VST06-3/4A VST06-1A VST06-11/4A VST06-11/2A VST06-2A | ||
| 3a | Union seal washer (10 pcs.) | ||
| 0901443 0901444 0901445 0901446 0901447 0901448 | ||
| 4 | Pressure gauge | ||
0 – 10 bar | M07M-A10 | ||
| 5 | O-ring set (10 pcs.) | ||
| 0901246 0901499 0901248 | ||
| 6 | Filter insert complete | ||
| Filter mesh 100 μ Filter mesh 100 μ Filter mesh 100 μ Filter mesh 20 μ Filter mesh 20 μ Filter mesh 20 μ Filter mesh 50 μ Filter mesh 50 μ Filter mesh 50 μ Filter mesh 200 μ Filter mesh 200 μ Filter mesh 200 μ Filter mesh 300 μ Filter mesh 300 μ Filter mesh 300 μ Filter mesh 500 μ Filter mesh 500 μ Filter mesh 500 μ |  | AF11S-1A AF11S-1/2A AF11S-11/2A AF11S-1B AF11S-1/2B AF11S-11/2B AF11S-1C AF11S-1/2C AF11S-11/2C AF11S-1D AF11S-1/2D AF11S-11/2D AF11S-1E AF11S-1/2E AF11S-11/2E AF11S-1F AF11S-1/2F AF11S-11/2F | |
| 7 | Clear filter bowl | ||
 | KF11S-1A KF11S-11/2A | ||
| 8 | O-ring set (10 pcs.) | ||
| 0900747 0900748 | ||
| 9 | Drain connector | ||
1/2″-2 | AA76-1/2A | ||
| 10 | Ball valve complete | ||
1/2″-2 | KH11S-1A | ||
| 11 | Double ring wrench for removing the filter bowl and spring bonnet (no fig.) | ||
 | ZR10K-1 ZR10K-11/2 | ||
| 12 | Spring | ||
 | 2074900 2159400 | ||
| 13 | Red bronze filter bowl | ||
 | FT09RS-1A FT09RS-11/2A | ||
Note: 1 – 6 see on page 6
FK09S – Filter combination with reverse rinsable fine filter
Product Specification Sheet • EN0H-1130GE23 R0420 • Subject to change
