Bottom Mount Refrigerator PRODUCT DIMENSIONS

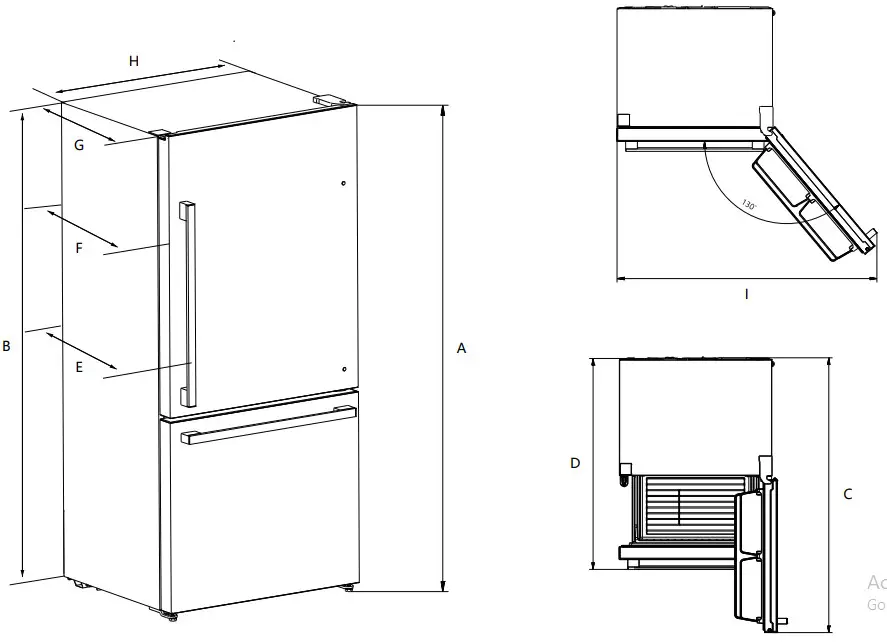

| Model | Capacity cu.ft | Height- overall “A” | Height-of Cabinet “B” | Depth-Doors Open 90° “C” | Depth-Drawer Open “D” | Depth-with Handles “E” | Depth-without Handles “F” | Depth- Cabinet“G” | Width- Cabinet “H” | Width-Doors Open 130° “I” |
| HRB171N6ASE | 17.2
| 69.1″ (1756mm) | 68.5″ (1740mm) | 56.3″ (1430mm) | 43.3″ (1101mm) | 29.1″ (740mm) | 26.6″ (675.5mm) | 23.6″ (600mm) | 31.1″ (79mm) | 52″ (1321mm) |
| HRB171N6AWE | 17.2 | 69.1″ (1756mm) | 68.5″ (1740mm) | 56.3″ (1 430mm) | 43.3″ (1101mm) | 29.1″ (740mm) | 26.6″ (675.5mm) | 23.6″ (600mm) | 31.1″ (790mm) | 52″ (1321mm) |
| HRB171N6ABE | 17.2
| 69.1″ (1756mm) | 68.5″ (1740mm) | 563″ (1430mm) | 43.3″ 1101mm) | 29.1″ (740mm) | 26.6″ (675.5mm) | 23.6″ (600mm) | 31.1″ (790mm) | 52″ (1321mm) |
| HRB171N6BSE | 17.2
| 69.1″ (1756mm) | 68.5″ (1740mm) | 56.3″ (1430mm) | 43.3″ (1101mm) | 29.1″ (740mm) | 26.6″ (675.5mm) | 23.6″ _ (600mm) | 31.1″ (790mm) | 52″ (1321mm) |
LOCATION REQUIREMENTS

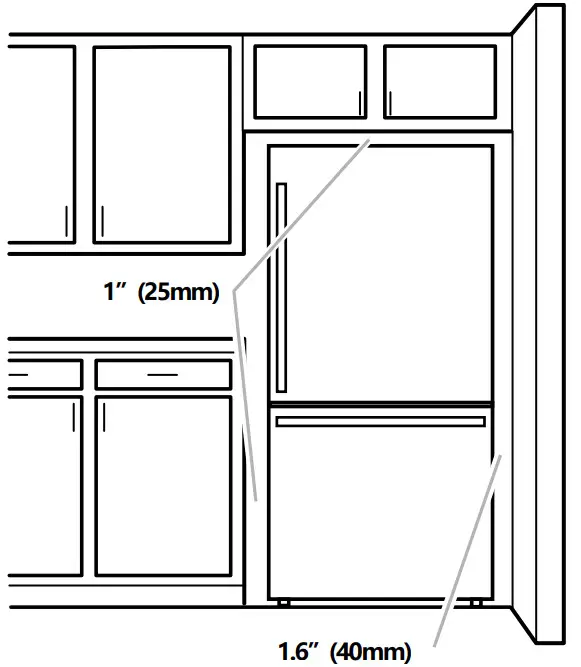

To ensure proper ventilation for your refrigerator, allow for an r (25mm) space on each side and at the top. Allow at least 20″ (51mm) between the back of the cabinet and the wall. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. If you are installing your refrigerator next to a fixed wall, leave a 1.6″ (40mm) minimum on the hinge side (some models require more) to allow for the door to swing open.
NOTE: This refrigerator is intended for use in a location where the temperature ranges from a minimum of 55°F (13°C) to a maximum of 110°F (43°C).
