Einbauanleitung
Installation instructions

Anleitung zum späteren Gebrauch aufbewahren!

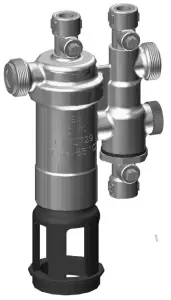

Systemtrenner
Backflow Preventer

Safety Guidelines

1. Follow the installation instructions.
2. Use the appliance
   • according to its intended use
   • in good condition
   • with due regard to safety and risk of danger.
3. Note that the appliance is exclusively for use in the applications detailed in these installation instructions. Any other use will not be considered to comply with require-
   ments and would invalidate the warranty.
4. Please take note that any assembly, commissioning, servicing and adjustment work may only be carried out by authorized persons.
5.  Immediately rectify any malfunctions which may influence safety.

 Description of function

BA-type backflow preventers are divided into three pressure zones. The pressure in the zone is higher than in the zone, which in turn is higher than in the zone. A discharge valve is connected to a zone that opens at the latest when the differential pressure between zones and drops to 0.14 bar. The water from the zone discharges to the atmosphere, both check valves close and therefore separate the zone from the zone and . In this way, the danger of back pressure or back siphonage into the supply network is prevented. The pipe-work connection is interrupted and the drinking water network s protected.

3. Application

Medium.Water
Maximum inlet pressure 10.0 bar
Minimum inlet pressure 1.5 bar

Technical data

Scope of delivery

The backflow preventer consists of:

• Housing
•  Valve cartridge with integral check valve and discharge valve
•  Integral sieve on the inlet
•  Outlet check valve
•  Discharge connection
• Check ball valves

Options

BA095-3/8E = Standard version with external threads 1/2″ on housing
BA095-3/8EZ = Special version with external threads 3/4″ on housing

 Assembly

7.1. Installations Guidelines

•  Install shutoff valves before and after backflow preventer• Install in horizontal pipework with the discharge valve downwards
•  Ensure good access – Simplifies maintenance and inspection
•  If a fine filter is not installed in the drinking water system, the installation of a filter with a mesh width of 100µ m is recommended in front of the backflow preventer.
• In the case of fluctuating pre-pressure or an input pressure over 10 bar, we recommend the insertion of a pressure regulator in front of the backflow preventer.
•  Do not install in places where flooding can occur
• The installation environment should be protected against frost and ventilated well
• Install discharge pipework that has adequate capacity
• Thoroughly flush pipework

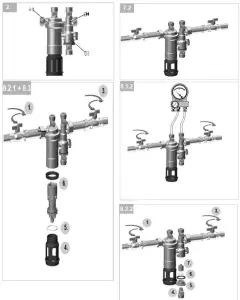

Assembly instructions

1. Thoroughly flush pipework
2.  Install a backflow preventer
   • Mount dirt strainer on the input side
   • Install in horizontal pipework with discharge connection directed downwards
   • Note flow direction (indicated by arrow)
   • Install without tension or bending stresses
   • Provide a straight section of pipework of at least five times the nominal valve size after the backflow preventer
3.  Attach drain pipe to discharge connection (plastic pipe HT 40)
4. The appliance is ready for use

 Maintenance

We recommend taking out a servicing contract with an installation firm
Maintenance of the backflow preventer must be carried out by authorized personnel!
Inspection
Frequency: every 6 months (depending on local operating conditions)
To be carried out by an installation company
Inspection with a test control unit and maintenance set (see accessories)
8.1.1. Testing discharge valve

 Take note of the instructions of the test control unit TKA295 or TK295
1. Procedure according to the instruction of the test control unit

 TKA295 resp. TK295
TKA295 resp. TK295
Quick test for the discharge valve:
• Lower the inlet pressure – if the discharge valve opens (it drops), the function is o.k.
8.1.2. Testing outlet check valve

 Take note of the instructions of the test control unit TKA295 or TK295
1. Procedure according to the instruction of the test control unit TKA295 resp. TK295
8.2. Maintenance

 We recommend taking out a servicing contract with an installation firm
In accordance with DIN EN 1717, regular maintenance must be taken.
Interval: once a year
To be carried out by an installation company

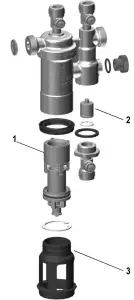

8.2.1. Cartridge insert

1. Close shutoff valve on the inlet
2.  Release pressure on the outlet side (e.g. through water tap)
3. Close shutoff valve on the outlet
4. Remove discharge connection
5.  Remove retaining ring
6. Replace cartridge insert and lip seal
   Don’t disassemble the cartridge insert to individual parts!
7.  Reassemble in reverse order
   • push down the cartridge insert till it snaps in
8. Test function (see chapter inspection)

8.2.2. Check valve

1. Close shutoff valve on the inlet
2.  Release pressure on the outlet side (e.g. through water tap)
3.  Close shutoff valve on the outlet
4.  Unscrew the plug
5.  Remove retaining ring
6.  Remove and exchange
   check valve The check valve will be destroyed after demounting
7.  Reassemble in reverse order
8.  Test function (see chapter inspection)

8.3. Cleaning

To be carried out by an installation company or the operator.
Do not use any cleaning agents containing solvents and/or alcohol to clean the plastic parts!

Detergents must not be allowed to enter the environment- mentor the sewerage system!
8.3.1. Cartridge insert
If necessary, the cartridge insert can be cleaned.

1. A close shutoff valve on the inlet
2.  Release pressure on the outlet side (e.g. through water tap)
3. A close shutoff valve on the outlet
4.  Remove discharge connection
5. Remove retaining ring
6. Clean or replace cartridge insert and lip seal
   Don’t disassemble the cartridge insert into individual parts!
7. Reassemble in reverse order
   • push down the cartridge insert till it snaps in
8. Test function (see chapter inspection)

8.3.2. Sieve
If nesseccary, the filter can be cleaned.

1.  A close shutoff valve on the inlet
2. Release pressure on the outlet side (e.g. through water tap)
3.  A close shutoff valve on the outlet
4. Unscrew the pipeline on the input side
5. Remove filter, clean, and reinsert
6. Montage dans l’ordre inverse

Disposal

• Brass housing
• High-quality synthetic material valve cartridge
•  High-grade synthetic material check valve
•  Sealing elements made of elastomer materials suitable for drinking water
•  High-quality synthetic material discharge connection
  Observe the local requirements regarding correct waste recycling/disposal!

Troubleshooting

Spare Parts

TK295 Test kit
Electronic pressure measuring device with digital indicator, battery-operated.
With case and accessories, ideal for inspection and maintenance of backflow preventer type BA.
TKA295 Test kit
Analog pressure measuring device with differential pressure display.
With case and accessories, ideal for inspection and maintenance of backflow preventer type BA.

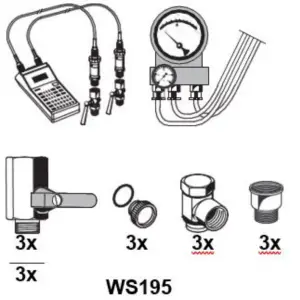

WS195 Maintenance-set
Maintenance-set for backflow preventers for use with Test kit TK295 resp. TKA295
