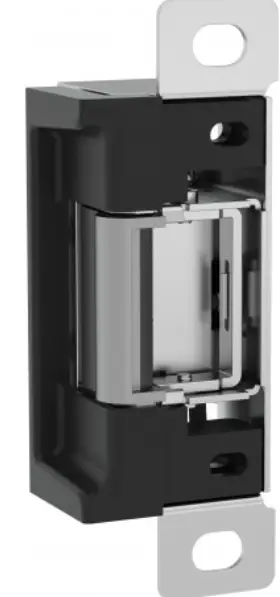

CAL-ROYAL ES1140 Electric Strike and Accessories
Features
- Secure, economical and durable solution for gates
- Water drainage function for gates or semi-outdoor applications
- One piece cast zinc alloy construction
- Use with bored cylindrical locksets

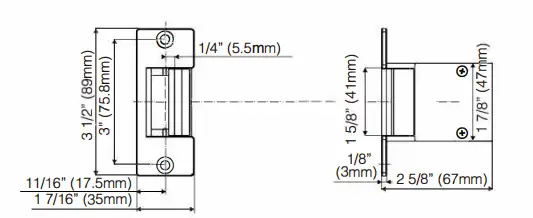

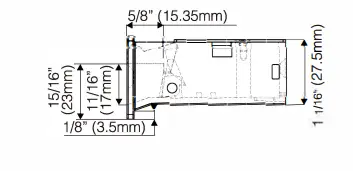

Specifications
- Voltages: 12 / 24 VDC I AC Intermittent Duty; No Polarity (Intermittent use: Not to exceed 20 seconds)
- Operating Temperature: -10° ~49°C (14° ~120° F)
- Humidity: 0~85% non-condensing
- Keeper Width: 1 5/8″ (41 mm)
- Latch Throw: 9/16″ (15mm)
- Holding Force: 1,000 lbs (454Kg)
- Cycle Test: 250,000+ cycles
- Finish: Aluminum or US1 (Black)
- Fail-secure
- Weight: 343g

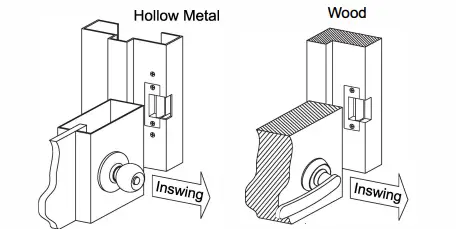

Frame Applications

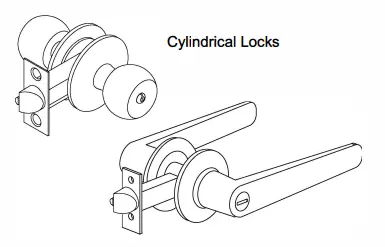

Compatible Locks

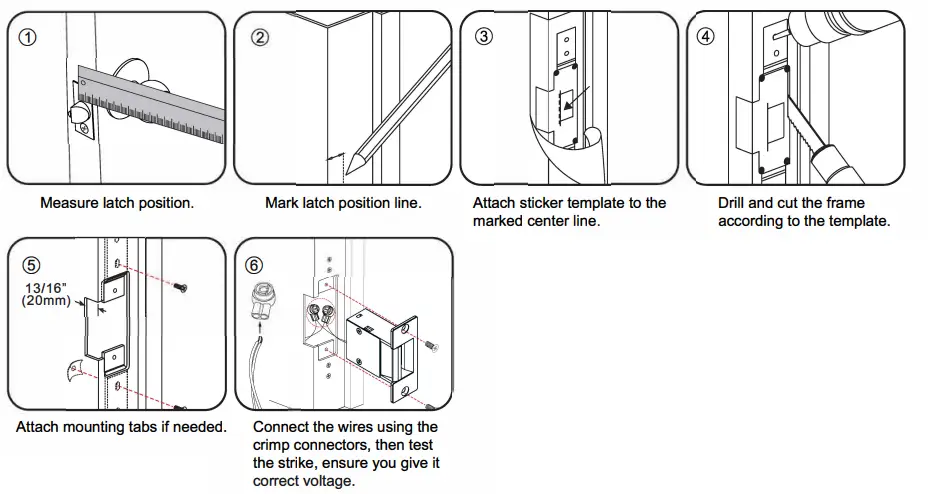

Electric Strike Installation
Installing the Crimp Connectors
Crimp provided connections connectors to make easier wiring are and more reliable.
To install connectors:
- Insert the wires into the connector.
- Use a crimping tool or pliers to evenly press down on the head of the connector
