MARTEC Lighting MLXCO34610 LED Bunker Oval Shape
We strongly recommend that you read this manual carefully before installation. Installation MUST be carried out by a qualified and licensed electrician.
Models Parameters
- MLXCO34610 10W IP54 Tricolour LED Bunker Oval PIR Motion Sensor White
- MLXCO34615 15W IP54 Tricolour LED Bunker Oval PIR Motion Sensor White
Installation Instructions

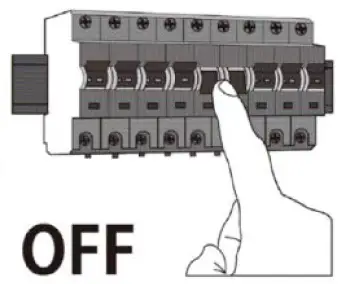

Step 1
Switch off the mains

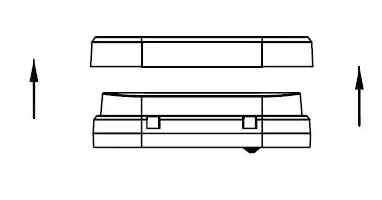

Step 2
Remove the diffuser
Step 3
Mark on the desired mounting surface.
Step 4
Drill holes and put the expansion nuts into the hole

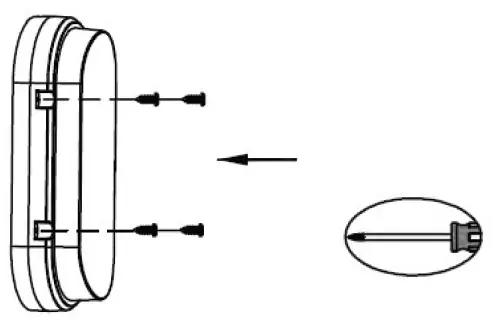

Step 5
Mount the housing onto the wall, select desired CCT, and connect to power as shown above, Plug the power connector between the housing and the light fitting.
Step 6
Put the diffuser back on
Step 7
Put the trim back on

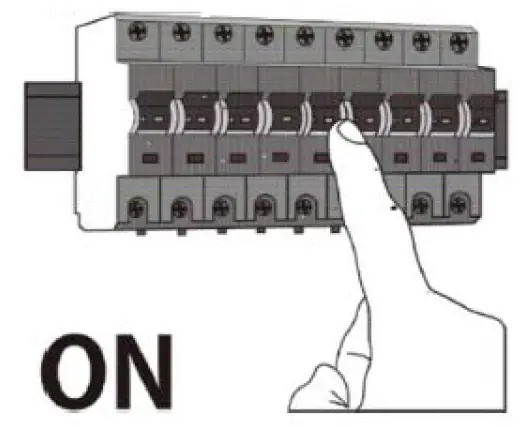

Step 8
Switch on the mains
Data Table
| Models | Power (W) | PF | CCT (K) | Weight (KG) | Operation Temperature (Degree) | IP | In-rush Current (A) |
| MLXCO34610 | 10 | ≧0.5 | 3000 4000 6500 | 0.4 | +40° -20° | 54 | 5 |
| MLXCO34615 | 15 | ≧0.5 | 3000 4000 6500 | 0.4 | +40° -20° | 54 | 5 |
WARNING
- Installation of product MUST follow SAA standards and meet local authority regulations.
- Installation MUST be carried out by a qualified and licensed electrician.
- Light MUST be earthed.
- Light MUST be firmly installed on a flat solid surface, wall, or ceiling.
- DO NOT immerse any part of the light fitting into water or any form of liquid.
- DO NOT look directly into the LED light.
- The warranty is VOID if the product is not installed according to this installation guide.
Warranty
2 Year Replacement Warranty
Visit our website for details https://www.martecaustralia.com.au/warranty-statement/.
