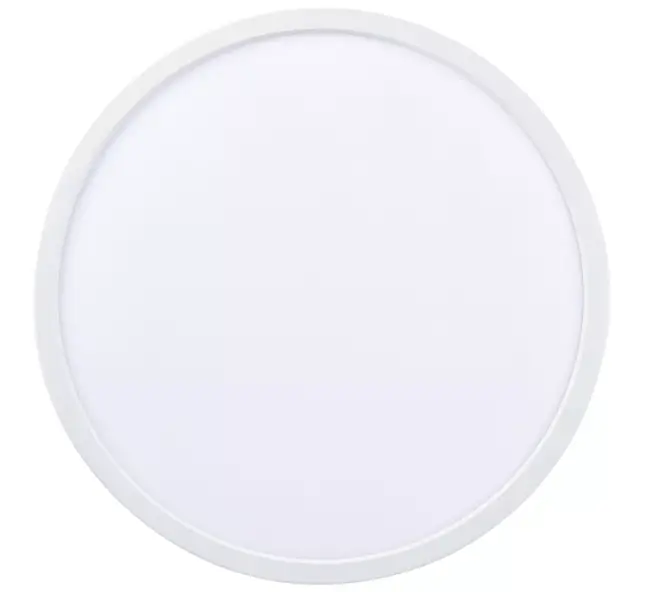

MARTEC Lighting Ashton LED Wall Light
Instruction
InstructionWe strongly recommend that you read this manual carefully before installation.
Installation MUST be carried out by a qualified and licensed electrician.
Models Parameters
- MLXA34510W 10W LED Wall Light IP54 Tricolour
- MLXA34510M White 10W LED Wall Light IP54 Tricolour Matt Black

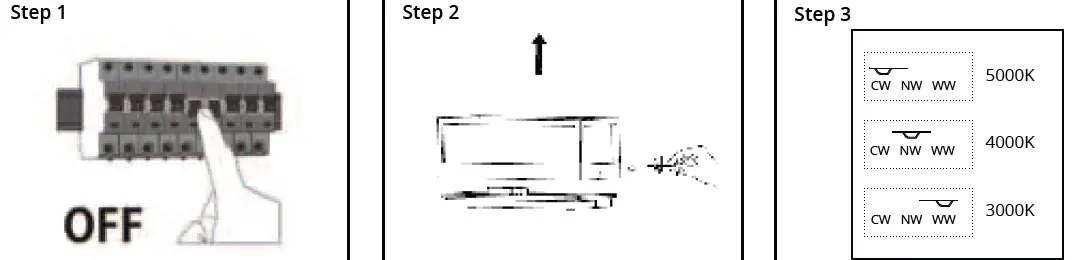

Installation Instructions
- Switch off the mains.
- Unscrew and remove the mounting bracket using the allen key supplied.
- Choose colour temperature by flicking the switch.
- Mount the bracket on the desired surface using the two screws supplied.
- Wire to main as illustrated above.
- Attach fitting back onto the bracket using the allen key supplied.
- Switch on the mains.
Accessories Included
- 1x allen key
- 2x washers
- 2x wall plugs
- 2x screws
Data Table
| Models | Power (W) | PF | CCT (K) | Weight (KG) | Operation Temperature (Degree) | IP |
| MLXA34510W | 10 | ≧0.5 | 3000 4000 5000 | 0.75 | +40° -20° | 54 |
| MLXA34510M | 10 | ≧0.5 | 3000 4000 5000 | 0.75 | +40° -20° | 54 |
WARNING
- Installation of product MUST follow SAA standards and meet local authority regulations.
- Installation MUST be carried out by a qualified and licensed electrician.
- Light MUST be earthed.
- Light MUST be firmly installed to a flat solid surface, wall or ceiling.
- DO NOT immerse any part of the light fitting into water or any form of liquid.
- DO NOT look directly into the LED light.
- The warranty is VOID if product is not installed according to this installation guide.
2 Year Replacement Warranty
Visit our website for details https://www.martecaustralia.com.au/warranty-statement/
E: [email protected] | P: 02 8778 7500 www.martecaustralia.com.au
Martec® Australia | Life, enhanced®
